Product Description

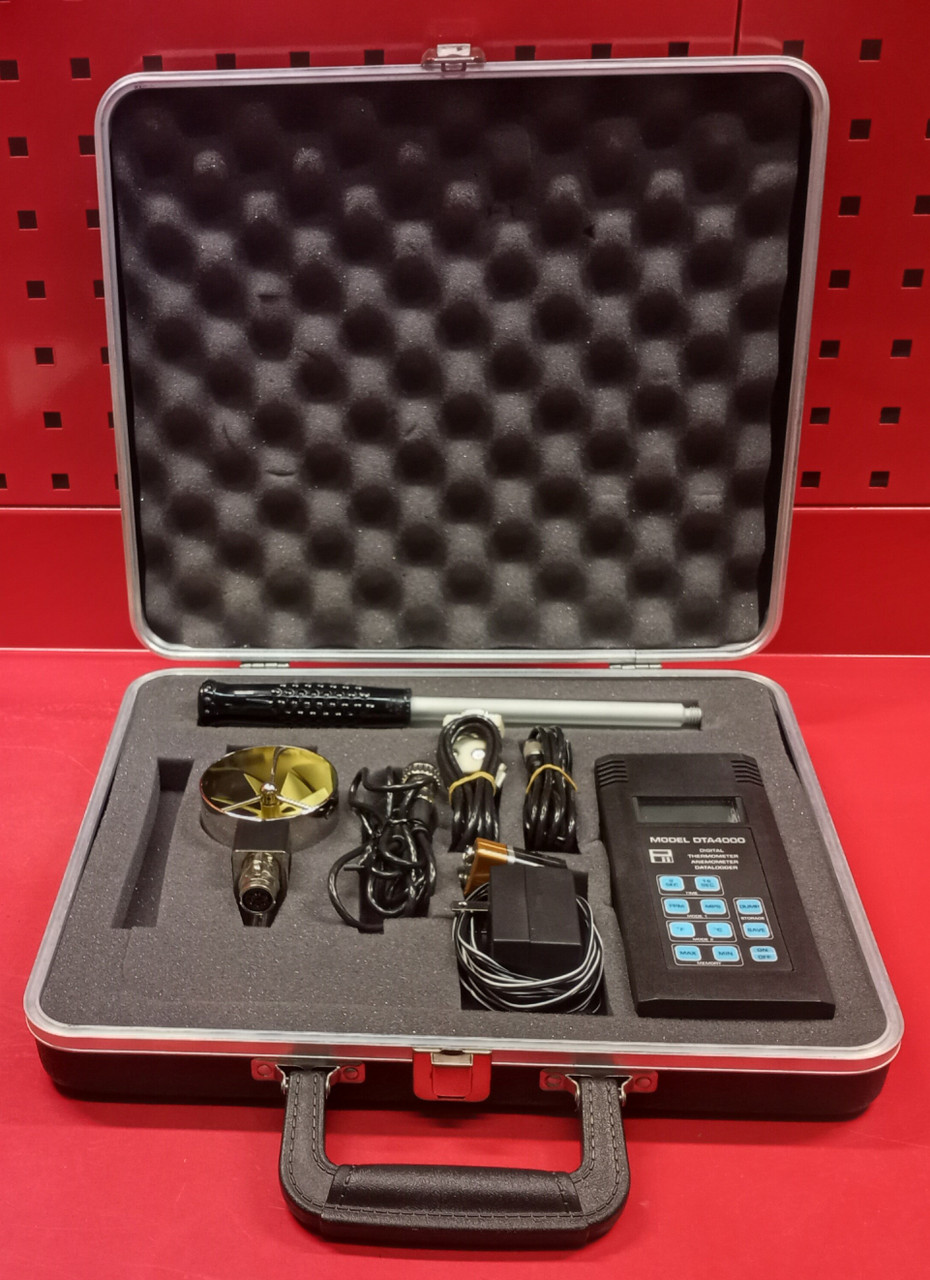

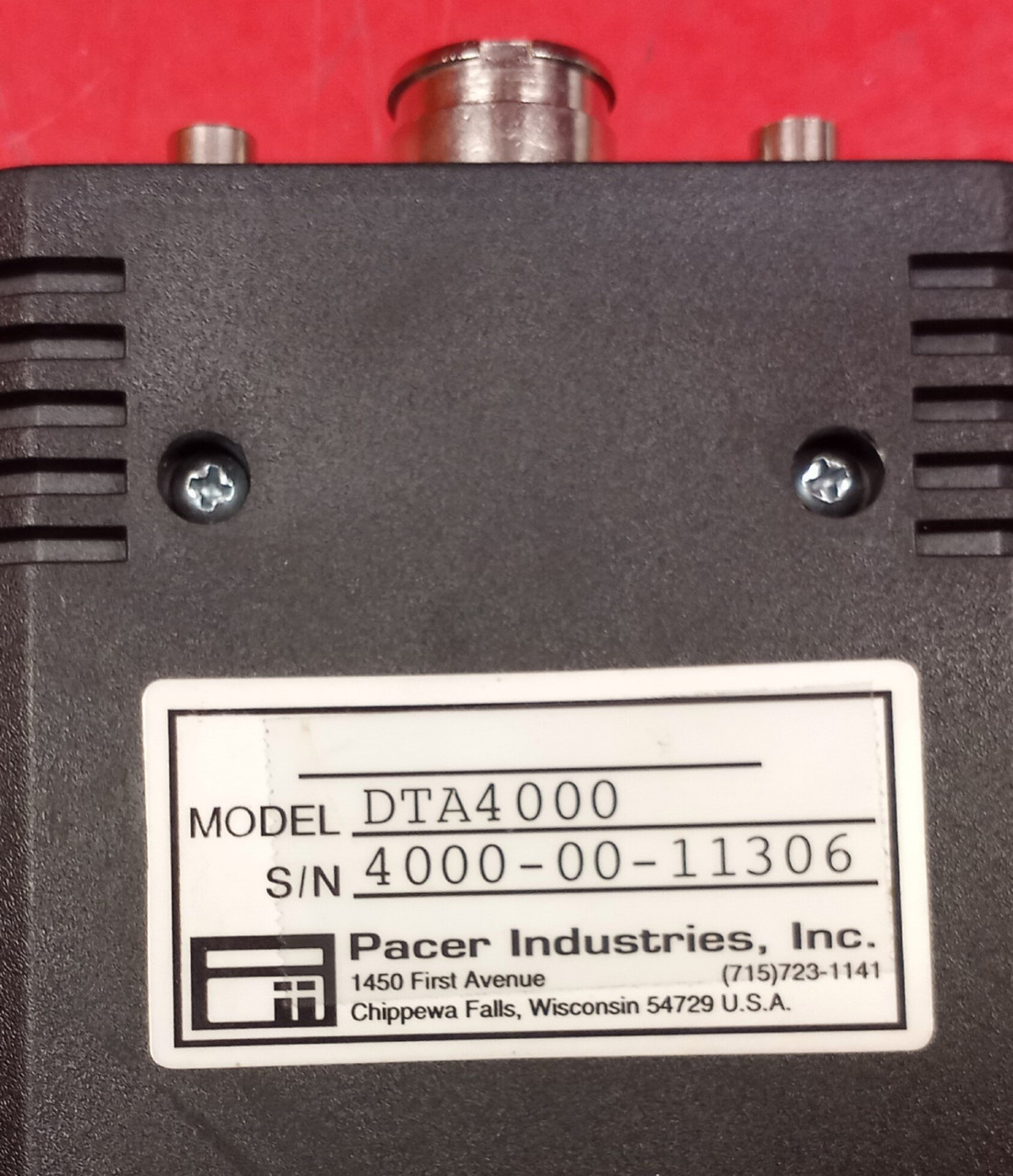

Pacer Industries Model DTA4000 Anemometer - Thermometer / Data Logger
(1) APT275 Air Velocity Probe
(3) Rigid Extension Rods
(1) Air Velocity Cable
(1) RS-232C Cable
(1) Analog Output Cable
(1) Hard Shell Carrying Case
Range:
APT275 probe: 40 – 7800 FPM (0.2 - 40.0 MPS)
Temperature: -22º to 212ºF (-30º to 100ºC)
Temperature-only probes (optional): -100º to 575˚F (-100º to 300ºC)
Accuracy:
Air Velocity: ±1.0% of reading ±1 digit
Temperature: ±0.2% of Reading ±1 digit
Resolution:
Air Velocity: 1 FPM or 0.01 MPS
Temperature: 0.2ºF or 0.1ºC
Response time:
Temperature: Approximately 60 seconds
Operating temperature:
Instrument: 32º to 125ºF (0º to 50ºC)
Air velocity probe: -4º to 210ºF (-20º to 98.9ºC)
Power supply: 9V alkaline battery (optional 9V
NiMH battery with charger)
Battery life: Approximately 30 hours
Battery check: Automatic low battery display
Data acquisition: Storage capacity up to 999 double measurements of temperature and air velocity
with manual “SAVE”.
Data link: Standard RS-232C at 1200 baud, including handshake signals CTS and RTS.
Display: 0.5” LCD, 4 digits
Measures and Logs Air Velocity and Temperature of Airflow
All Metal Air Velocity Probe
Temperature Sensor is a Plantinum Resistance Element (RTD)
The Pacer Instruments DTA4000 Digital Thermometer-Anemometer is a versatile instrument for measuring and logging air velocity and temperature of airflow from HVAC ducts or process air flow. Standard accessories include an RS232C output port with 9-pin serial cable and an analog output with cable.
The heavy, all metal air velocity probe can be used for airstreams which have a wide range of humidity, temperature and contaminants without compromising accuracy. The temperature sensor is a platinum resistance element (RTD).
Features of the air velocity probe include choice of diameters, custom cable lengths, tolerance of temperatures up to 210ºF (98.9ºC), and durability.
