Product Description

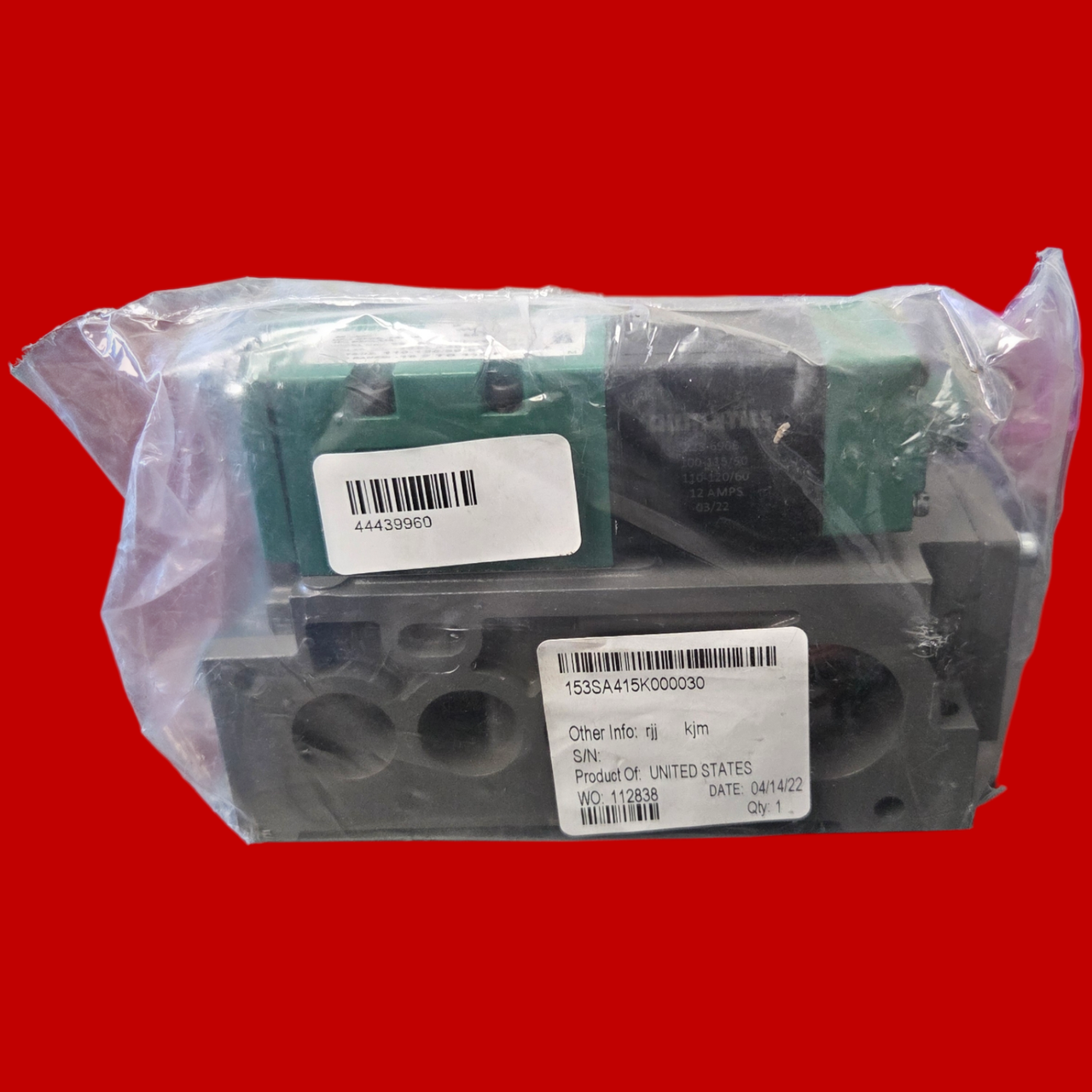

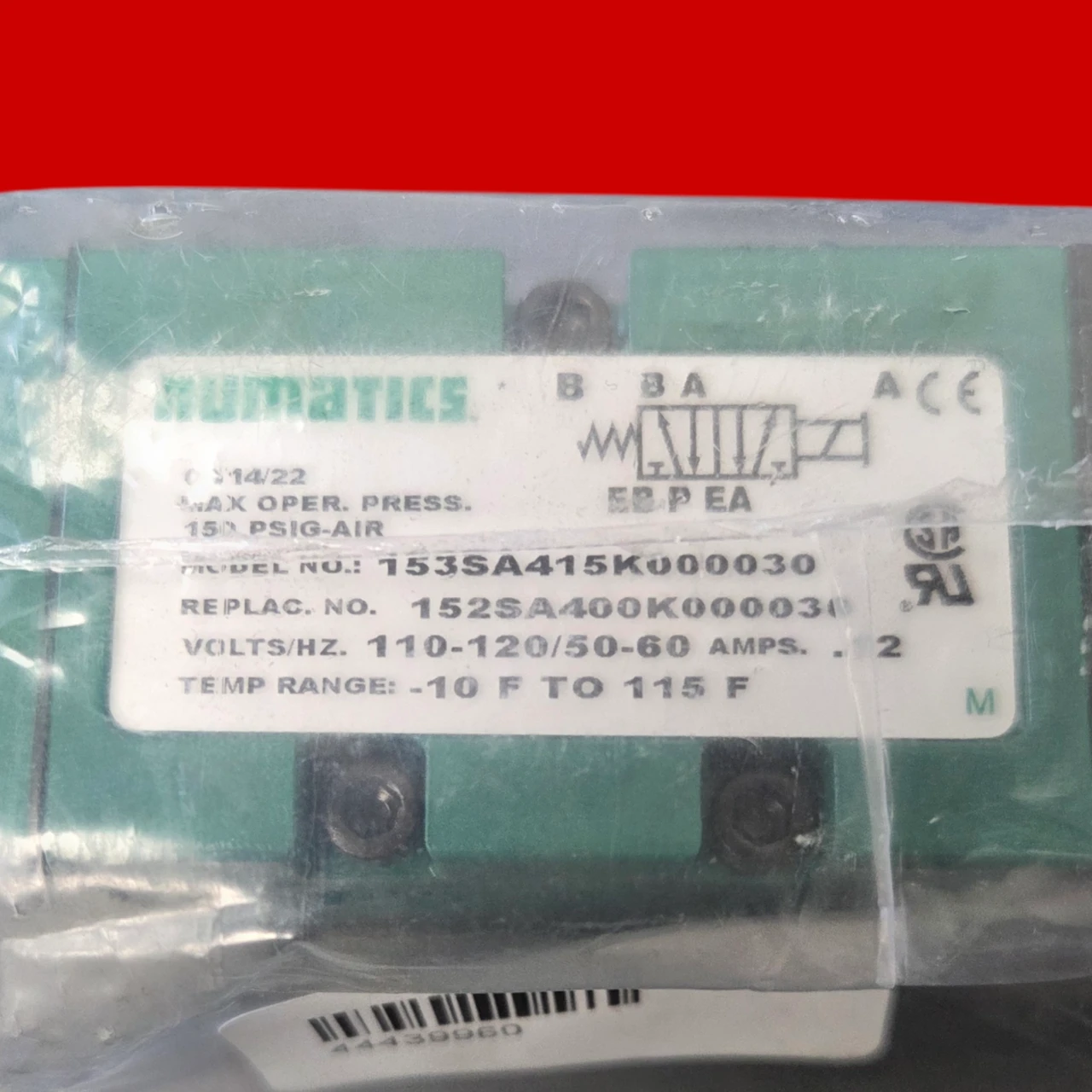

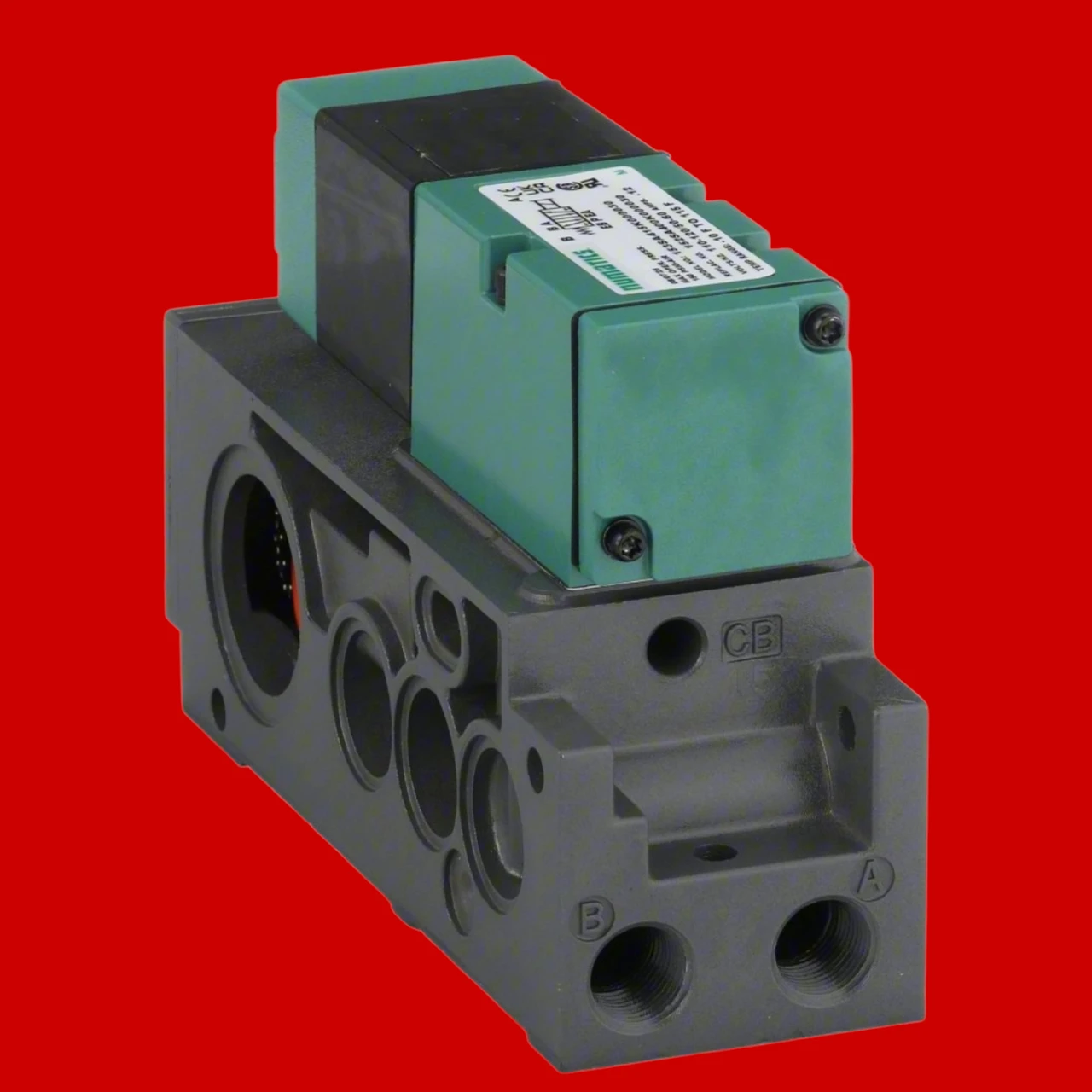

Numatics 153SA415K000030 Solenoid Air Control Valve: Four-Way / Two-Position, Single Solenoid, 69 cfm Flow Rate - Max
PN: 153SA415K000030
These directional control valves regulate and redirect the flow inside a pneumatic control manifold. They are compatible with the Numatics Mark 15 series of pneumatic products.
- Product Type: Solenoid Air Control Valve
- Actuator Type: Single Solenoid
- Flow Rate - Maximum: 69 cfm
- Coefficient of Volume (Cv): 1.5
- Override: Non-Locking
- Return Action: Spring Return
- Voltage: 110 to 120V AC
- Includes Solenoid Coil: Solenoid Coil Included
- Electrical Connection Type: Plug-In
- Number of Positions: Two-Position
- Number of Ways: Four-Way
- Operating Pressure - Minimum: 14 psi
- Operating Pressure - Maximum: 150 psi
- Operating Temperature - Minimum: -10 °F
- Operating Temperature - Maximum: 115 °F
- Overall Height: 3-5/16 in
- Overall Length: 8-7/8 in
- Overall Width: 2-5/32 in
- Standards: CE Certified; CSA Certified; RU
- Pilot Pressure: 20 psi
- Series: Mark 15
- For Media: Air; Inert Gas
- Vacuum Rating: Vacuum Operable
- Duty Cycle: Continuous
- Inlet Port Connection Size: 3/8 in
- Inlet Port Connection Gender: Female
- Inlet Port Connection Type: NPT
- Application: Automotive; Bottling; High Cycle-Rate Machines; Pressing; Stamping; Tire Manufacturing
- Body Style: Base-Mounted
- Includes Mounting Hardware: Hardware Not Included
- Body Features: Stackable
- Series: Mark 15
- Exhaust Port Connection Gender: Female
- Exhaust Port Connection Size: 1/4 in
- Exhaust Port Connection Type: NPT
- Body Material: Aluminum
- Power Consumption: 70 W
- NEMA Rating: 4
- Number of Ports: 5
- Pilot Port Connection Size: 3/8 in
- Pilot Port Connection Type: NPT
- Pilot Port Connection Gender: Female
- Valve Type: Spool
- Poppet Material: Aluminum
- Spool Material: Stainless Steel
