Product Description

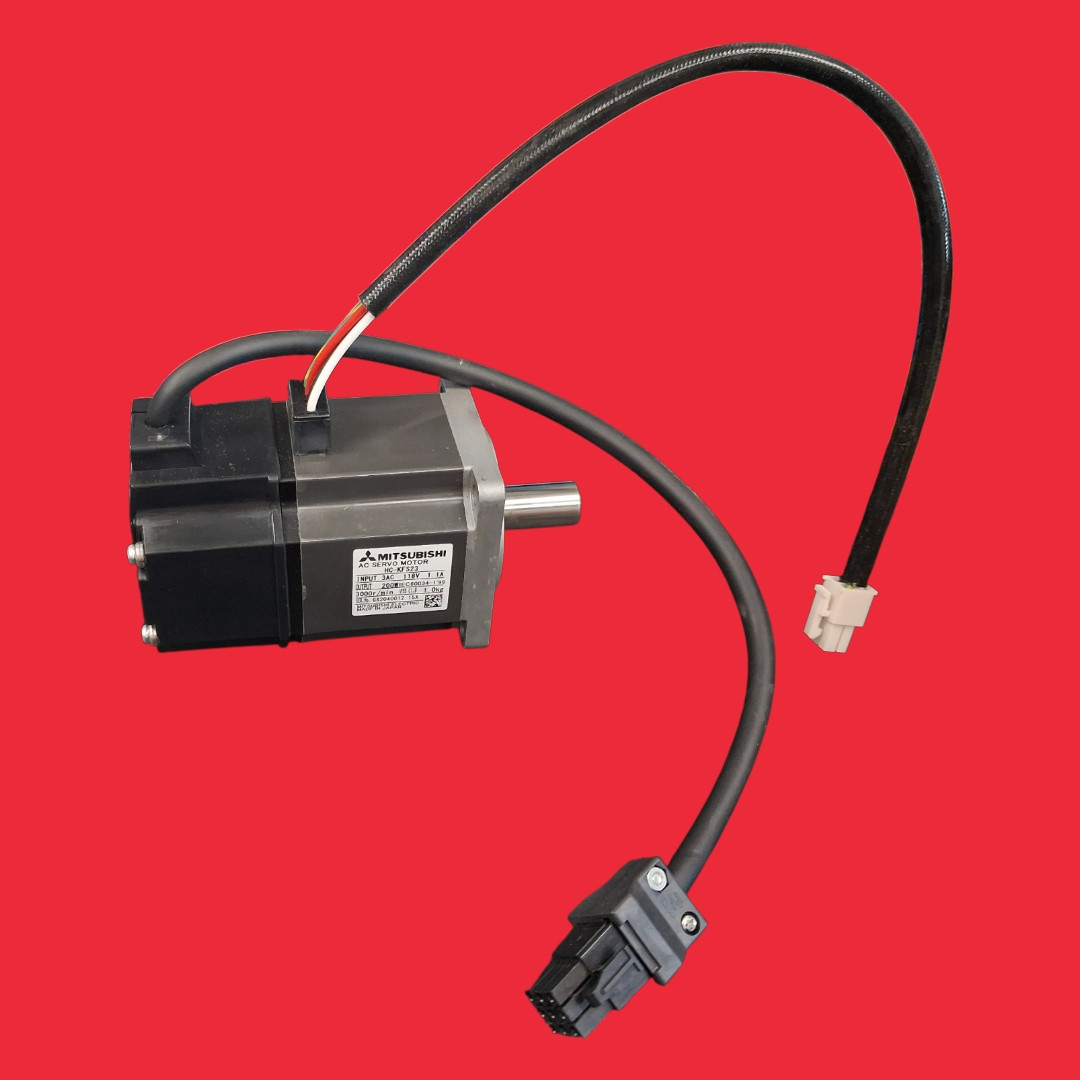

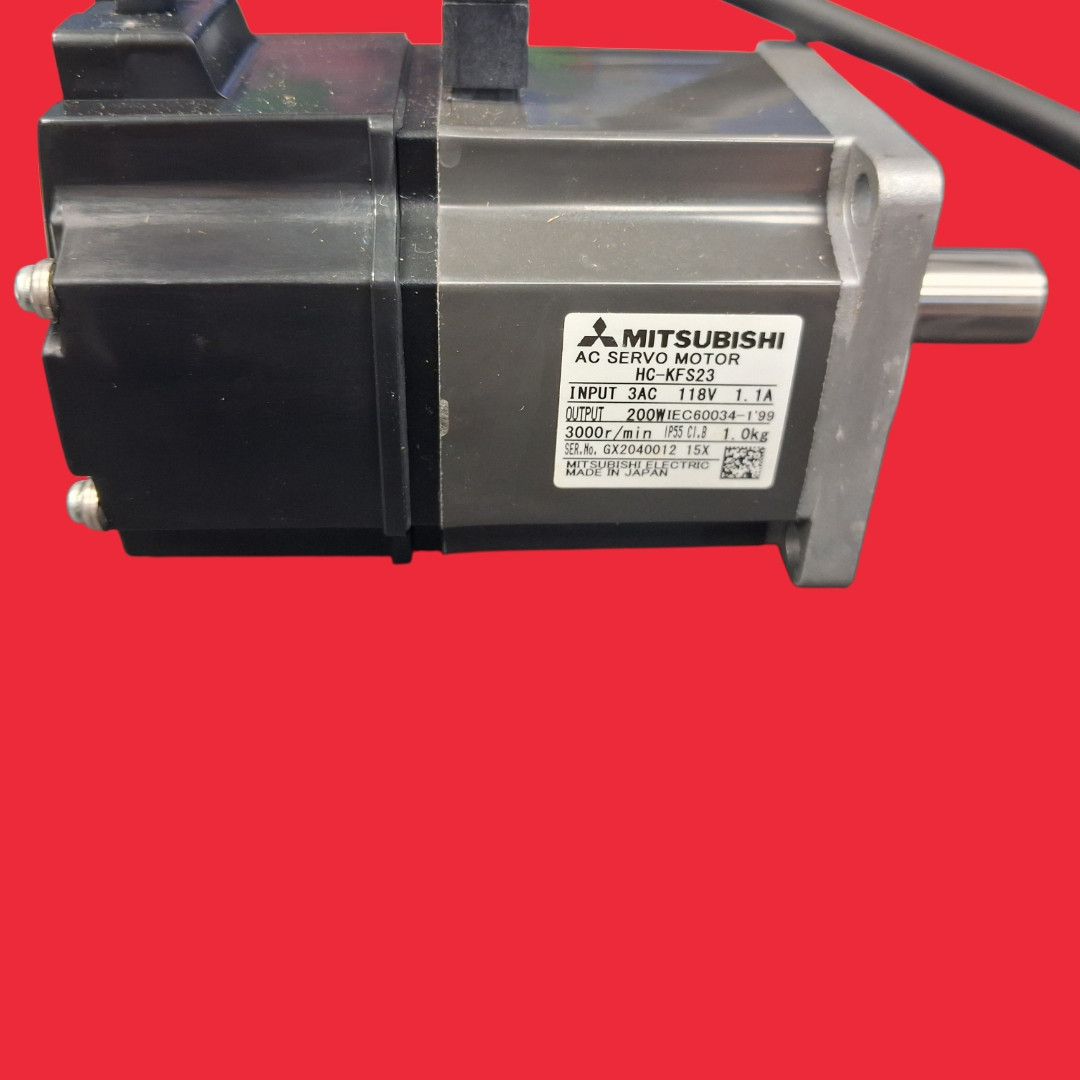

Mitsubishi Electric HC-KFS23 Brushless AC Rotary Servo Motor 200Vac, Straight Shaft, Equivalent to HCKFS23
Part#: HC-KFS23
-
Main function: AC servo motor
- Product series: MELSERVO J2S - HC-KF series
- Functions: AC brushless rotary servo motor
- Design: straight shaft, built-in absolute feedback encod. (17-bit), low inertia / small power capacity, fan cooling
- Supply voltage (AC): 200Vac class
- Rated current: 1.1A, 3.4A (max. current)
- Rated active power (kW): 200W / 0.2kW
- Rotational speed: 3000rpm, 4500rpm (maximum)
- Torque: 0.64Nm nominal
- Maximum torque: 1.9Nm
- Moment of inertia: 0.0000260kg.m2 (0.26kg.cm2)
- Mounting mode: 60x60mm flange mounting
- Resolution: 17-bit (equivalent to 131072ppr) feedback
- Degree of protection: IP55
- Dimensions: H72.8mm x W42mm x D129.5mm
- Ambient air temperature for operation: -15°C...+70 °C
- Equivalent to: HCKFS23
