Product Description

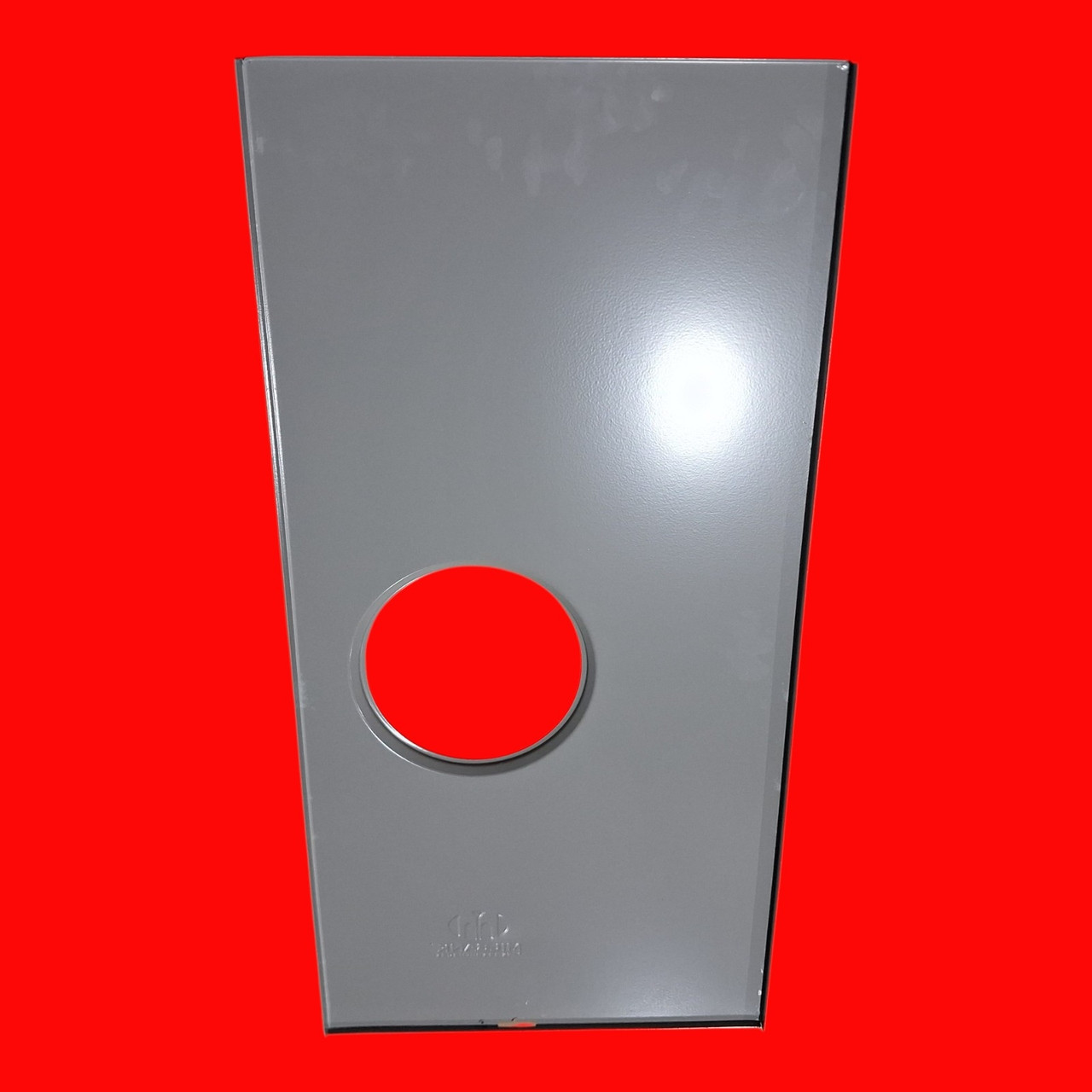

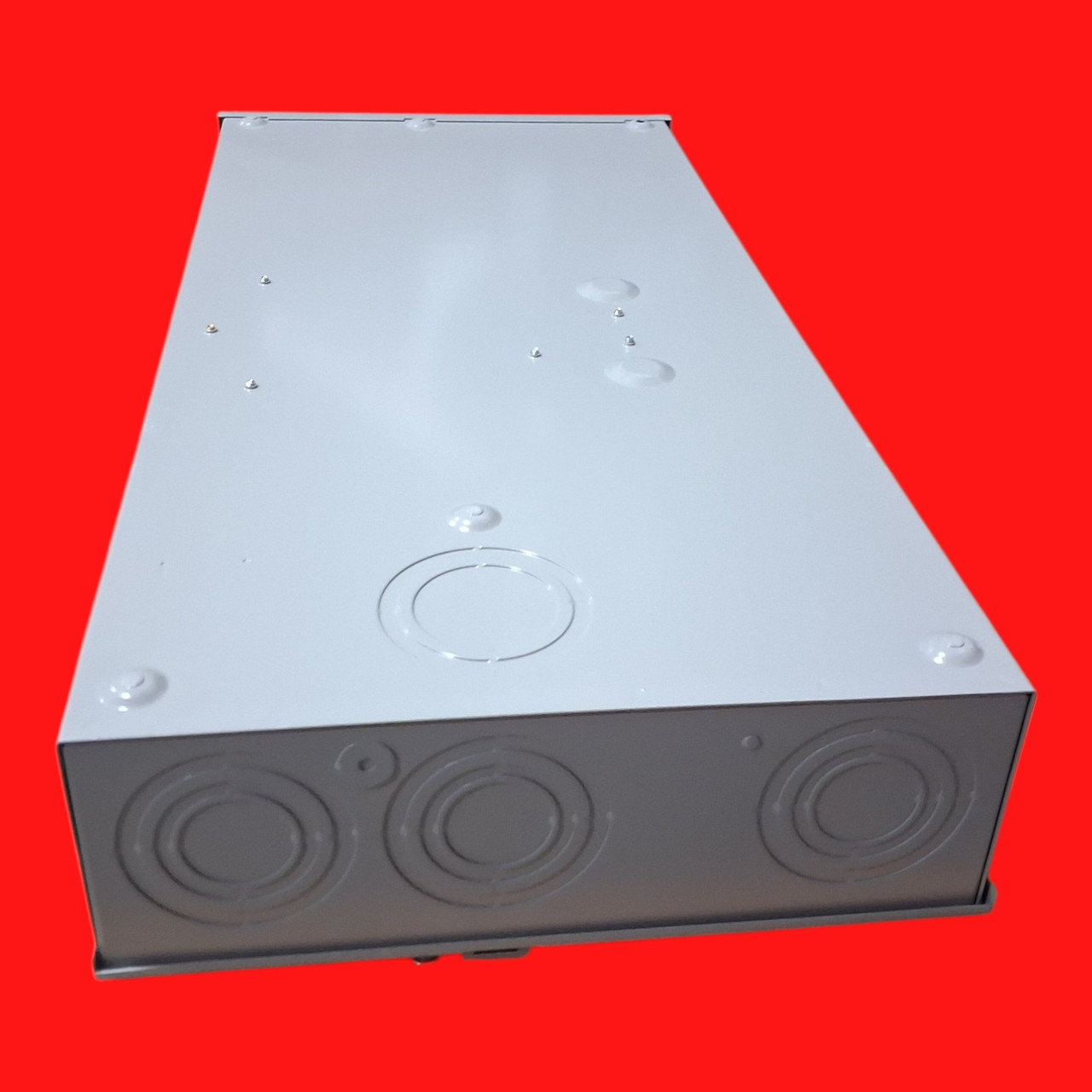

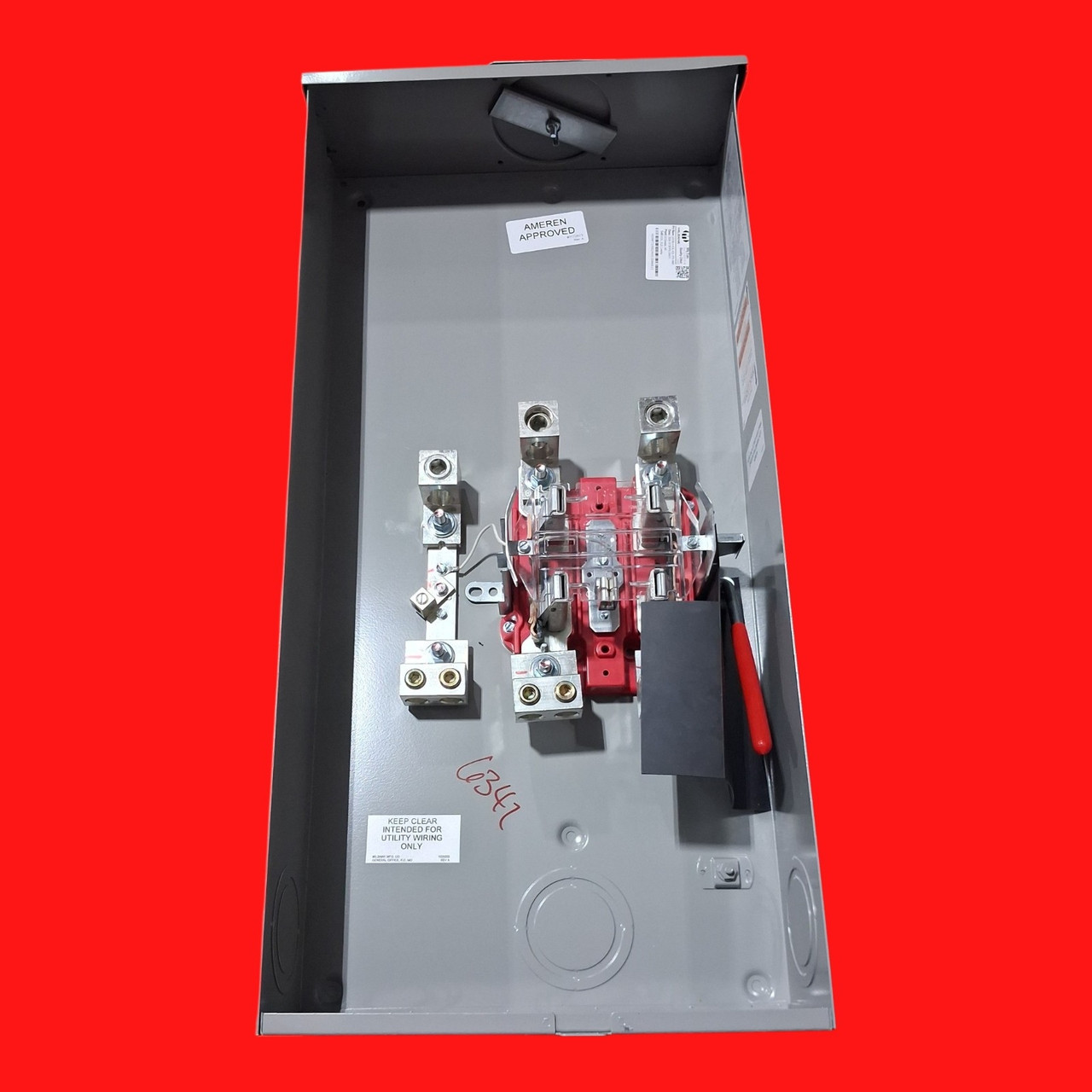

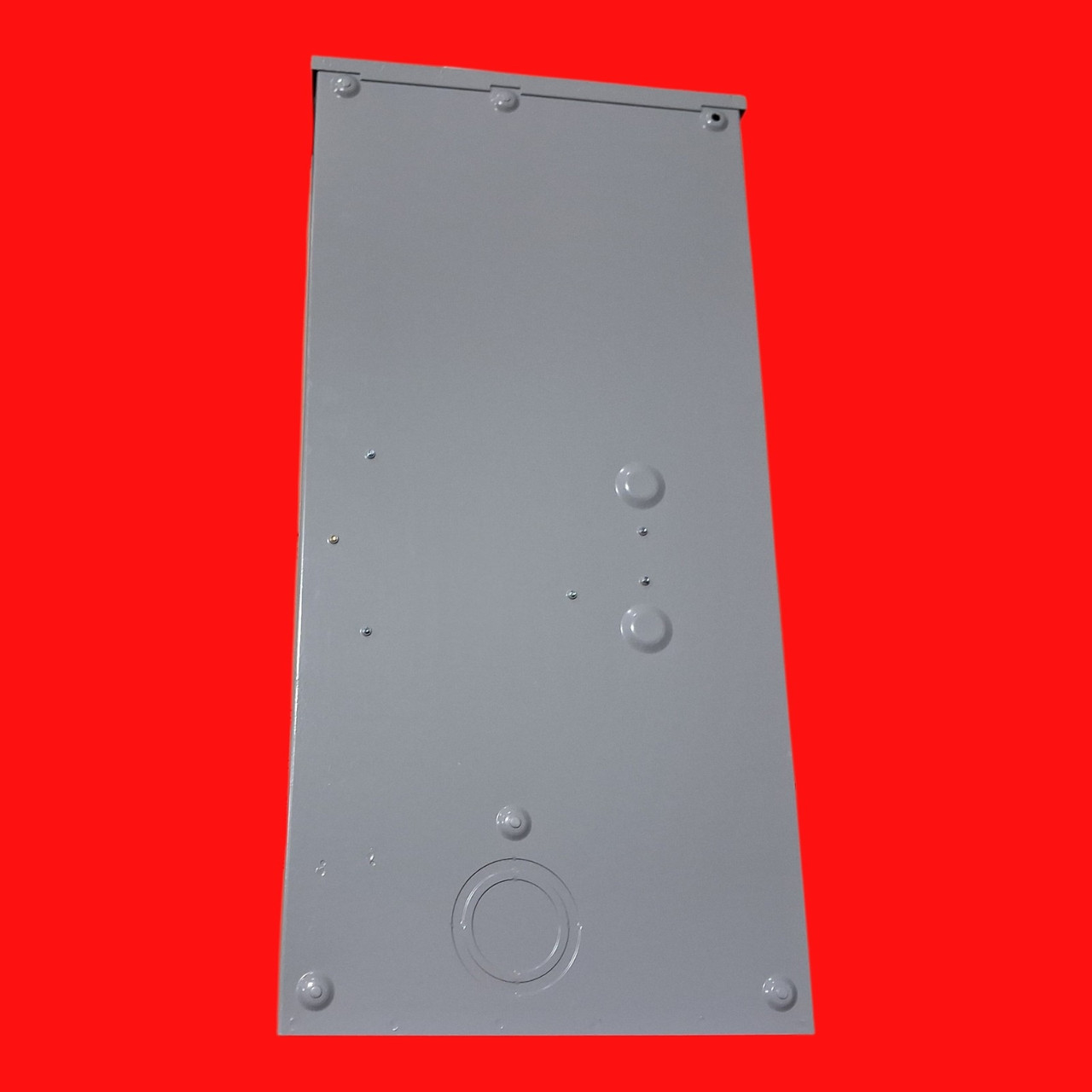

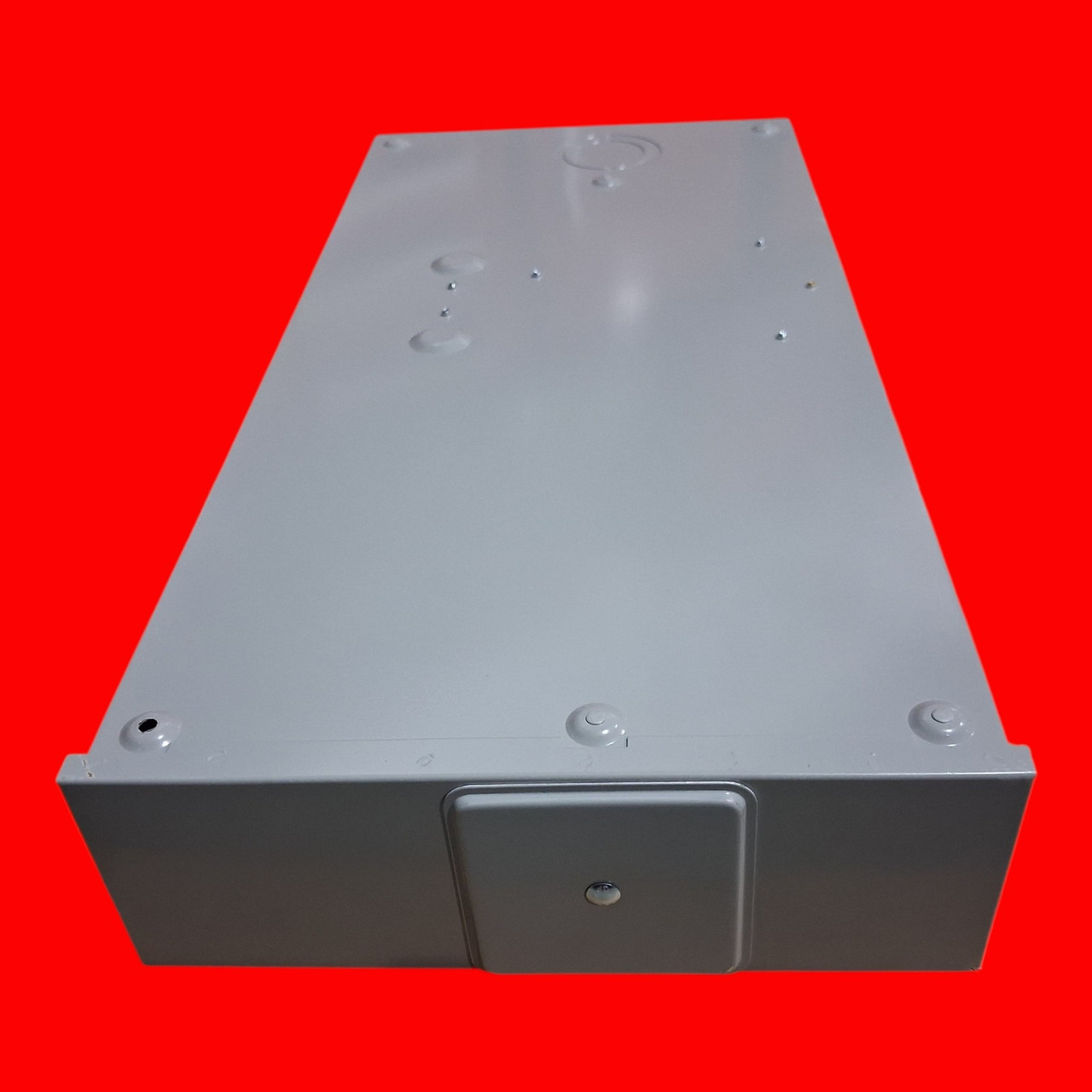

Milbank U5740-X-K3L-K2L-5T6-AMS 320 Amp (Continuous), Single-Position, Ringless Meter Socket
Part#: U5740-X-K3L-K2L-5T6-AMS
5 Terminal Ringless Large Closing Plate Lever Bypass Single Connector Locking 4-600kcmil Double Connector Locking 6-350kcmil Ameren
- Amperage Rating: 320 Continuous Ampere
- Application Meter: Socket
- Brand Name: Milbank
- Bypass Provision: Lever Bypass
- Cable Entry: Overhead or Underground
- Main Breaker Size: No Main Breaker
- Material: G90 Galvanized Steel with Powder Coat Finish
- Equipment Ground: Ground Lug
- Frequency Rating: 60 Hertz
- Hub/Closing Plate: Large Closing Plate
- Insulation Glass: Polyester
- Number of Jaws: 5 Terminal
- Knockouts: True
- Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
- Load Side Wire Range: Two 6 AWG - 350 kcmil
- Mounting: Surface Mount
- Number of Main Breakers: 0
- Number of Meter Positions: 1 Position
- Number Of Receptacles: 0
- Phase: 1 Phase
- Size: 4.84L x 15W x 31.69H
- Special Features: Ameren Energy
- Standards: UL Listed;Type 3R
- Terminal: Single Mechanical
- Type: Ringless Meter Socket
- Voltage Rating: 600 Volts Alternating Current
- Height: 31.69 IN
- Length: 4.84 IN
- Width: 15.0 IN
