Product Description

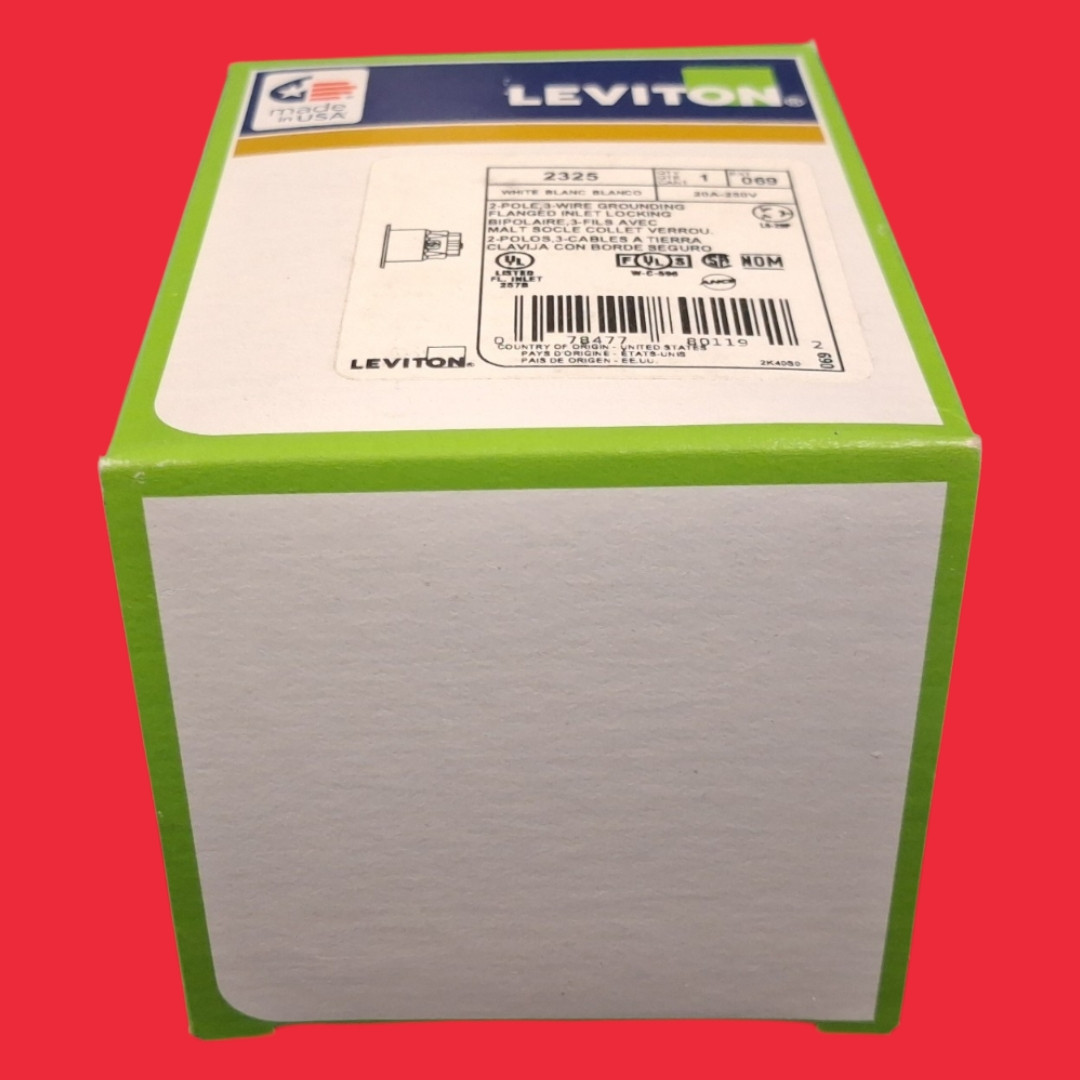

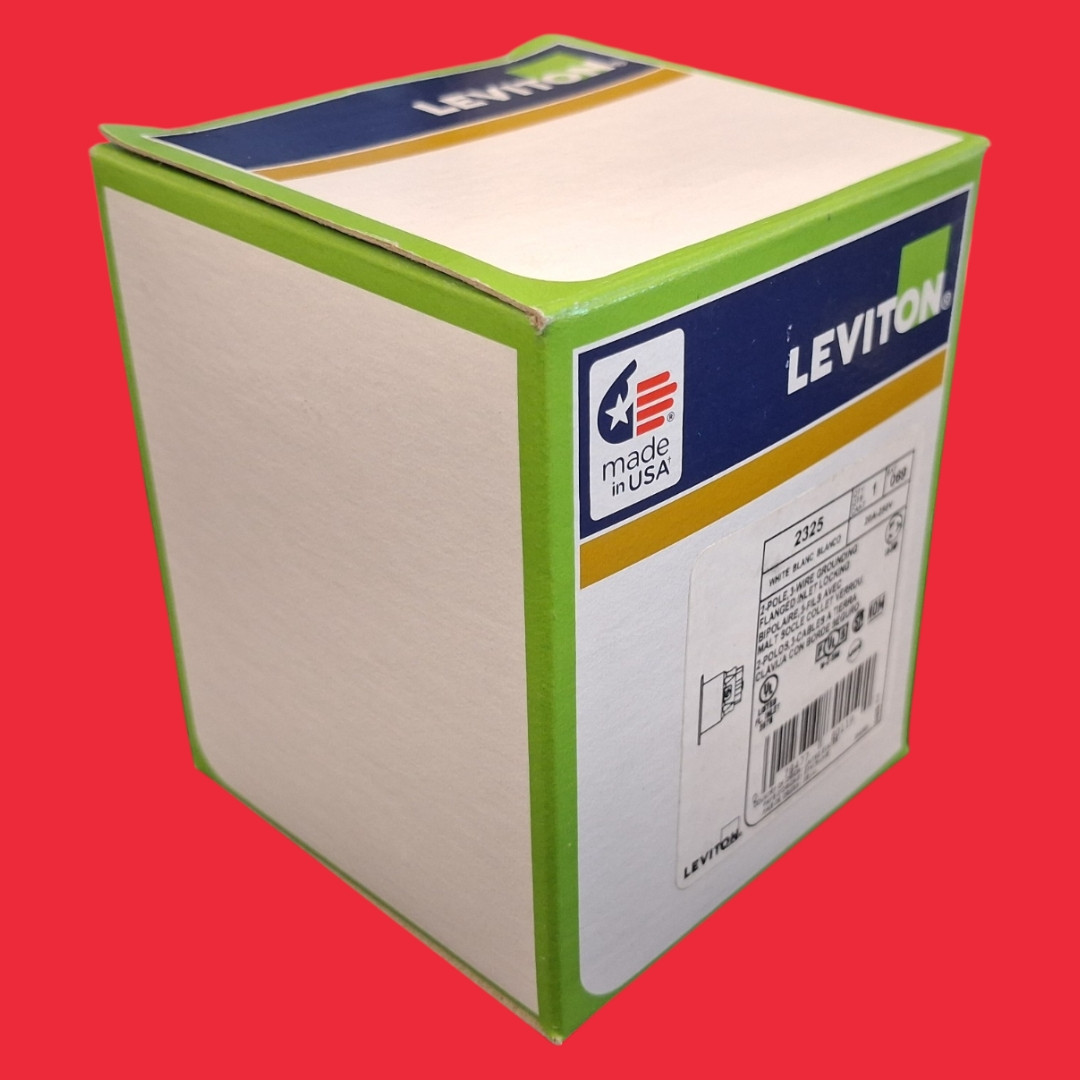

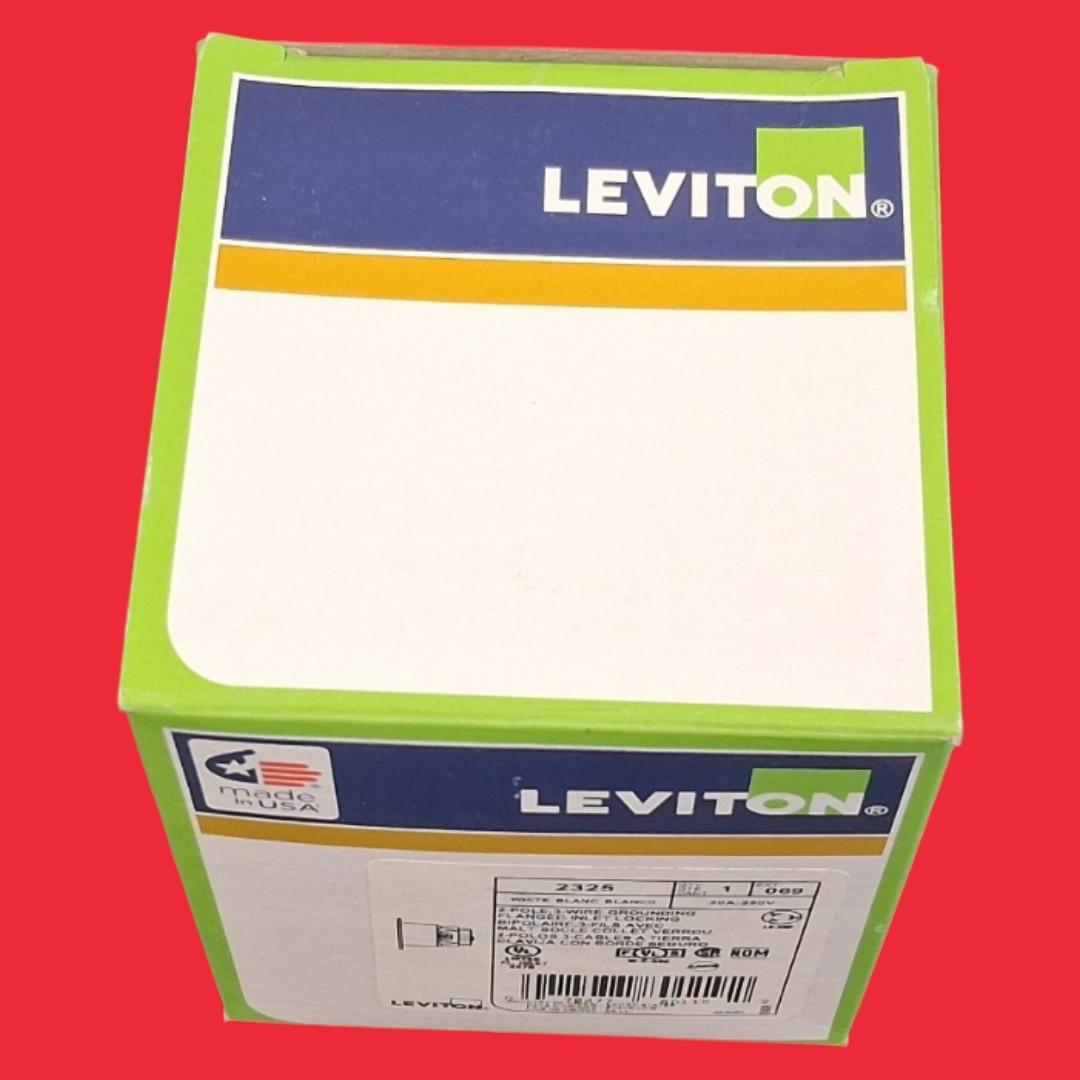

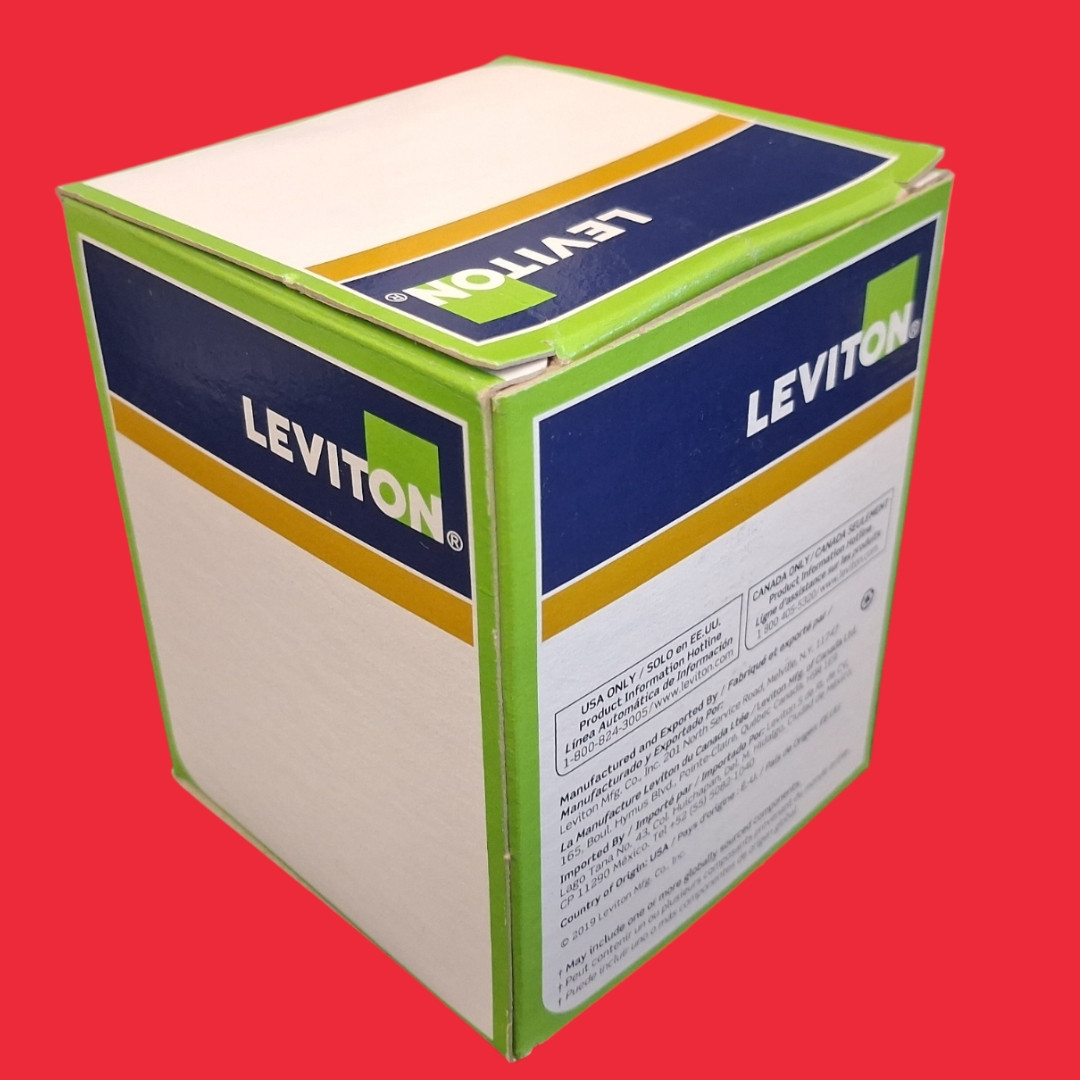

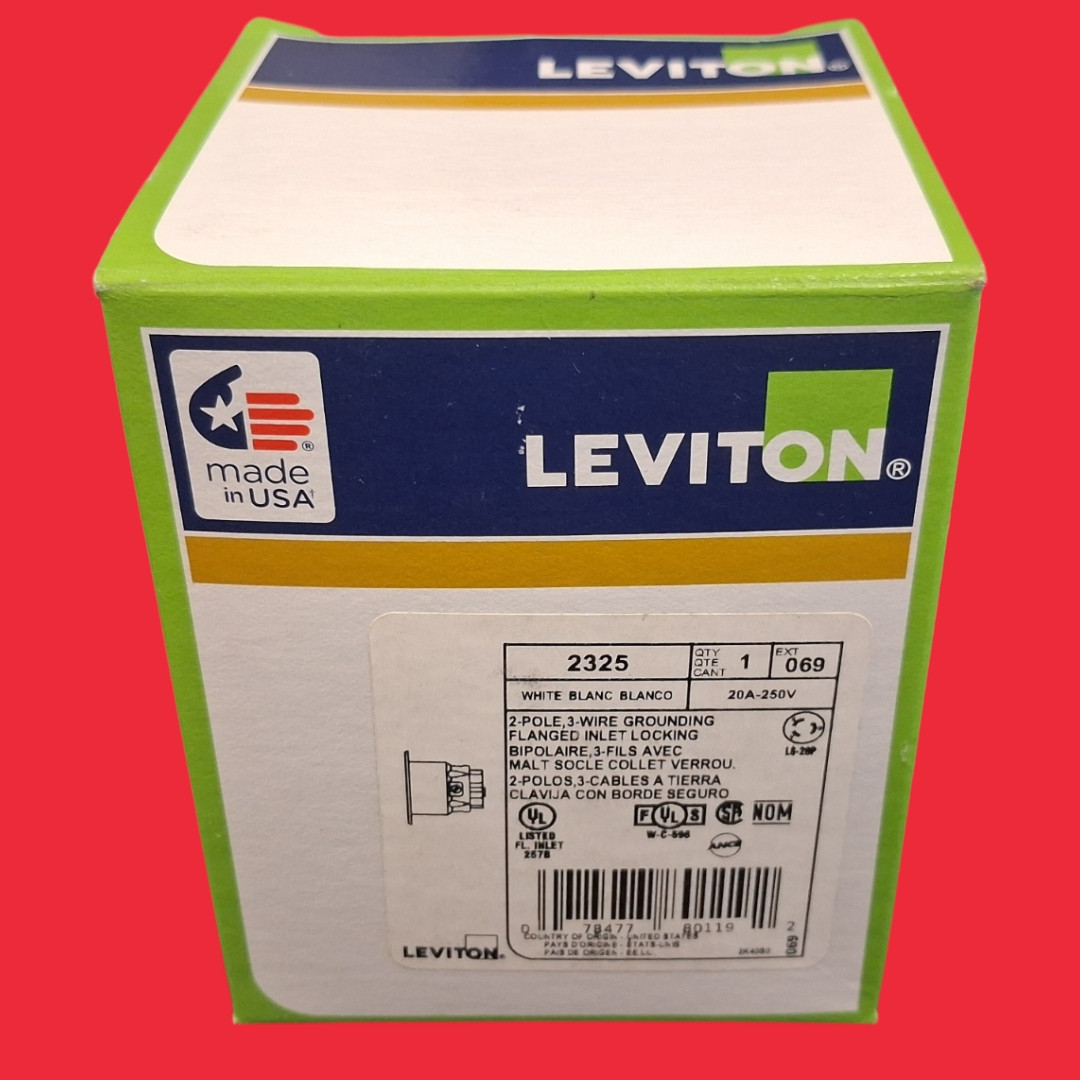

Leviton 2325 20 Amp, 250 Volt, Flanged Inlet Locking Receptacle, Industrial Grade
Part#: 2325
Leviton 2325 is an industrial-grade, grounding, flanged inlet locking receptacle rated for 20 Amps and 250 Volts. It features a NEMA L6-20P plug configuration and is built with a heavy-duty white nylon body designed to withstand harsh industrial environments.
- Color: White
- NEMA Configuration: L6-20P
-
Amperage : 20 A
- Current Limiting : Full Rated Current
- Dielectric Voltage : Withstands 2000V per UL498
- Grounding : Grounding
- Pole : 2
- Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current
- Voltage : 250 VAC
- Wire : 3
- Horsepower Rating : 2 HP
-
Face Material : Nylon
- Grounding Screw : Brass 8-32
- Line Contacts : Solid Brass
- Strap Material : Thermoplastic Nylon
- Terminal Screws : Brass 10-32
-
Screw Terminal Torque : 10-14 in-lbs
- Terminal Accom. : 18-10 AWG
- Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral
- Termination : Back
- Standards: UL 498, CSA C22.2, and NOM 057 certified
