Product Description

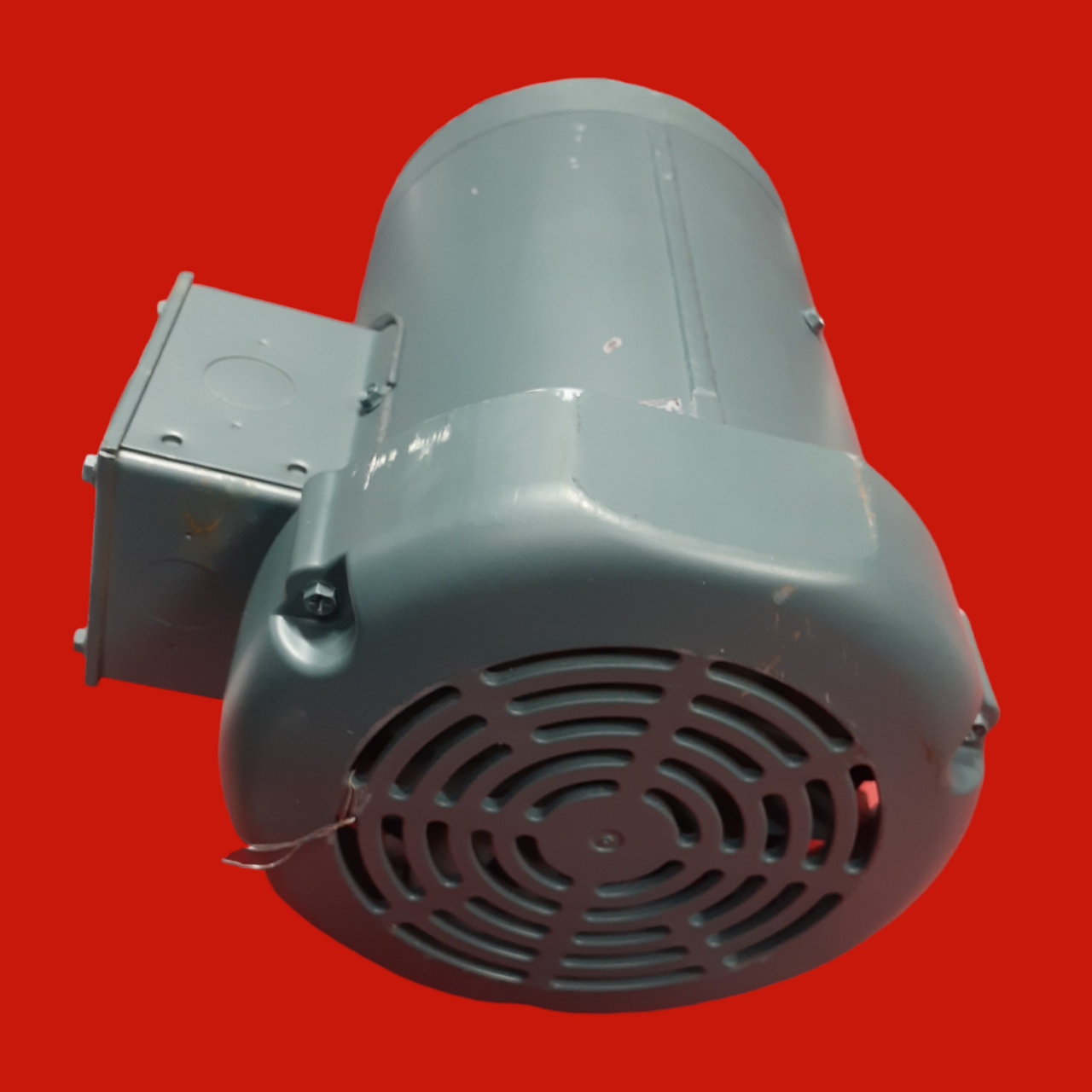

Leeson 114638.00 General Purpose Motor, 01 HP, 3 PH
PN: 114638.00
Key Features
- UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
- Continuous duty cycle design allows maximum operation at the rated power specifications.
- Class B or F Insulation protects motor for a maximum temperature rating.
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
- Operational at 208-230/460 V @60HZ.
Specifications
- Phase:3
- Output HP: 1 & 1 HP
- Output KW: 0.75 & .075 KW
- Voltage: 230/460 & 190/380 V
- Speed: 1760 & 1450 rpm
- Service Factor: 1.15 & 1.15
- Frame: 56C
- Enclosure: Totally Enclosed Fan Cooled
- Thermal Protection: Thermostat
- Efficiency: 85.5 & 82.5 %
- Ambient Temperature: 40 °C
- Frequency: 60 & 50 Hz
- Current: 3.2/1.6 & 3.4/1.7 A
- Power Factor: 68.5
- Duty: Continuous
- Insulation Class: F
- Design Code: B
- KVA Code: N
- Drive End Bearing Size: 6203
- Opp Drive End Bearing Size: 6203
- UL: Recognized
- CSA: Y
- CE: Y
- IP Code: 54
- Number of Speeds: 1
