Product Description

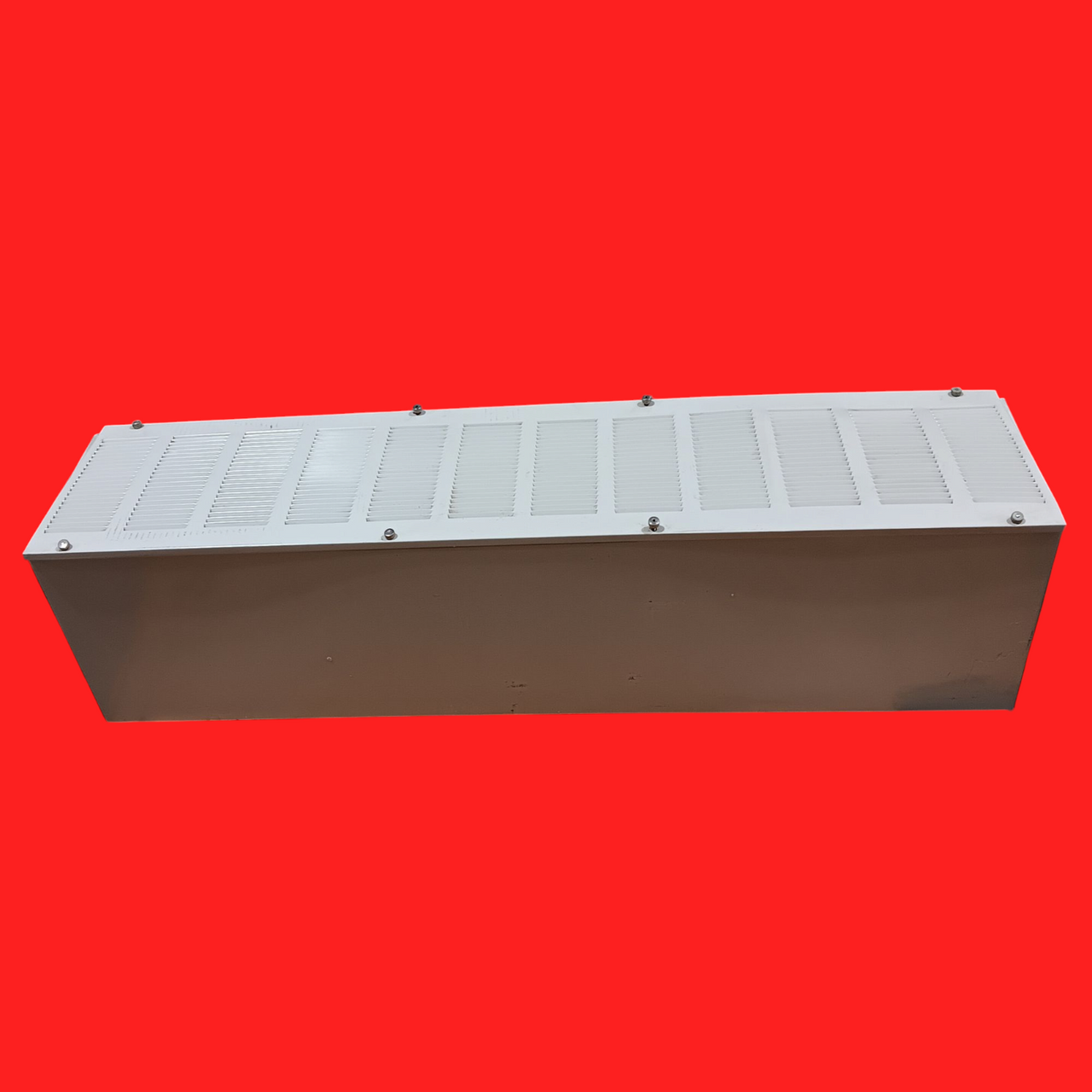

Leading Edge Inc. C4800-1150RD 48" Air Curtain
Part#: C4800-1150RD
Leading Edge air curtains produce a wall of continuously flowing air that acts as a thermal barrier against outside air and flying insects. These air curtains maintain interior conditioned temperature and prevent heated or cooled air from escaping through open doorways. They reduce humidity and loss of cold air when used over freezer and cooler doors. High traffic area doors can be left open, eliminating wear and nuisance of opening and closing automatic and manual doors. Used over service entrances, receiving doors, customer entrances, access doors, etc.... Air curtains provide protection against insects, dust, odor, fumes, and other contaminants.
- Width: 48"
- Type of Entrance: Service (Rear Door)
- Max. MTG. Height (Nozzle to Floor): 10ft.
- Ft. Per Min. at Nozzle (Hi/Low): 3800/3000
- CFM at Nozzle (Hi/Low): 4100/3240
- RPM (Hi/Low): 1745/1370
- Motor/Watts (Hi/Low): 480/335
- 120V, 60HZ. Amps (Hi/Low): 5.0/3.5
- HP: 1/2
- Overall Length: 48"
- Overall Width: 12 1/2"
- Overall Height: 15 3/4"
