Product Description

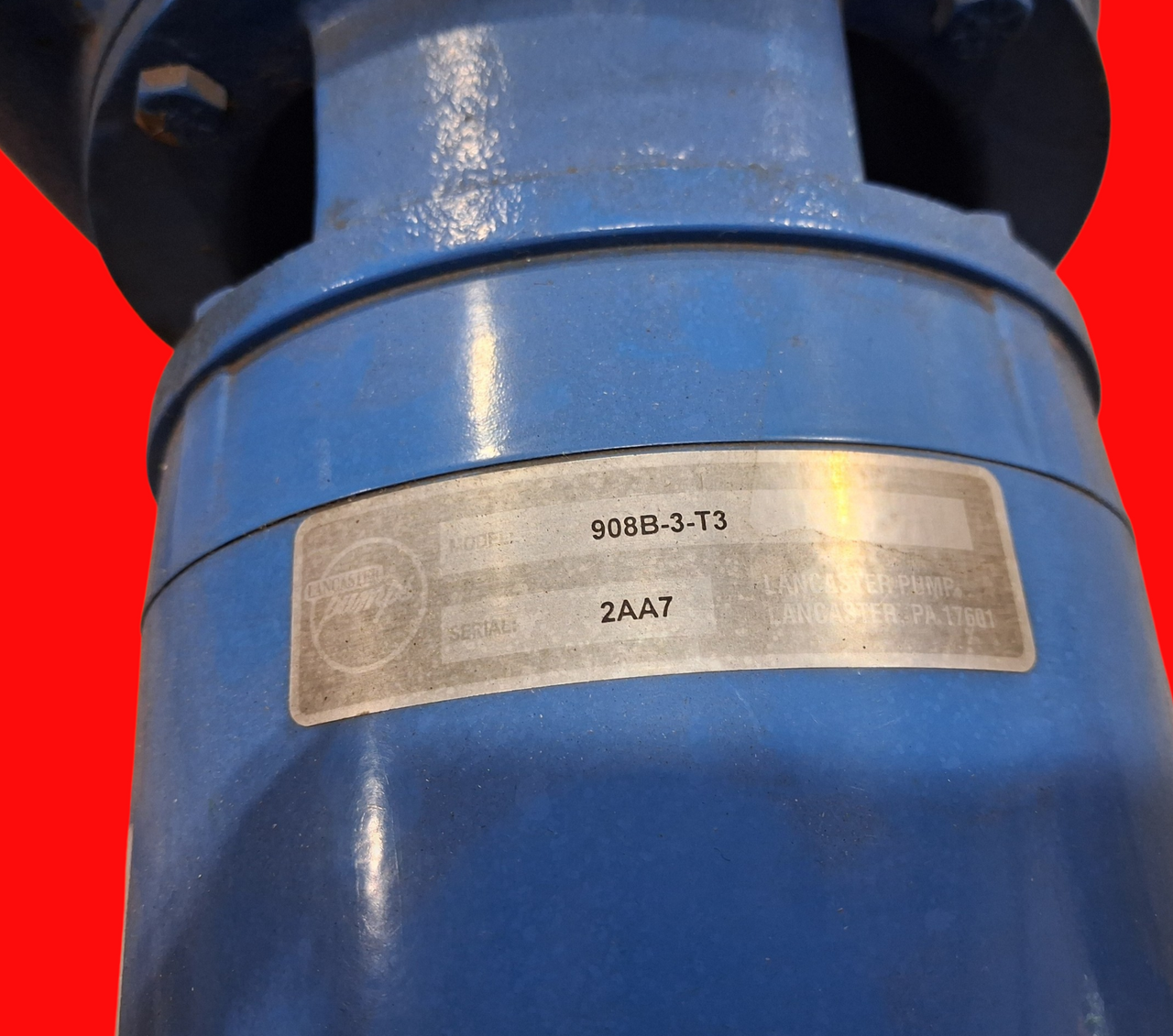

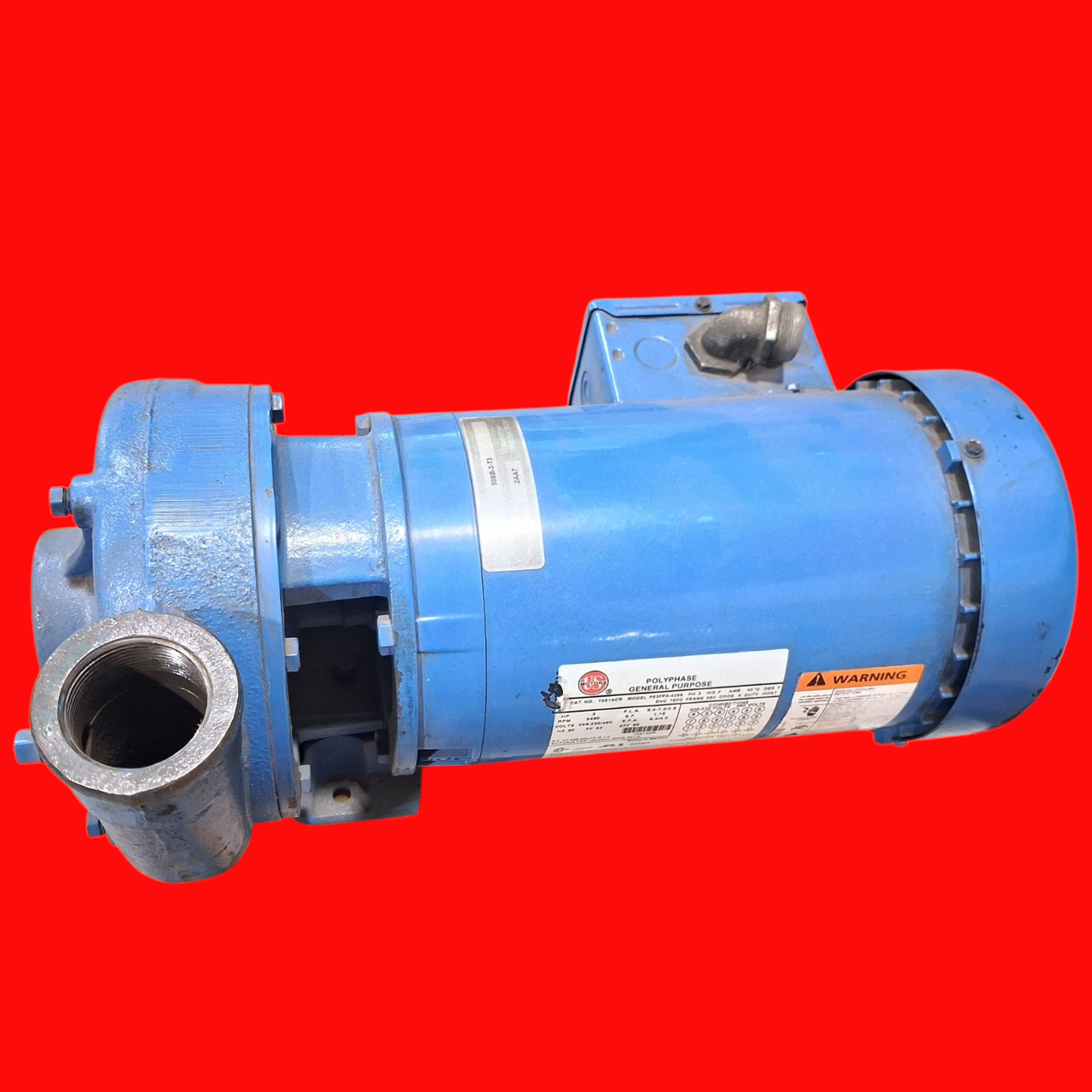

Lancaster Pumps M-900 Series 3 HP Centrifugal Pump 3-908B-3-T3
Part#: 3-908B-3-T3
The Lancaster Centrifugal Pump M Series, close-coupled, end suction design offers the advantages of space saving and lower cost due to the elimination of the need for a base plate, bearing frame, special coupling, and guard. Standard NEMA pump motors are used throughout. Tangential discharge and back pull out design are featured.
Performance:
- Best Efficiency Point (BEP): 100 GPM
- Minimum Flow: 25 GPM
- Maximum Operating Pressure: 125 PSI
Technical Details
- Horsepower (HP): 3 HP
- RPM: 3450 RPM
- Inlet/Outlet Size: 2" FPT Suction x 1.5" FPT Discharge.
- Electrical: 3-phase motor, 208/230/460V
- Temperature Rating: Suitable for liquid temperatures up to 180°F continuous or 211°F intermittent
Applications:
- Water Circulation
- Booster Service
- Liquid Transfer
- Refrigeration
- General Purpose
- Water Supply
- Air Conditioning
- Filter Systems
- Water Fountains
- Cooling Machinery
- Light Irrigation
- Special Requirements (O.E.M.)
