Product Description

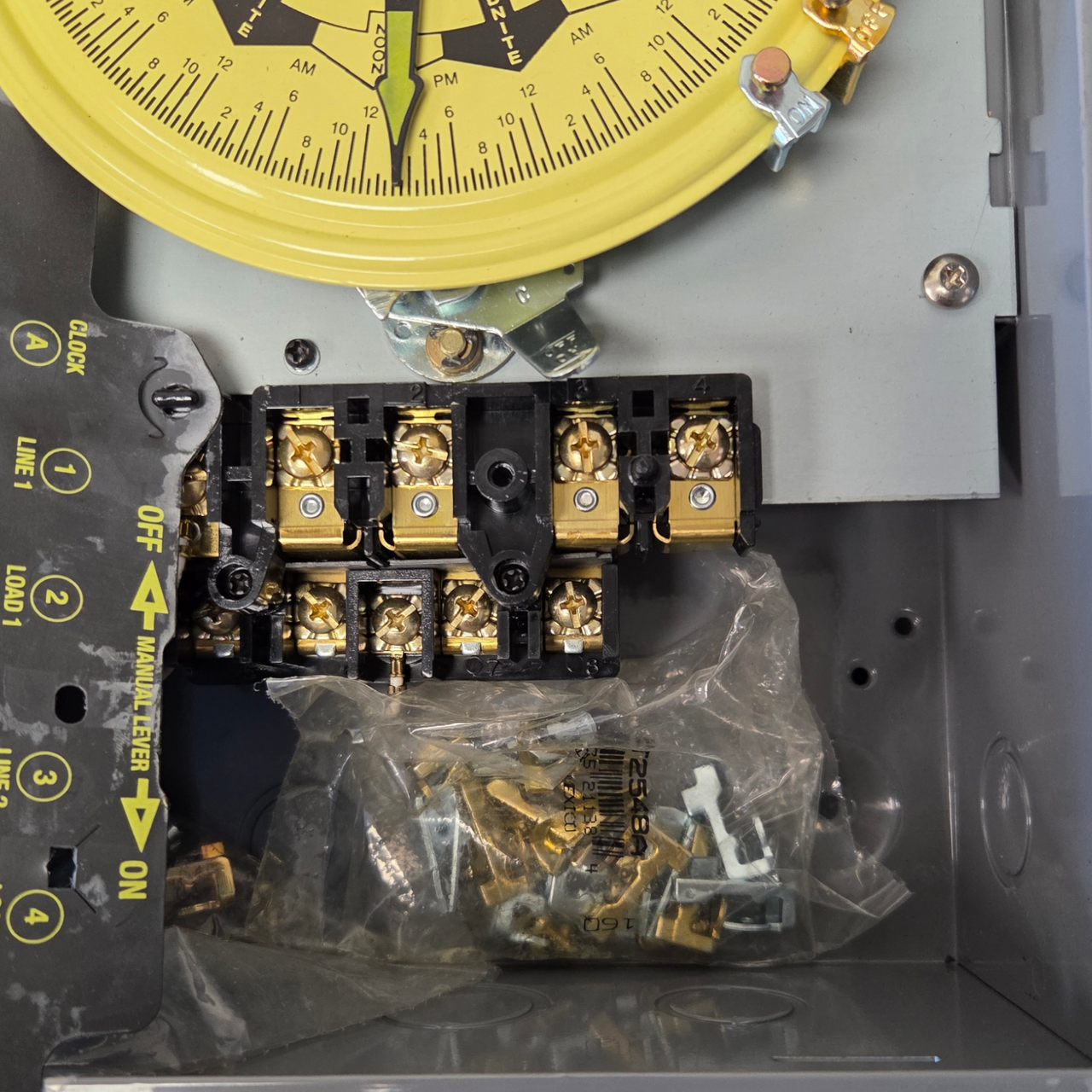

Intermatic T7401B Electromechanical Timer: 7 Day, 120V AC, SPST, Mechanical
Model: T7401B
These electromechanical timer switches open and close their contacts mechanically when they receive an electrical signal. Also known as analog timer switches, they are manually set and adjusted using a pointer or dial. These timer switches help save energy and reduce operations costs because they don't use constant electricity. Their internal mechanical parts wear out over time and require periodic maintenance.
- Applicable AC Voltage Ranges: 120V AC
- Application: Lighting
- Body Material: Metal
- Brand: INTERMATIC
- Compatible Lighting: HID; LED
- Contact Form: SPST
- Current Rating: 40 A
- Features: Separate Clock Motor Terminals
- Horsepower @ 120V - Maximum: 2 hp
- Horsepower @ 240V - Maximum: 5 hp
- Indoor/Outdoor Usage: Indoor
- Mounting Style: Surface
- NEMA Enclosure Rating: 1
- Number of Poles: 4
- Number of Trippers - Maximum: 14
- Number of Trippers Included: 14
- On/Off Cycles - Maximum: 28
- Operating Temperature - Maximum: 130 °F
- Operating Temperature - Minimum: -40 °F
- Overall Depth: 3-3/4 in
- Overall Height: 13-1/8 in
- Overall Width: 9 in
- Product Type: Timer
- Series: T7000B
- Standards: cCSAus; cULus
- Time Setting - Maximum: 7 day
- Time Setting - Minimum: 3.5 hr
