Product Description

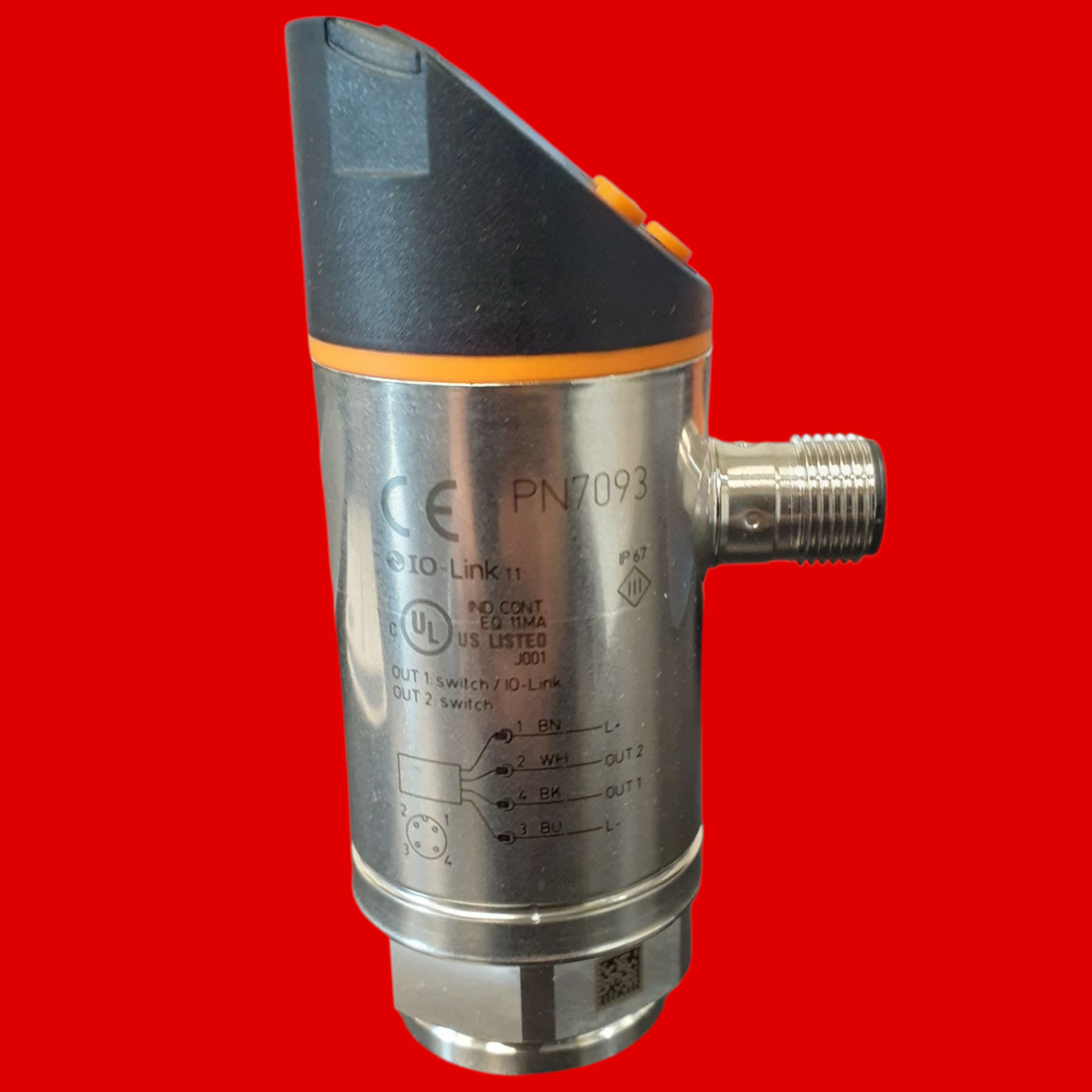

IFM PN7093 Pressure Sensor with Display
PN: PN7093
Features
- Two switching outputs, one of them with IO-Link communication interface
- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
Specifications
- Number of inputs and outputs: Number of digital outputs: 2
- Measuring range: 0...25 bar 0...362 psi 0...2.5 MPa
- Process connection: threaded connection G 1/4 Internal thread
- Operating voltage[V]: 18...30 DC; (to SELV/PELV)
- Current consumption[mA]: < 35
- Min. insulation resistance[MΩ]: 100; (500 V DC)
- Protection class: III
- Reverse polarity protection: yes
- Power-on delay time[s]: < 0.3
- Integrated watchdog: yes
