Product Description

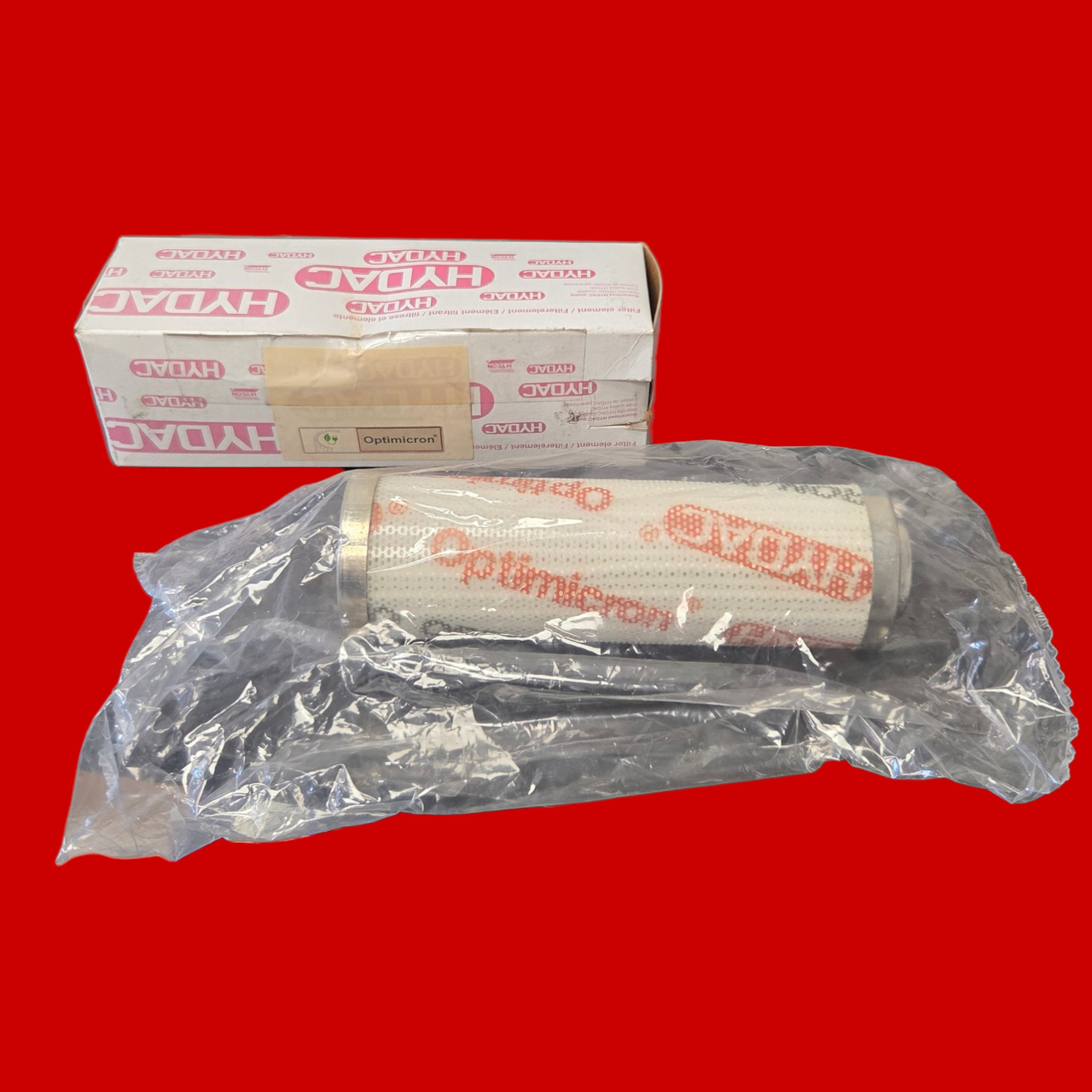

HYDAC 0110 D 010 ON Hydraulic Pressure Filter Element - Pressure, Cartridge, Fiberglass, 10 micron, 29 gpm Max Flow
PN: 0110 D 010 ON
The Optimicron filter elements have been optimized with respect to filtration performance and energy efficiency. These elements offer the best optimization of separation efficiency, service life and differential pressure versus flow rate.
- Element Type: Cartridge
- Element Application: Pressure
- Micron Rating: 10 micron
- Beta Rating: ≥1000
- Maximum Flow Rate: 29 gpm
- Maximum Operating Pressure: 290 psid
- Filter Material: Fiberglass
- Valve Bypass Cracking Pressure: 43 psi
- Minimum Temperature: -22 °F
- Maximum Temperature: 212 °F
- Seal Material: Nitrile Rubber (NBR)
- Series: Optimicron®
- Inside Diameter: 22 mm | 0.866 in
- Length: 6.1 in | 155 mm
- Outside Diameter: 1.9 in | 47 mm
