Product Description

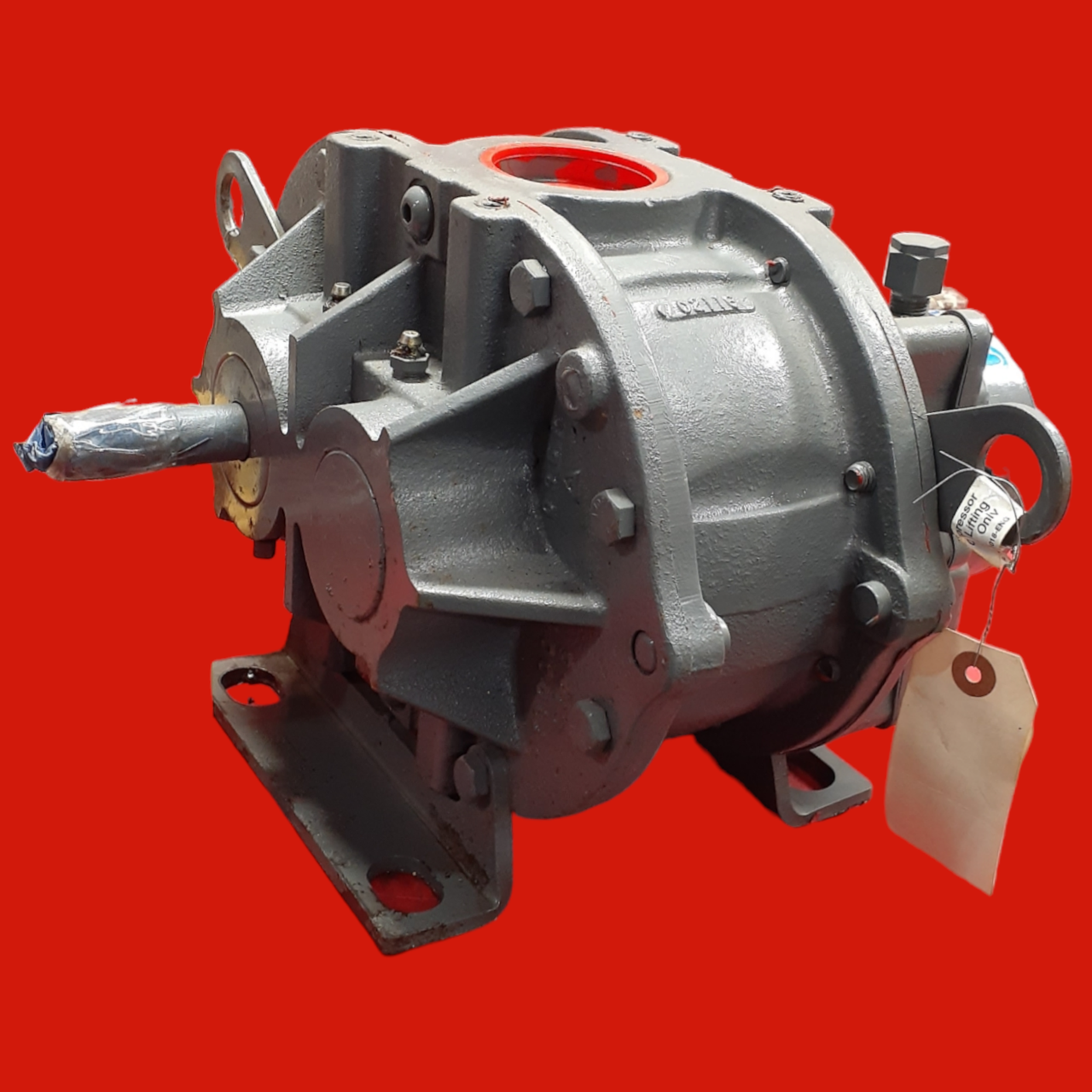

Howden 651050GL, 33 U-RAI Gas Roots Rotary Lobe Blower
PN: 651050GL
Model: 33 U-RAI Gas
- Flow Range: to 195 CFM
- Max Δ Pressure: 12 psi
- Max Δ Vacuum: 15″ Hg
- Maximum RPM: 3600
- Minimum RPM: 1090
- Max ΔT: 225˚F
- Connection: 2″ FPT
- Shaft Dia.: 0.75″
- Mechanical Seals
- 1/8″ NPT Purge Ports for buffer or seal gas
- All units are mechanically tested and given 15 psig static leak test
- Drive End Lubrication: Synthetic Grease
- Gear End Lubrication: Oil
- Required Oil for Gear End Horizontal Unit: 10.5 ounces
- Required Oil for Gear End Vertical Unit: 8.5 ounces
- Unit Weight: 74 pounds (33.6 kg)
