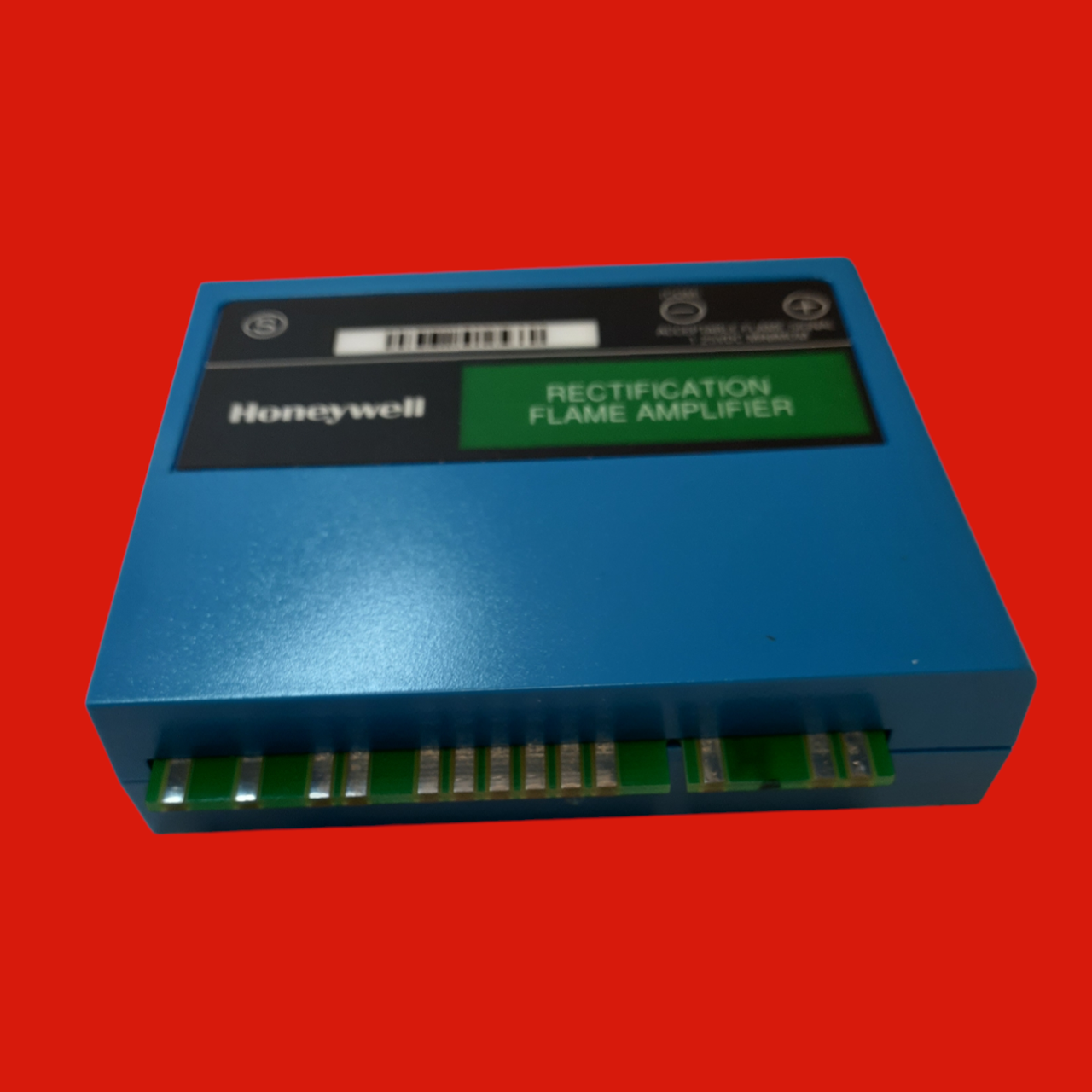

Honeywell R7847A1082 Rectification Flame Amplifier
PN: R7847A1082
The Honeywell Flame Amplifier R7847A1082 is a solid state plug-in amplifier that responds to flame detector inputs to indicate the presence of flame. It is designed to be used with 7800 Series relay modules and has a flame failure response time of 0.8 or 3.0 seconds. The flame signal strength ranges from 0.0 to 5.0 Vdc and it plugs into the 7800 relay module through a printed circuit board edge connector. It also has flame signal test jacks to measure the amplifier flame signal voltage and color-coded labels to identify the flame detection type
Solid state plug-in amplifiers that respond to flame detector inputs to indicate the presence of flame when used with 7800 SERIES relay modules.
- Flame failure response time of 0.8 or 3.0 seconds.
- Flame signal strength ranges from 0.0 to 5.0 Vdc.
- Plug into 7800 relay module through printed circuit board edge connector keyed for proper orientation.
- Flame signal test jacks to measure amplifier flame signal voltage.
- Color-coded labels identify flame detection type. Dynamic Self-Check Amplifier test the detectors and all electronic components in the flame detection system 7800 SERIES relay module locks out on safety shutdown with flame detection system failure.
- Compatible with existing Honeywell flame detectors (order separately).
- Type: Rectification
- Flame Failure Response Time (sec): 2.0 sec or 3.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods C7004,5,7,8, or 9, Q179 for impedance matching for leadwire runs > 50' or Ultraviolet Flame Sensor C7012A, C
