Product Description

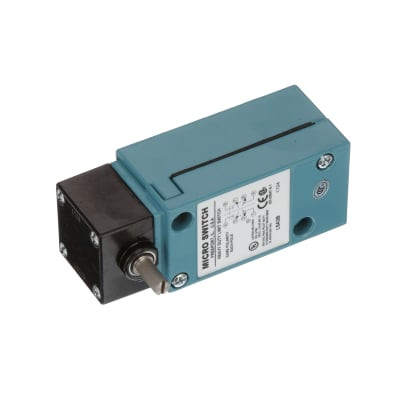

Honeywell LSA2B Limit Switch
| Actuator | Side Rotary | |
| Agency Approvals and Standards | UL, CE, CSA, CCC. EN60947-1, EN60947-5-1 | |
| Ampere Rating | 10 A (Thermal) | |
| Availability | Global | |
| Circuitry | 2NC 2NO DPDT Snap Action, Double-Break | |
| Differential Travel (DT) | 7° max. | |
| Housing Material | Zinc Die-Cast | |
| Housing Type | HDLS Plug-in | |
| Lever Type | Lever Not Included - Reference Lever Required Accessory | |
| Operating Force (OF) | 0,45 N m [4 in lb] max. | |
| Operating Temperature | -12 °C to 121 °C [10 °F to 250 °F] | |
| Overtravel (OT) | 60° min. | |
| Pretravel (PT) | 15° max. | |
| Product Type | MICRO SWITCH™ Heavy-Duty Limit Switches | |
| Sealed | Industrial | |
| Sealing | NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 | |
| Series Name | HDLS | |
| Supply Voltage | 600 Vac and 250 Vdc max. | |
| Termination Type | 0.75 in - 14NPT Conduit |
