Product Description

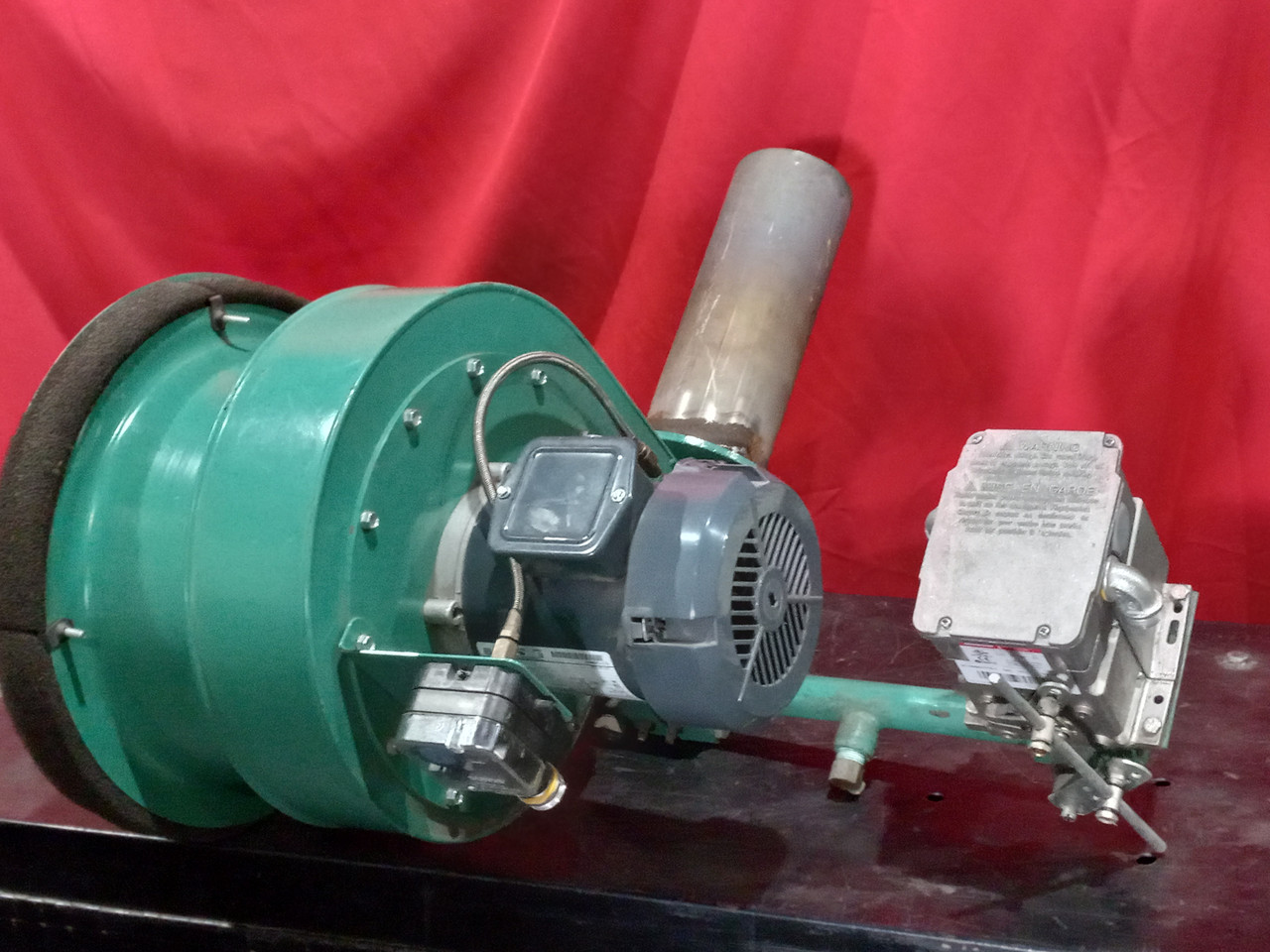

Honeywell Eclipse ThermAir Burner
Part#: TA22.0075-HCNASABNEB
Serial #: 12322401-0004-1
- TA0075 Maximum Input, 814,000 Btu/hr. (238 kW), 60 Hz
- Turndown: 30:1
- Max. process temperature: 1900°F (1038°C)
- Fuels: natural gas, propane, butane, landfill gas, low Btu gas
- No gas adjustment with ratio control
- Robust, reliable performance
Honeywell Eclipse ThermAir burner is designed for: Reliable Burner Operation, Simple Burner Adjustment, Direct Spark Ignition, and Multiple Fuel Capability. A wide variety of options and configurations are available due to the modular design of the burner.
Mounting flange measures: 7"
Insertion tube length: 13"
Insertion tube width: 4-1/2"
