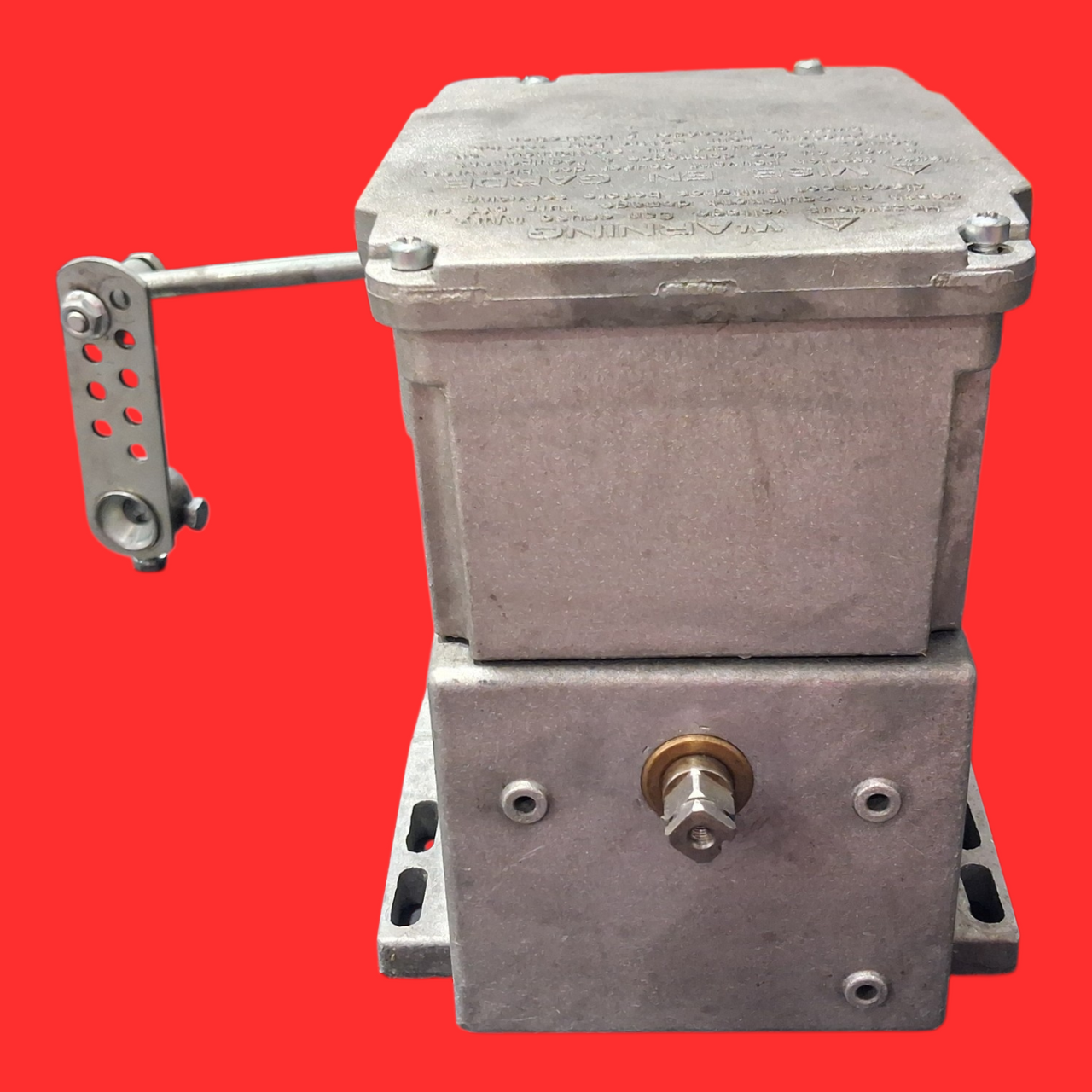

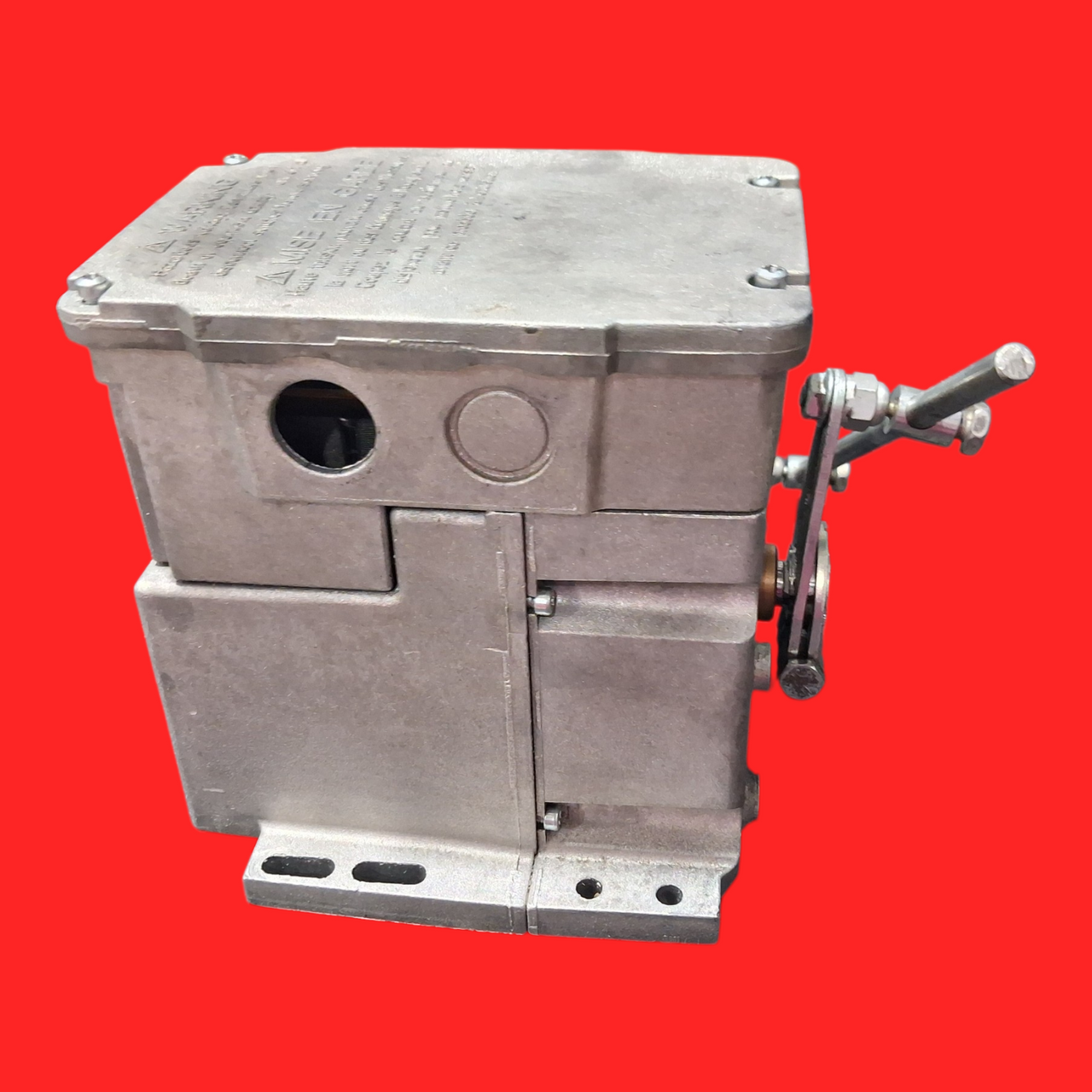

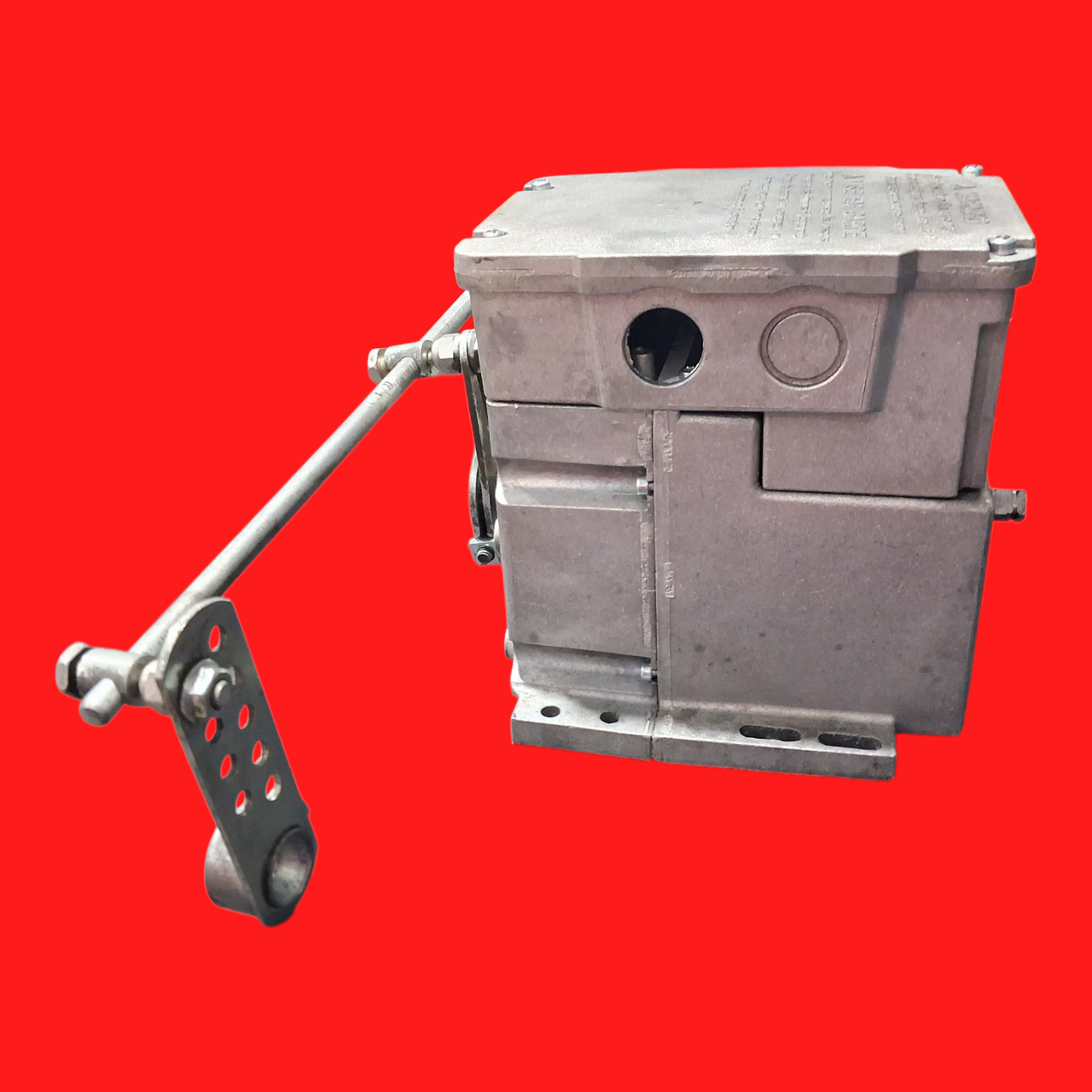

Honeywell 24V Non-Spring Return Foot Mounted Modutrol IV Motor- M6184F1014
Part#: M6184F1014
The Honeywell M6184F1014 is a 24V Modutrol IV motor designed for floating control of dampers and valves in HVAC and industrial systems. It is a non-spring return, foot-mounted actuator that provides a high torque of 150 lb-in.
- Control Type: Floating (3-wire SPDT or floating output).
- Electrical: 24 VAC, 50/60 Hz, 15 VA power consumption.
- Torque: 150 lb-in (17 Nm).
- Stroke: Field-adjustable from 90° to 160°.
- Timing: 30 to 60 seconds (nominal).
- Shaft: Dual-ended square shaft (3/8 inch).
- Auxiliary Switches: Includes 2 internal auxiliary switches.
- Environment: Rated for temperatures from -40°F to +150°F (-40°C to +60°C) with a NEMA 3 weather-protected junction box.
