Product Description

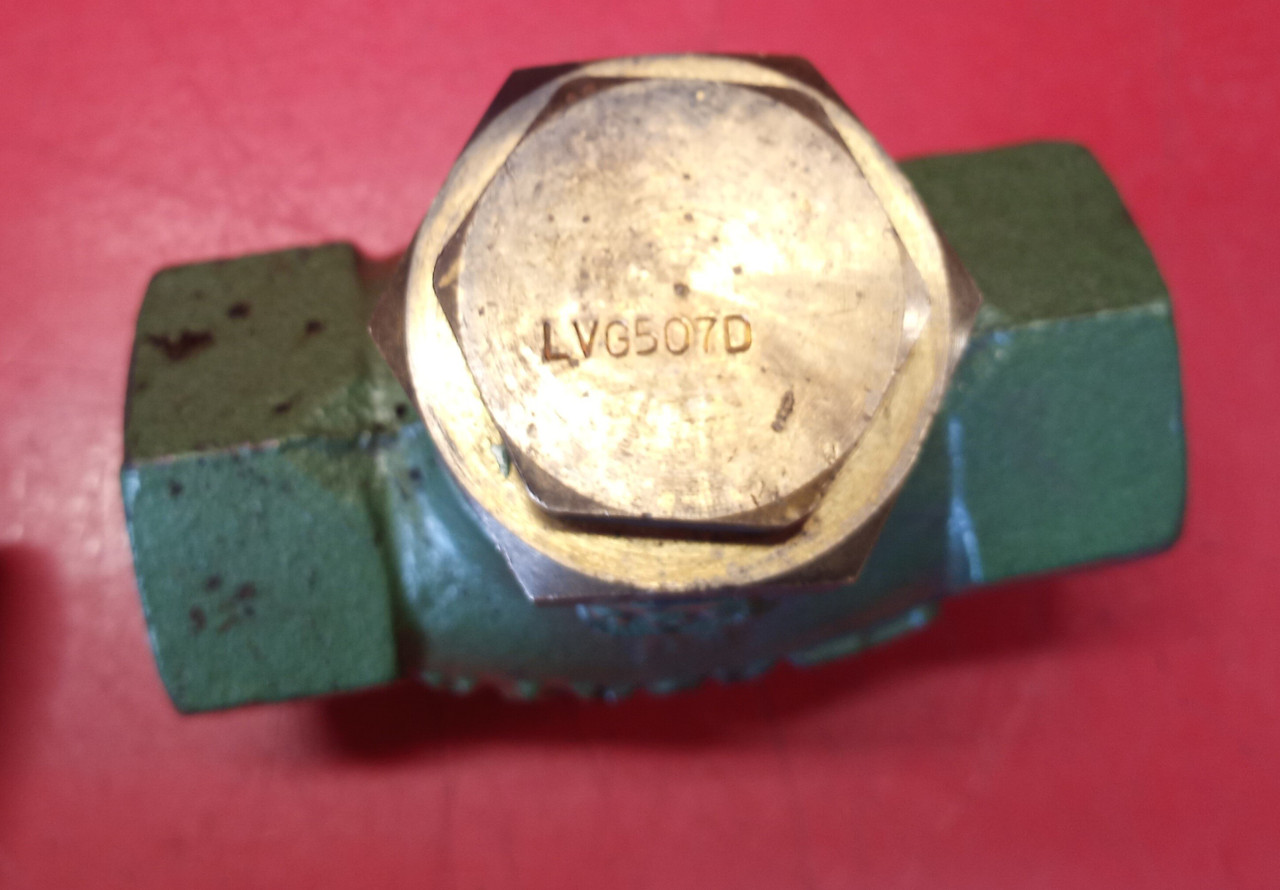

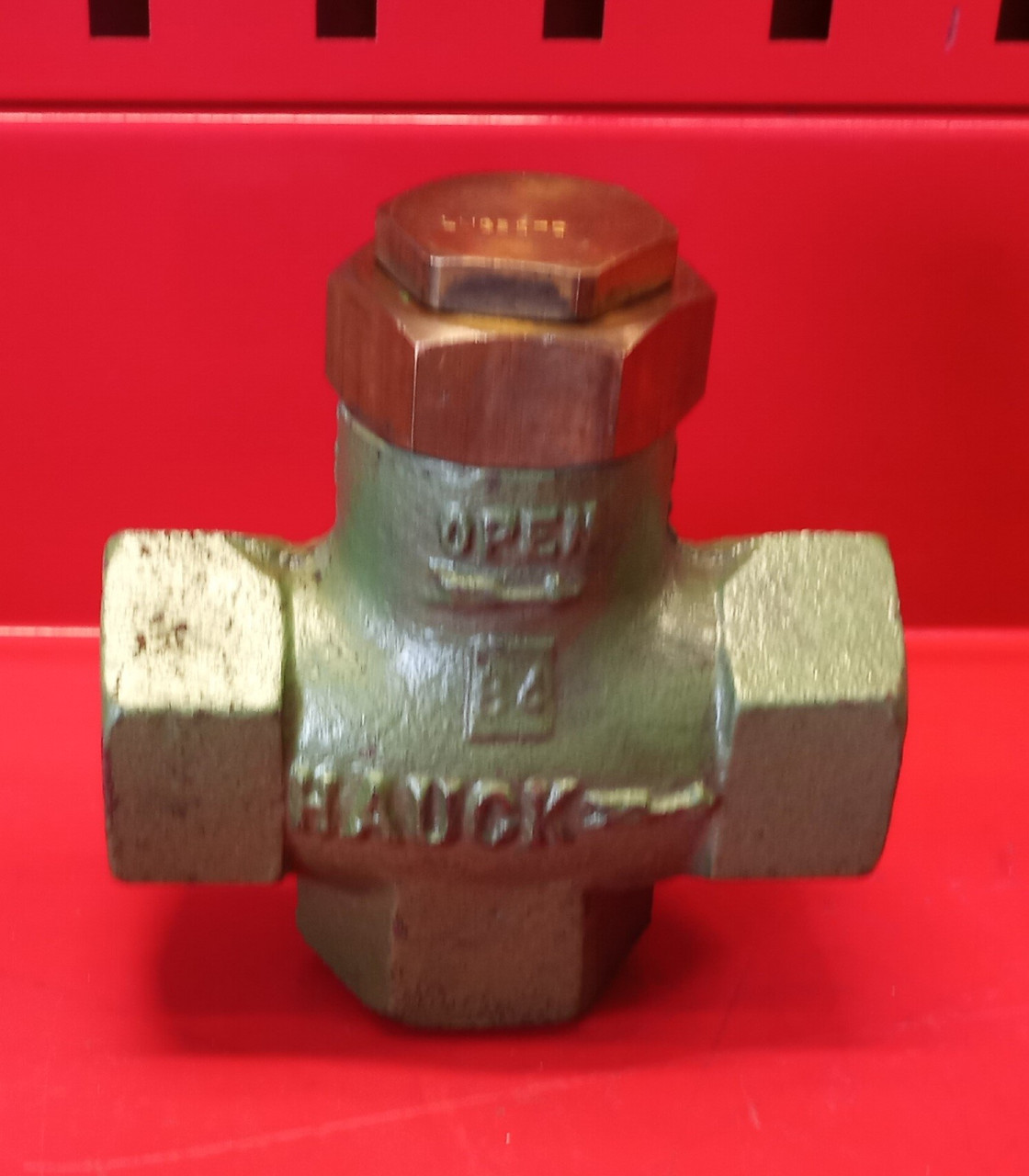

Hauck LVG507D Gas Limiting Orifice Valve
Model Number: LVG 507D
Pipe Size: 3/4 NPT
PRESSURE DROP:
- 1"wc: 405
- 2"wc: 590
- 4"wc:815
- 6.9"wc: 1,070
- 13.8"wc: 1,520
- 20.8"wc: 1,855
- 27.7"wc: 2,120
1. Capacities based on natural gas @ 0.60 s.g. and 60°F fluid temperature.
2. Pressure drop measured across full open valve.
3. Maximum inlet pressure is 25 psig.
The Hauck LVG Series Limiting Orifice Gas Valves are designed to allow
precise setting of high fire gas flow. They are used for single or multiple
burner systems. The standard LVG series valves can be used as straight
through type valves, and angle type valves are available to meet burner
piping system requirements. These valves are designed for use with any
commercial fuel gas; coke oven gas versions are also available.
