Product Description

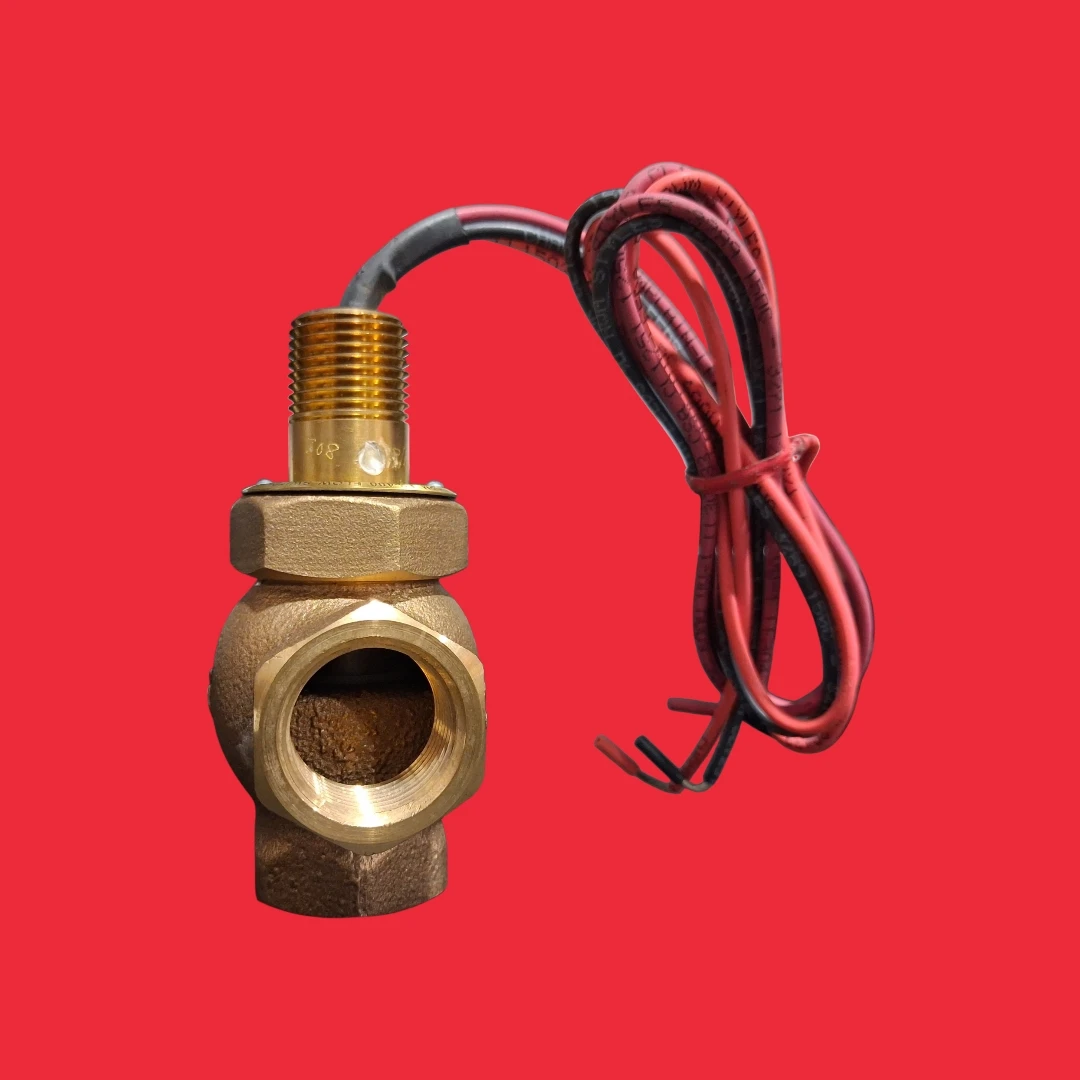

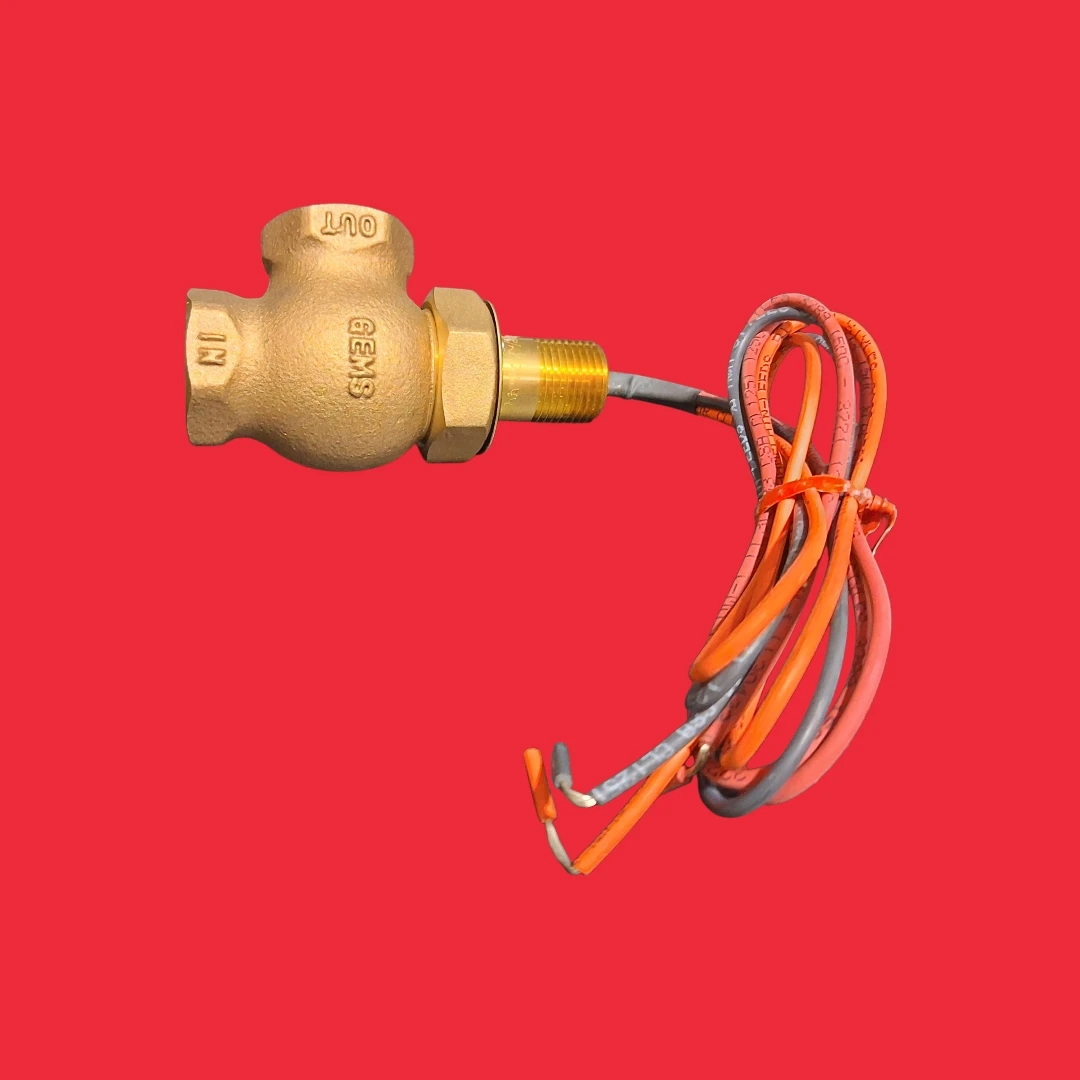

Gems Sensors Inc. 26441 Series FS-400 Shuttle Flow Switch
Part#: 26441
The FS-400 Series Flow Switches deliver precise flow detection in water and oil with 1% repeatability. Built from rugged, non-corrosive materials, these switches resist shock and vibration for long-term reliability. Ideal for protecting bearings, gears, and cooling systems, the FS-400 is widely used in lubrication, process, and cooling applications across industrial and electronic equipment.
- Body Material: Bronze
- Electrical Termination: 24" Long, 18 AWG, Polymeric Leads
- Flow Setting Range: FIXED
- Maximum Operating Pressure: 400 PSI
- Process Connection: 3/4" NPT Female
- Proof Pressure: 800 PSI
- Sensor Type: Shuttle
- Flow Setting: 1.5 GPM
- Set Point Differential: 0.15
- Set Point Accuracy: ±10%
- Switch Type: SPDT (20 VA)
- Wetted Material: Teflon, Bronze, Delrin, 316 Stainless Steel, Viton, Ceramic
- Minimum Operating Temperature [°F]: -20 °F
