Product Description

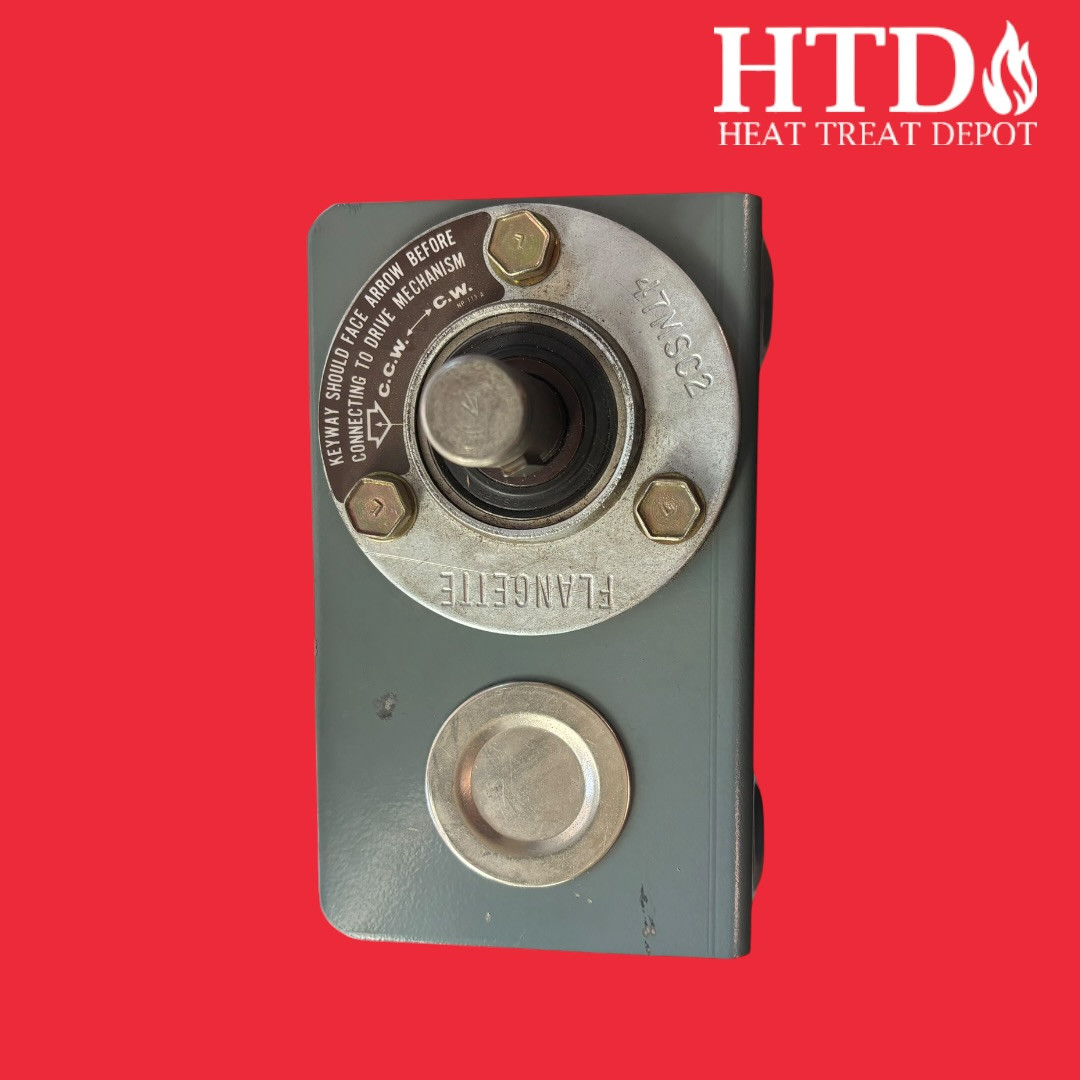

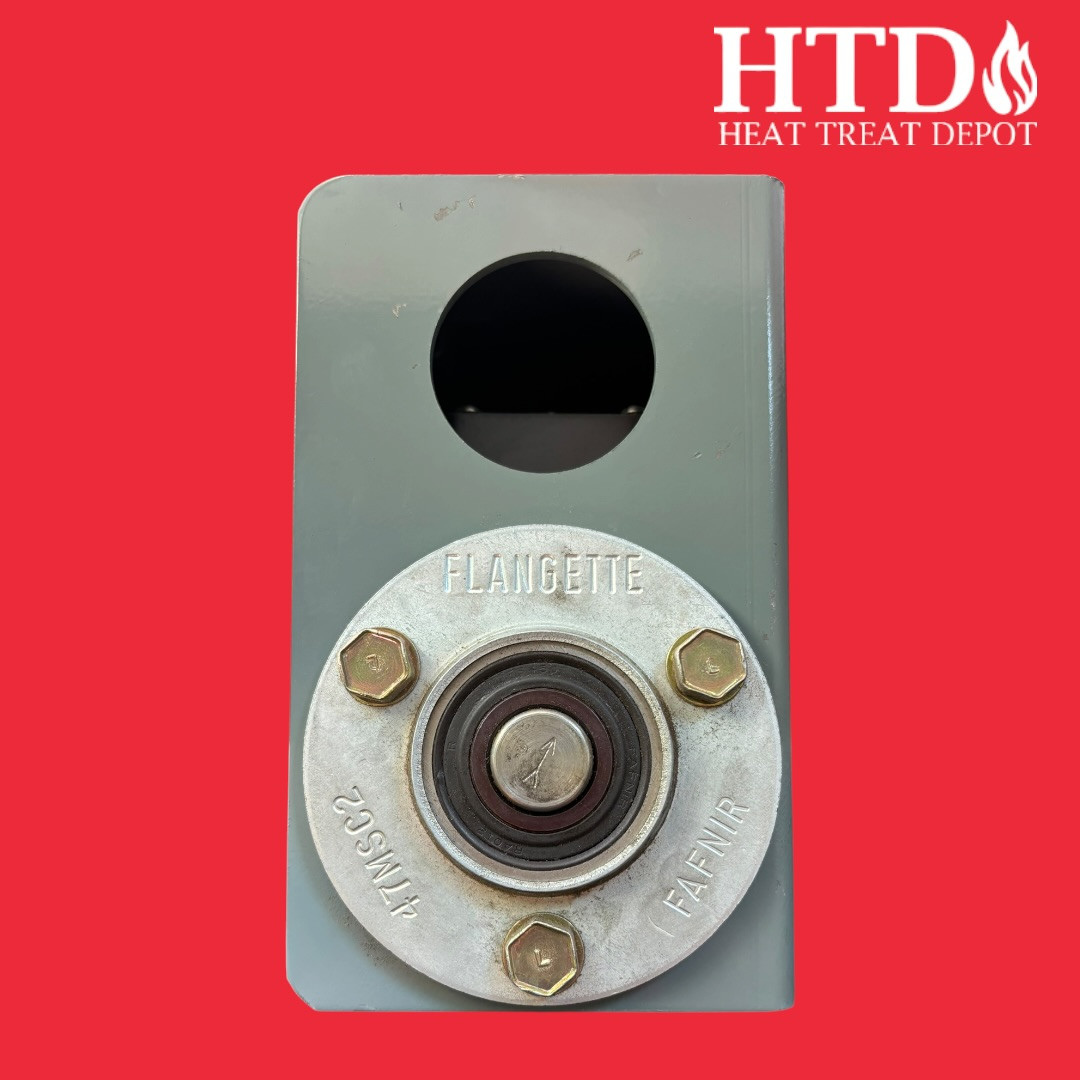

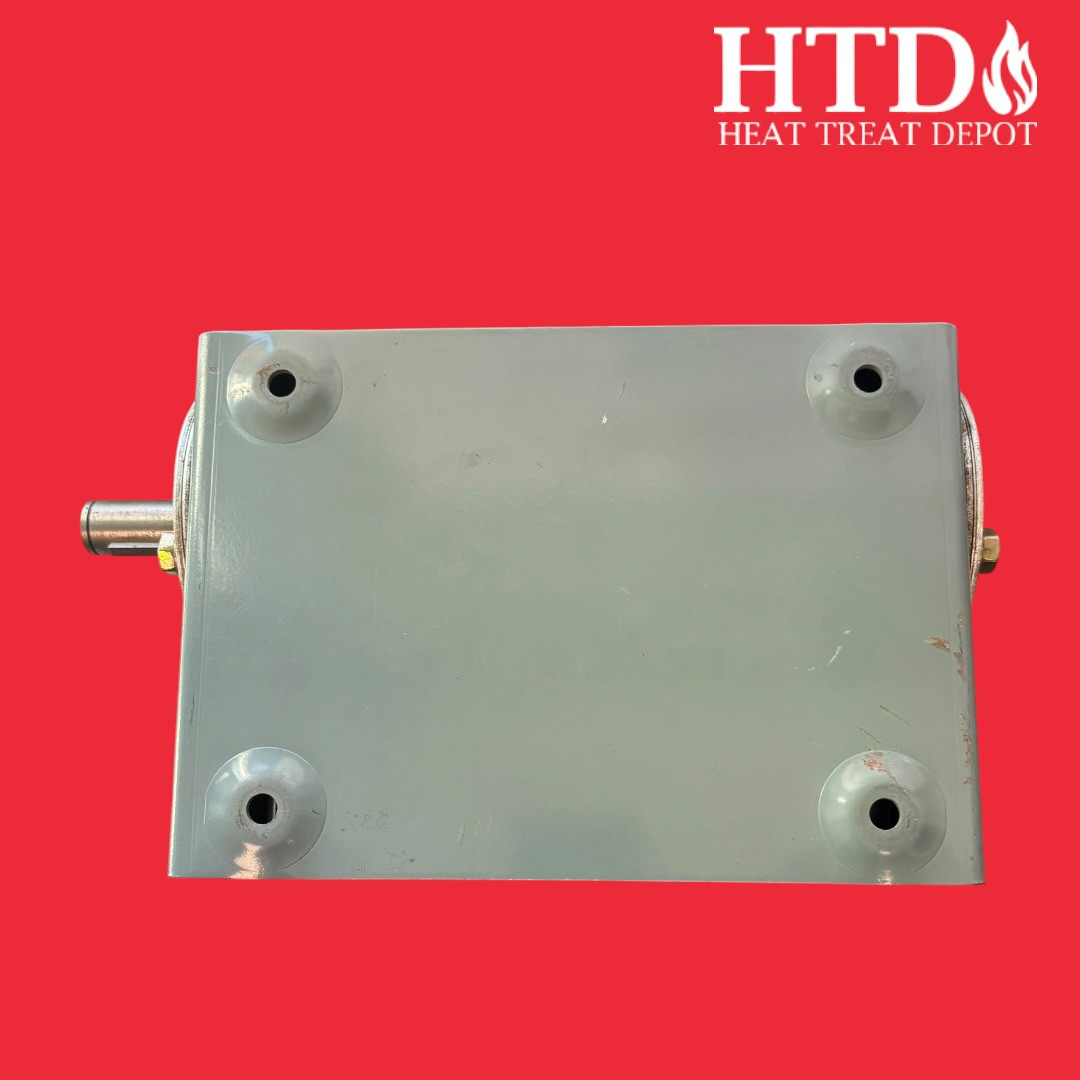

Gemco 1980-106R-SPX Rotating Cam Limit Switch
Part#: 1980-106R-SPX
- Series identifier (Micro-Adjust Cam Box)
- Enclosure Rating: NEMA 1 indoor Industrial Enclosure
- Maximum Shaft Speed: 500 RPM Maximum Continuous Speed
- Shaft Load Rating: 50 lbs of end Thrust / 500 lbs of Radial Load
- Drive Reducer: None (1:1 Direct Shaft Input Ratio)
- Switch Type: 6 Precision Snap-Action Switches with 4 Screw Terminals Per Switch
- Adjustment Range: Cams Can be Configured to Hold a Closed or Open Circuit From 4° to 356° of the Rotation Cycle
- Accuracy & Repeatability: ± 1/4° (0.25 Degrees) Variance on Snap-Action Trip Points
- Operating Temperature: Maximum: 185°F (85°C) Minimum Operating: -50°F (-45°C) Minimum Cam Adjusting: -10°F (-23°C)
- Approvals: UL Listed Assembly (File E56660)
.
