Product Description

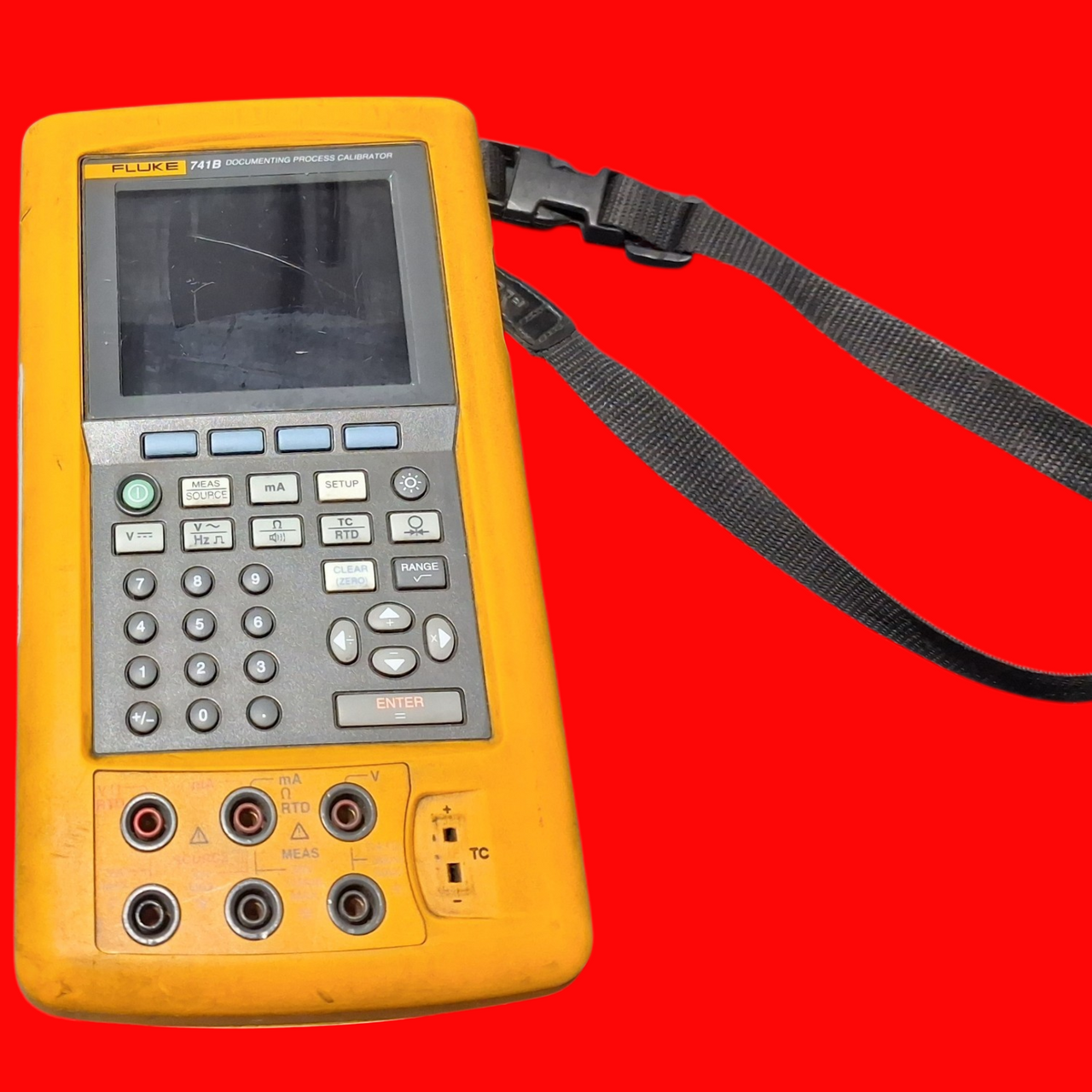

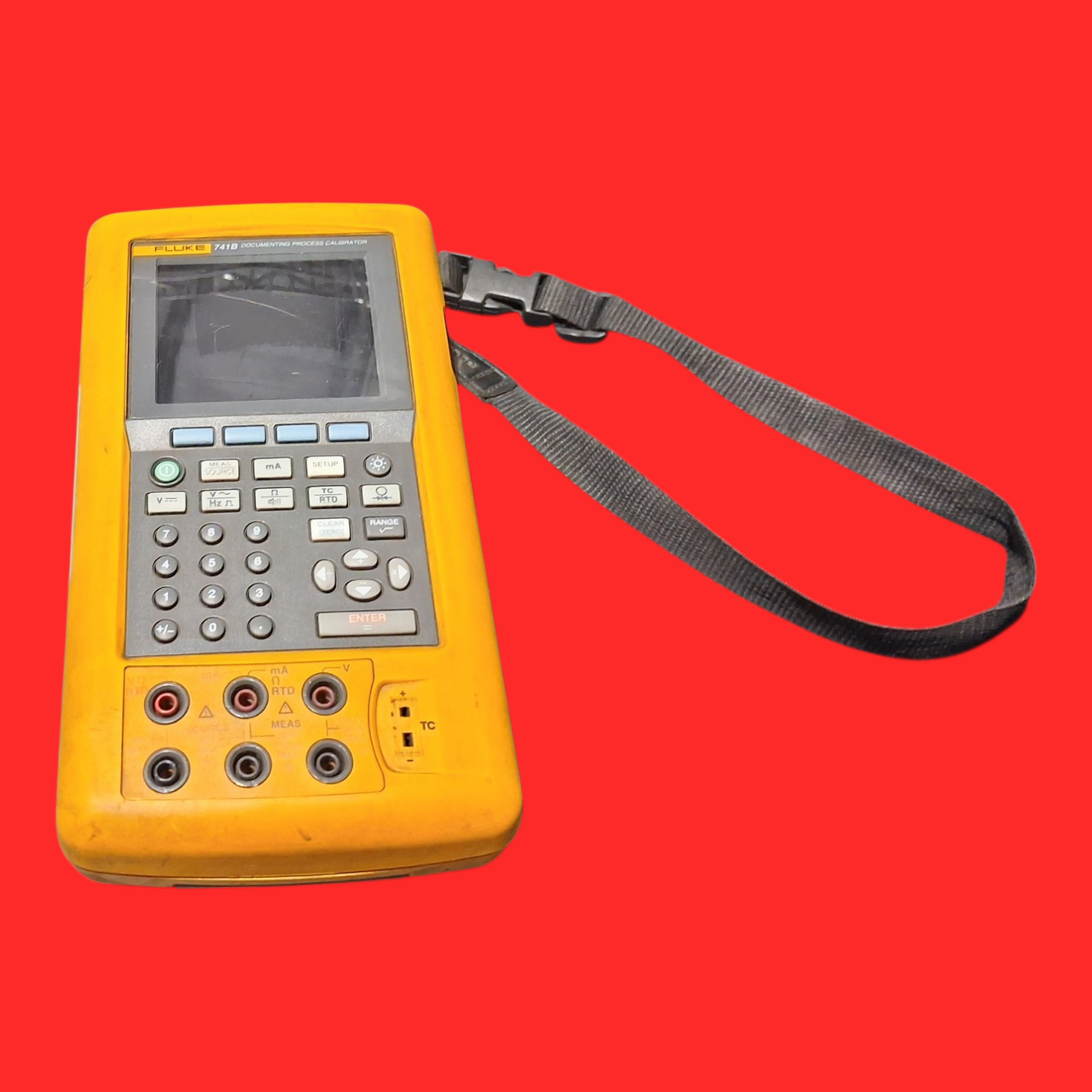

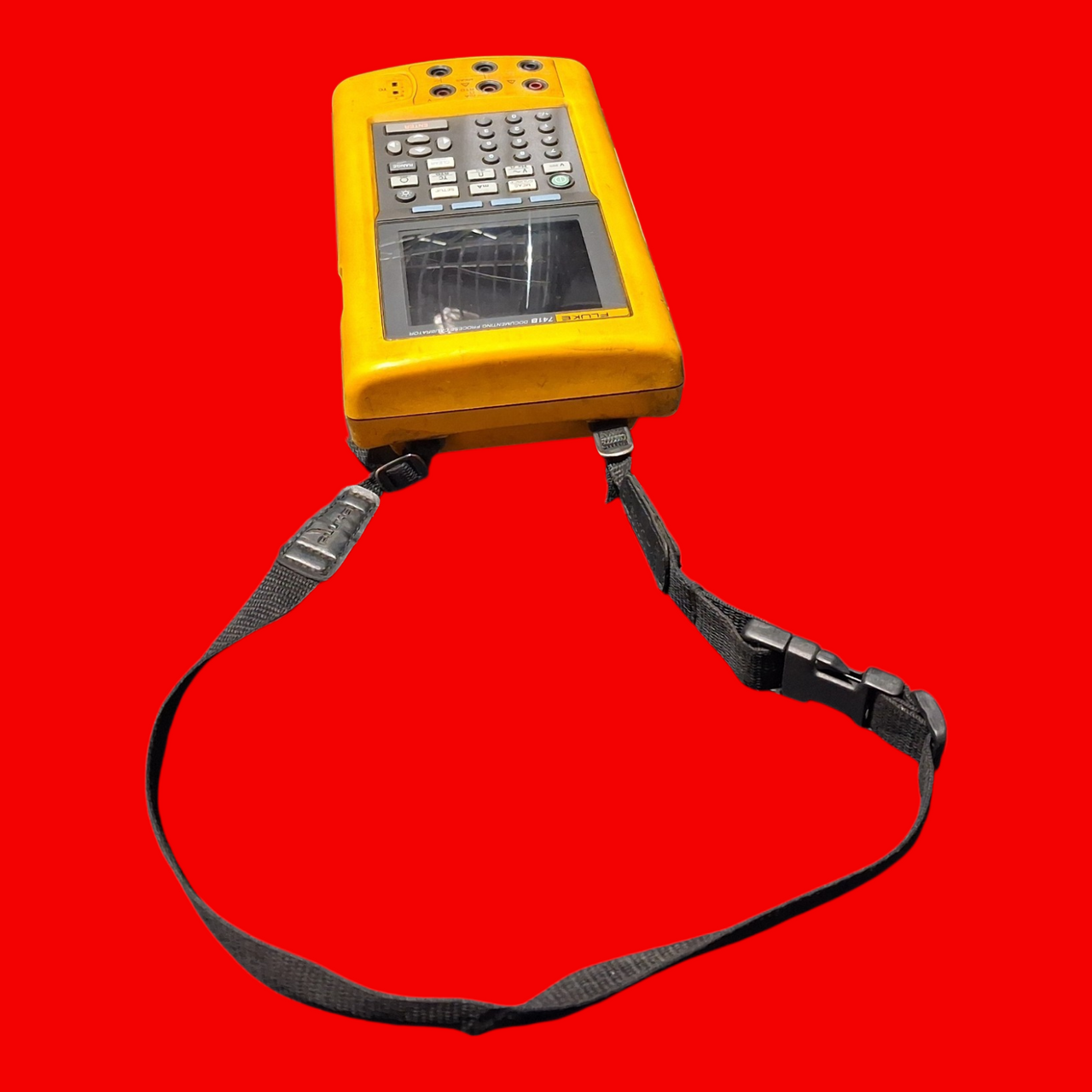

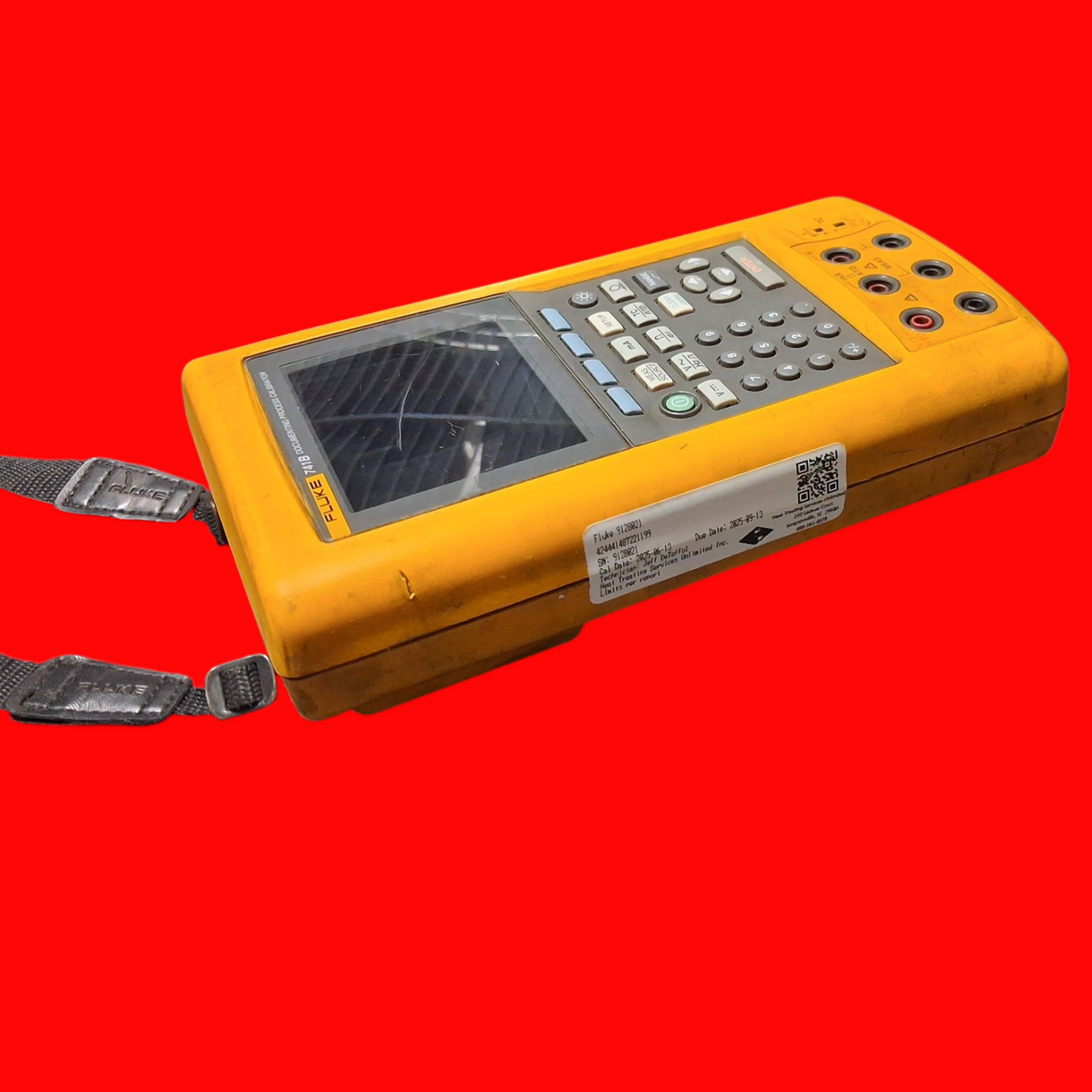

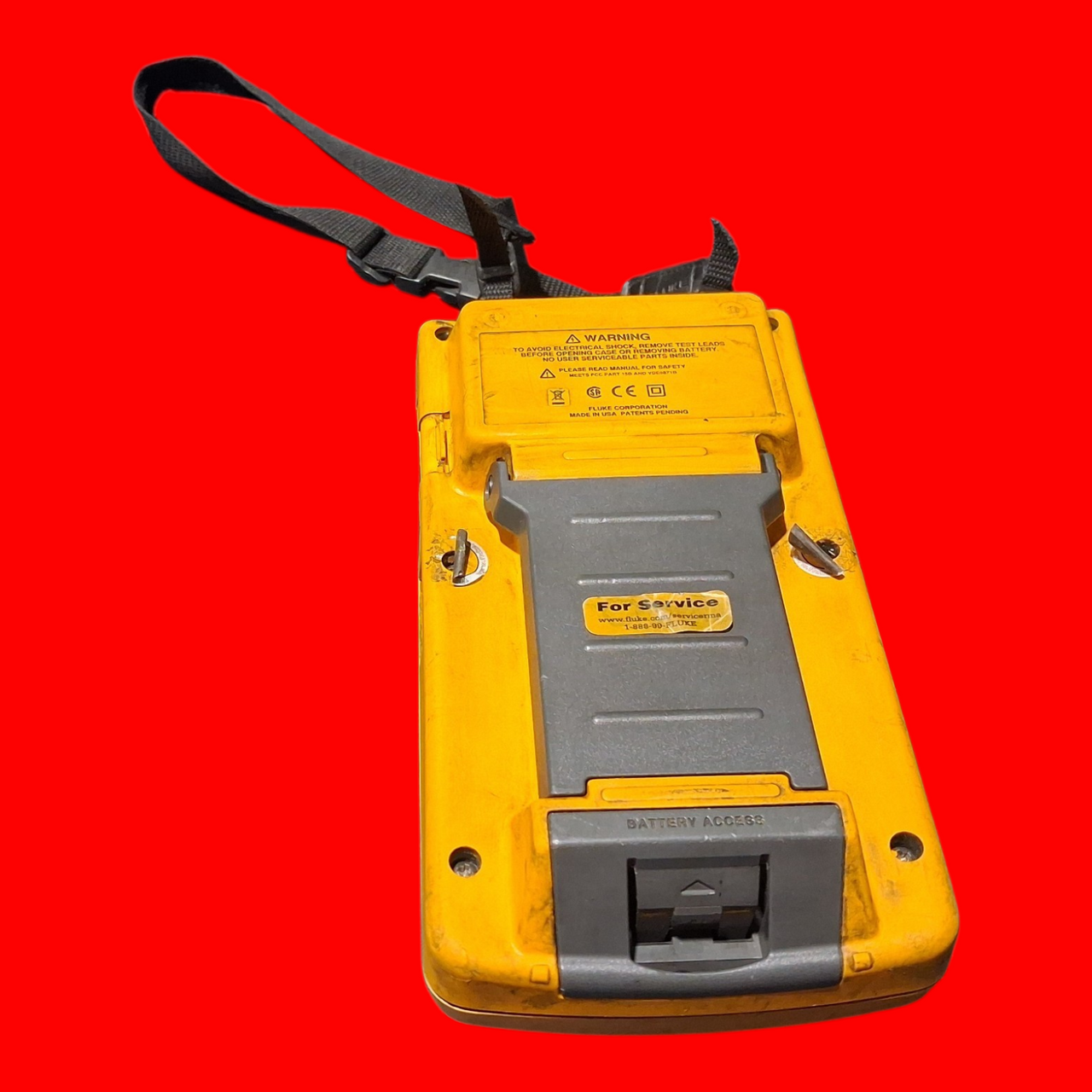

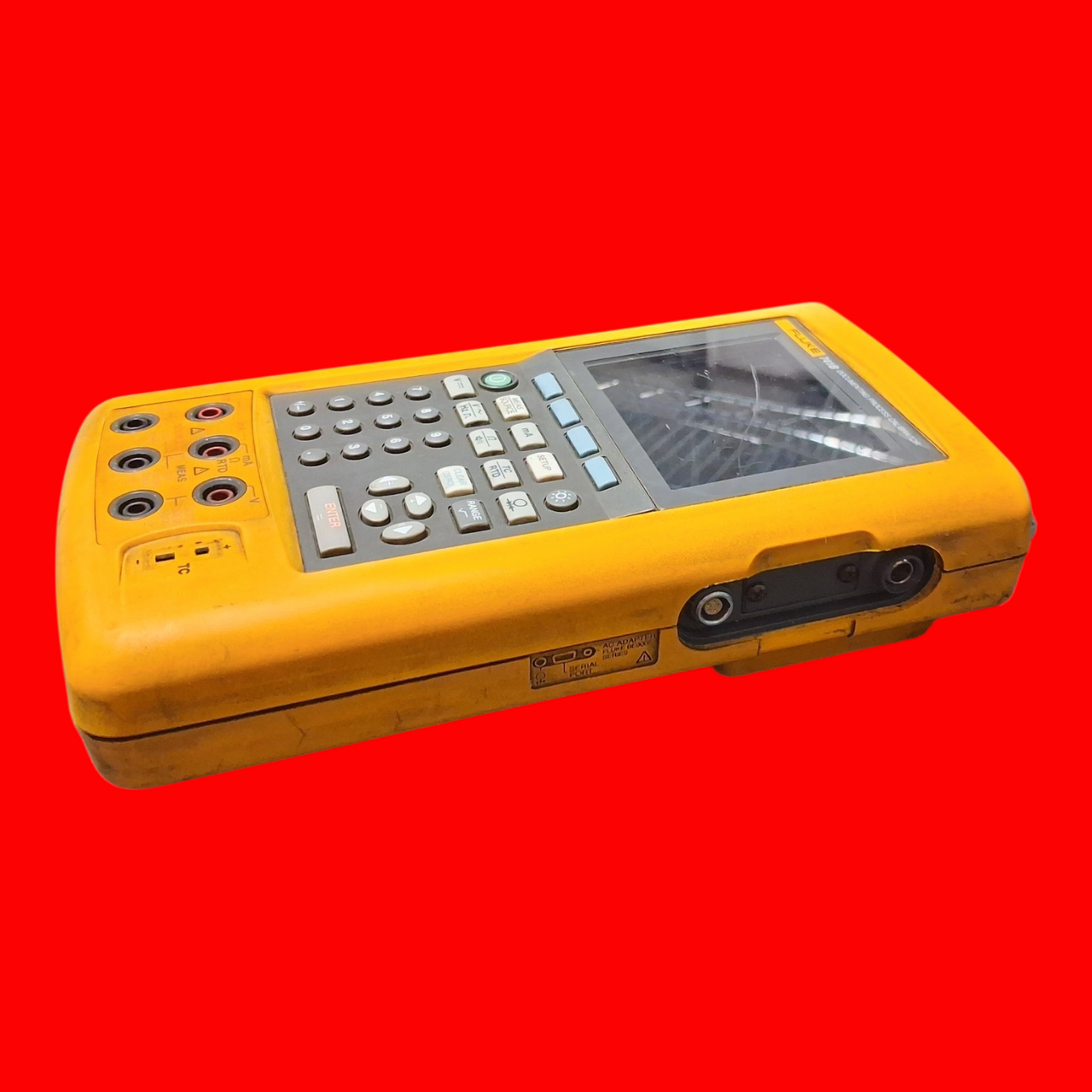

Fluke Documenting Process Calibrator-741B
Part#: 741B
The Fluke 741B Documenting Process Calibrator is a rugged, handheld tool designed to measure and source pressure, temperature, and electrical signals.
Key Features and Capabilities:
- Multifunctional Performance: It can calibrate temperature, pressure, voltage, current, resistance, and frequency in one device.
- Operating Modes: Features three modes—Measure, Source, or simultaneous Measure/Source—allowing you to troubleshoot and calibrate without switching tools.
- Documentation: Automates calibration procedures and captures "as-found" and "as-left" data to help meet ISO 9000, FDA, EPA, and OSHA standards.
- Rugged Design: Built with an overmolded urethane case to withstand harsh industrial environments and includes a bright white display for readability in any lighting.
- Advanced Tools: Includes a built-in algebraic calculator (with square root functions), AutoStep for unattended testing, and custom units for scaled readings.
Technical Specifications:
- Voltage Measurement: Range up to 300V DC with 0.025% accuracy.
- Current Measurement: Range up to 110 mA; can also power transmitters using a 24V or 28V loop supply.
- Temperature: Supports multiple RTD types (e.g., Pt100) and thermocouples (e.g., Type J, K, T, E, R, S, B).
- Pressure: Compatible with 29 different Fluke 700Pxx pressure modules.
- Battery Life: Typically provides over 8 hours of use on a rechargeable NiCd pack
