Product Description

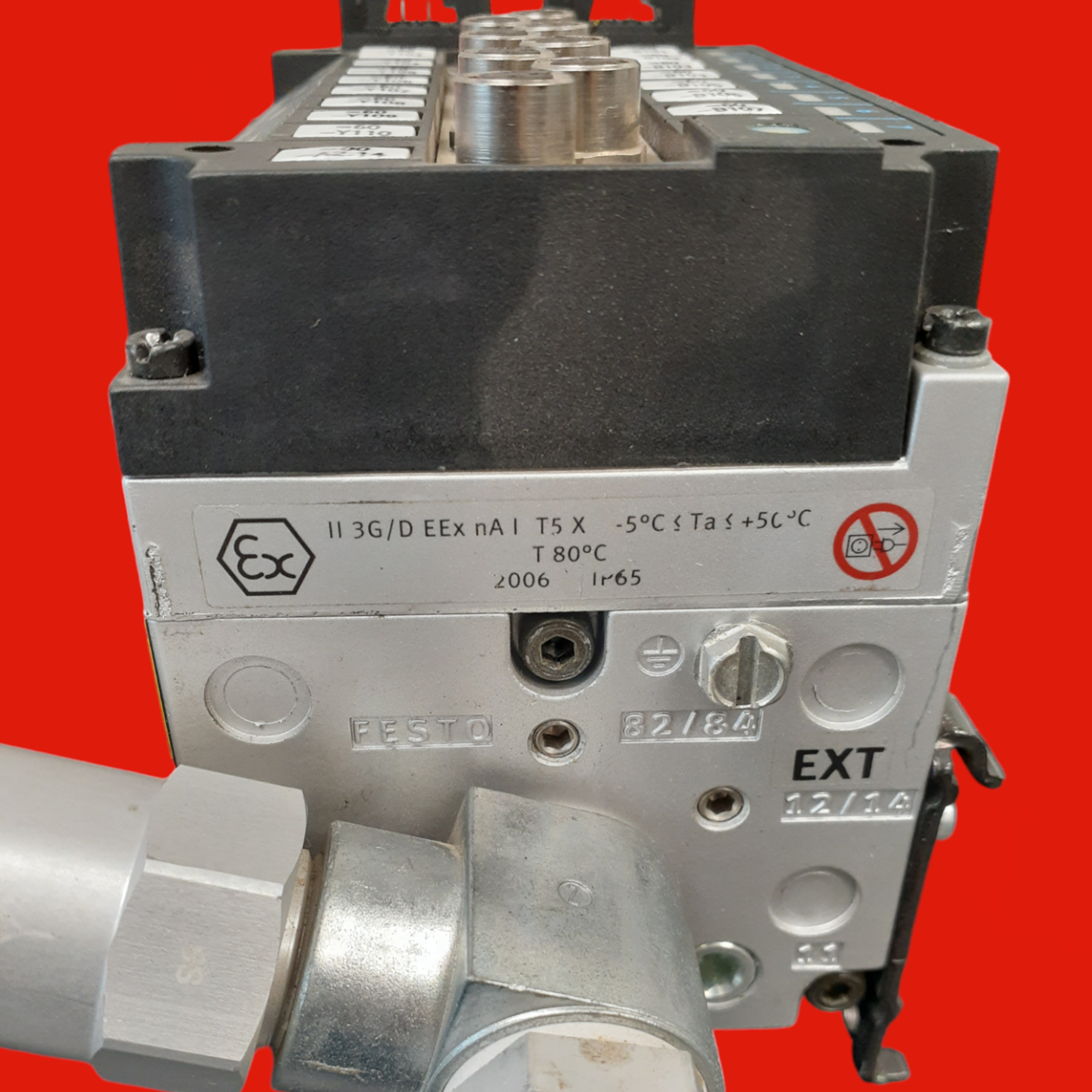

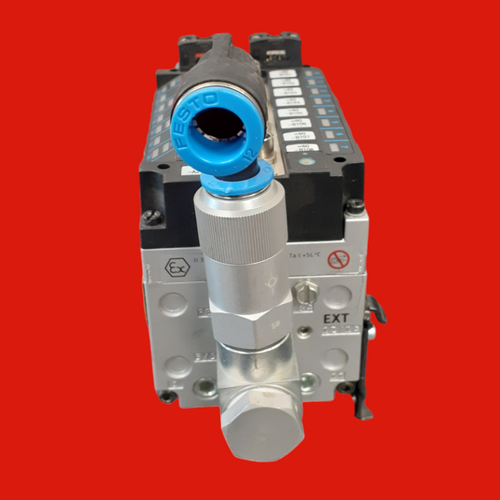

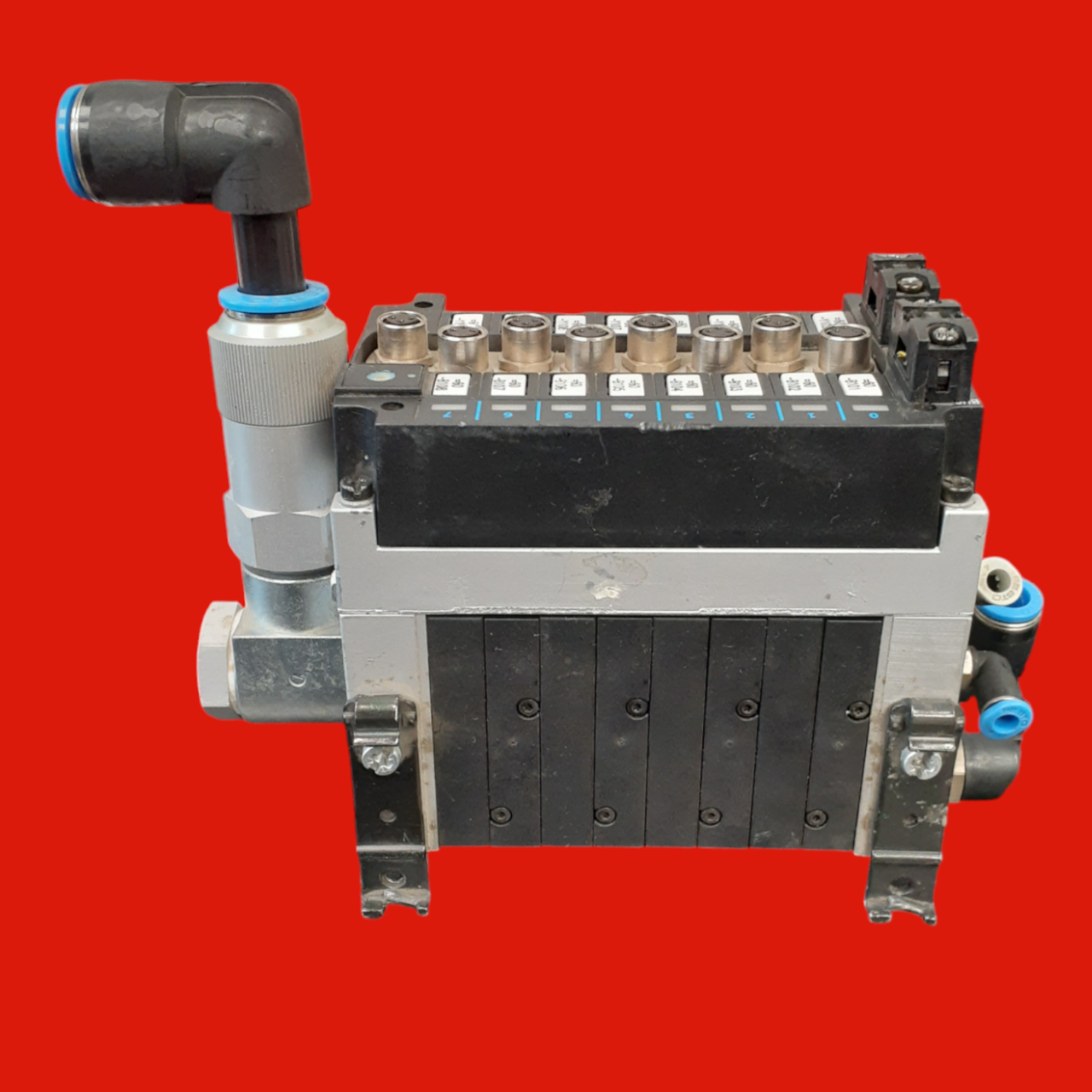

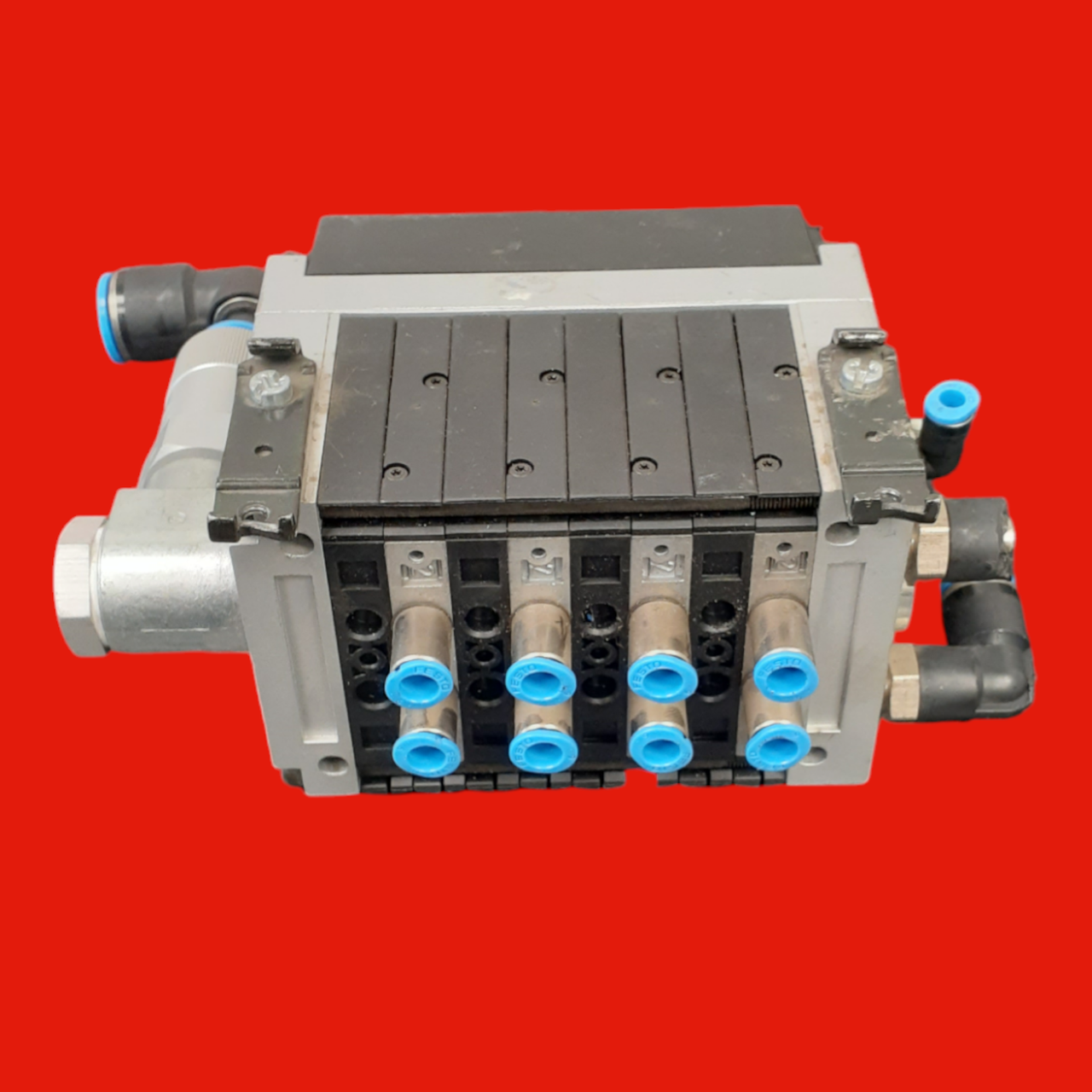

Festo Valve Manifold with Push-In Fittings, CPV-10-VI 12150
PN: CPV-10-VI 12150
- Electrical actuation: AS-Interface CPI installation system Individual connection Fieldbus Multi-pin
- Electrical I/O system: yes
- Valve terminal type: 10
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Temperature of medium: -5 °C ... 50 °C
- Ambient temperature: -5 °C ... 50 °C
- Storage temperature: -20 °C ... 40 °C
- Degree of protection: IP65
- Corrosion resistance class (CRC): 1 - Low corrosion stress 2 - Moderate corrosion stress
- Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Operating pressure: -0.09 MPa ... 1 MPa
- Operating pressure: -0.9 bar ... 10 bar
- Information on operating pressure: 0 – 0.8 bar with external pilot air 0 - 8 bar with external pilot air
- Pilot pressure: MPa0.3 MPa ... 0.8 MPa
- Pilot pressure: 3 bar ... 8 bar
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- CE marking (see declaration of conformity): As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU RoHS directive
- UKCA marking (see declaration of conformity): To UK instructions for EMC acc. to UK EX instructions To UK RoHS instructions
- KC characters: KC EMC
- Certification: RCM compliance mark c UL us - Recognized (OL)
- Explosion prevention and protectionClass I, Div. 2 (US) Zone 2 (ATEX) Zone 2 (UKEX)
- ATEX category gas: II 3G
- Explosion protection certification outside the EUEPL Gc (GB) NEC 500 Class I, Div. 2
- Type of ignition protection for gas: Ex ec IIC T4 Gc X
- Explosive ambient temperature: -5°C <= Ta <= +50°C
- Note on materials: RoHS-compliant
- Valve manifold design: Fixed grid
- Max. no. of valve positions: 8
- Max. no. of valve functions: 16
- Max. no. of pressure zones: 2
- Actuation type: Electrical
- Valve function2x2/2 closed, monostable 2x2/2, open/closed, monostable 2x3/2, closed, monostable 2x3/2, open, monostable 2x3/2, open/closed, monostable 5/2, bistable 5/2, monostable Vacuum generator Vacuum generator + 2/2, closed, monostable
- Structural design: Piston gate valve
- Sealing principle: Soft
- Valve size: 10 mm
- Pilot air supply port: External Internal
- Max. standard nominal flow rate: 400 l/min at 10 mm
- Nominal width: 4 mm
- Suitability for vacuum: yes
- Pneumatic working port: M7 QS-4 QS-6 QS-1/8 QS-1/4
- Pneumatic connection 1: Common port
- Pneumatic connection 2: M7
- Pneumatic connection 3: Common port
- Pneumatic connection 4: M7
- Pilot air port 12/14: Common port
- Pilot exhaust air port 82/84: Common port
- Signal status display: LED
- Nominal operating voltage: DC24 V
