Part#: 533198

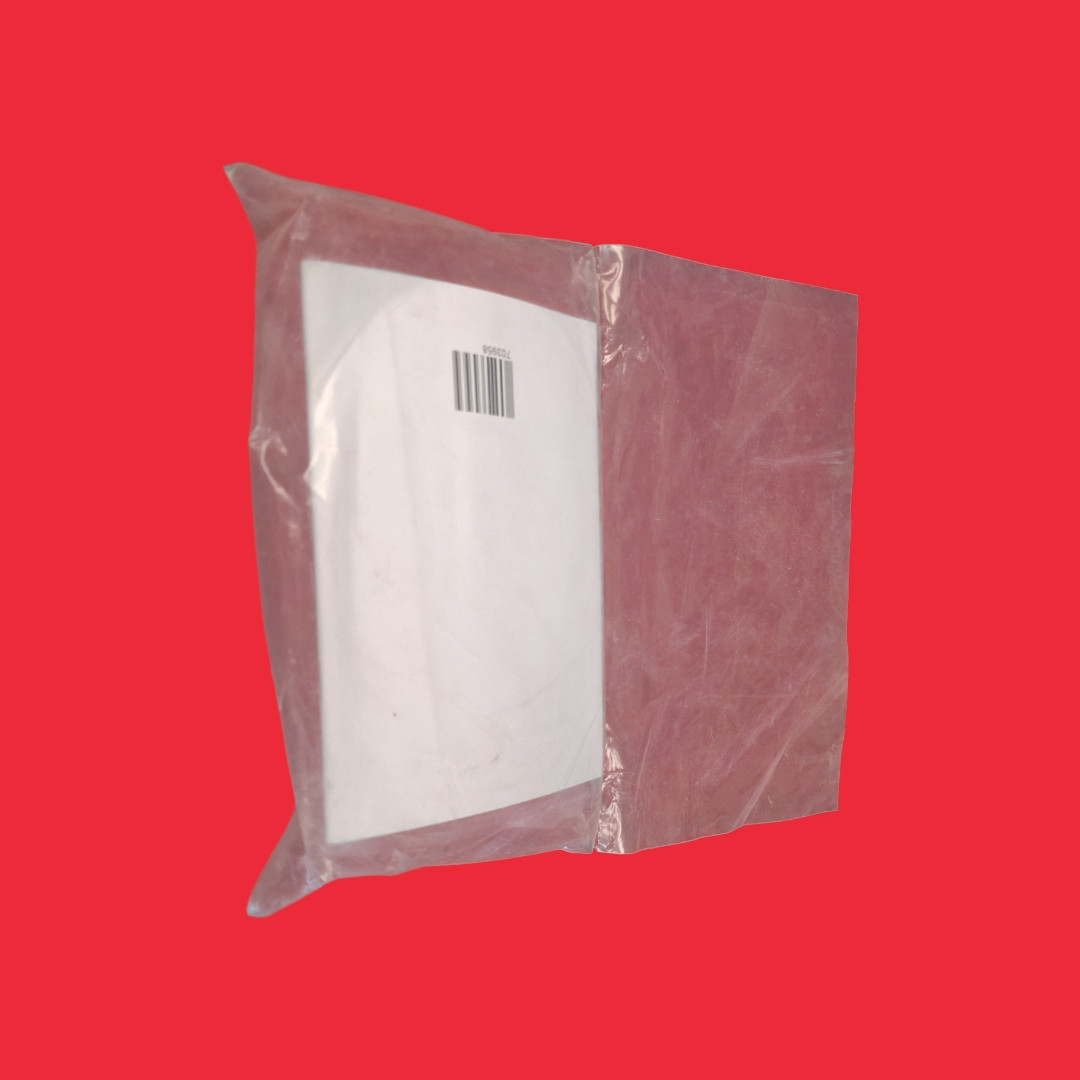

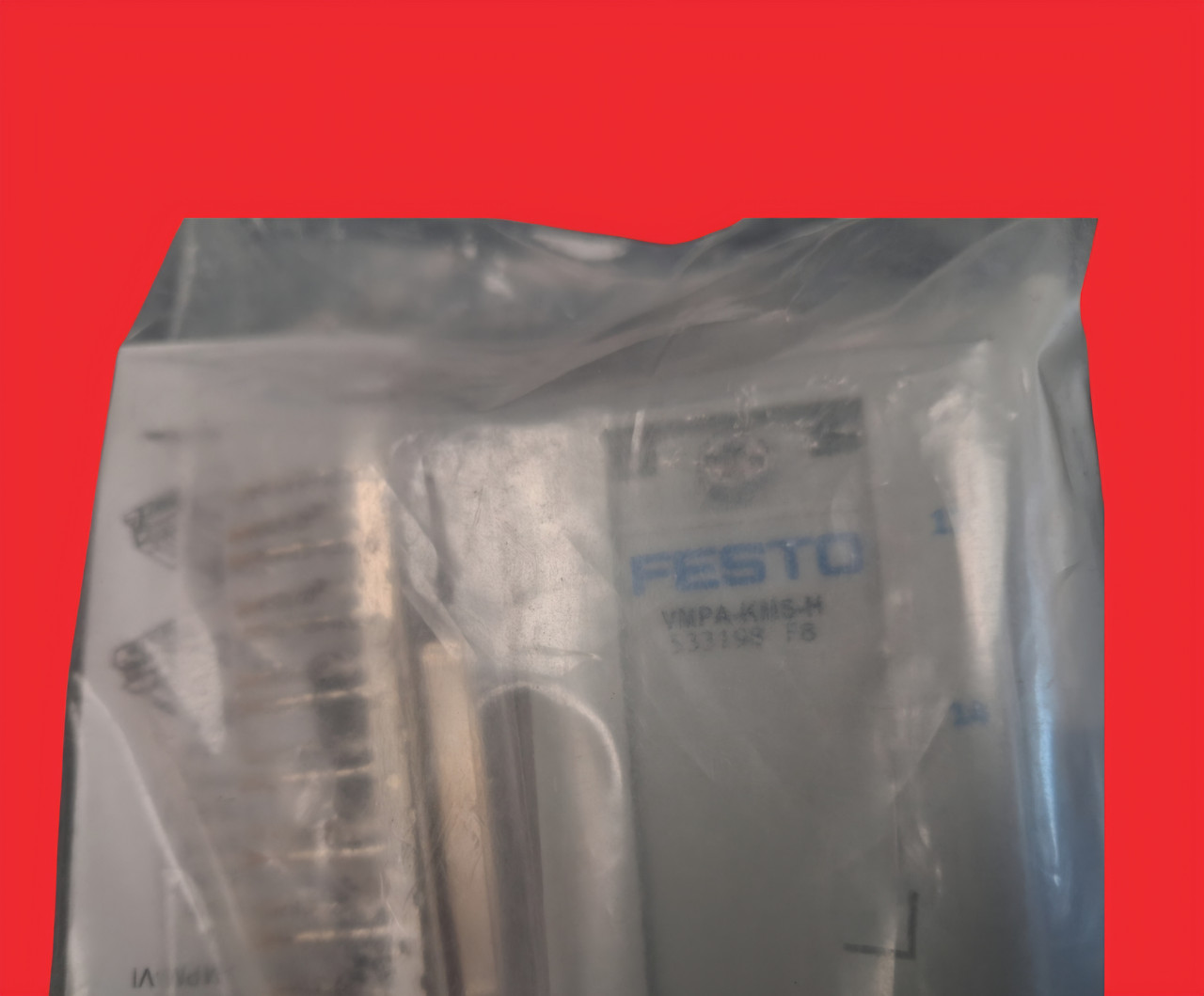

The Festo 533198 VMPA-KMS-H is a protective electrical connector hood (canopy) designed for multi-pin plug connections on Festo MPA-S Series Valve Terminals. It serves as a mechanical enclosure that shields the terminal block's multi-pin plug and sockets connection from dust, moisture, and debris.
- Based on norm: DIN 41652
- Contact durability: 50
- Product weight: 71 g
- Electrical connection: Plugs / sockets
- Electrical connection 1, function: Field device side
- Electrical connection 1, design: Square
- Electrical connection 1, connection type :Socket
- Electrical connection 1, cable outlet: Angled
- Electrical connection 1, connection technology: Sub-D
- Electrical connection 1, number of pins/wires: 25
- Electrical connection 1, type of mounting: 3x M3 screw
- Electrical connection for input 1, connection pattern: 00995643
- Electrical connection 2, function: Control side
- Electrical connection 2, connection technology: Crimp contacts
- DC operating voltage range: 0 V ... 30 V
- Nominal operating voltage DC: 24 V
- Nominal operating voltage AC: 3 V
- Surge resistance: 1 kV
- Cable diameter: 6 mm ... 12 mm
- Degree of protection: IP65, As per IEC 60529
- Note on degree of protection: In mounted state
- Ambient temperature: -25 °C ... 80 °C
- LABS (PWIS) conformity: VDMA24364-B2-L
- Note on materials: RoHS compliant
- Contamination level: 3
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- Housing material: PA
- Housing color: Gray
- Material of union nut: PA
- Seals material: CR, NBR
- Material of pin contacts: Gold-plated copper alloy
