Product Description

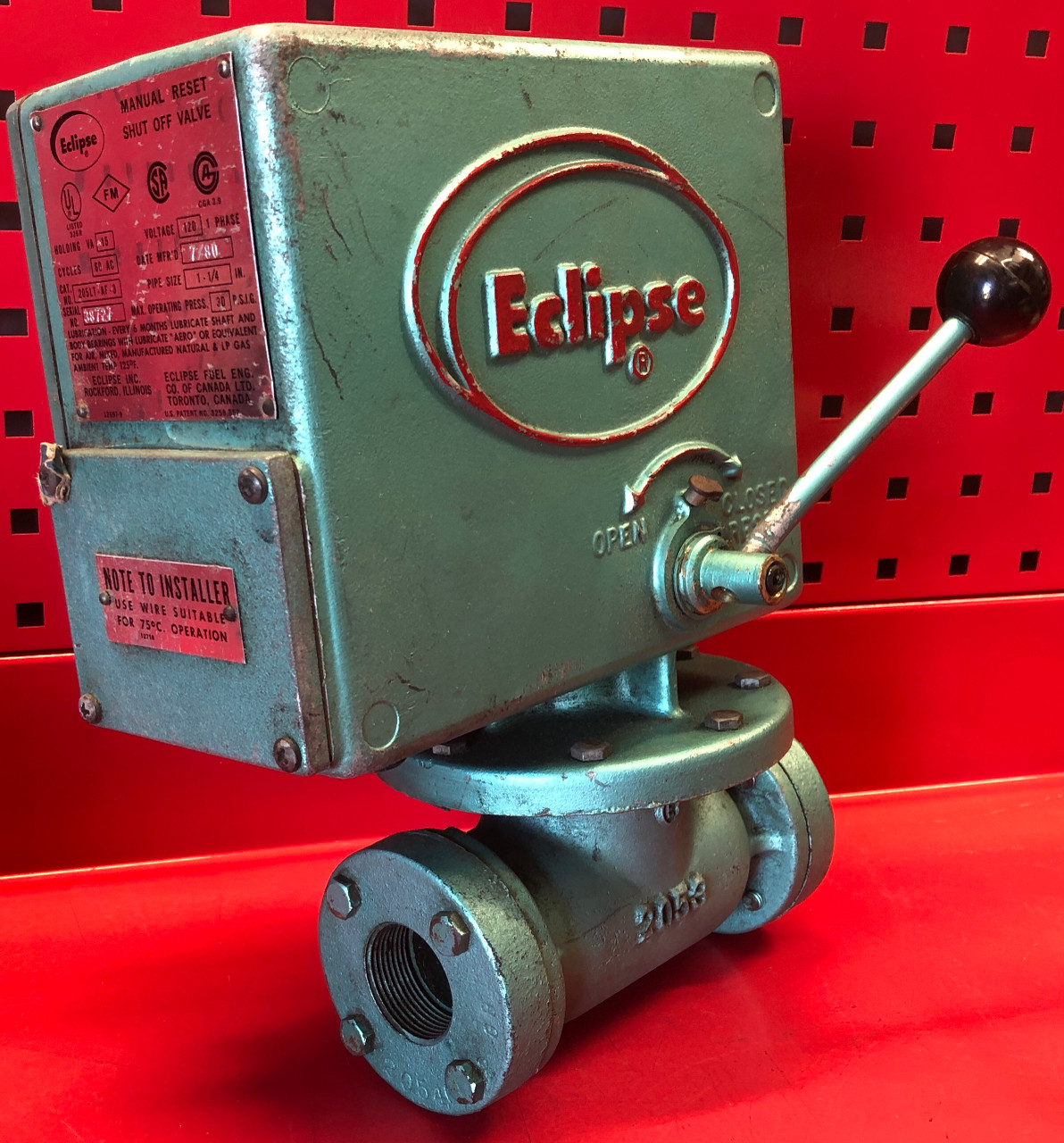

Eclipse 205LT-AF-3 Manual Reset Shut-Off Valve
This product is new without original packaging, old stock.
Eclipse 200 LT valves are manually opening valves that automatically shut off gas supply to a combustion system when any interlocking limit switch opens. The valve handle cannot be reset until the condition causing the open switch is corrected and all limit switches are closed. Typical limit switches include air pressure, gas pressure, temperature limit, and flame monitoring contacts. In the event of a power failure, the valve immediately closes.
• Snap-acting solenoid for fast closing.
• Two visual indicators of valve position.
• Raintight construction.
• Soft seat disc for positive shut-off.
• Two built-in auxiliary switches.
• Ball bearing tip mechanism reduces wear.
200 LT Specification
+125° to –20° F (+52° to -29° C) fluid and ambient . Below 32° F (0° C) the gas must be free of water vapor which could condense and freeze within the valve.
1" thru 2" 30psig 2-1/2" thru 4" 20psig
Design Features
115/120 volt 50/60 hz standard. 220/50 or 240/60 available.
35 VA at 120 volt
8 amp, 1/3 hp, 120 or 240 volts A.C.
