Product Description

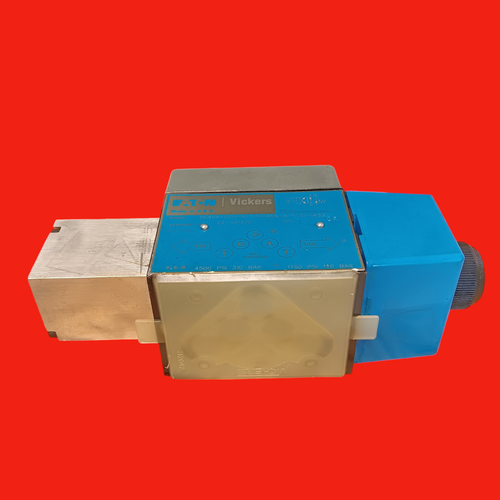

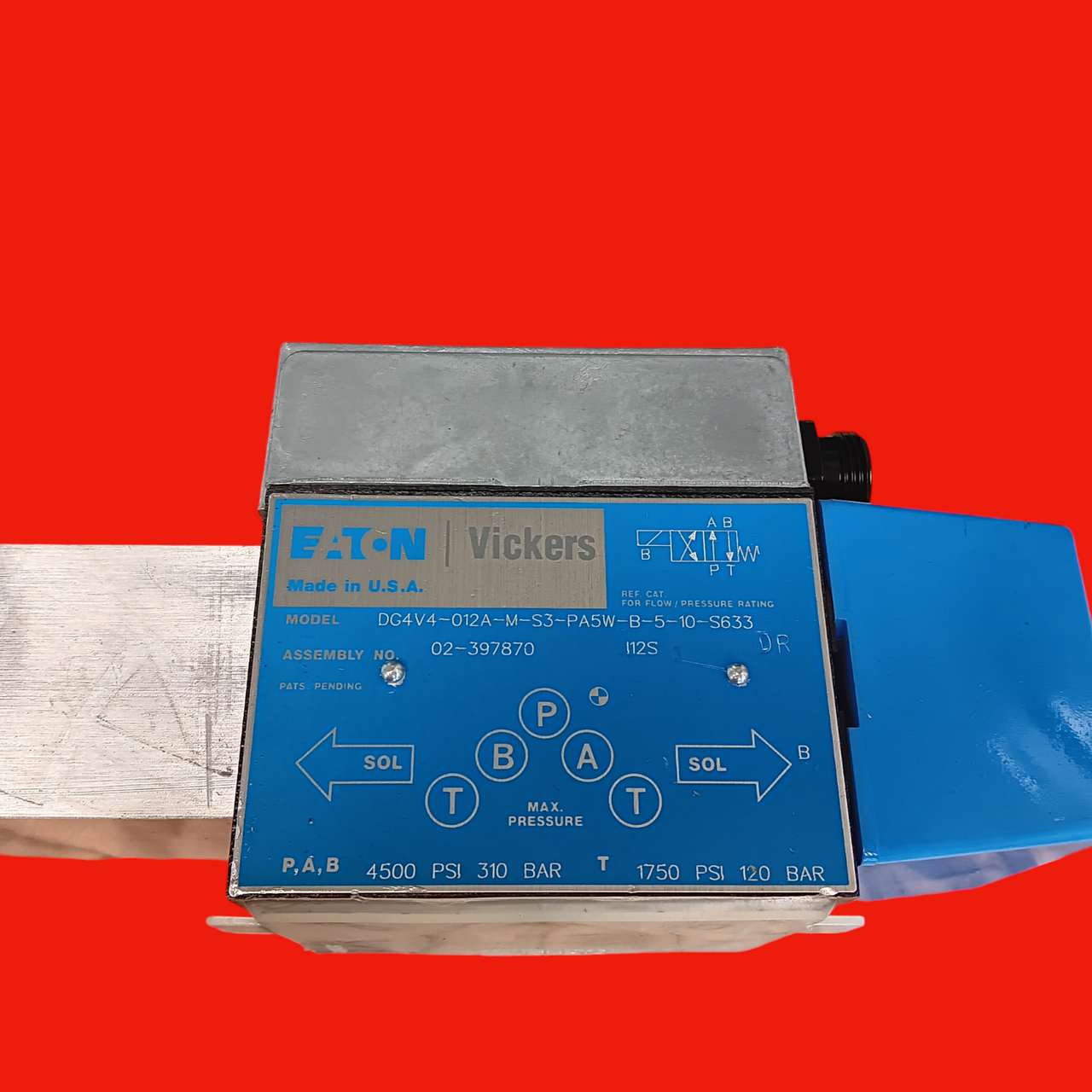

Eaton Vickers DG4V4-012A-M-S3-PA5W-B-5-10-S633 Wet Armature Solenoid Operated Directional Control Valve
Model#: DG4V4-012A-M-S3-PA5W-B-5-10-S633
- Model Series: Subplate mounting; solenoid operated. Pressure rating 315 bar (4570 psi) for ports P, A & B.
- Spool Type: Closed center (all ports)
- Spool/Spring Arrangement: Spring offset, end-to-end
- Spool Indicator Switch: Switch, wired normally open
- Electrical Connector: Five pin connector
- Coil Rating: 110V AC 50 Hz/120V AC 60 Hz
- Port T Code: 120 bar (1750 psi) (Standard power)
