Product Description

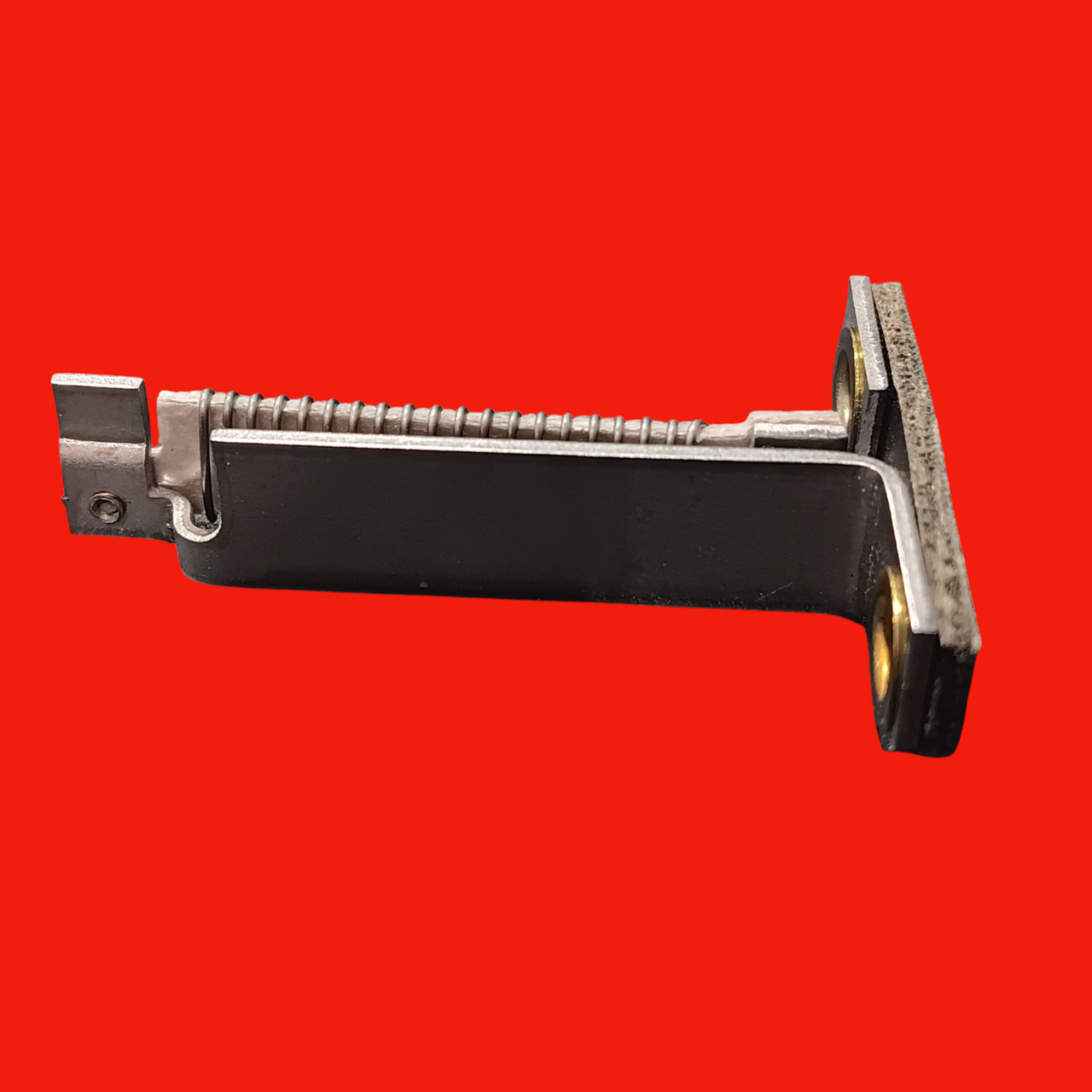

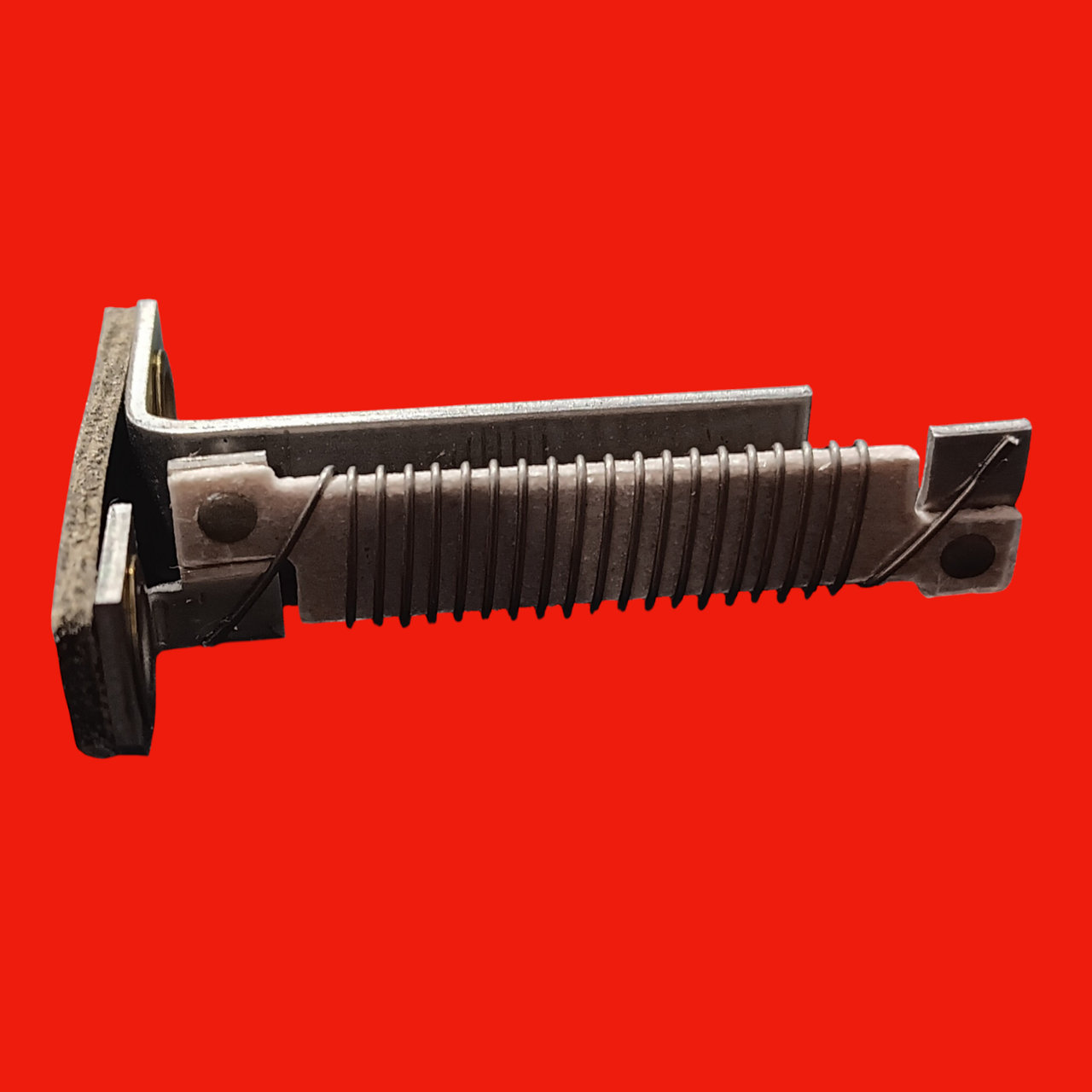

Eaton FH13 Overload Relay Heater Element
Part#: FH13
- Product Length/Depth: 2.1 in
- Product Height: 0.8 in
- Product Width: 1.3 in
- Product Weight: 0.03 lb
- Certifications: UL Listed, CSA Certified
- Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
- Special features: Used with Starter Sizes 0,1, and 2
- Type: A200/B100 Heater
- Used with: Starter Sizes 0,1, and 2
- Design: NEMA
- Full load current range: Ambient 0.69-0.75, 0.80-0.87 A, Non-Comp 0.64-0.70, 0.78-0.85 A
- Overload relay: Type A and B
- Trip type: Thermal and fast trip
