Product Description

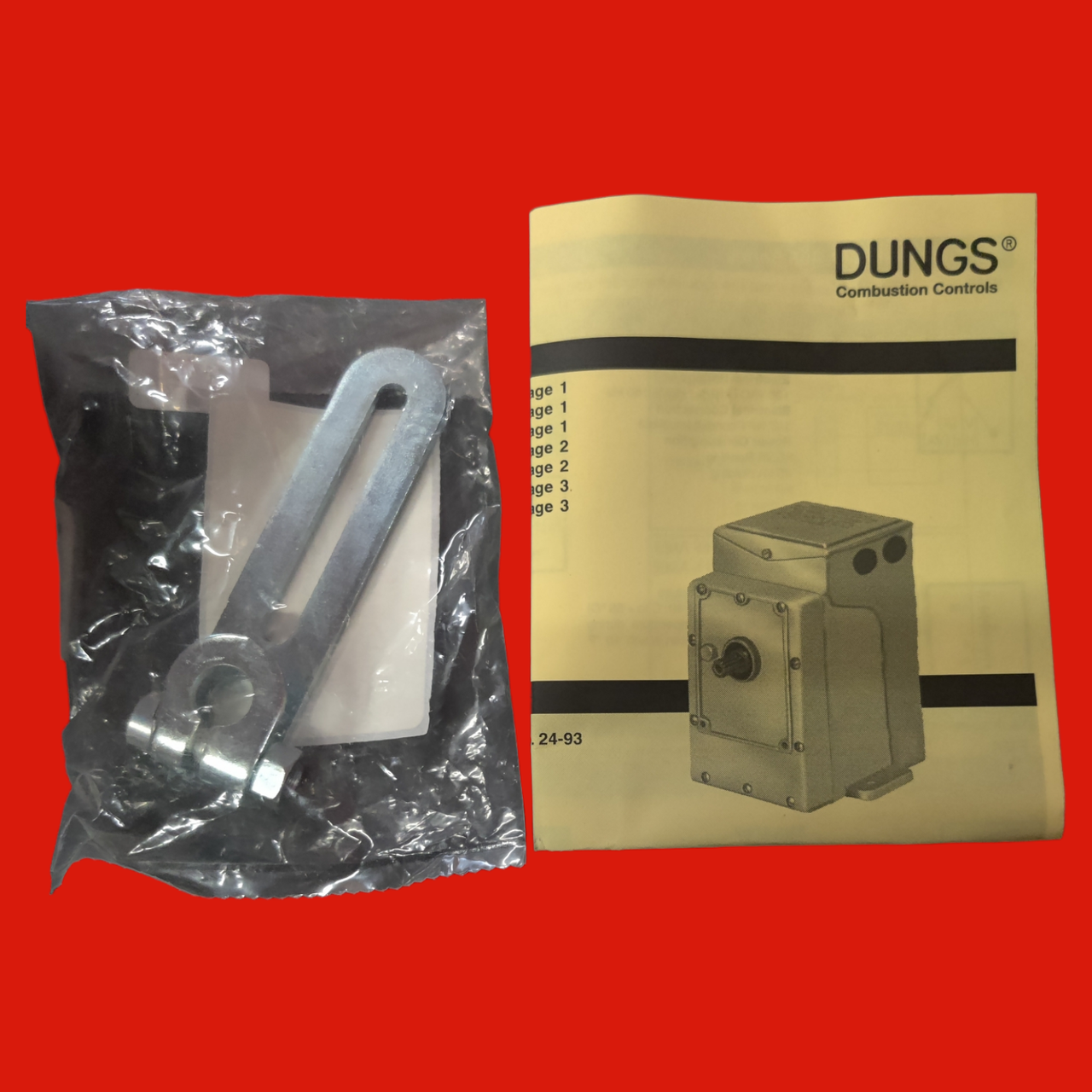

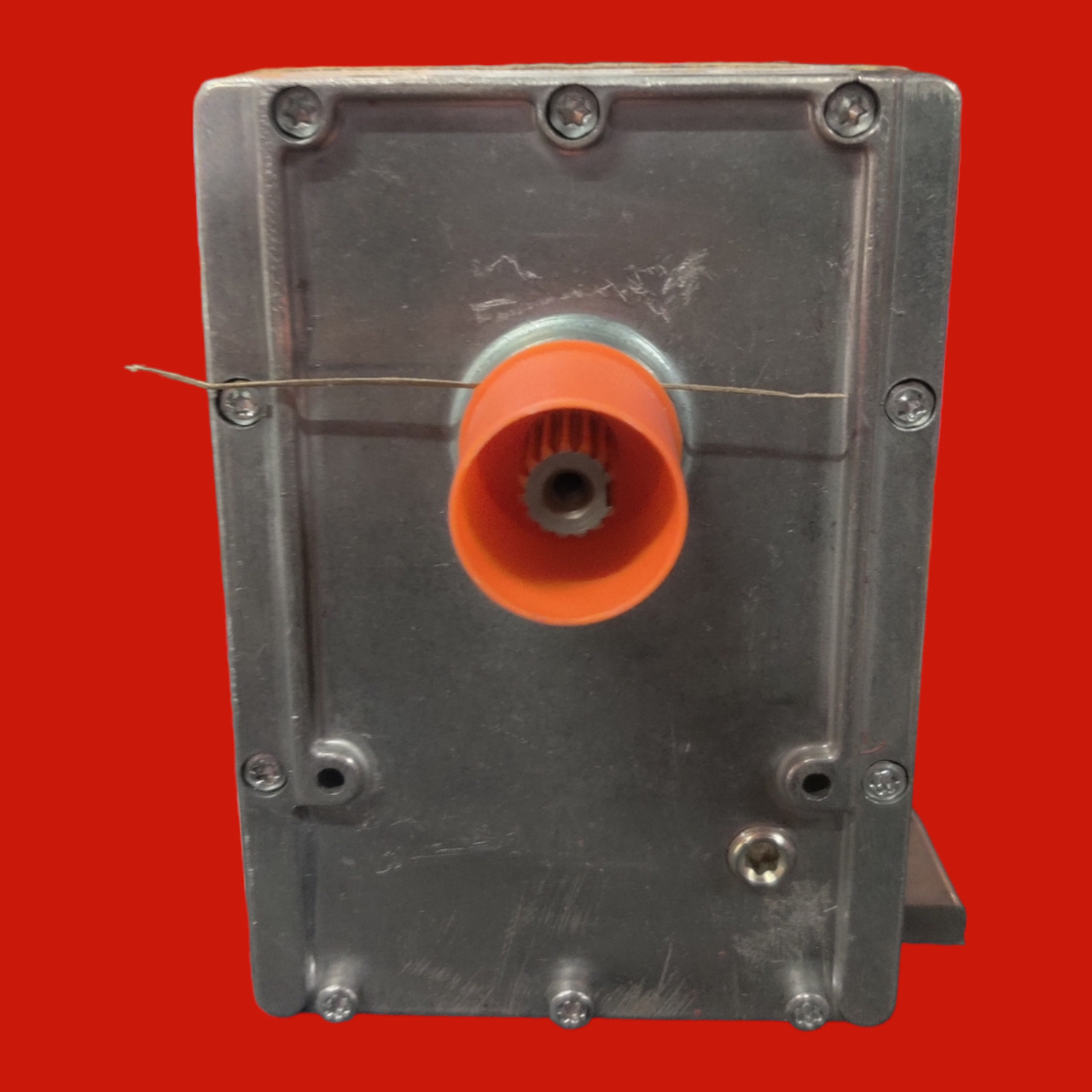

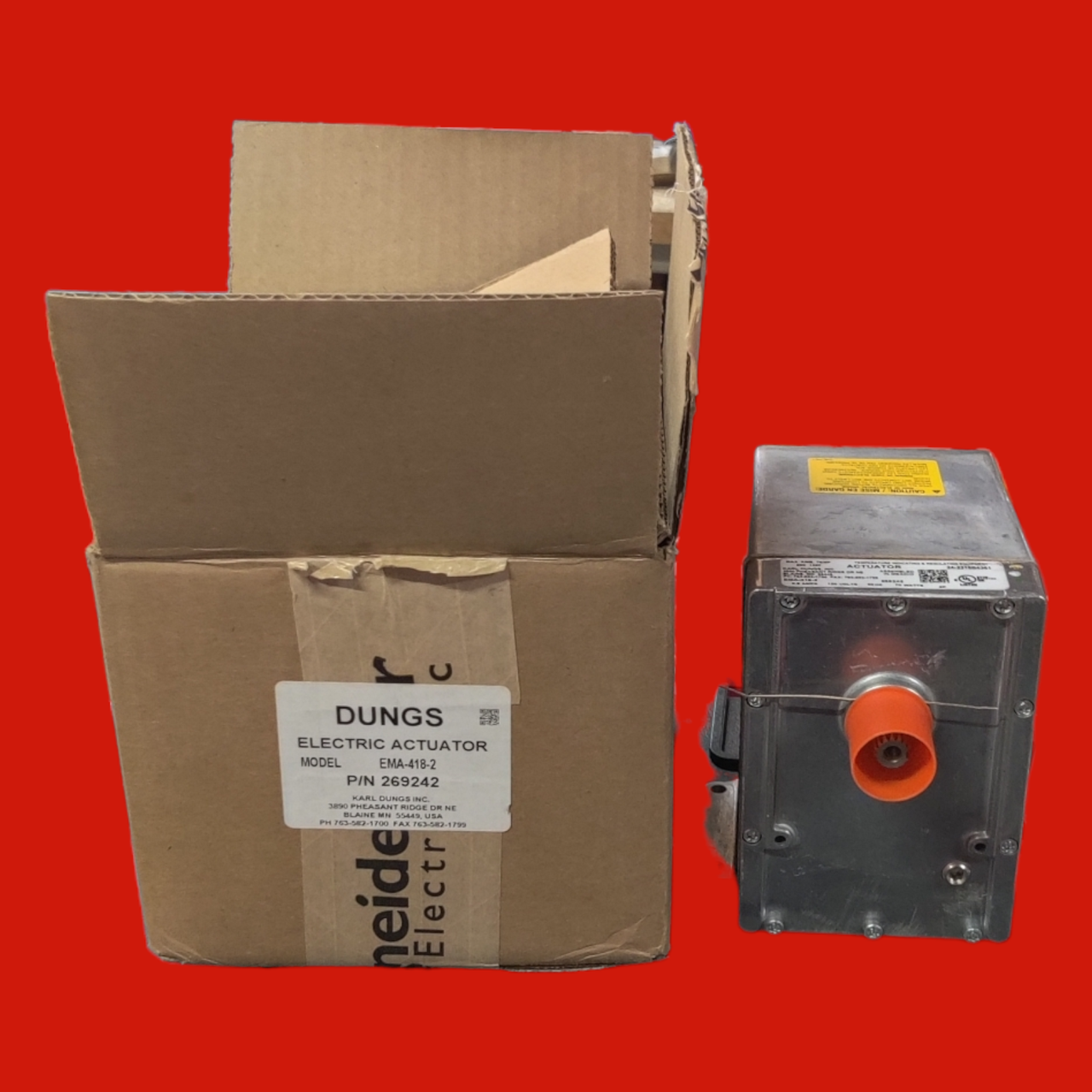

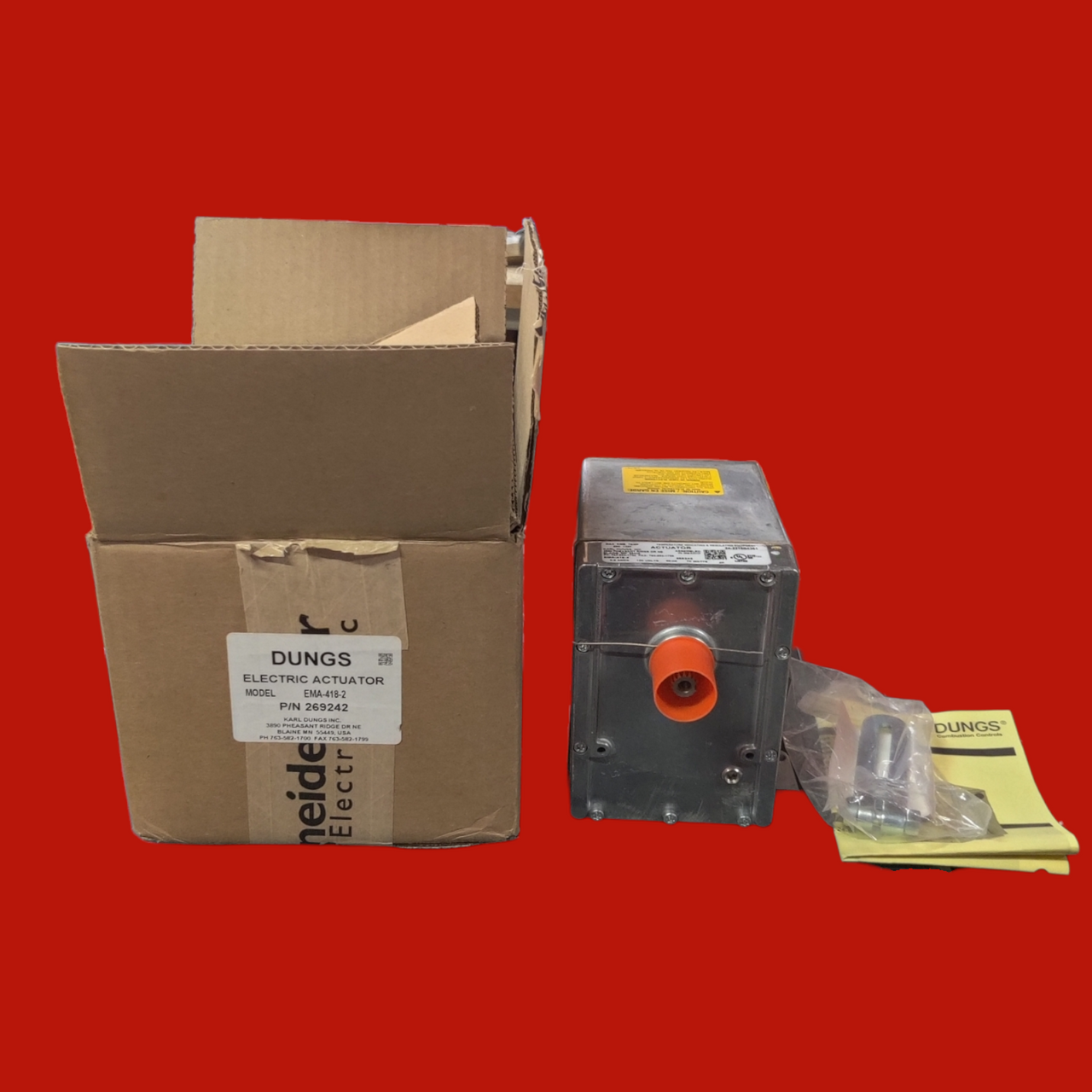

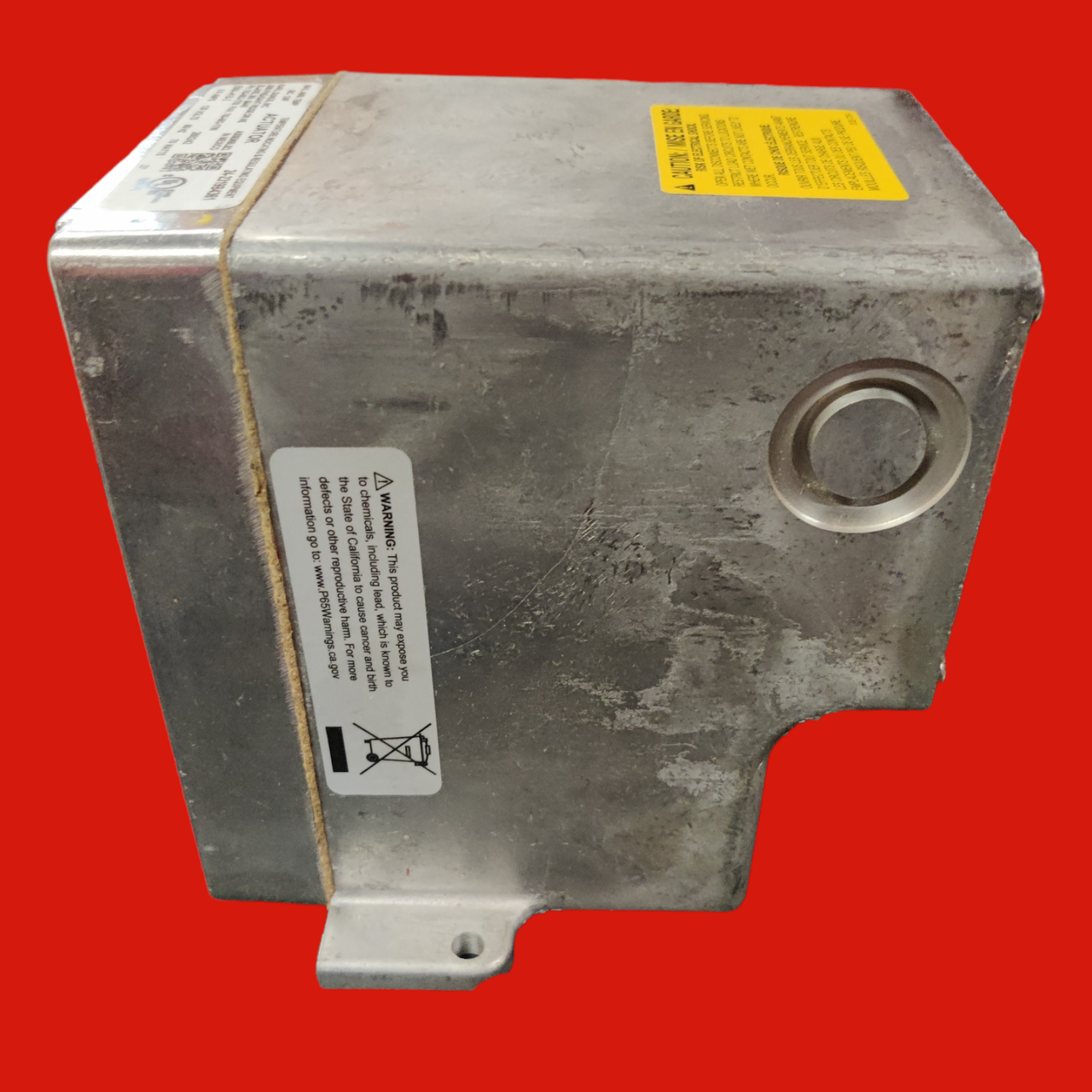

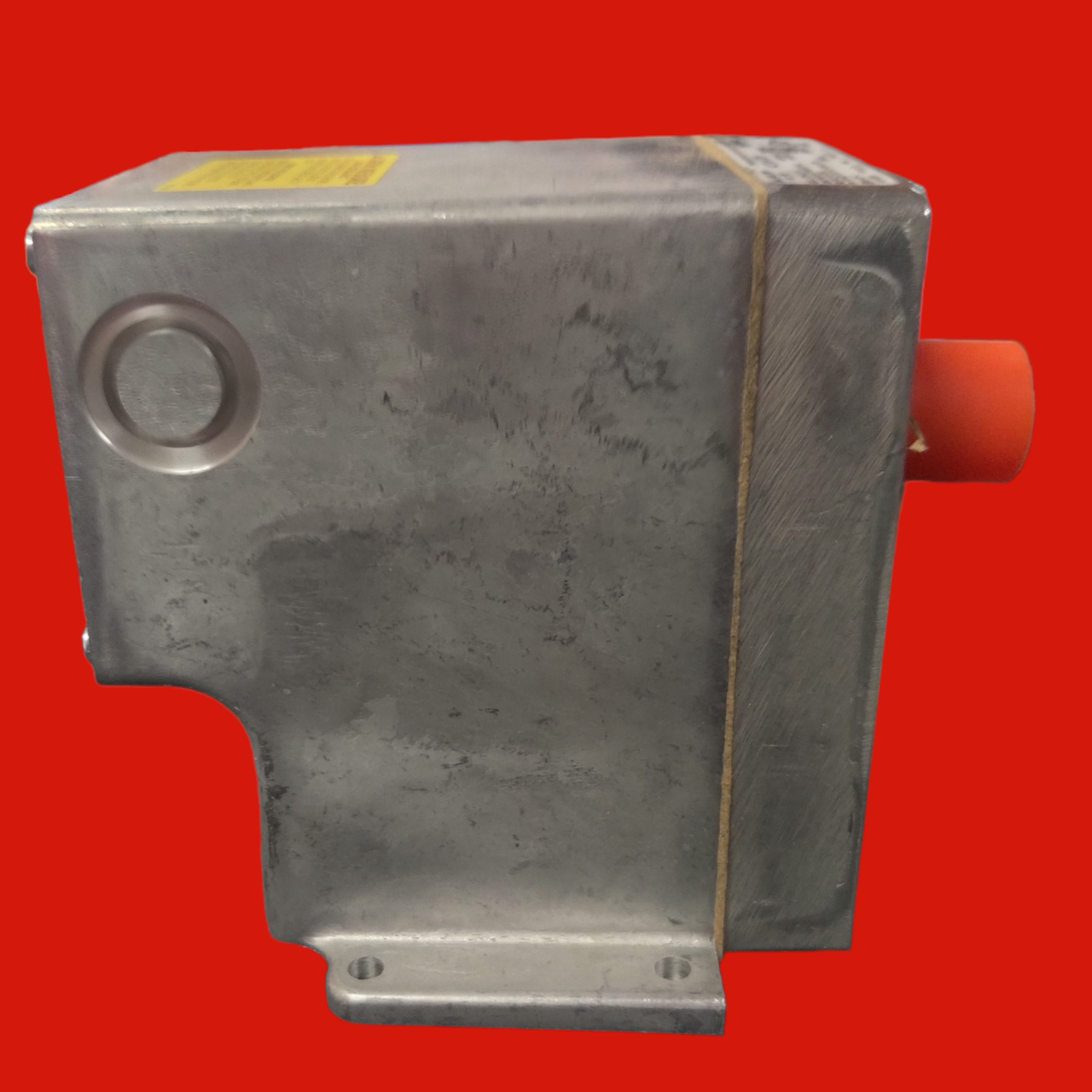

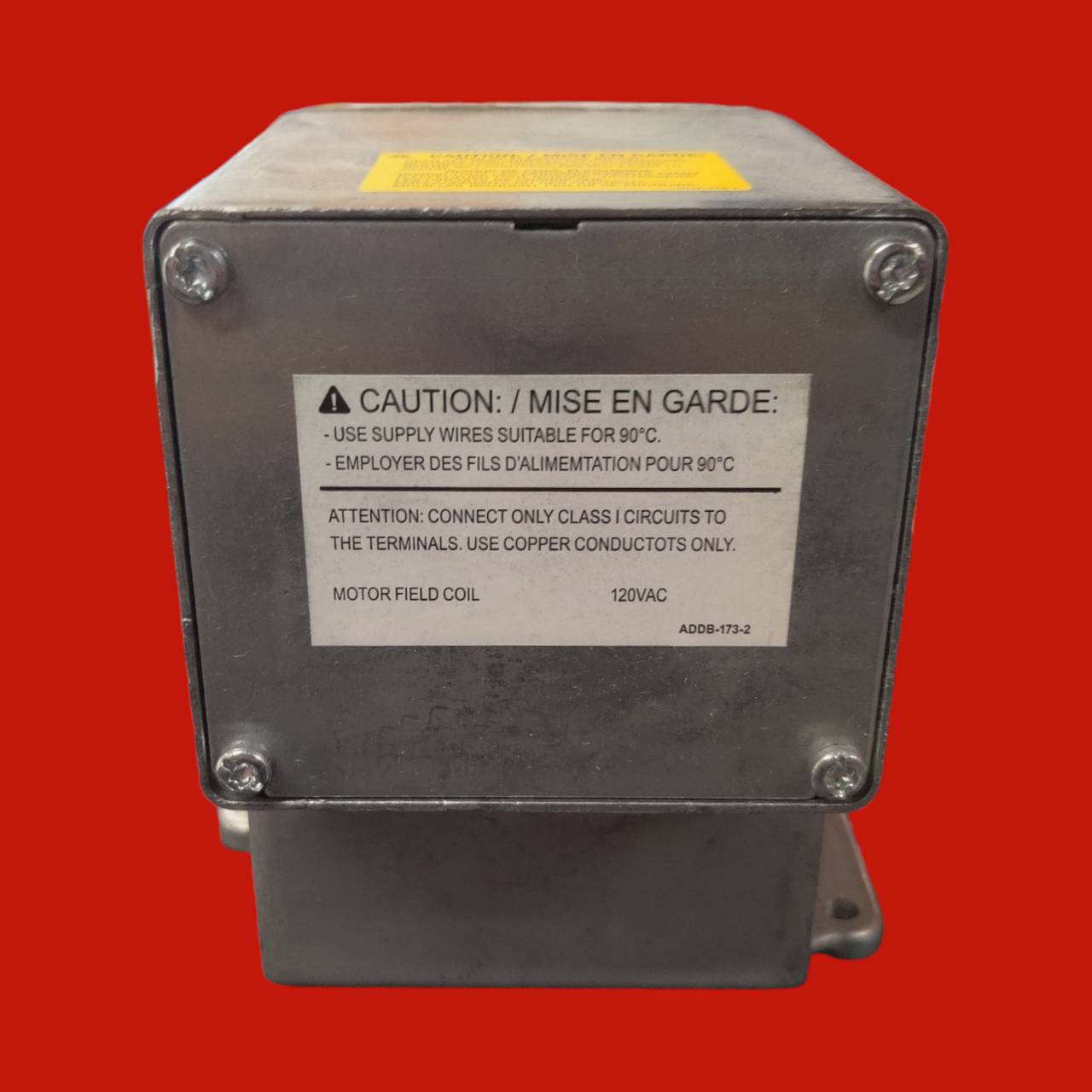

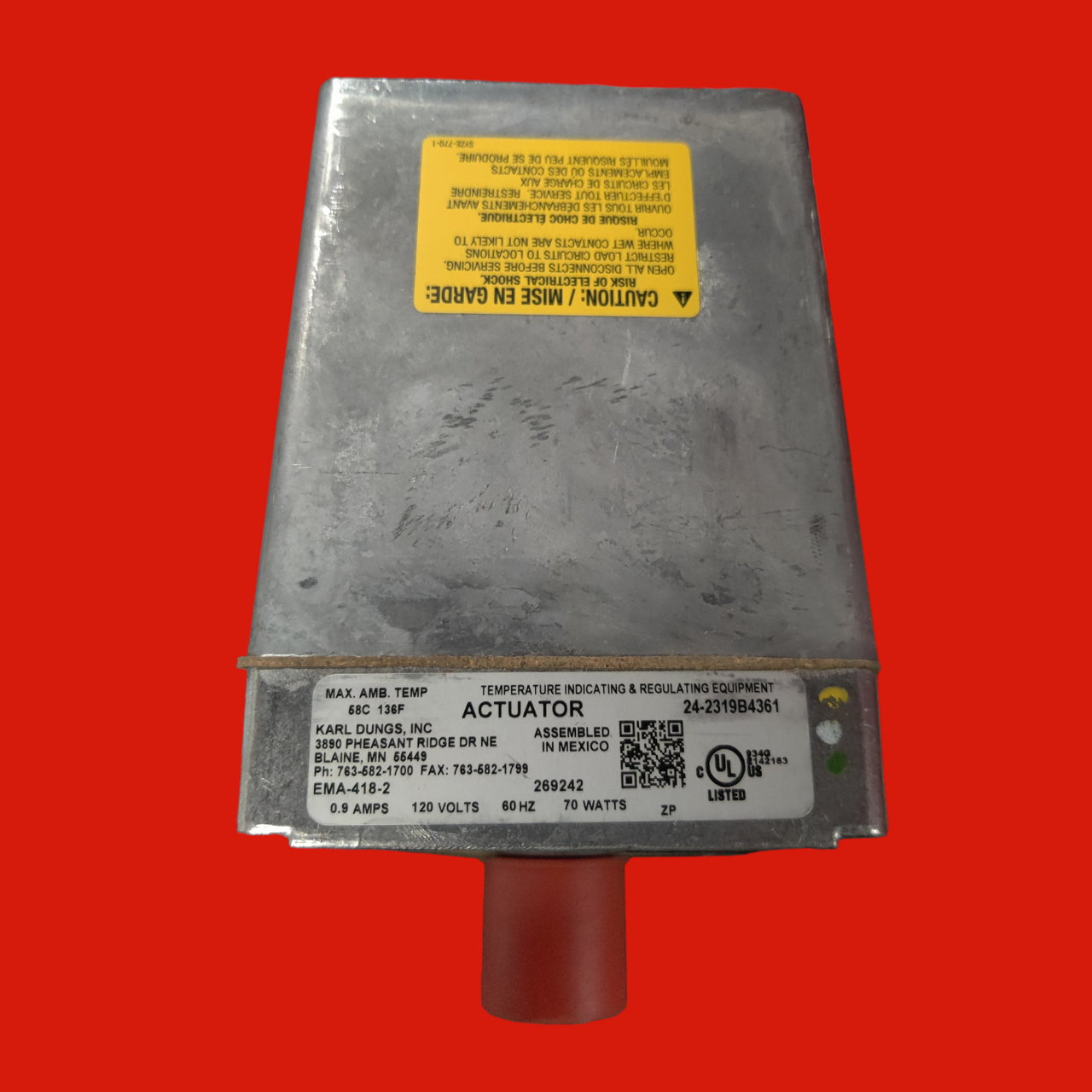

Dungs EMA-418-2 Spring Return Electric Actuator- 269242
PN: 269242
Dungs 269242 EMA-418-2 Actuator, 90 degree, 60 in-lb torque, 2 position, CCW spring return is designed to operate dampers, butterfly valves and similar devices. 90 & 180 degree clockwise rotation when power is applied, actuator returns counter-clockwise to 0 degree on power interruption.
ApprovalsUL and CSA
Connections1/2" (13mm) Shaft Diameter
RatingsNEMA Type 4 (with appropriate conduit connection)
Voltage/Power120 Vac, 60 Hz, 0.40 Amps
Input(s)2 position, CCW spring return
Output(s)60 in-lb torque, 90 Deg Stroke-10s No Load Timing, 30s Full Load Timing-Ambient temperature rating -40 Deg F to 135 Deg F-Crank arm included; Auxiliary switch not available.-Size: 5 3/8" L x 6 9/16" W x 5 3/4" H.-120 VA running, 42 VA holding
