Product Description

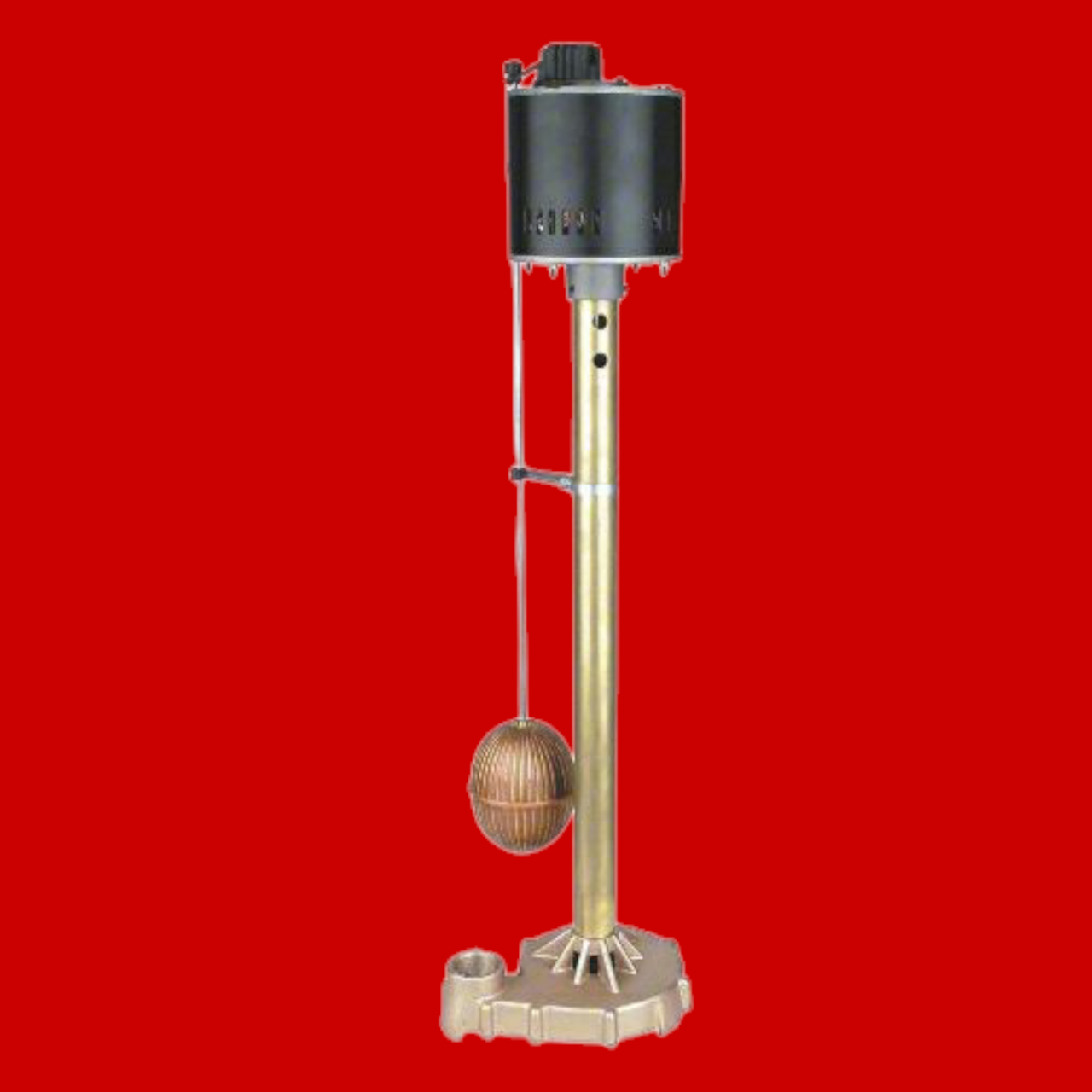

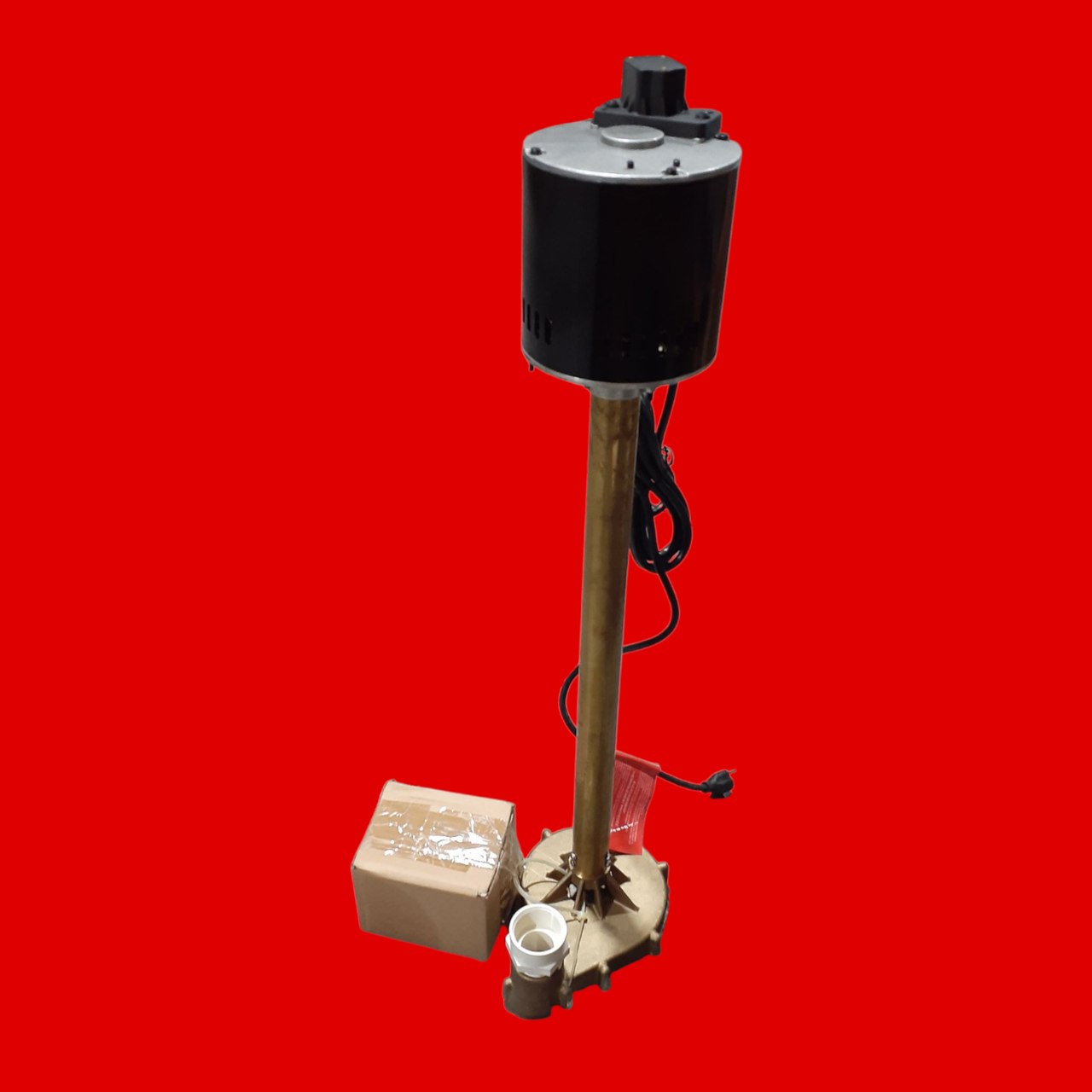

Dayton 4KU63 Pedestal Sump Pump: 1/2 hp HP, 120V AC, 48 gpm @ 10' of Head, 22 ft Max. Head, FNPT
PN: 4KU63
These general purpose sump pumps have non-submersible motors vertically mounted on a pedestal to elevate them out of the sump pit and are suited for shallow or narrow sump pits.
- For Media Type: Clear Water; Trash Water
- Power Source: Corded Electric
- Phase: Single
- Rated Voltage: 120V AC
- HP: 1/2 hp
- Current: 5 A
- Frequency: 60 Hz
- Volute Material: Brass
- Column Material: Brass
- Base Material: Stainless Steel
- Impeller Material: Stainless Steel
- Flow Rate @ 10' of Head: 48 gpm
- Max. Head: 22 ft
- Max. Dia. Solids: 3/8 in
- Max. Media Temp.; 140 °F
- Switch: Integral Vertical Float
- Off Point: 5 in
- Duty Cycle: Intermittent
- Cord Length: 10 ft
- NEC Cord Designation: SJT
- Impeller Design: Vortex
- Discharge: 1-1/4 in FNPT
- Min. Sump Pit Dia.: 18 in
- Min. Sump Pit Depth: 24 in
- Hazardous Location Class: Not Rated
- Thermal Protection: Auto
- Motor Speed: 1,750 RPM
- Includes Alarm: No Alarm Included
- Body Dia.: 12 in
- Overall Height: 30-1/2 in
- Standards: cCSAus
