Product Description

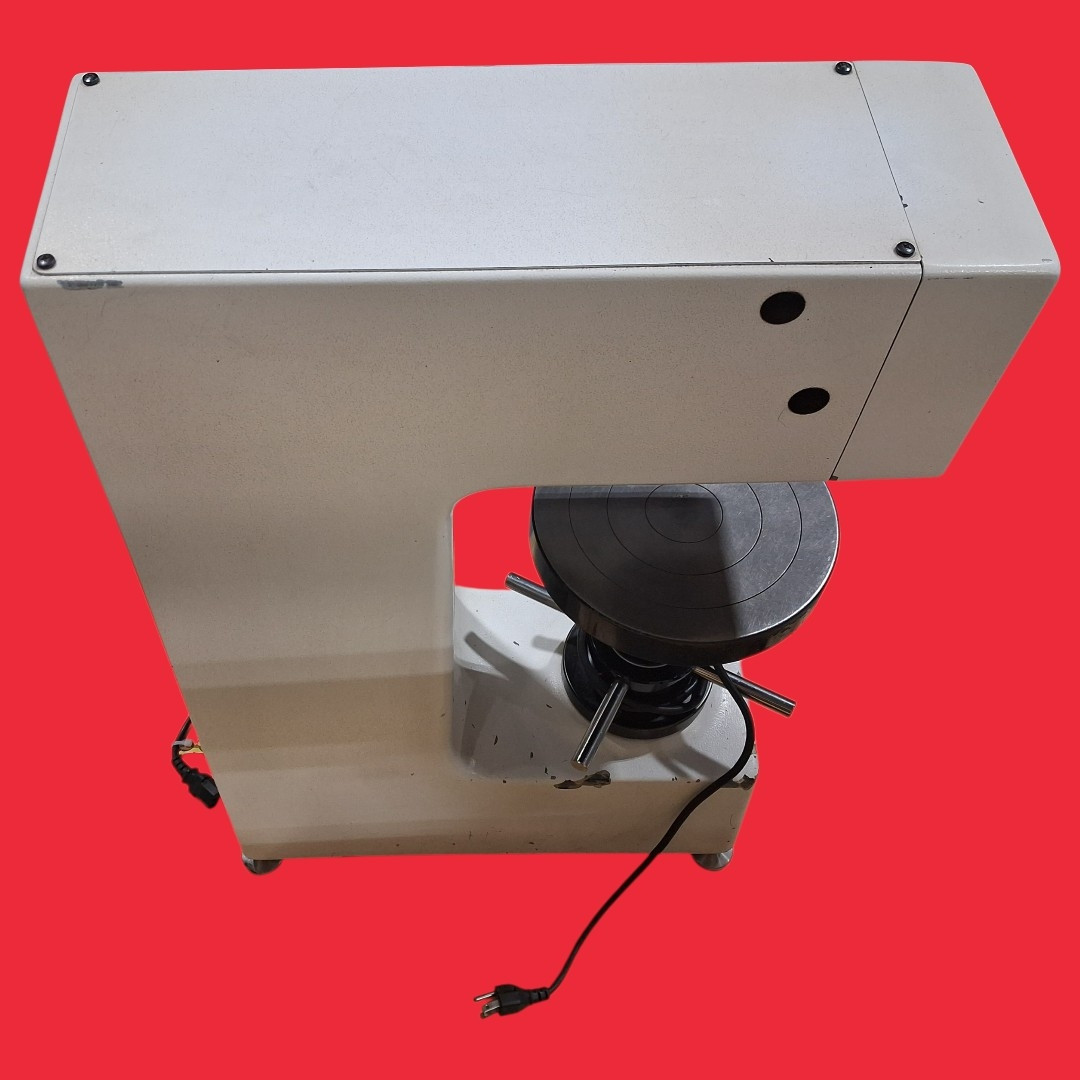

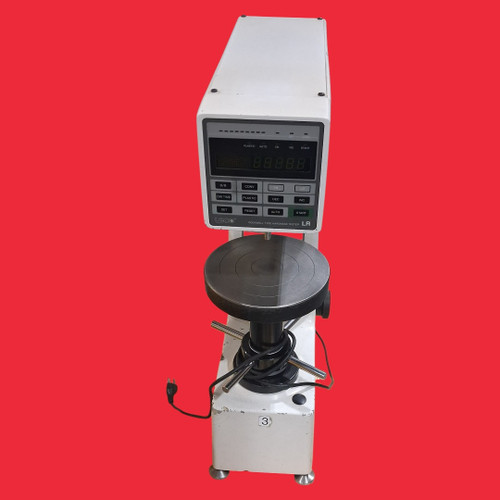

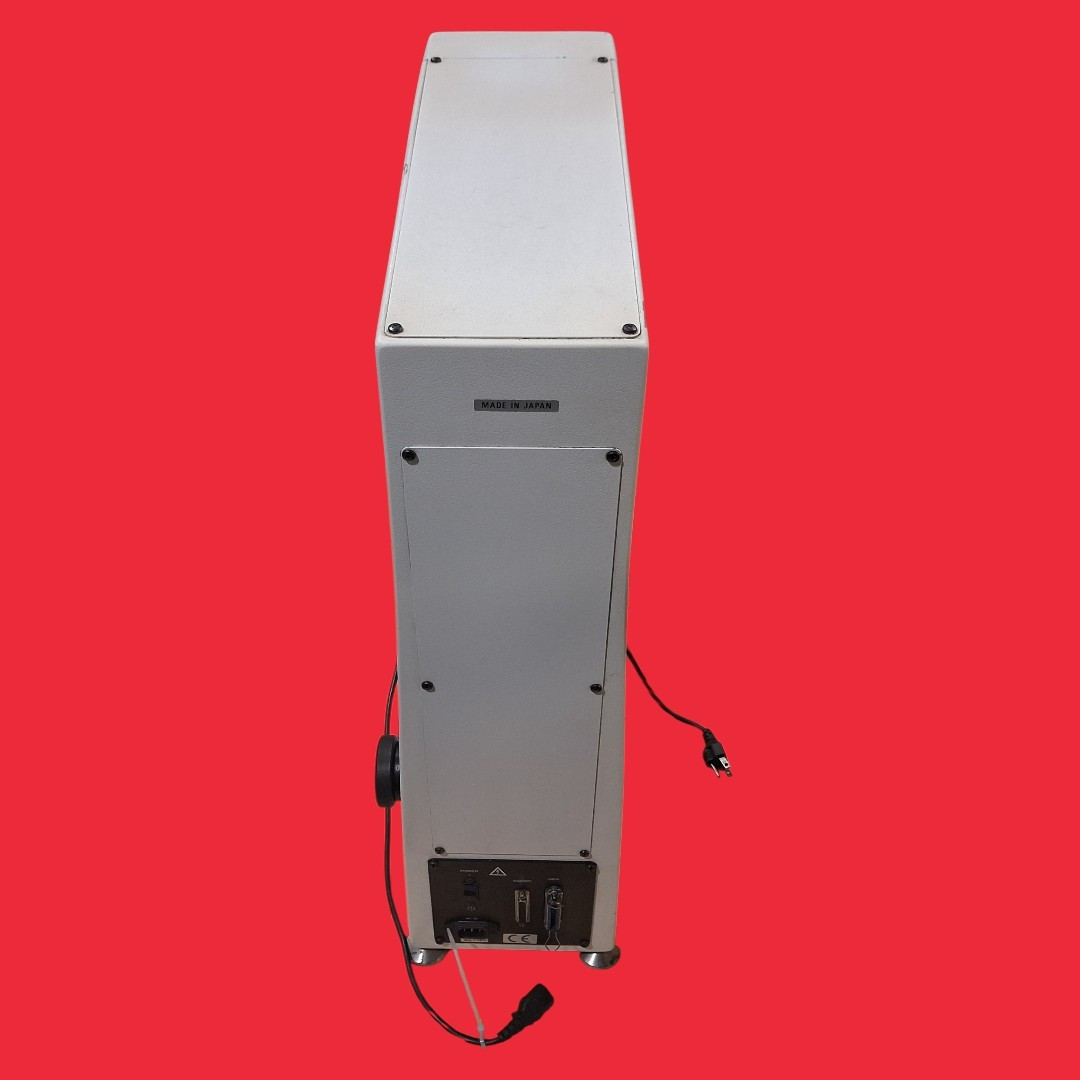

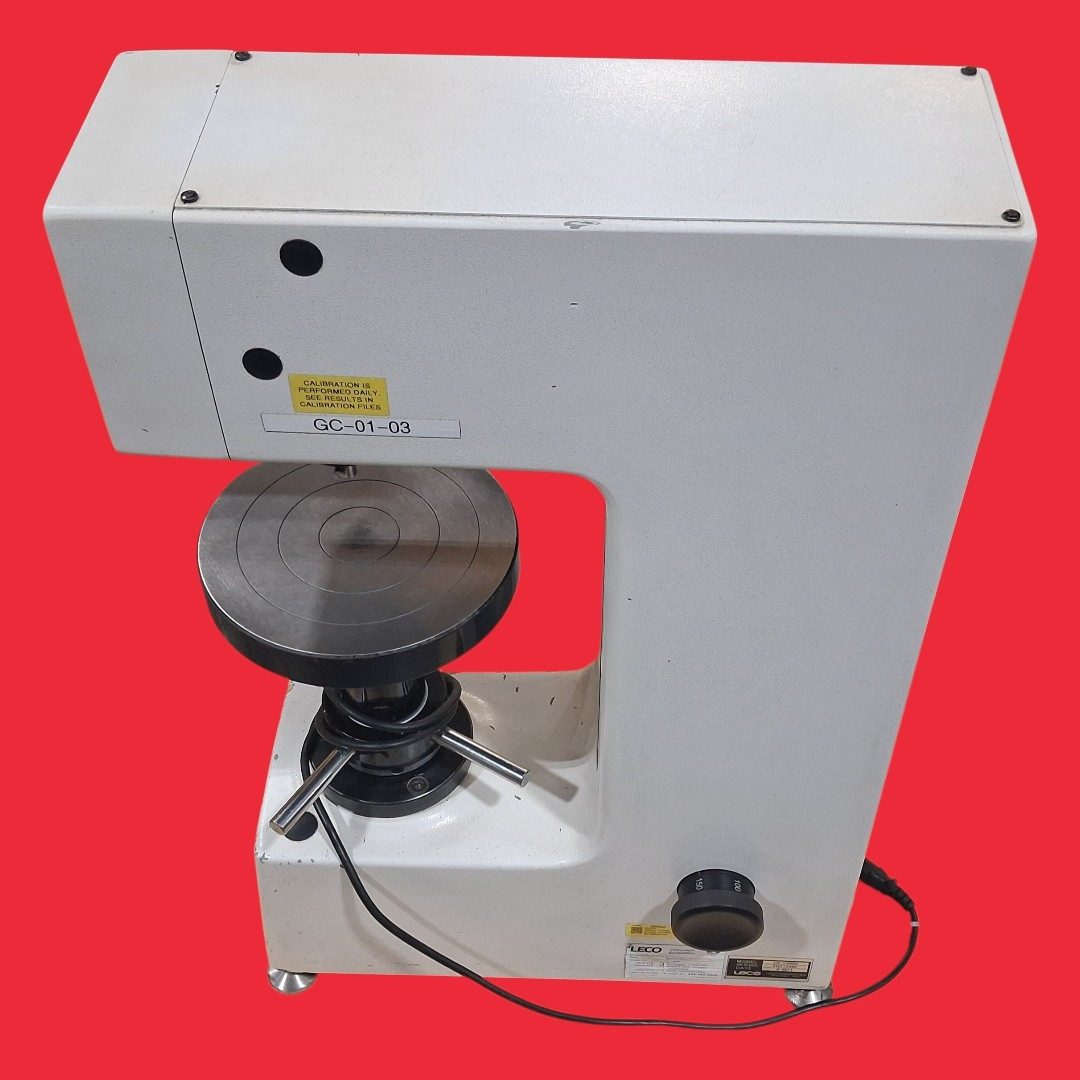

LECO Digital, Benchtop Rockwell-type Micro Hardness Testing System- LR-100RD
Part#: LR-100RD
The LECO LR-100RD is a digital, benchtop Rockwell-type micro hardness testing system. It is specifically engineered to handle high-volume material testing workloads in quality control and metallurgy laboratories while maintaining extreme precision and repeatability.
- Testing Method: Operates as a classic Rockwell hardness tester, measuring indentation depth under pre-set major and minor loads.
- Automation: Equipped with an automatic measuring mode that applies and releases test loads smoothly to eliminate human operator error.

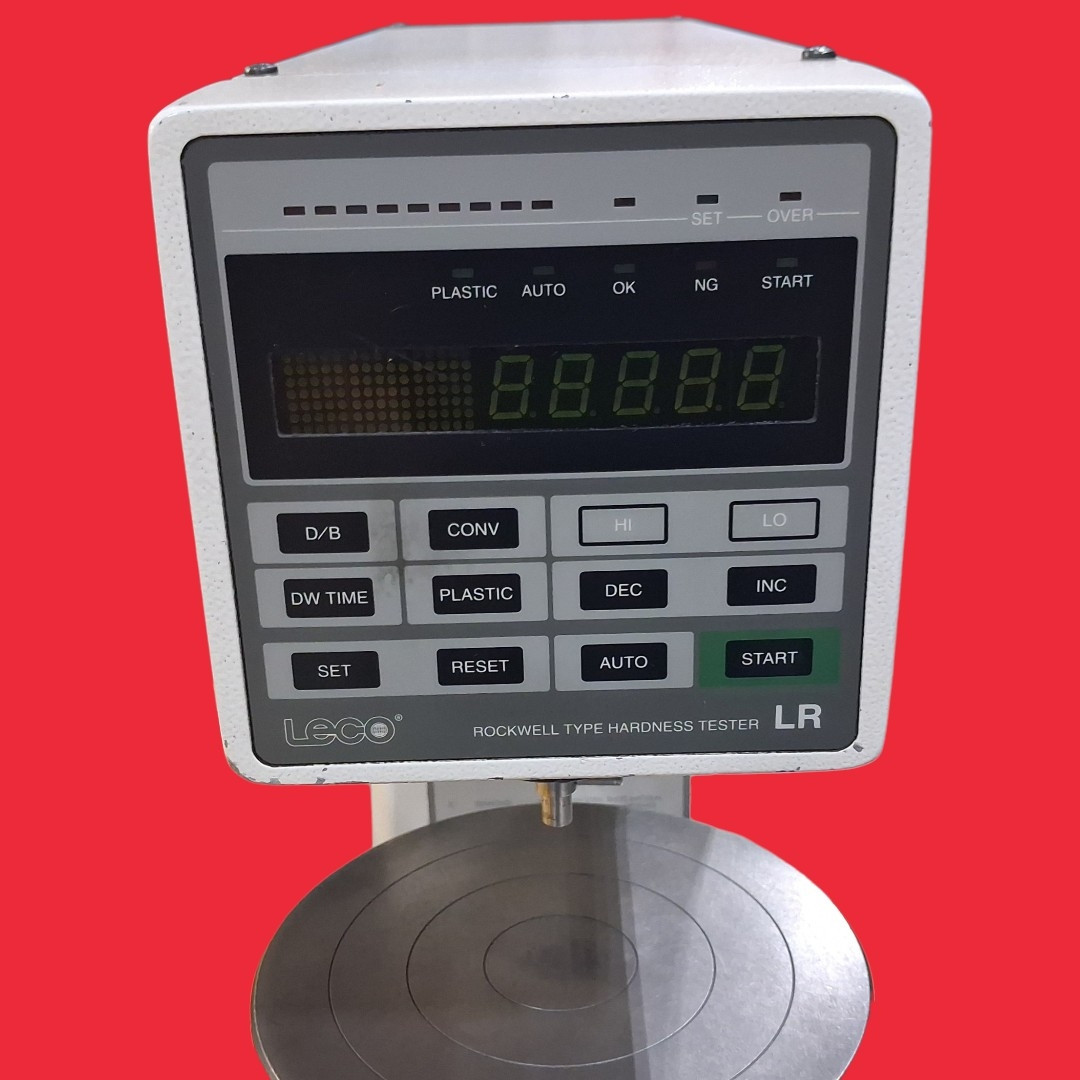

- Digital Display & Control: Features an integrated digital control panel for setting test criteria and reading out instantaneous hardness measurements.

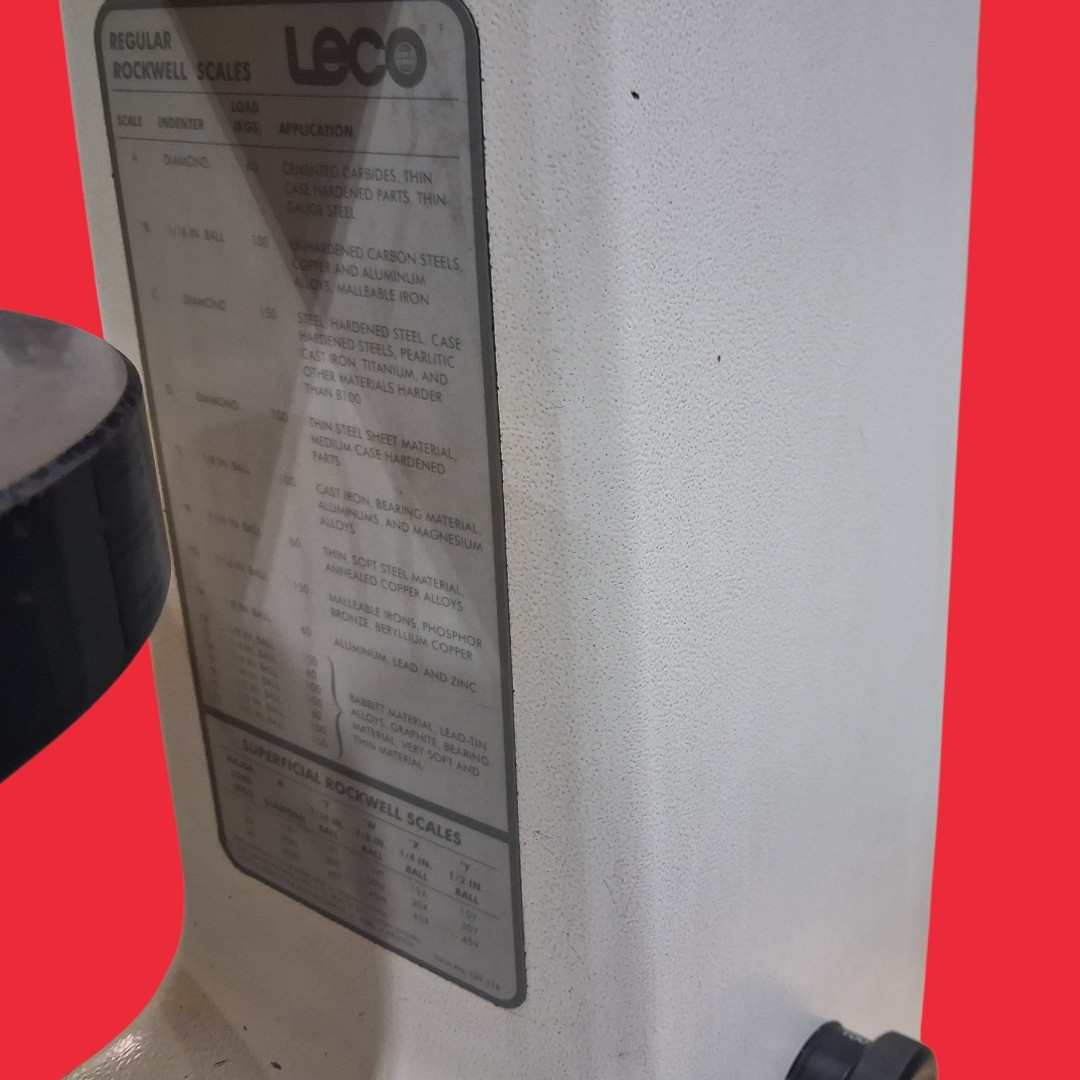

- Scale Conversion: Automatically converts and displays hardness results across various traditional scales (e.g., Rockwell HRA, HRB, HRC) directly on the interface screen.
- Tolerance Indicators: Includes built-in OK/NG (OK/No-Go) visual indicator lights for rapid, high-volume sample sorting based on user-defined upper and lower limits.
Note:
This unit was used at a bearing manufacturer that closed the plant. There were no issues that they are aware of at the time of decommission.
