Product Description

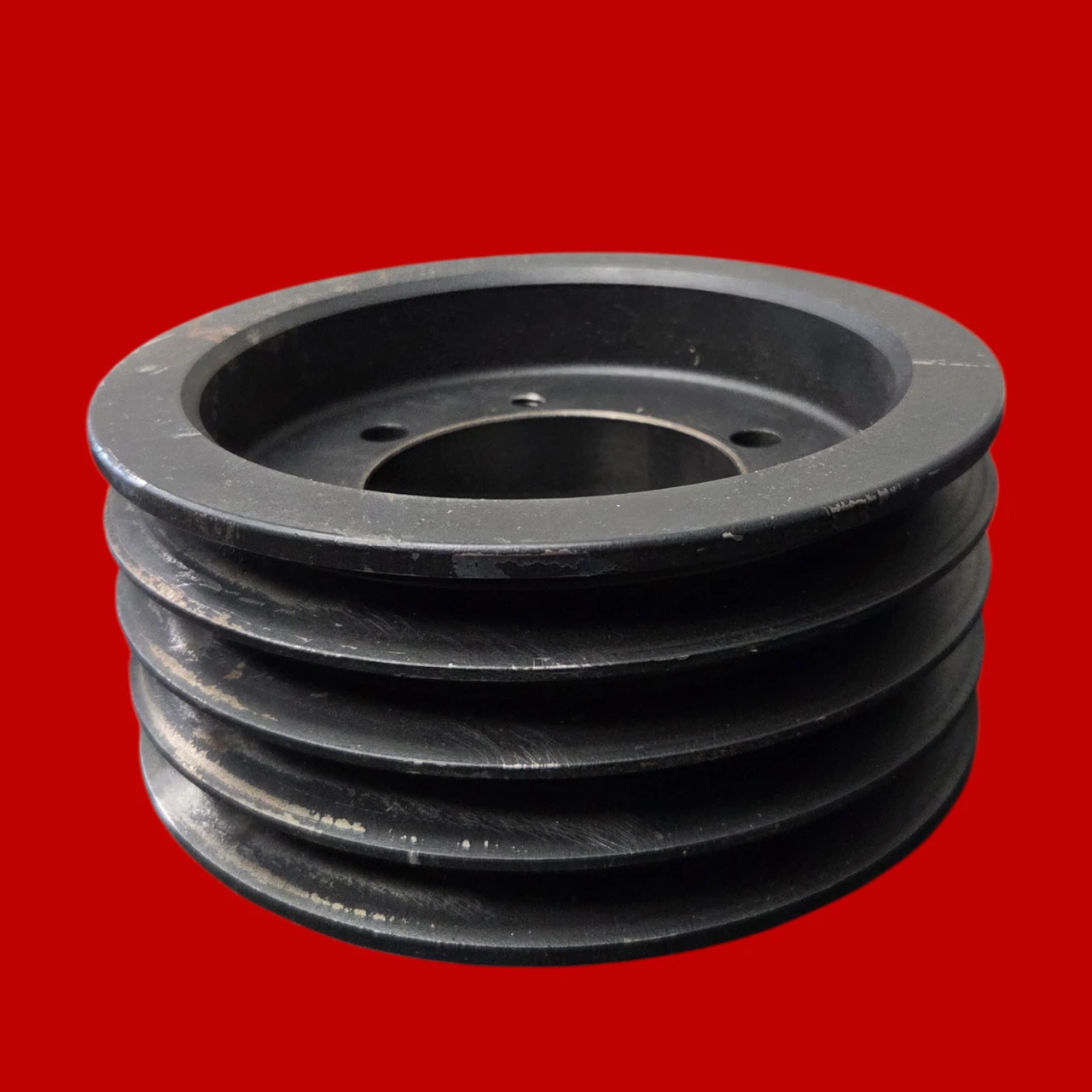

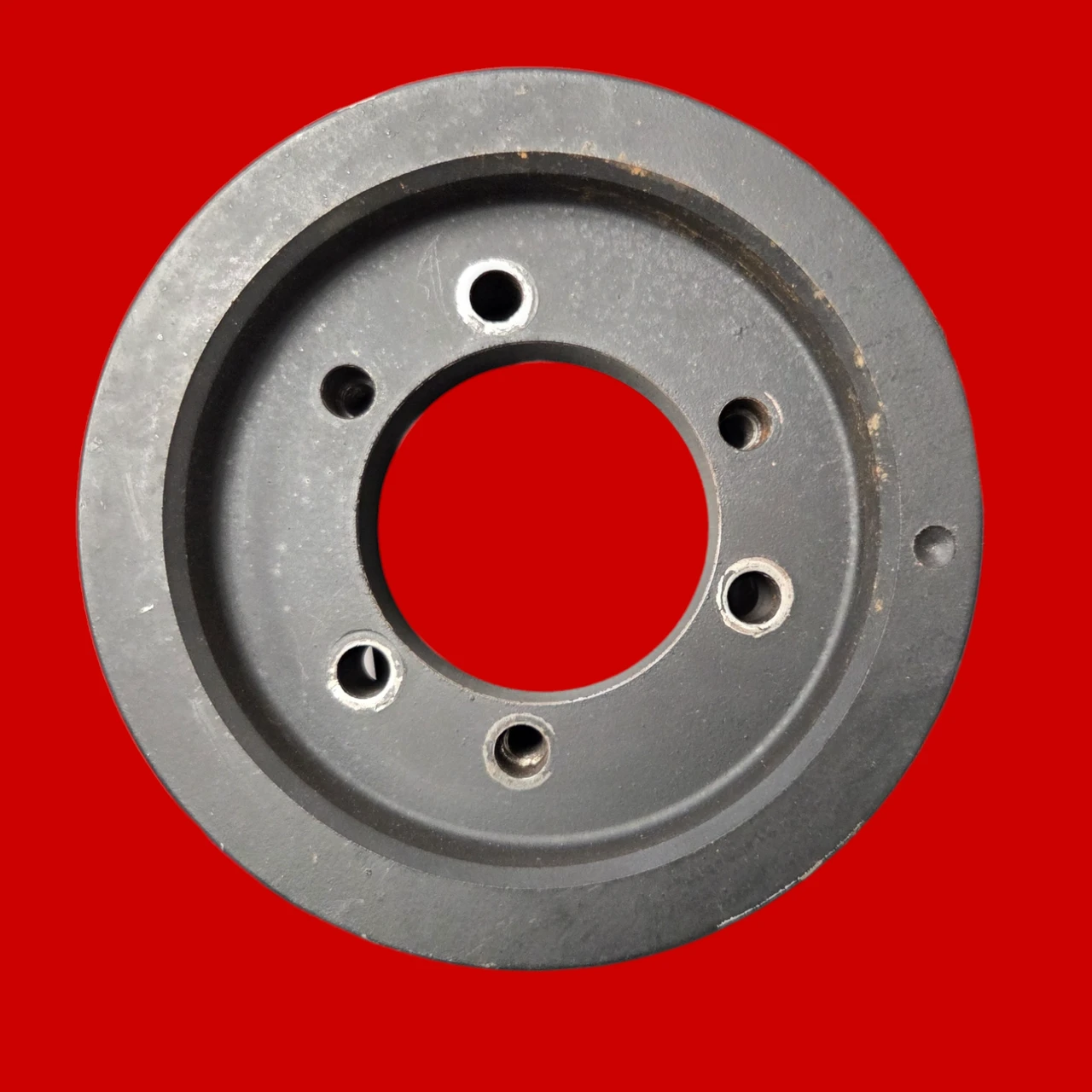

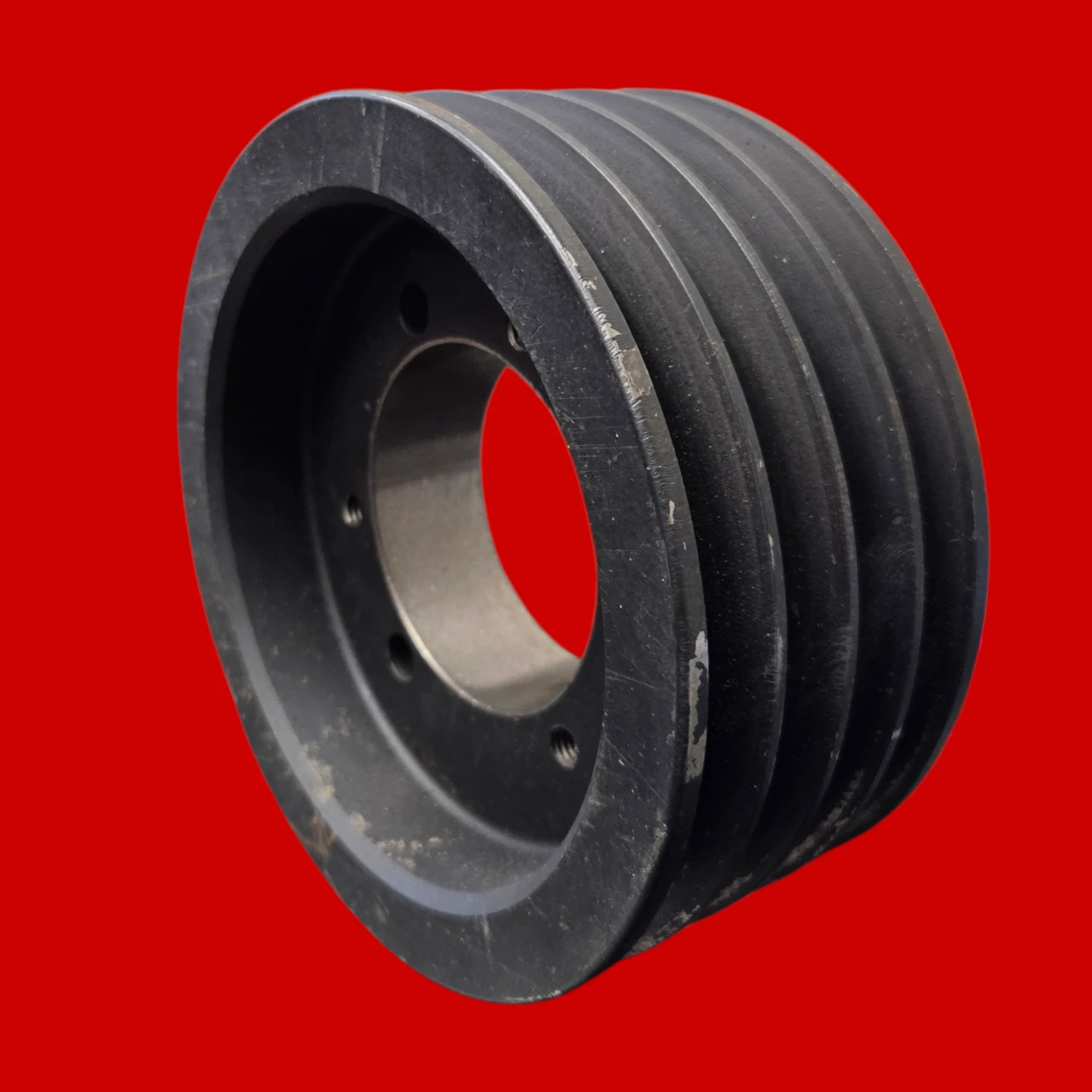

Browning V-Belt Pulley, 5V, 5VX Belt Section, 4 Groove, Bushing Required Bore Size, 7.1000 in O.D., QD Bushed, SF Series Bushing, 45V710SF
PN: 45V710SF
- Belt Section Size: 5V, 5VX
- Number Of Grooves: 4
- Outside Diameter: 7.1000 in
- Bore Type: QD Bushed
- Bushing Series: SF
- Bore Diameter: Bushing Required
- Keyway Size: 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/4 x 3/8 (2-13/16 to 3-1/4 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-3/4 Bore) in
- Material: Cast Iron
- Length Through Bore: 2.0625 in
- Face Width: 3.0625 in
- Bushing Bore Range: 0.500 - 2.938 in
- Pitch Diameter: 7.0000 in (5V)
- Overall Width: 3.0313 in
- Pulley Construction: Plain
- Product Type: V-Belt Pulleys
