Product Description

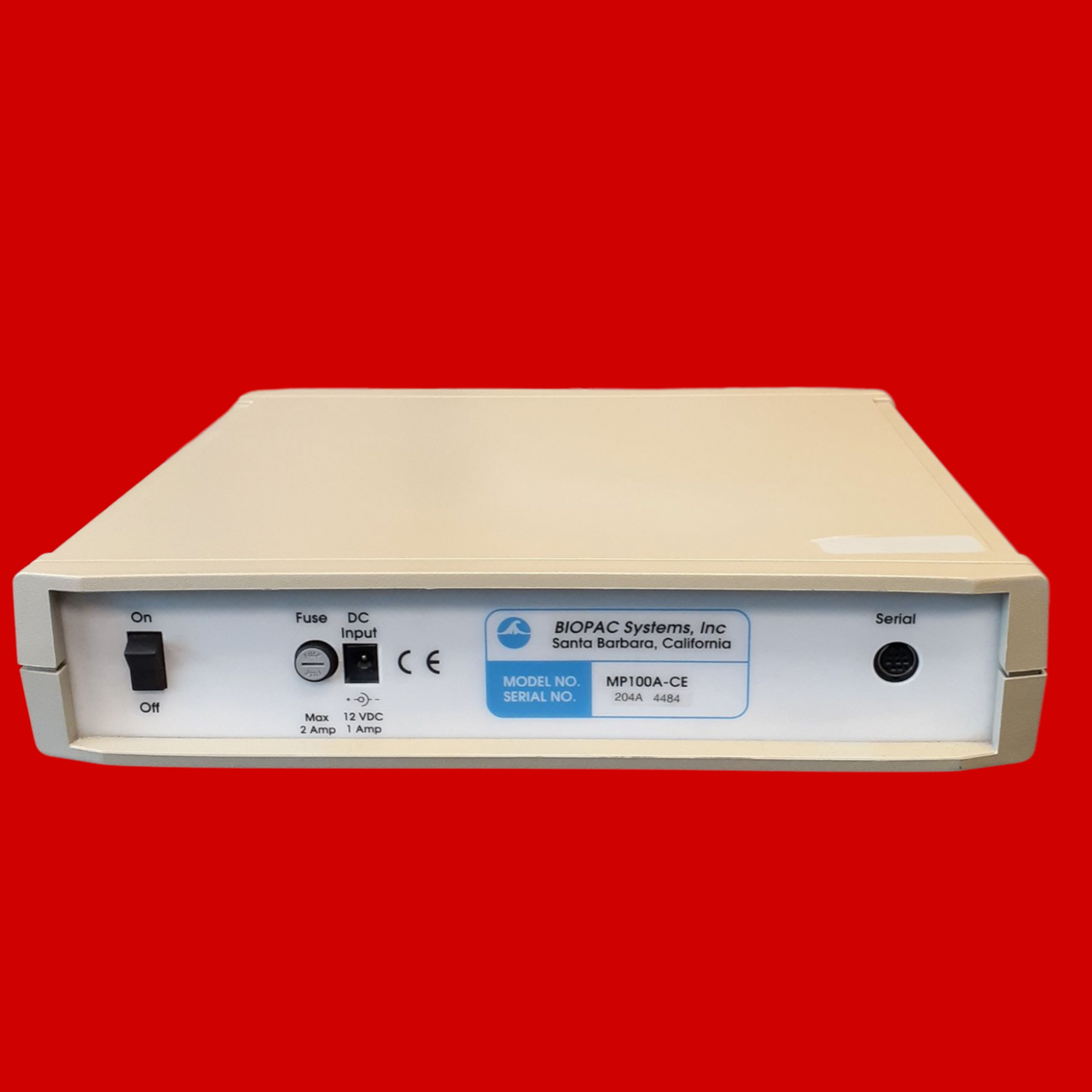

Biopac Systems Data Acquisition Unit, MP100A-CE
Model: MP100A-CE
- USB-Ready Data Acquisition and Analysis
- Record Multiple Channels with Differing Sample Rates
- Record at Speeds up to 70 kHz or 16 kHz (Aggregate to Disk)
The BioPac MP100 Data Acquisition and Analysis System offers USB-ready data acquisition and analysis. Record multiple channels with differing sample rates. Record at speeds up to 70 kHz or 16 kHz (aggregate to disk). For the best possible performance, connect the MP System to the computer's USB port, with no other USB traffic intensive devices (e.g. scanners, hard drives, cameras) running simultaneously. If a computer has no USB port, users need to install an industry standard PCI USB card.
The MP100 has an internal microprocessor to control the data acquisition and communication with the computer. There are 16 analog input channels, two analog output channels, 16 digital channels that can be used for either input or output, and an external trigger input. The digital lines can be programmed as either inputs or outputs and function in 8 channel blocks. Block 1 (I/O lines 0 through 7) can be programmed as either all inputs or all outputs, independently of block 2 (I/O lines 8 through 15).
