Product Description

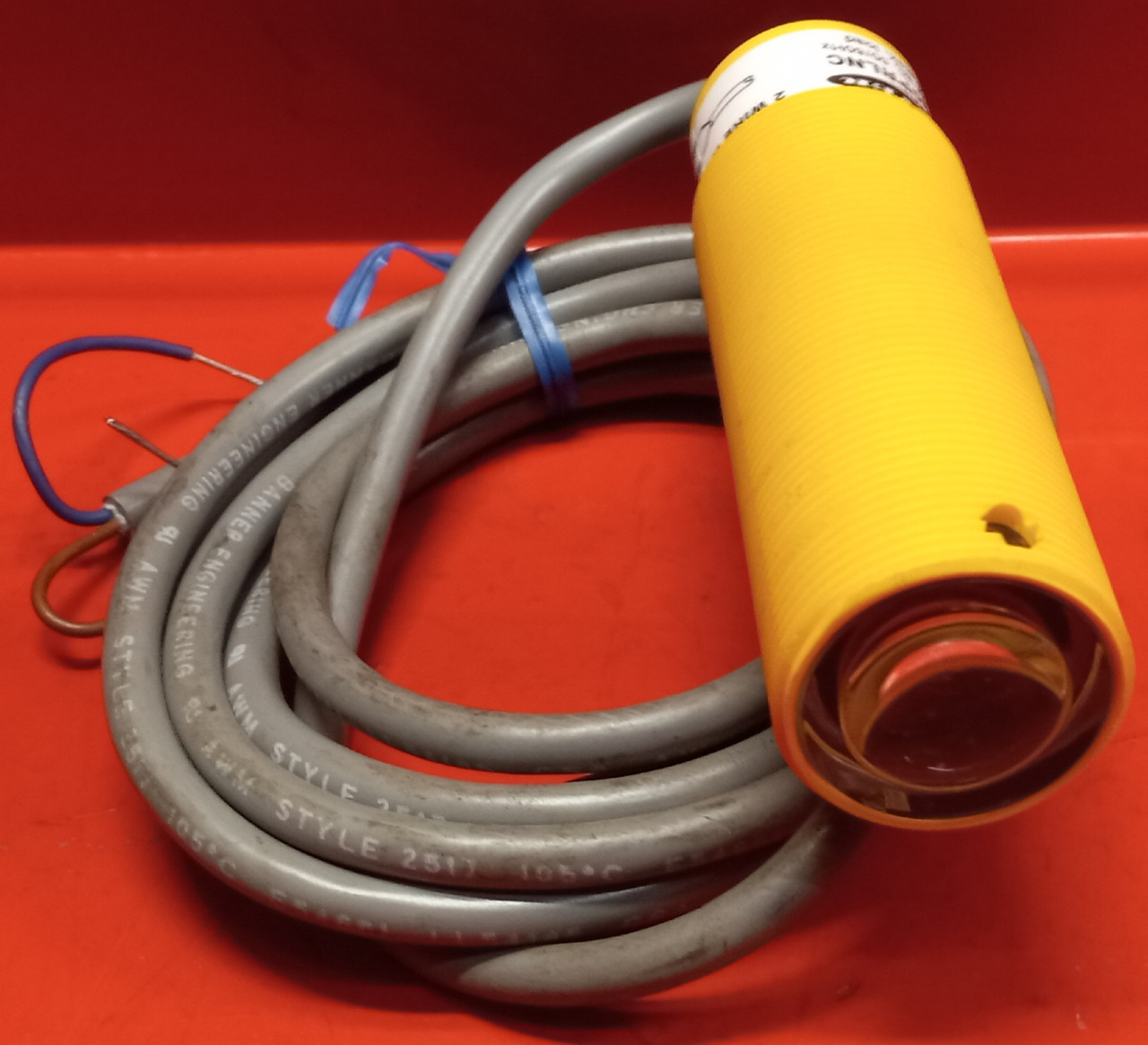

Banner SM2A30PRLNC Opposed Mode Barrel Sensor
- Cable Length (m): 2
- Sensing Beam: Infrared LED
- Power: AC
- Sensing Mode (General): Opposed
- Sensing Mode (Detailed): Receiver
- Housing Style: Barrel
- Primary Housing Material: Thermoplastic
- Input/Output: Solid-State AC Switch
- Max Sensing Distance (mm): 150000
- Outputs: Solid-State AC Switch
- Power Supply/Supply Voltage: 24-240 V ac
- Connection: Cable
- Quick Disconnect Type: No QD
- Operation: Dark Operate
- Min Operating Temp. (°C): -40
- Max Operating Temp. (°C): 70
- Output Response Time (ms): 10
- Repeatability (µs): 1000
- IP Rating: IP67
- NEMA Rating: NEMA 6P
- Max Op. Relative Humidity [%]: 90% @ 50°C
- Lens Material: Acrylic
- Adjustments N/A
- Barrel Diameter: (mm) 30
- Indicator: LEDs
- Opposed Mode Emitter/Receiver: Receiver
