Product Description

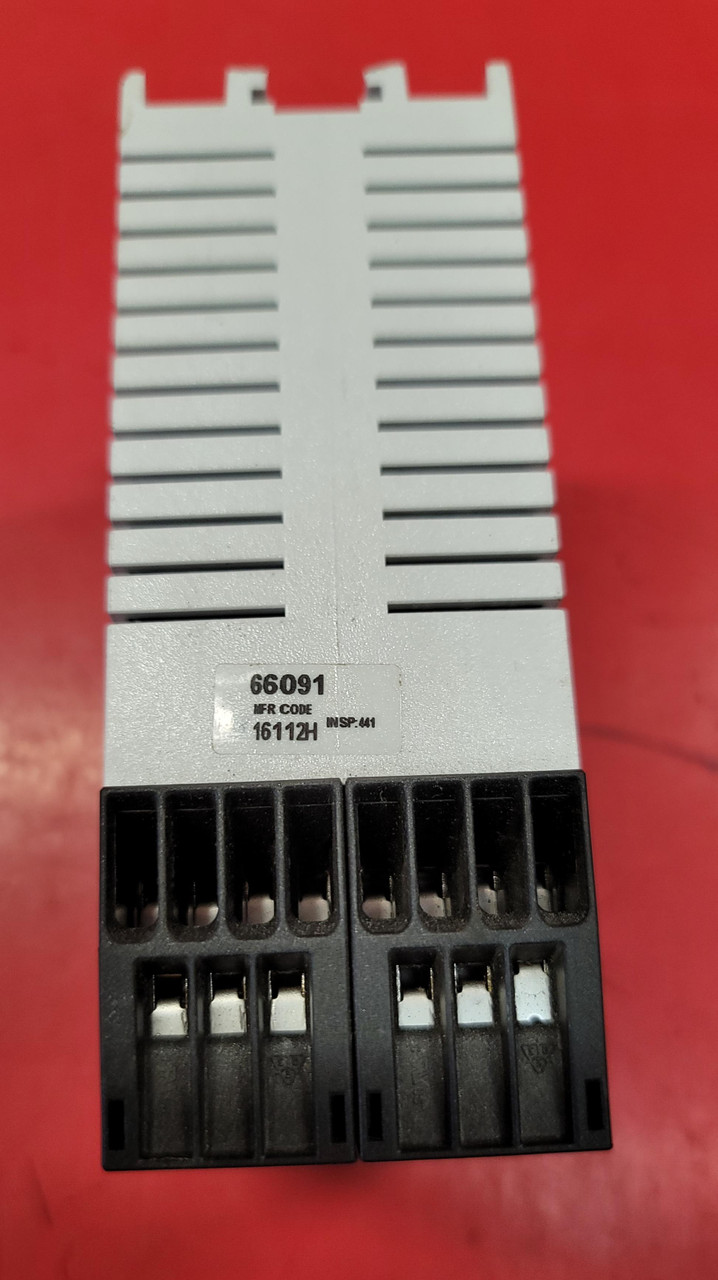

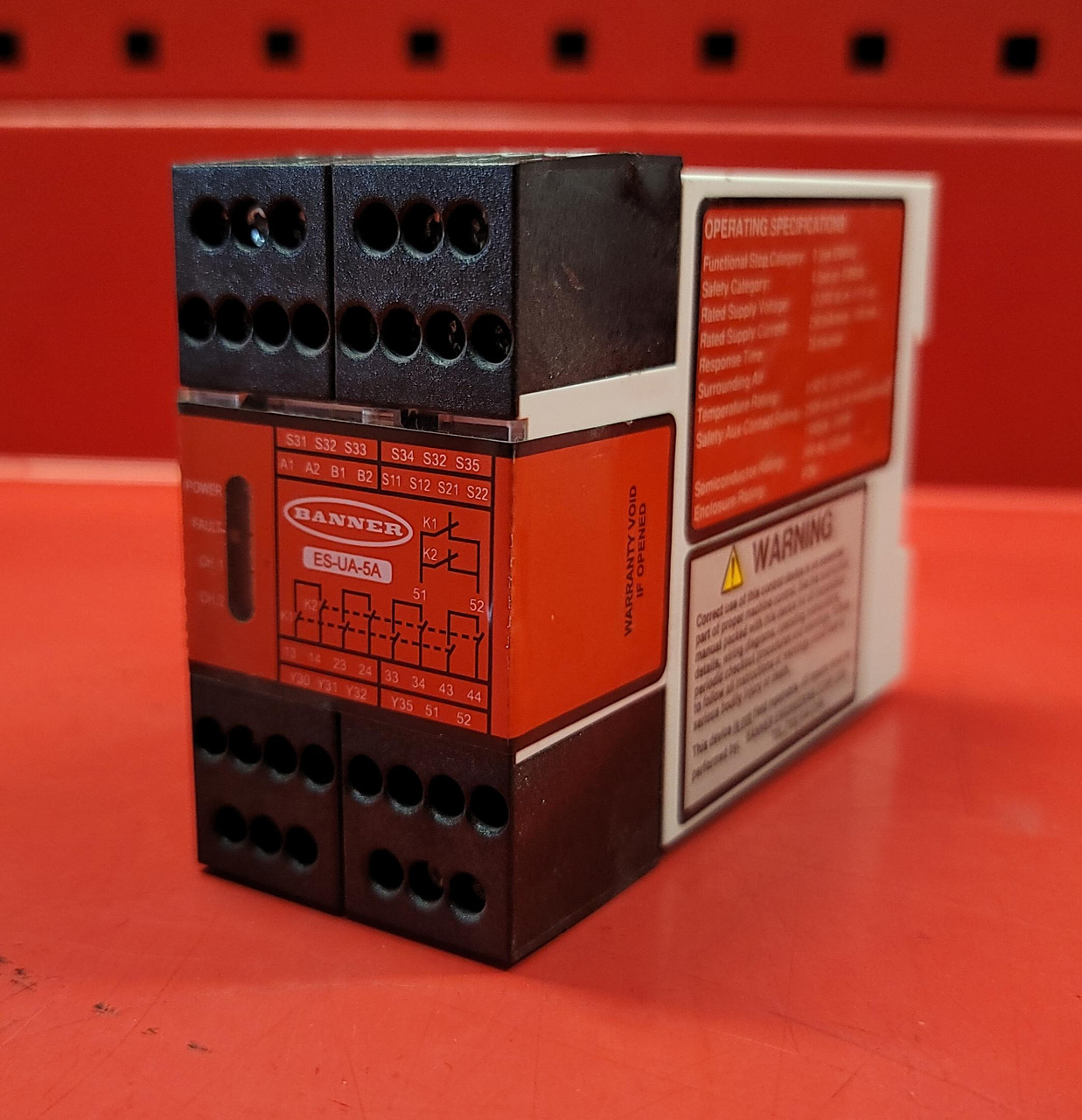

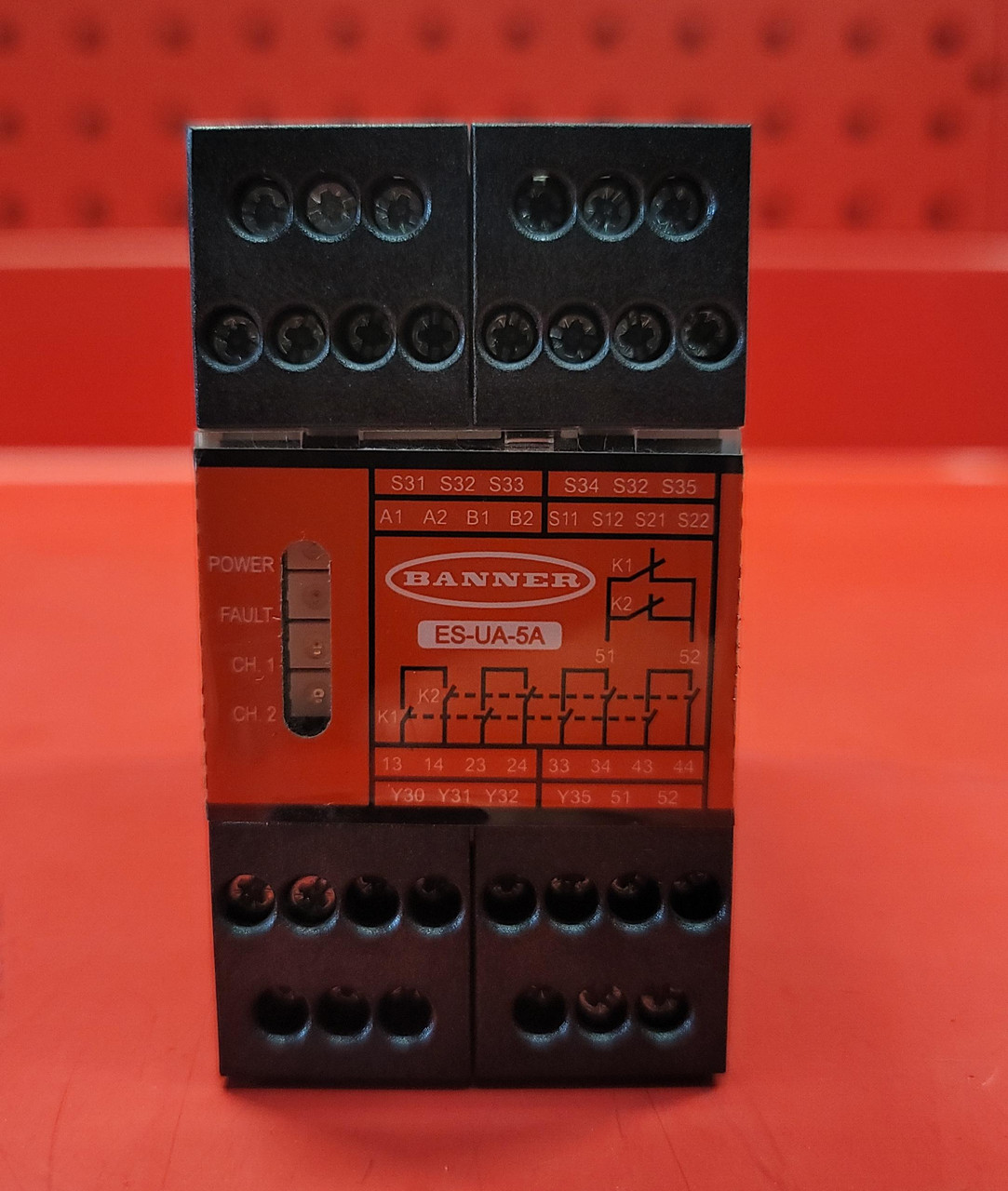

Banner ES-UA-5A 66091 Safety Relay Module
Tech Specs
Dimension 84x45x118
Relative Humidity 90% @ 50°C
Max Operating Temperature (°C) 50
Input Operation Simultaneous or Concurrent
Number of Safe Inputs 1
Input Configuration 2 NC or 1 NC
Safety Input - Dual Channel (Dry Contact) 20-50 mA @ 12-30 V dc (dry contact only)
Output Configuration 4 NO
Power Consumption 4W / 7 VA
Supply Voltage 115 V ac +/-15% (A-1-A2); 11 - 27.6 V dc (B1-B2)
Electrical Life (Cycles @ VA) 1,000,000 @ 450 VA
