Product Description

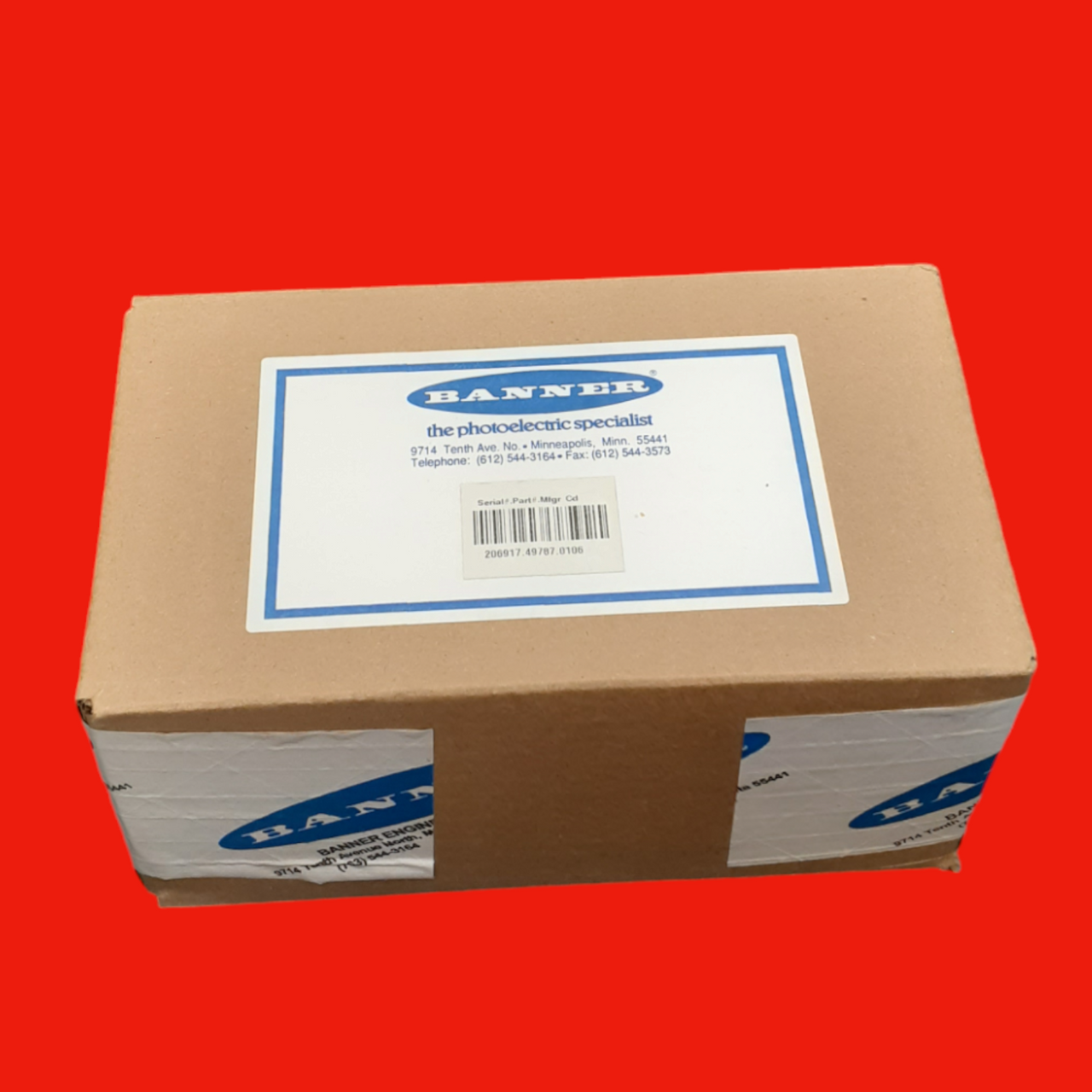

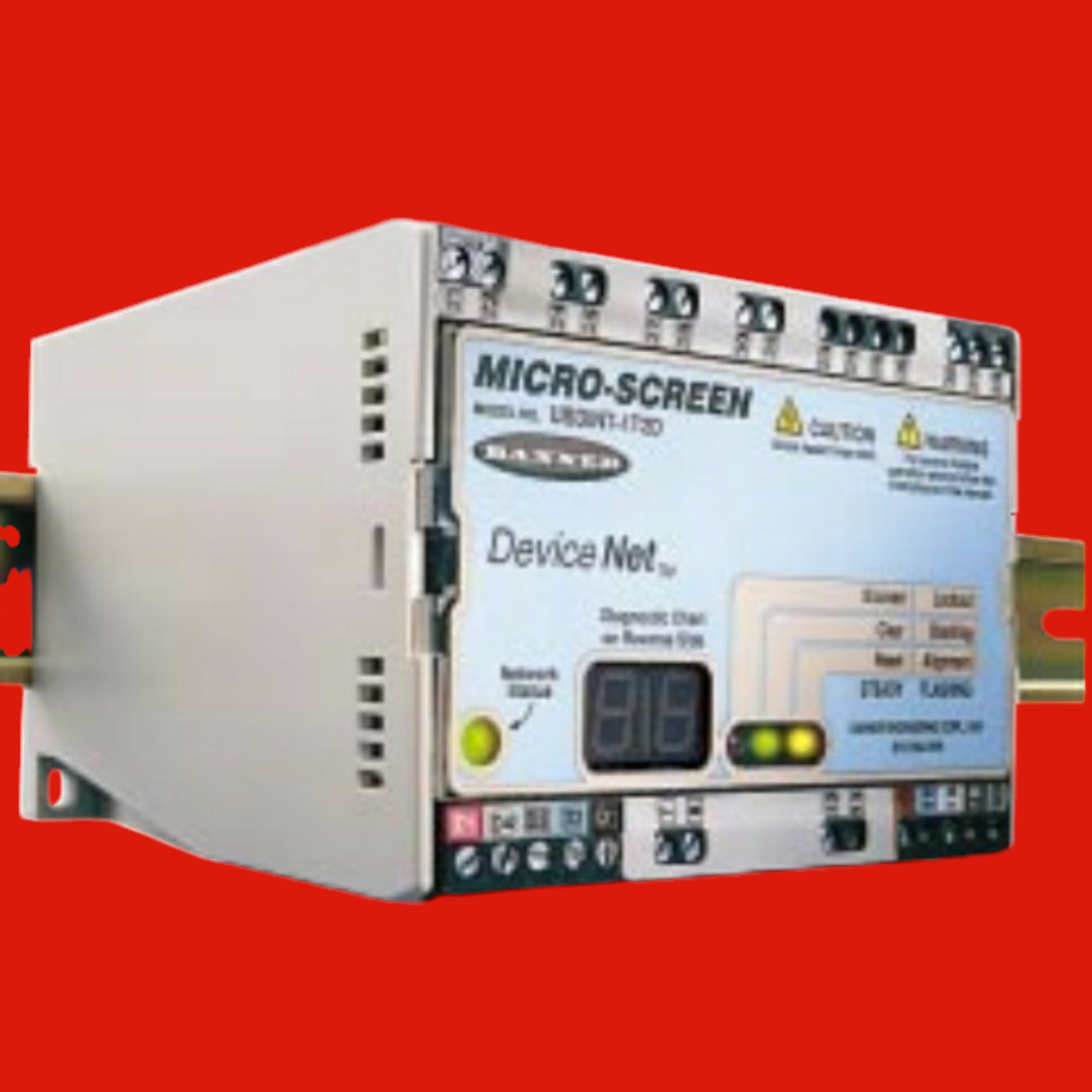

Banner 49785 USDINT-2T2 MICRO-SCREEN DIN Control Module
PN: 49785
The Banner MICRO-SCREEN System is a microprocessor-controlled opposed-mode opto- electronic "curtain of light" (or "light screen"). It is designed for use as a point-of-operation guarding device, and is especially suited to smaller production machinery.
Banner's microprocessor-based circuit raises the level of control reliability in machine guard design. The MICRO-SCREEN System design incorporates "diverse redundancy," in which two microprocessors of different design, running from two different instruction sets, constantly check all system components, including each other.
Specifications:
- Blanking: Fixed and 1- or 2-beam floating
- Supply Voltage: 24 V dc
- Output Type: Trip with 2 outputs

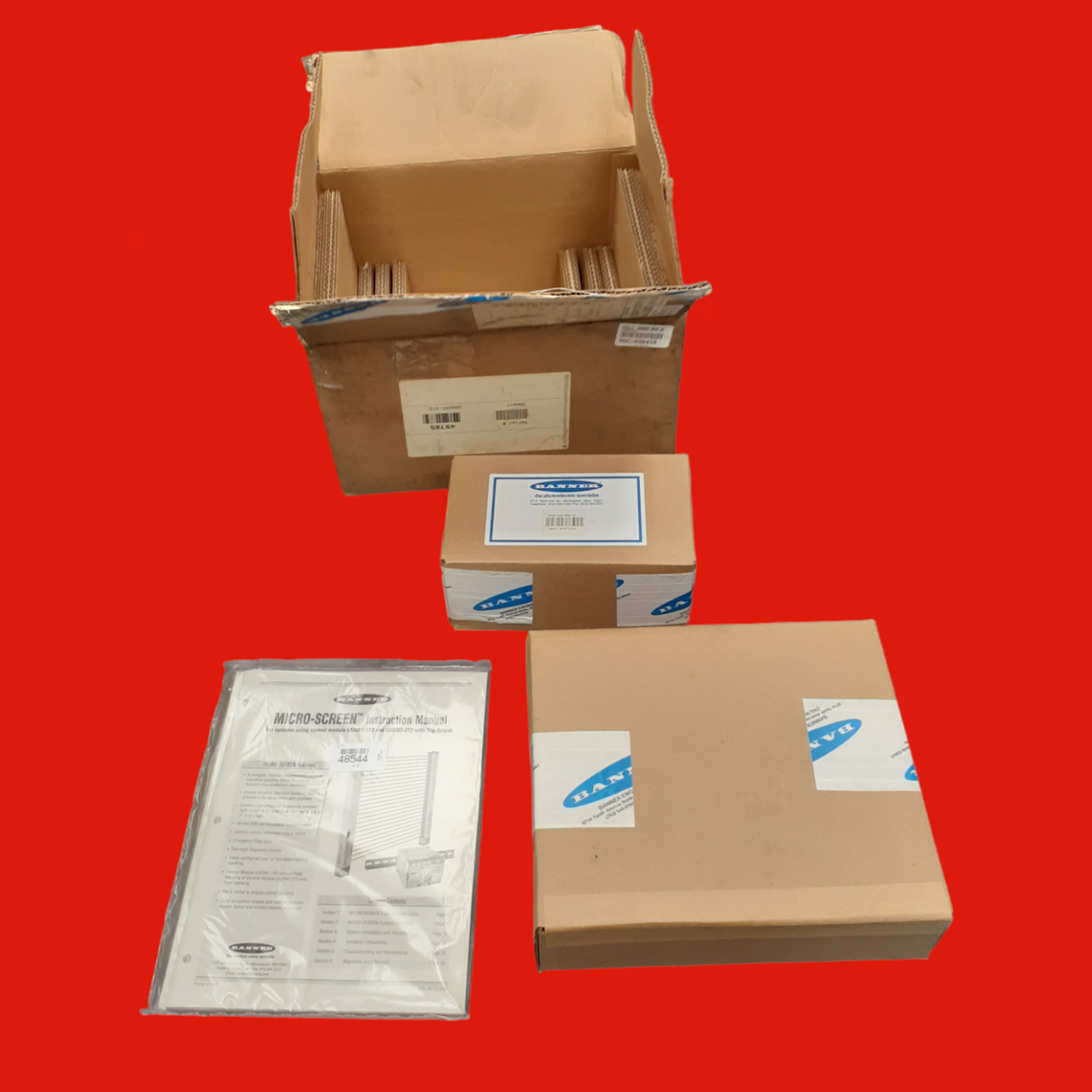

Kit Includes:
- 44897 (SWITCH KEY/HARDWARE MS 24V): Qty 1 — Key switch and hardware installation components

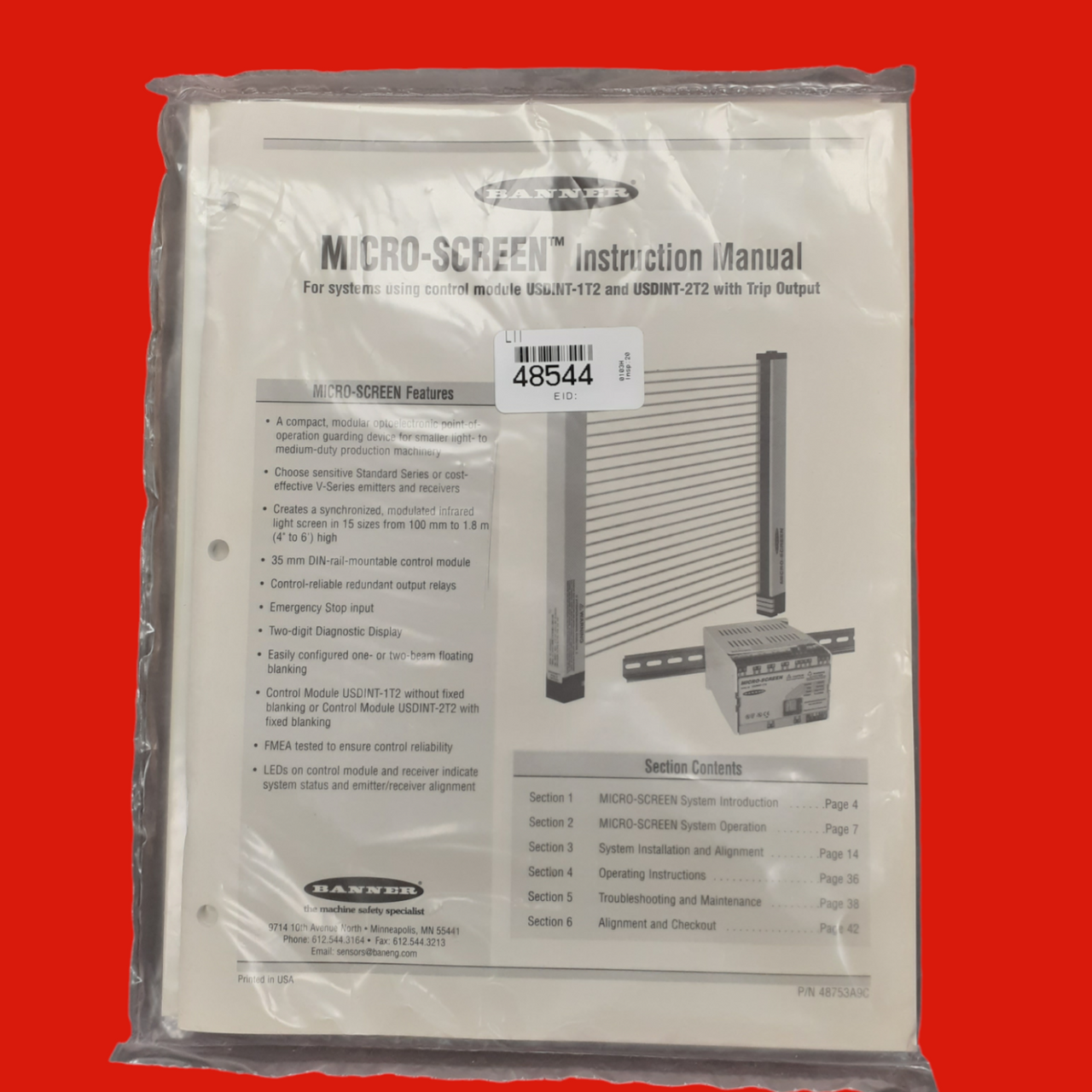

- 48544 (LIT PACKET USDINT-1T2/-2T2): Qty 1 — Literature packet (manuals and documentation)
- 49787 (USDINT-2T2 CNTRL BX SUB-AS): Qty 1 — Control box sub-assembly module
- 43957 (STP-2): Qty 1 — Test Piece 0.75 in (19 mm)
- 43958 ( STP-3): Qty 1 — Target/interconnect cable or component
- 43836 (STP-4): Qty 1 — Test Piece 1.25 in (32 mm)
- 43837 (STP-5): Qty 1 — Test Piece 2.25 in (58 mm)
- 50694 (STP-9): Qty 1 — MICRO-SCREEN Replacement Part Specified Test Piece (3.25 in)
