Product Description

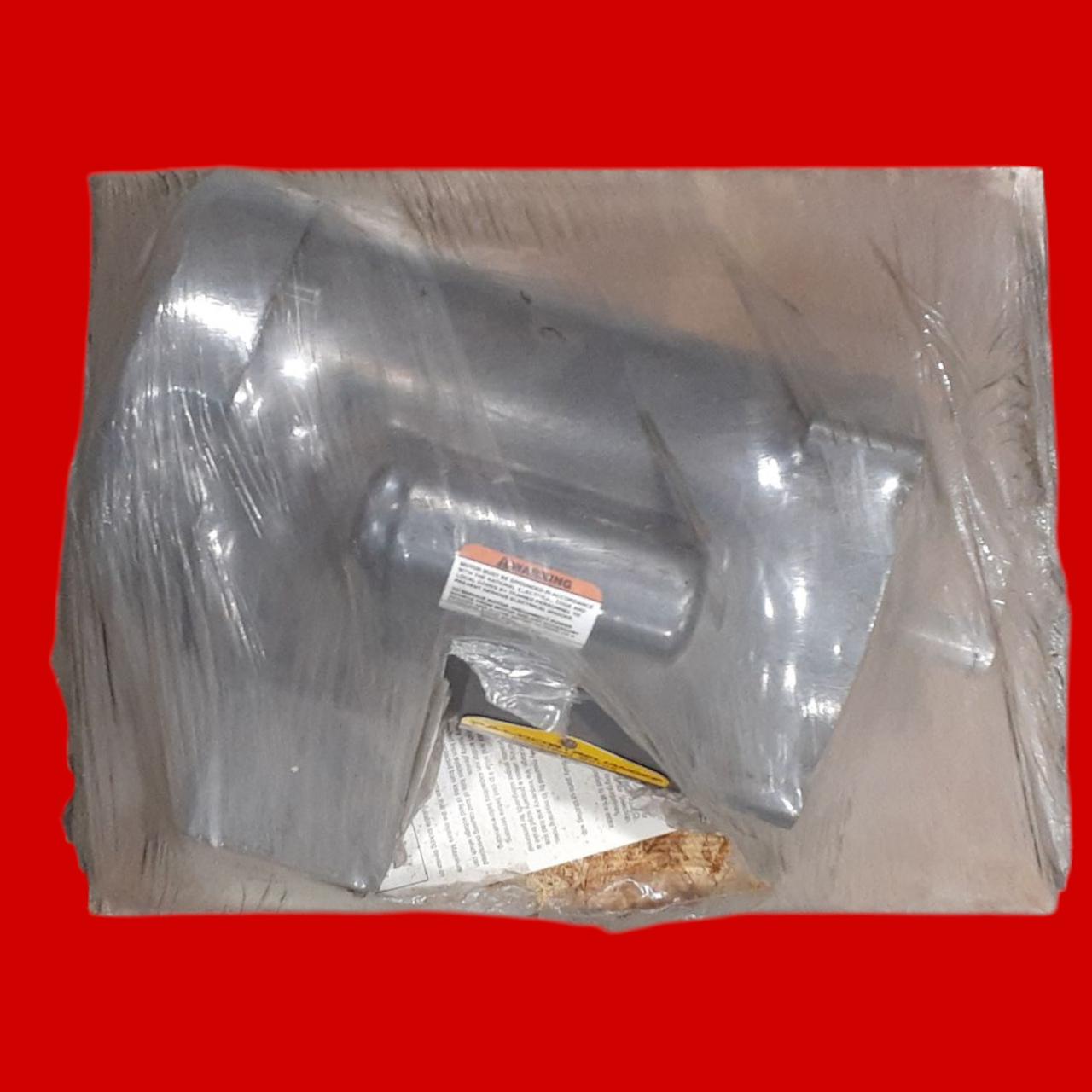

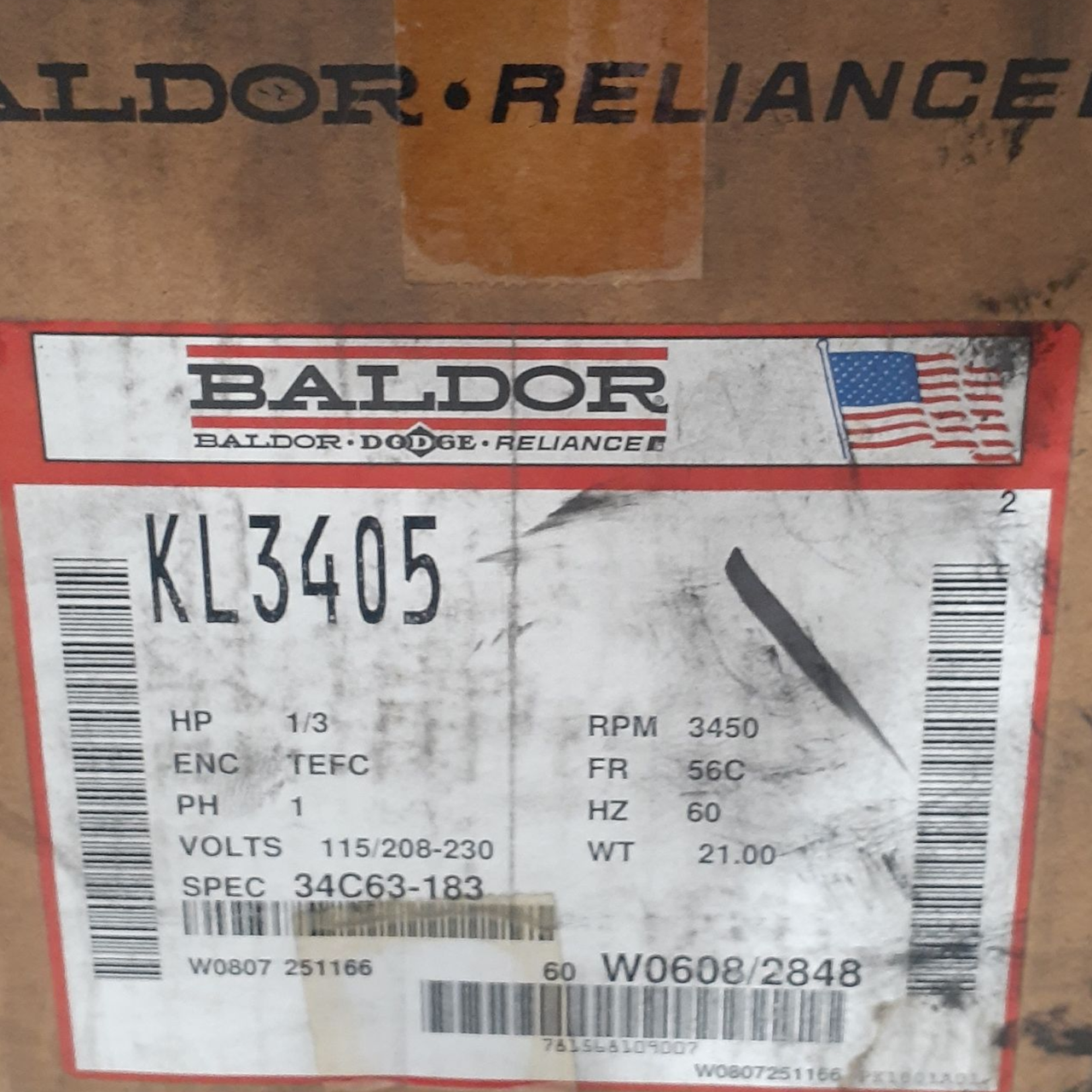

Baldor KL3405 General Purpose Motor, .33HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1
PN: KL3405
- Catalog Number: KL3405
- Enclosure: TEFC
- Frame: 56C
- Frame Material: Steel
- Frequency: 60.00 Hz
- Motor Letter Type: Cap Start, Induction Run
- Output @ Frequency: .330 HP @ 60 HZ
- Phase: 1
- Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
- Voltage @ Frequency: 115.0 V @ 60 HZ, 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
- Haz Area Class and Group: None
- Haz Area Division: Not Applicable
- Agency Approvals: C UR US
- Ambient Temperature: 40 °C
- Auxillary Box: No Auxillary Box
- Auxillary Box Lead Termination: None
- Base Indicator: No Mounting
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Blower: None
- Current @ Voltage: 3.000 A @ 230.0 V, 3.200 A @ 208.0 V, 3.700 A @ 208.0 V, 6.000 A @ 115.0 V
- Design Code: N
- Drip Cover: No Drip Cover
- Duty Rating: CONT
- Efficiency @ 100% Load: 55.0 %
- Electrically Isolated Bearing: Not Electrically Isolated
- Feedback Device: NO FEEDBACK
- High Voltage Full Load Amps: 3.0 a
- Front Face Code: Standard
- Front Shaft Indicator: None
- Heater Indicator: No Heater
- Insulation Class: B
- Inverter Code: Not Inverter
- KVA Code: K
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: Ko Box
- Motor Lead Termination: Flying Leads
- Motor Lead Quantity/Wire Size: 6 @ 18 AWG
- Motor Type: 3413L
- Mounting Arrangement: F1
- Number of Poles: 2
- Overall Length: 11.35 IN
- Power Factor: 68
- Product Family: General Purpose
- Pulley End Bearing Type: Ball
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Rodent Screen: None
- RoHS Status: ROHS COMPLIANT
- Service Factor: 1.35
- Shaft Diameter: 0.625 IN
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Speed: 3450 rpm
- Speed Code: Single Speed
- Motor Standards: NEMA
- Starting Method: Direct on line
- Thermal Device - Bearing: None
- Thermal Device - Winding: None
- Vibration Sensor Indicator: No Vibration Sensor
- Winding Thermal 1: None
- Winding Thermal 2: None
