Product Description

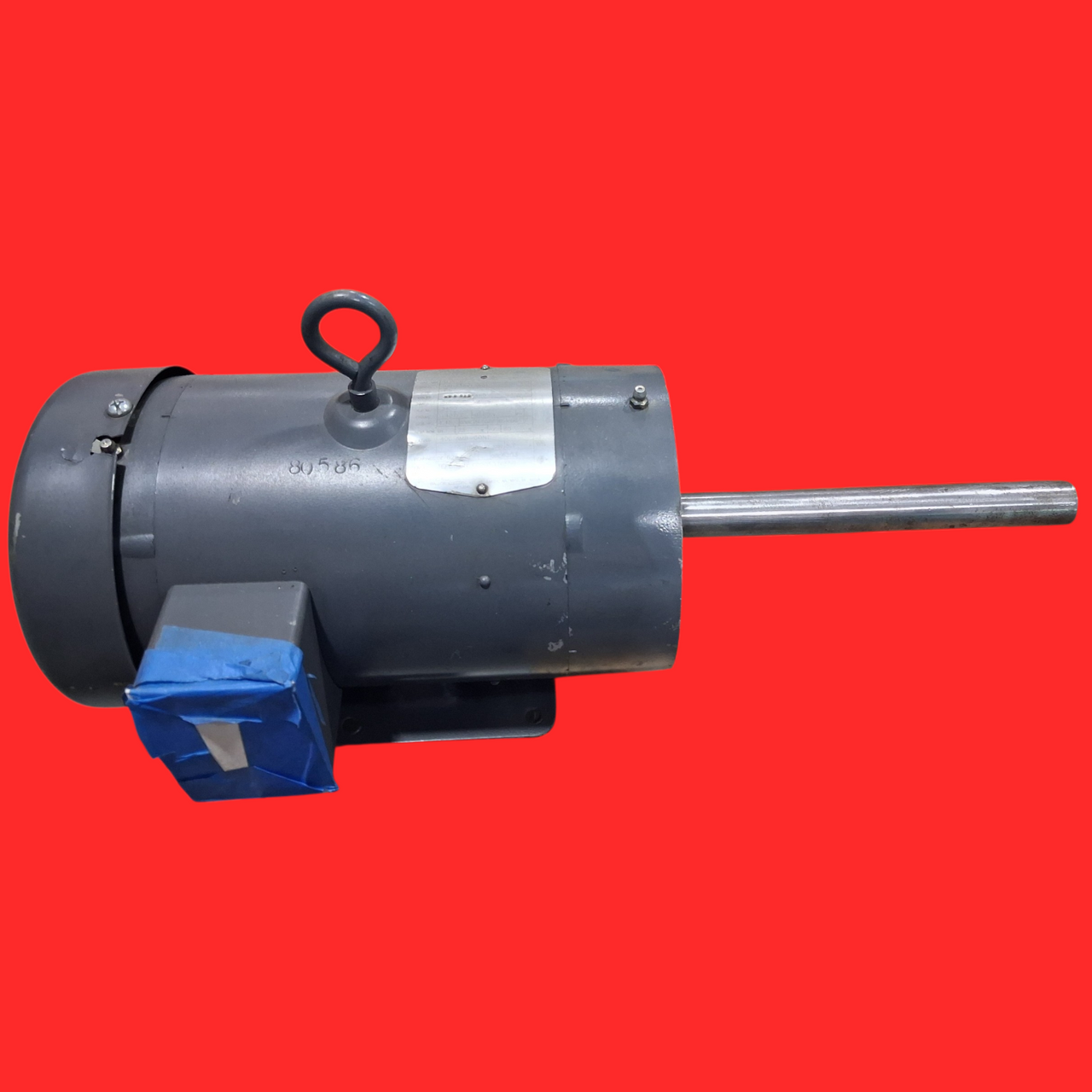

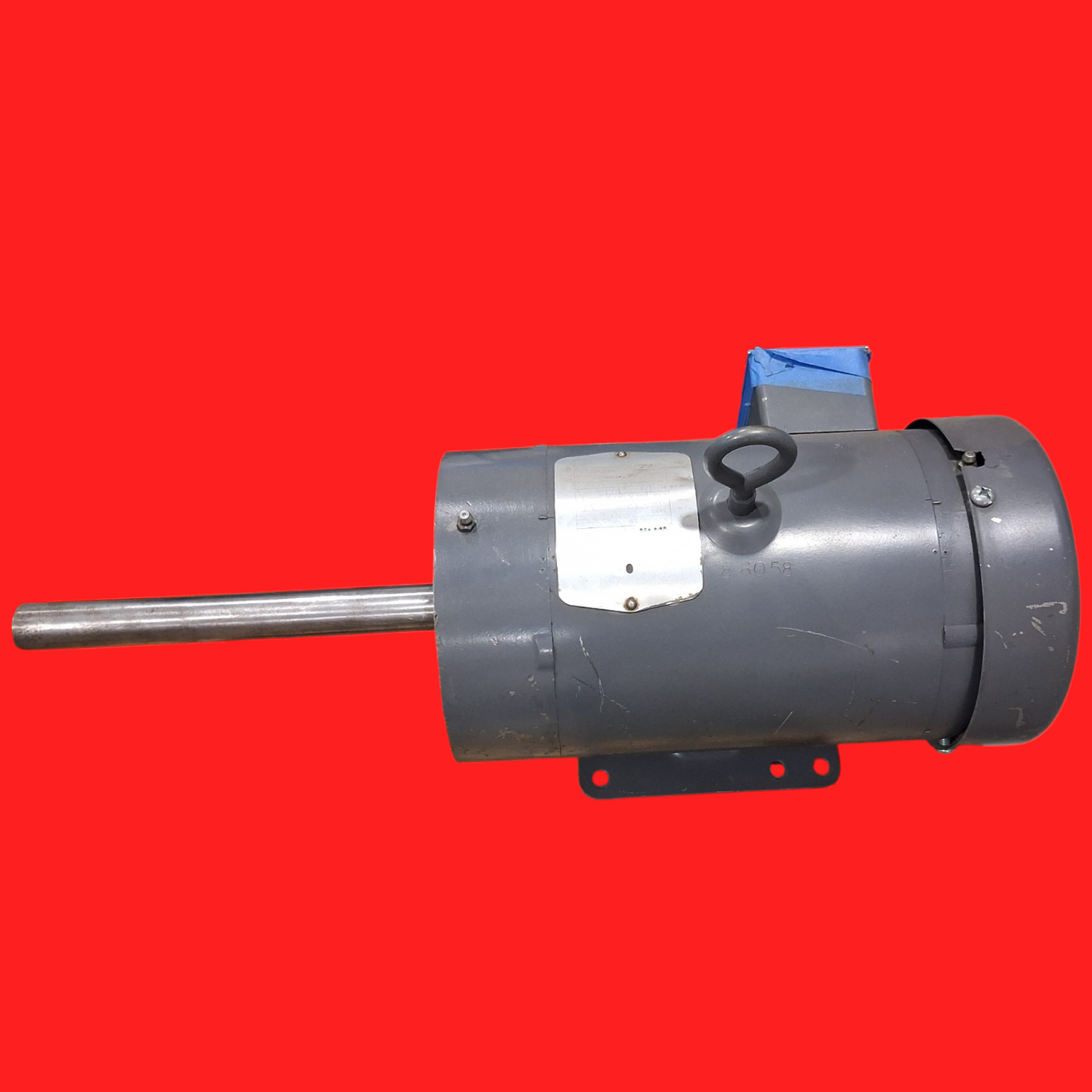

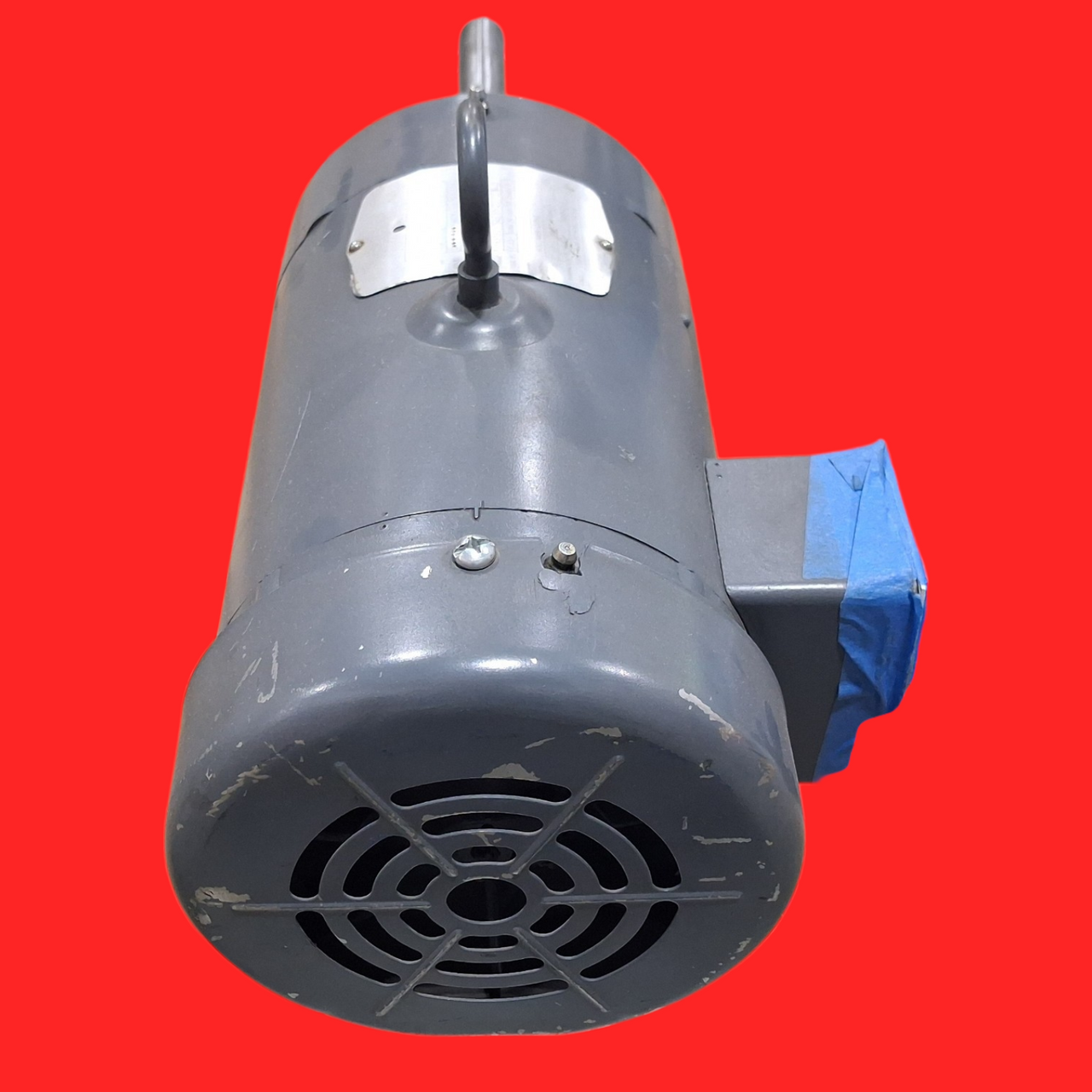

Baldor Electric 208-230/460 V, TEFC, 3450RPM, 143TYZ, 1.5HP- M3550T-S
Cat#: M3550T-S
- Horsepower (HP): 1.5
- Voltage: 208–230 / 460 V
- RPM: 3450
- Phase: 3
- Frequency: 60 Hz
- Frame Size: 143TYZ
- Enclosure: TEFC
- Full Load Amps: 5.7–5.8 A (at 230V) / 2.9 A (at 460V)
- Efficiency: Rated at 73% (NEMA Nominal Efficiency)
- Service Factor (S.F.): 1.15
- Insulation Class: Class F
- Rating: 40°C Ambient Temperature
- Shaft Length: 8-1/2"
- Shaft Diameter: 1"
