Product Description

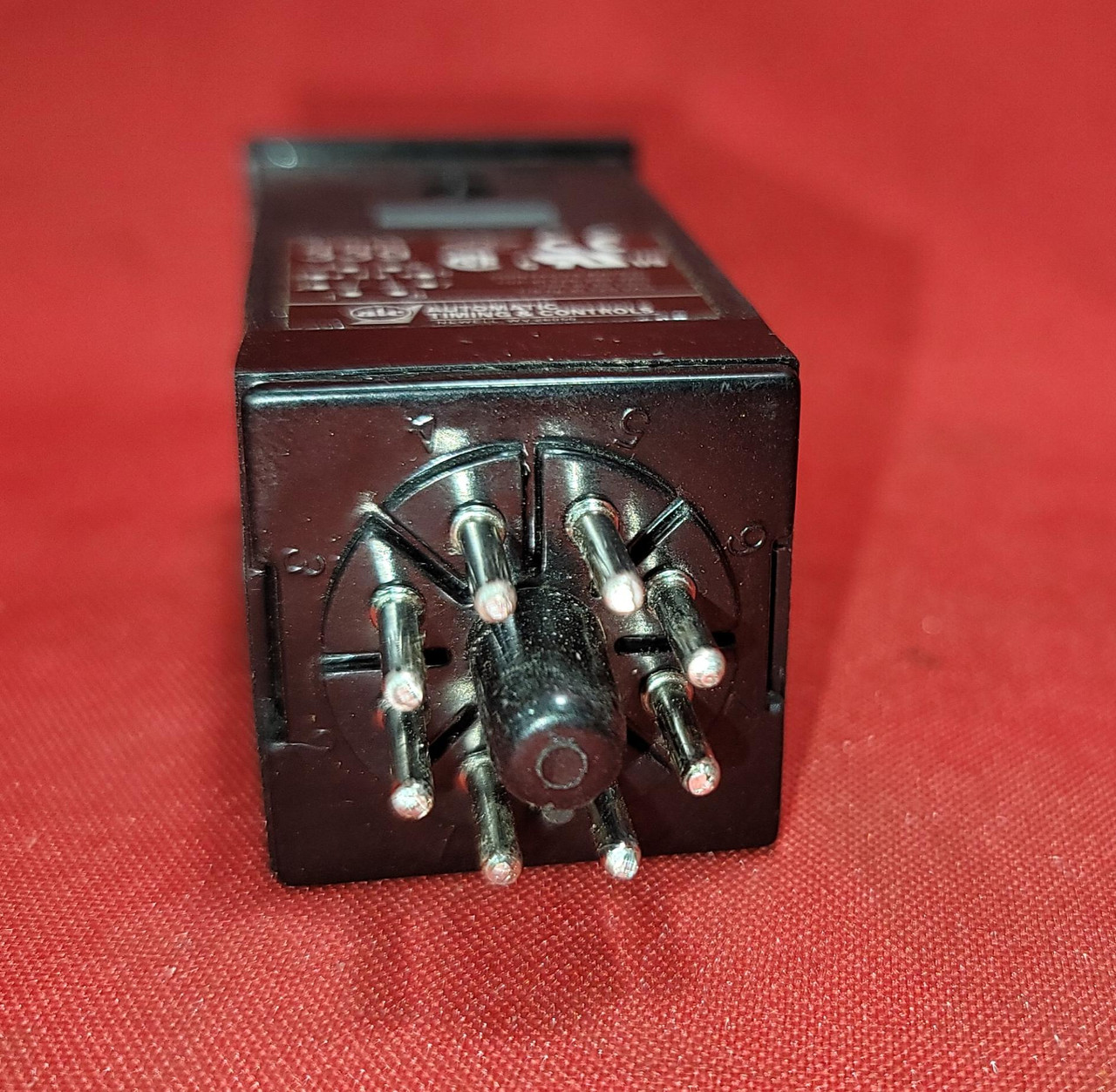

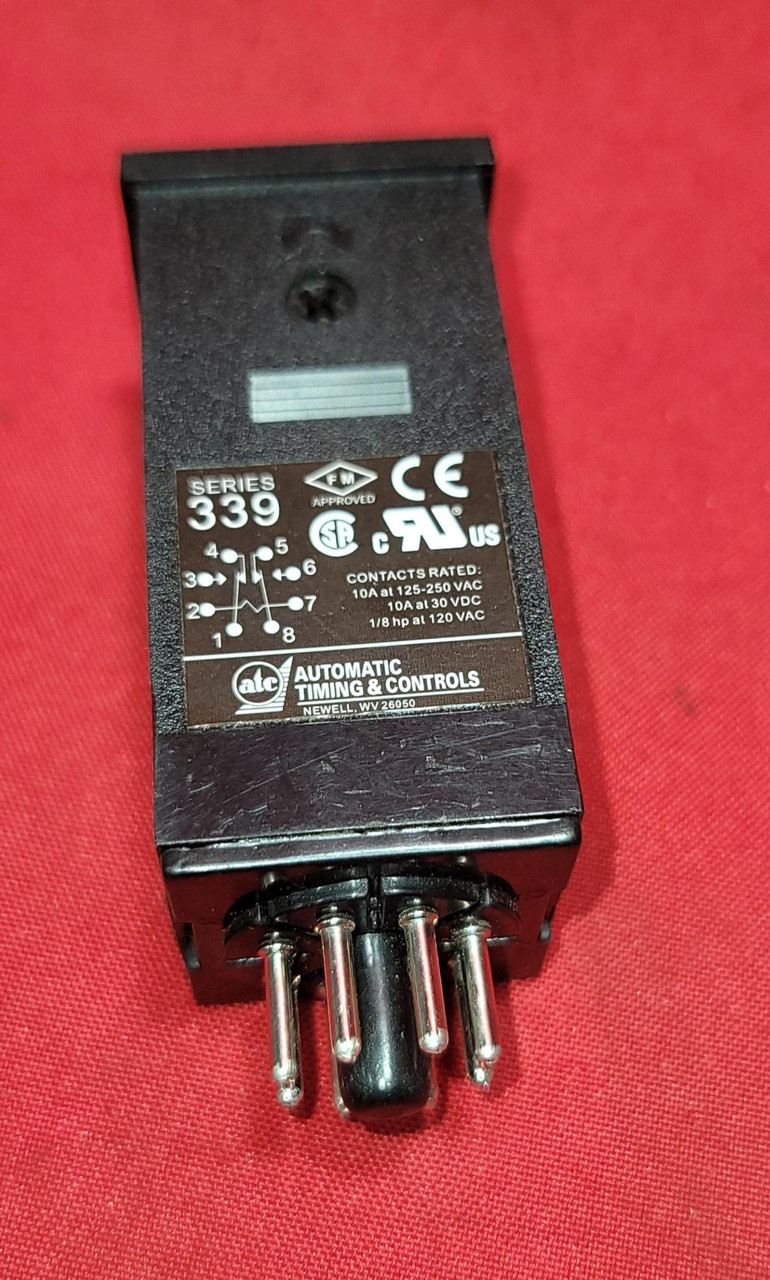

ATC 339B-359-Q-2-X Timing Relay
ATC-Automatic Timing & Control Timing Relays, 339B Series
ATC-Automatic Timing & Control
Timing Relays, 339B Series
Item# 339B-359-Q-2-X - Plug-In Adjustable TDR
339B Series Information
- Wide choice of ranges
- Cycle progress indication
- High accuracy
- Multiple timing modes
An economical solid‑state TDR with octal plug‑in base,the 339B maintains excellent repeat accuracy despite wide voltage and temperature variations.even after long periods of down‑time.Two models are available. Each has six dial selected ranges from fractions of a second to as long as 10 hours.Each model has a selectable on‑delay or interval timing mode.
Item Number: 339B-359-Q-2-X
Brand:ATC-Automatic Timing & Control
Item Category:Relays
Subcategory: Time Delay
Series: 339B
Mode of Operation:On Delay;Interval
Timing Range:0.3 Seconds~10 Hours
Volts AC:120
Mounting Type:Socket
Multi-Function:Yes
Termination:8 Pin
Status Ind.:LED
Max Time:10 Hours
Adjustment Operator:Knob
NEMA Rating:NEMA 1
Approvals:CSA;CE;UR;FM
H x W x D: 1.56 in x 2 in x 3.81 in
Net Weight: 2.56 oz
Gross Weight: 2.56 oz
