Product Description

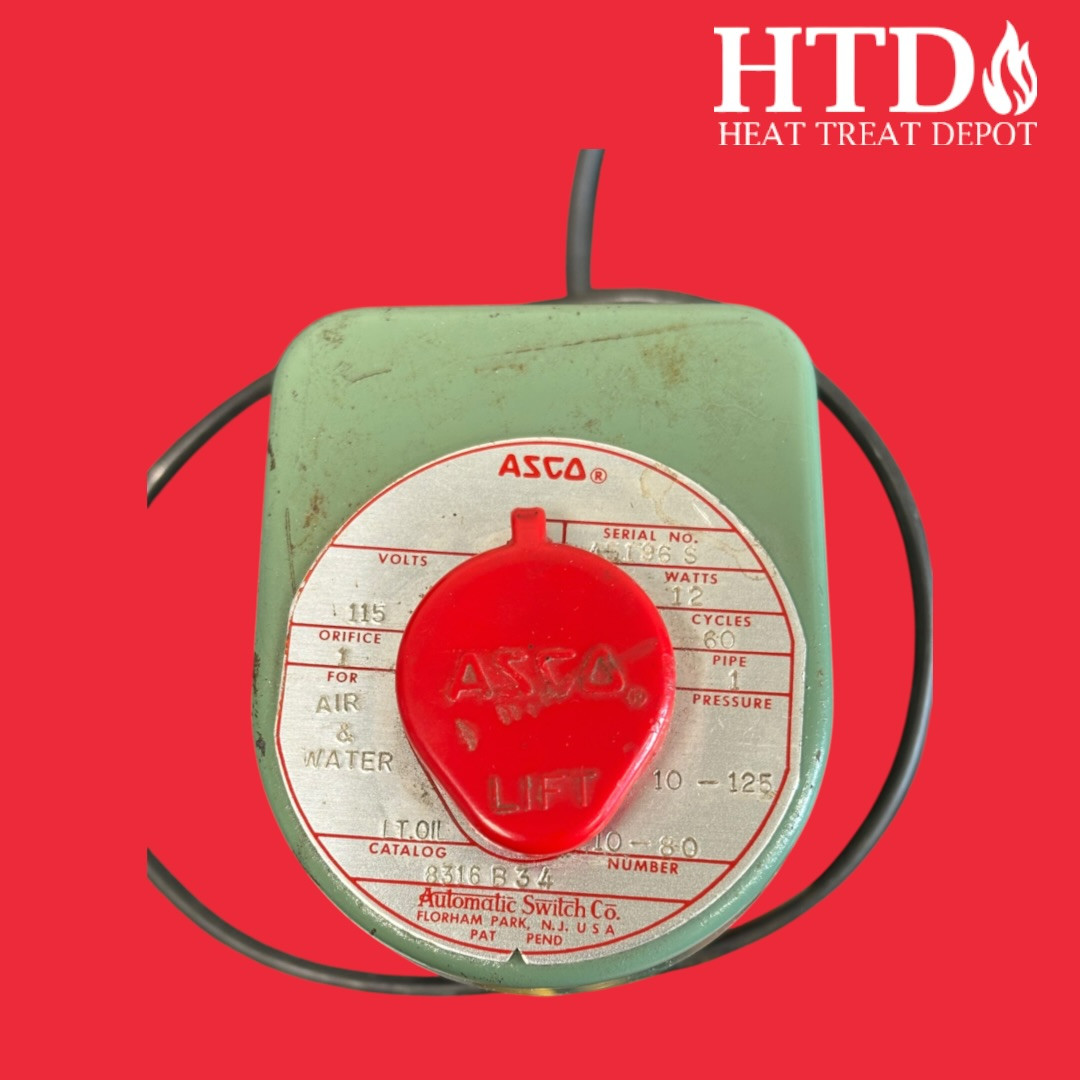

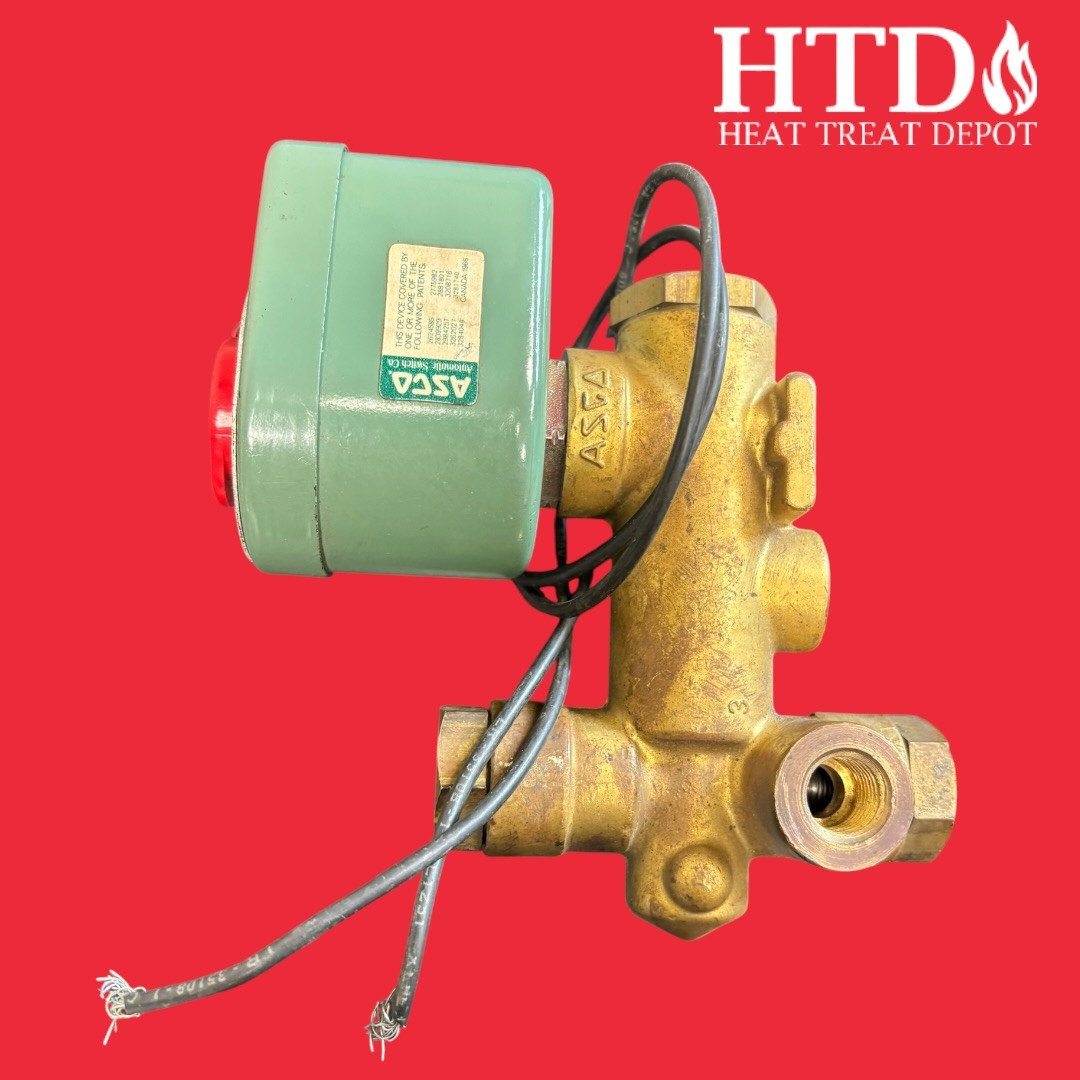

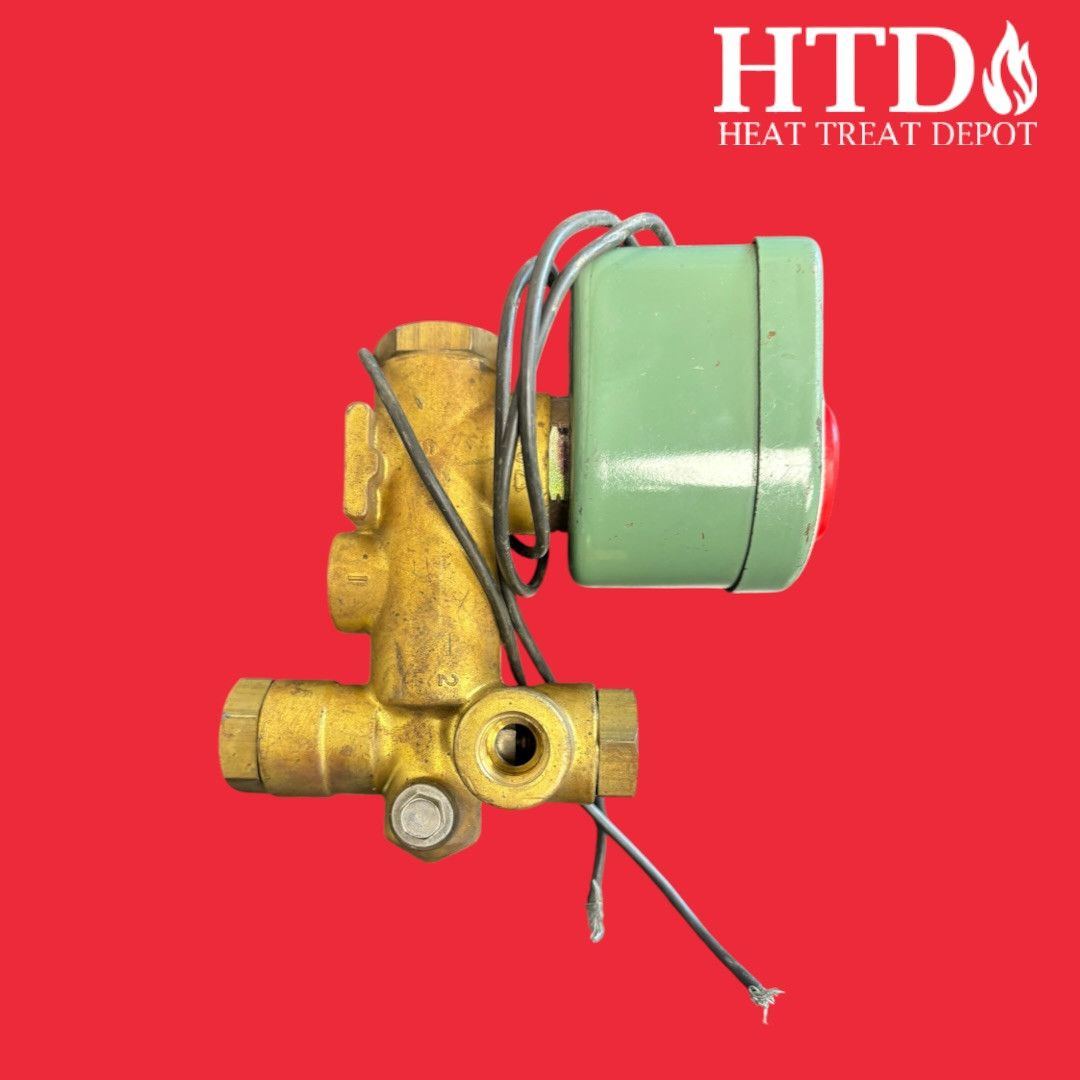

ASCO 8316B34 3-Way, 1"NPT, N/C Solenoid Valve
Part#: 8316B34
- Valve Type: 3-Way (3/2) High-Flow Pilot-Operated Diaphragm Valve
- Operating Function: Normally Closed (NC)
- Pipe / Port Size: 1" NPT
- Orifice Size: 1 inch
- Flow Coefficient (Cv):12.5 (High-Capacity Flow)
- Body Material: Brass
- NBR (Buna-N) / Resilient seating for tight shutoff
- Minimum Operating Pressure Differential: 10 PSI
- Maximum Operating Pressure: 250 PSI for Air, Inert Gas, and Water
- Maximum Fluid Temperature: 180°F (82°C)
- Coil Design: RedHat II Series
- Nominal Voltage: Most Commonly Ordered as 120V AC / 60Hz (or 110V AC / 50Hz), Though Available in Alternate AC/DC Coils
- Enclosure Rating: NEMA Type 1, 2, 3, 3S, 4, and 4X (Watertight/Dusttight General-Purpose Enclosure)
