Product Description

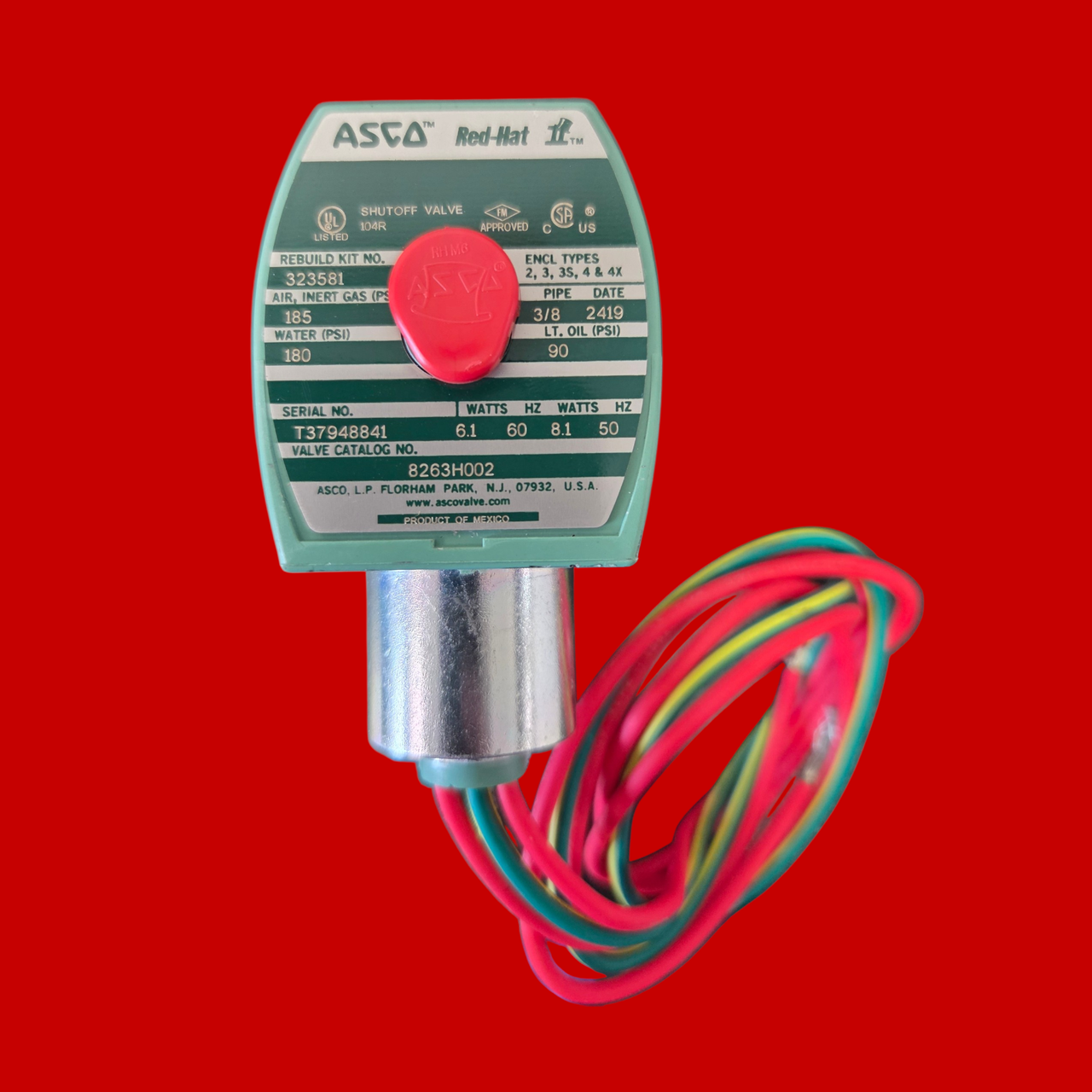

ASCO 8263H002 2-Way Direct-Acting, Normally Closed General Service Solenoid Valve, 3/8" NPT
PN: 8263H002
The ASCO 8263H002 is a 2-way direct-acting, normally closed general service solenoid valve designed for high-flow applications. It features a rugged brass body and is commonly used with air, inert gas, water, and light oil.
- Pipe Size: 3/8 inch NPT.
- Orifice Size: 1/8 inch.
- Flow Coefficient (Cv): 0.35.
- Operating Pressure: 0 to 185 PSI for Air/Inert Gas, 180 PSI for Water, and 90 PSI for Light Oil.
- Voltage: Standard 120V AC / 60Hz or 110V AC / 50Hz.
- Material: Brass body with NBR (Buna-N) or Urethane elastomer seals.
- Enclosure Rating: NEMA 1, 2, 3, 3S, 4, and 4X (Watertight/General Purpose).
- Temperature Range: Maximum fluid temperature of 180°F (82°C).
