Product Description

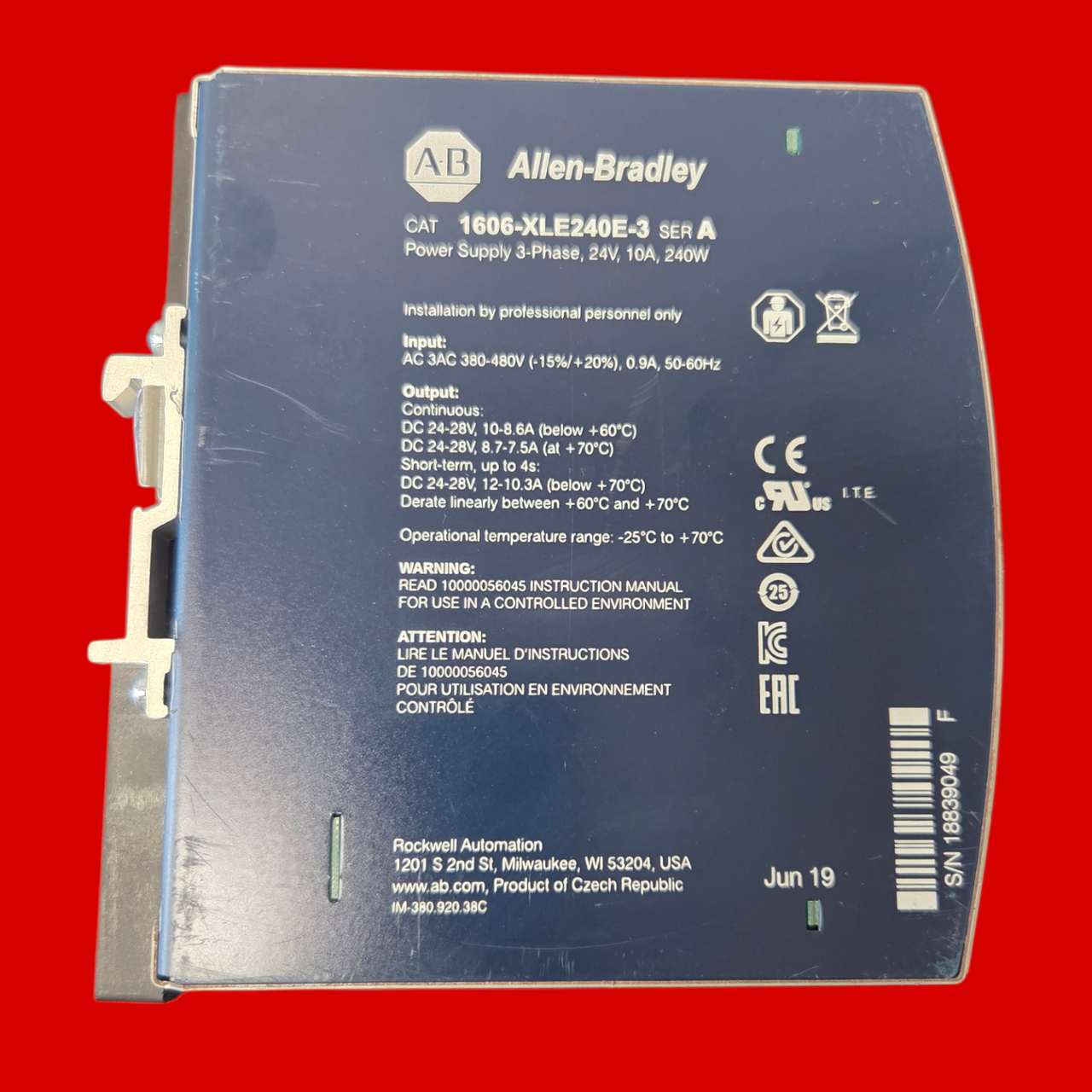

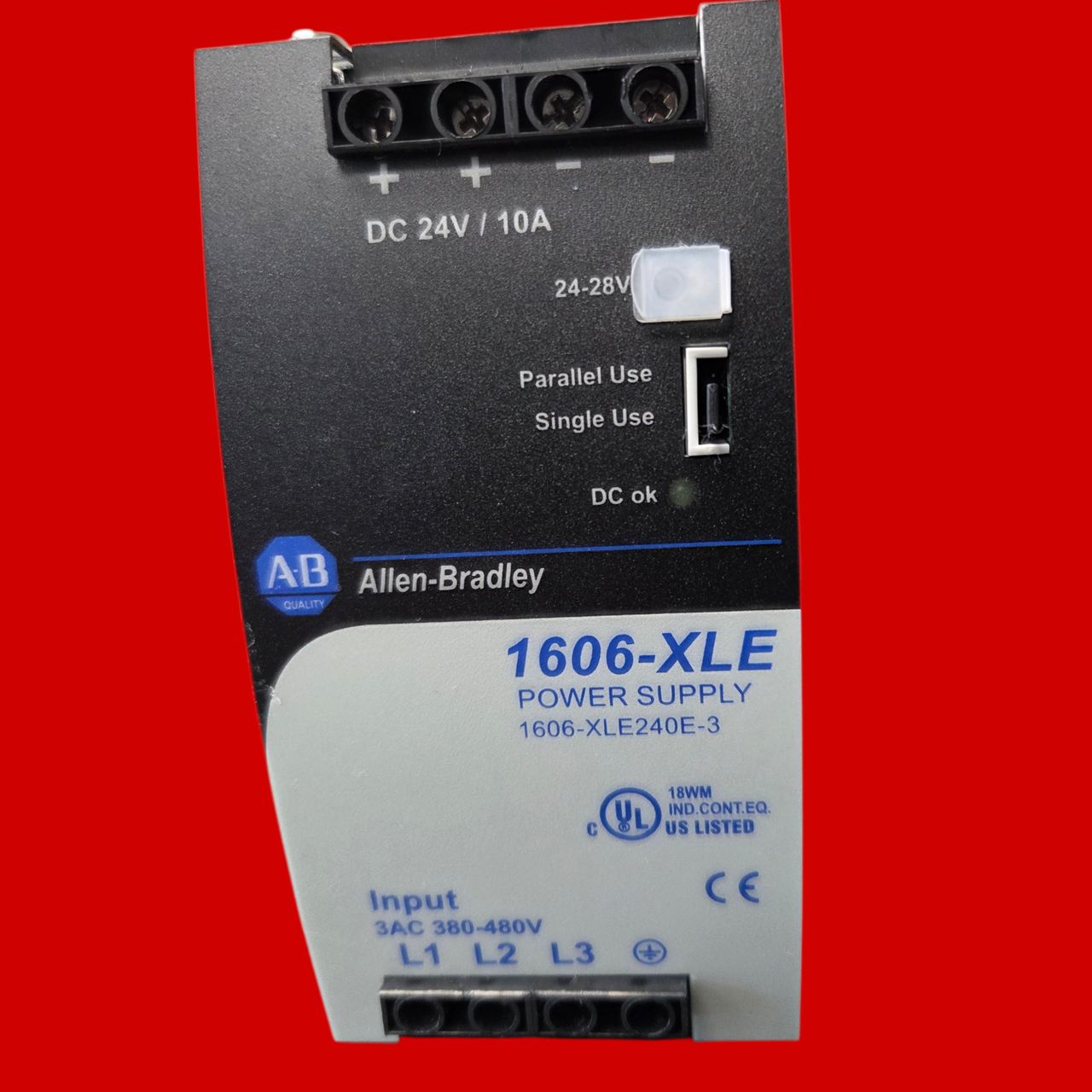

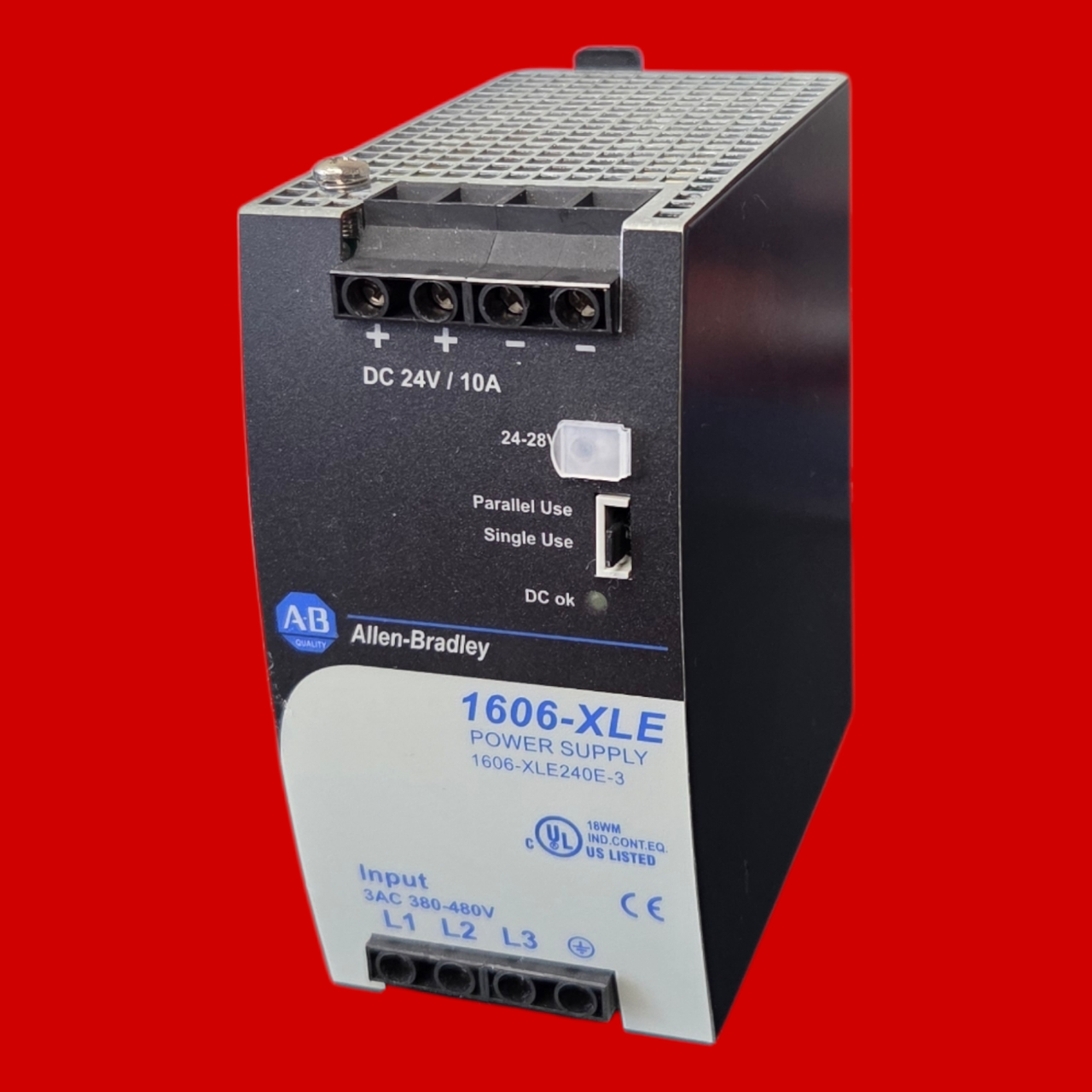

Allen Bradley Three-Phase Input Power Supply, 24V, 10 A, 240 W, 1606-XLE240E-3, Ser. A
PN: 1606-XLE240E-3
The 1606 Essential line are cost optimized power supplies without compromising quality, reliability, and performance. The most outstanding features of 1606-XLE240E-3 are the high-efficiency, electronic inrush-current limitation, active input-transient filter, and wide-operational temperature range. The small size is achieved by a synchronous rectification and further technological design details.
The 1606-XLE240E-3 is equipped with conformal coated circuit-boards that are preferred for applications in harsh areas.
The power supply features:
- 3x 380…480V AC wide-range input
- 2 or 3-phase operation possible
- Width only 62 mm (0.039 in.)
- Efficiency up to 92.9% due to synchronous rectifier
- Excellent partial load efficiency
- 20% output power reserves
- Easy fuse tripping due to high overload current
- Input-transient blanking circuit included
- Minimal inrush current surge
- Three input fuses included
- Current sharing feature for parallel use
- Full power between -25 °C...+60 °C (-13 °F...+140 °F)
Specifications
- Wattage: 240
- Amps: 10
- Volts AC Range: 380 - 480
- Phase: 3

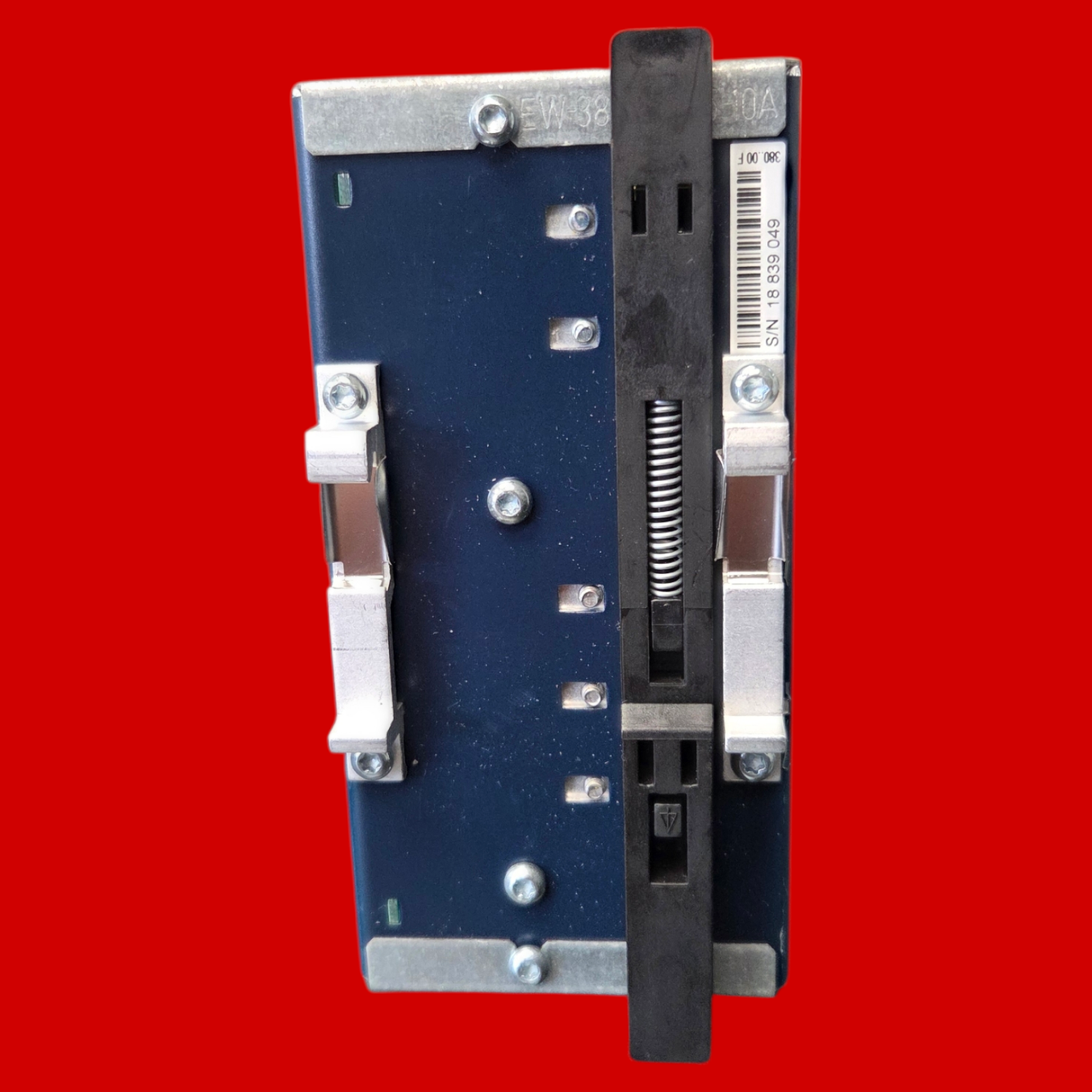

- Mounting: DIN Rail
- Volts DC: 24/28
