Product Description

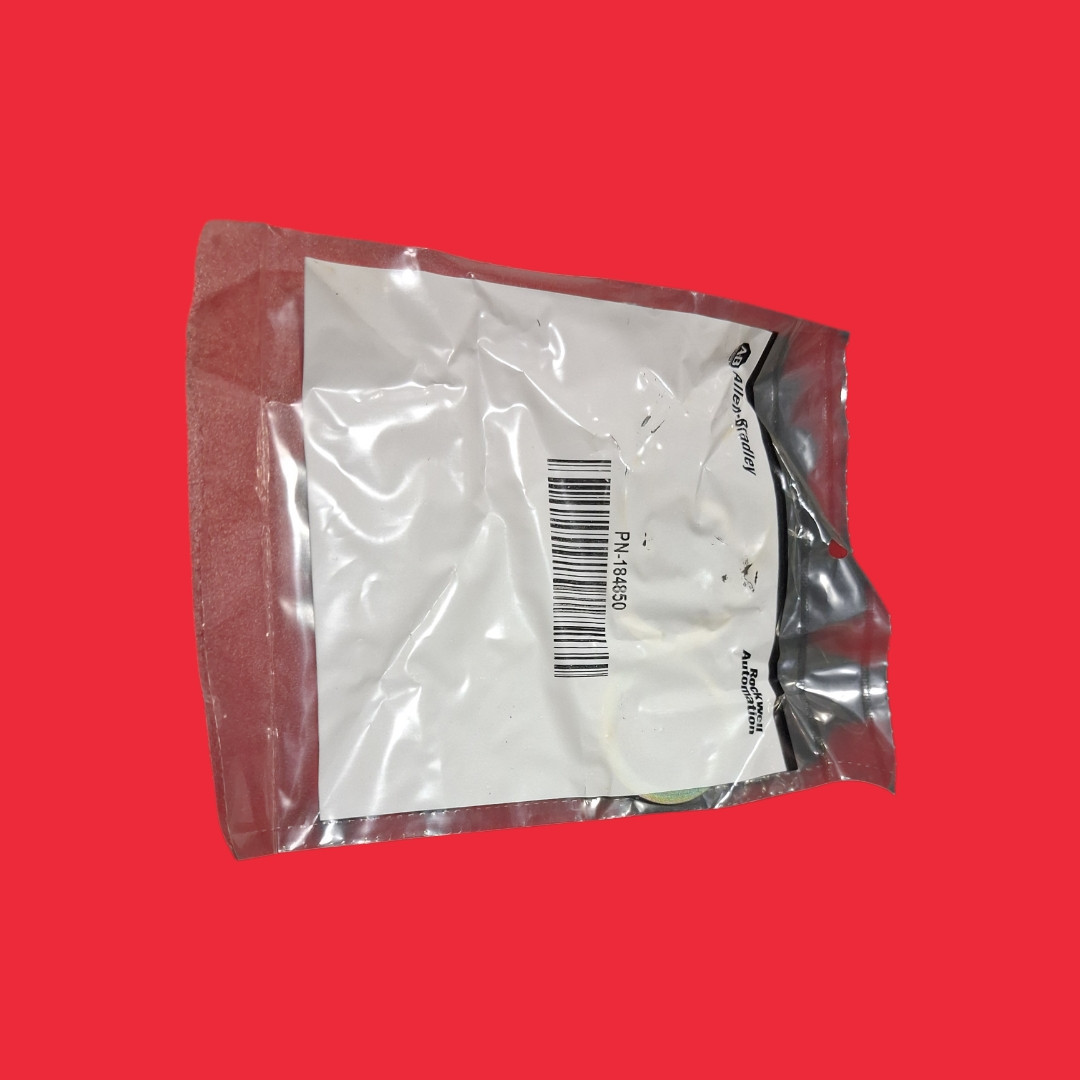

Allen-Bradley 800T-PB16R Series T Heavy-Duty, 30.5 mm, Illuminated, Momentary Push Button
Part#: 800T-PB16R
The Allen-Bradley 800T-PB16R (Series T) is a heavy-duty, 30.5 mm illuminated momentary push button. Built for demanding industrial applications, it features a rugged metal operator, a red extended head lens, and a built-in transformer module.
- Mounting Size: 30.5 mm diameter panel cutout
- Operator Action: Momentary contact (spring-return)
- Illumination Type: Incandescent bulb with integrated transformer module
- Input Voltage: 120V AC at 50/60 Hz
- Color / Lens: Red round extended head without guard
- Contact Block Configuration: 1 Normally Open (NO) and 1 Normally Closed (NC) standard contact block
- Contact Rating: 10 Amps continuous (A600 rating)
- Enclosure Environmental Rating: NEMA Type 4/13 (watertight, dusttight, and oiltight)
- Construction: Heavy-duty die-cast zinc alloy metal operator with diaphragm seal
