Product Description

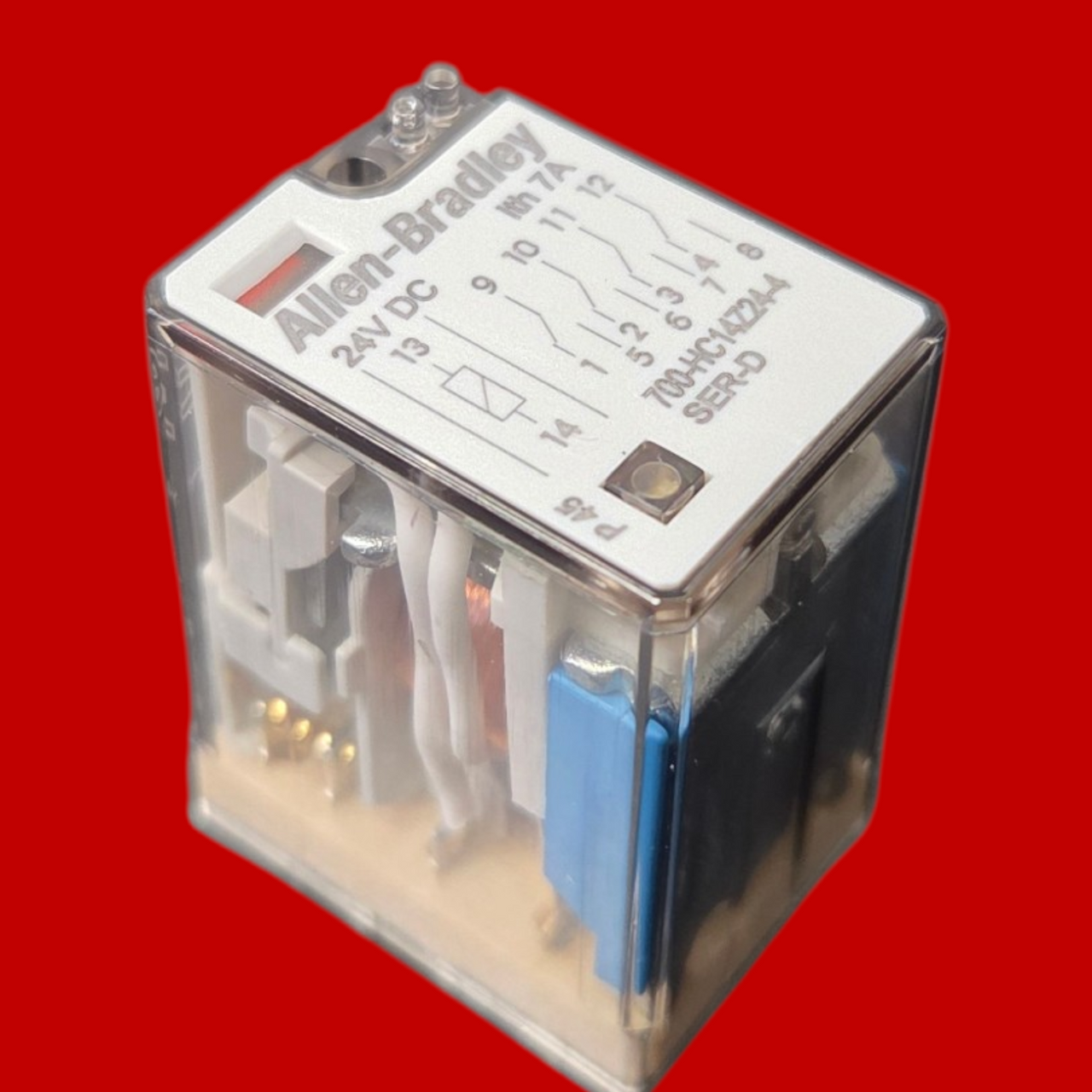

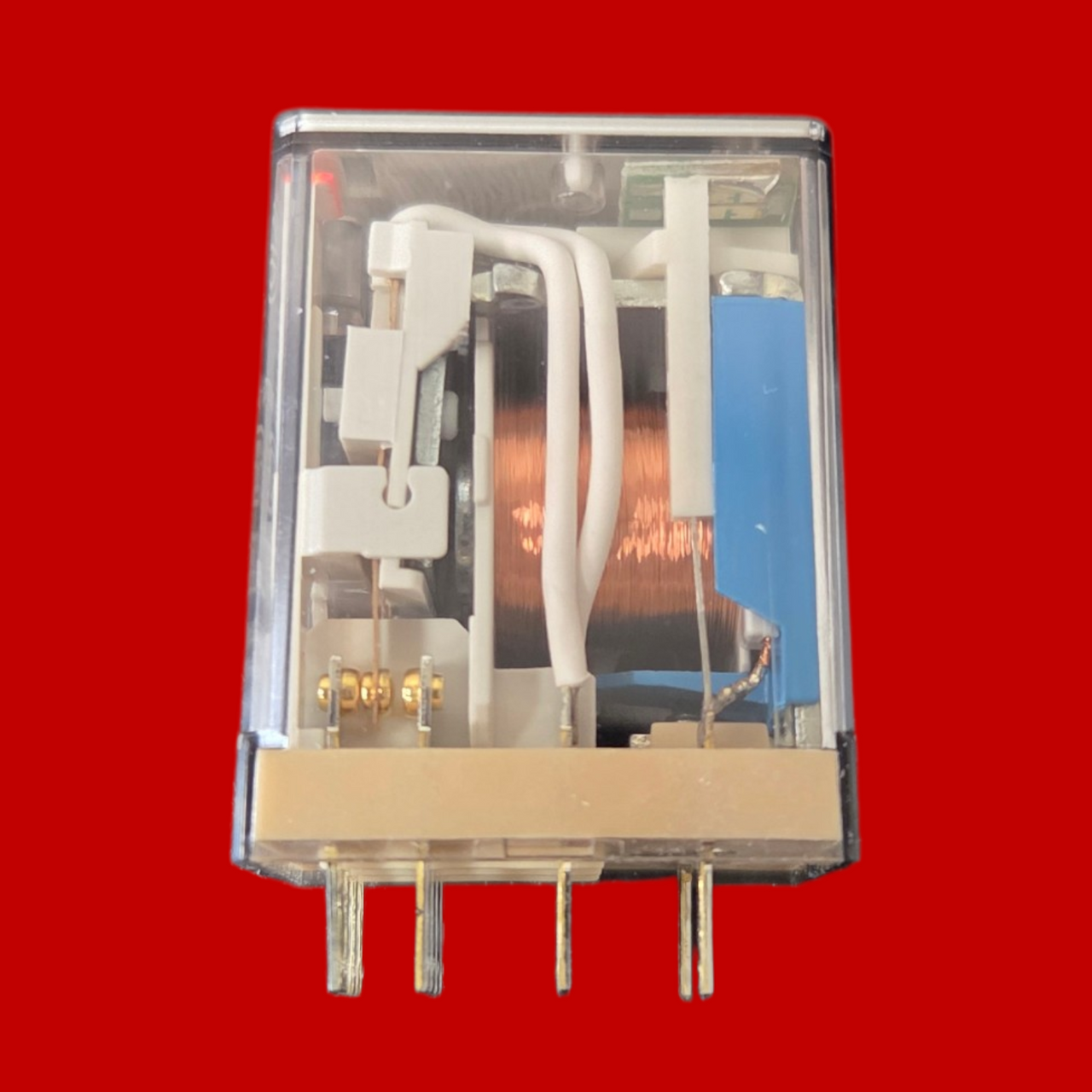

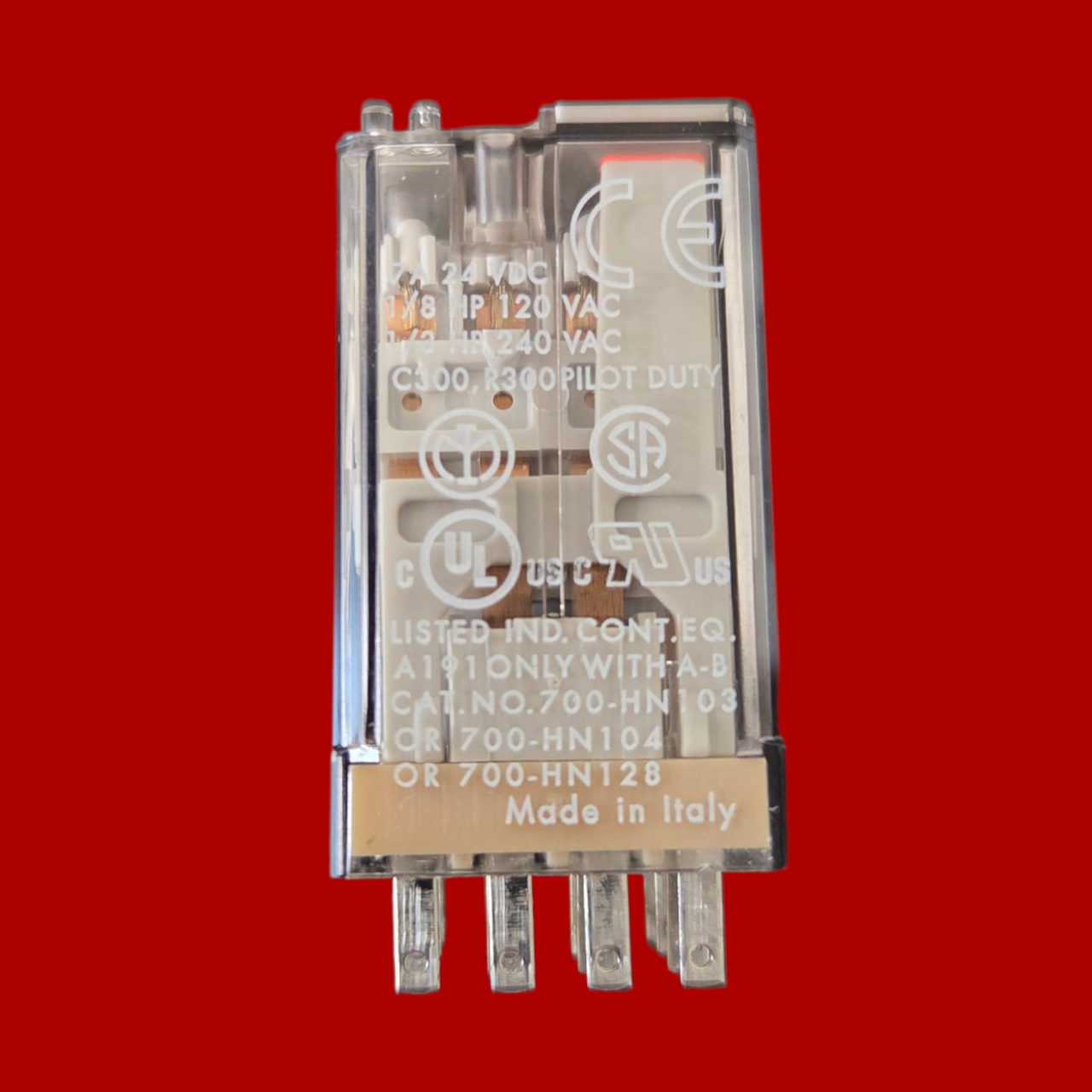

Allen Bradley 700-HC14Z24-4 General-Purpose, Miniature Ice Cube Relay, 24V DC
PN: 700-HC14Z24-4
The Allen-Bradley 700-HC14Z24-4 is a general-purpose, miniature "ice cube" relay from Rockwell Automation's Bulletin 700 series. This specific model features a 24V DC coil, four changeover contacts (4PDT) rated at 7 Amps, and an integrated LED indicator for status monitoring.
- Contacts: 4PDT (4 Changeover) with a nominal current of 7 Amps.
- Coil Voltage: 24V DC.
- Contact Material: Features gold-plated contacts, which are ideal for low-energy switching applications (minimum 10V, 1mA).
- Indicators: Includes a standard pilot light (LED) and an ON/OFF flag indicator to confirm the relay's status.
- Lifespan: Rated for a mechanical life of 50 million operations and a minimum electrical life of 100,000 cycles.
- Design: Plug-in square base with 14 blade terminals and a clear cover for visual inspection.
