Product Description

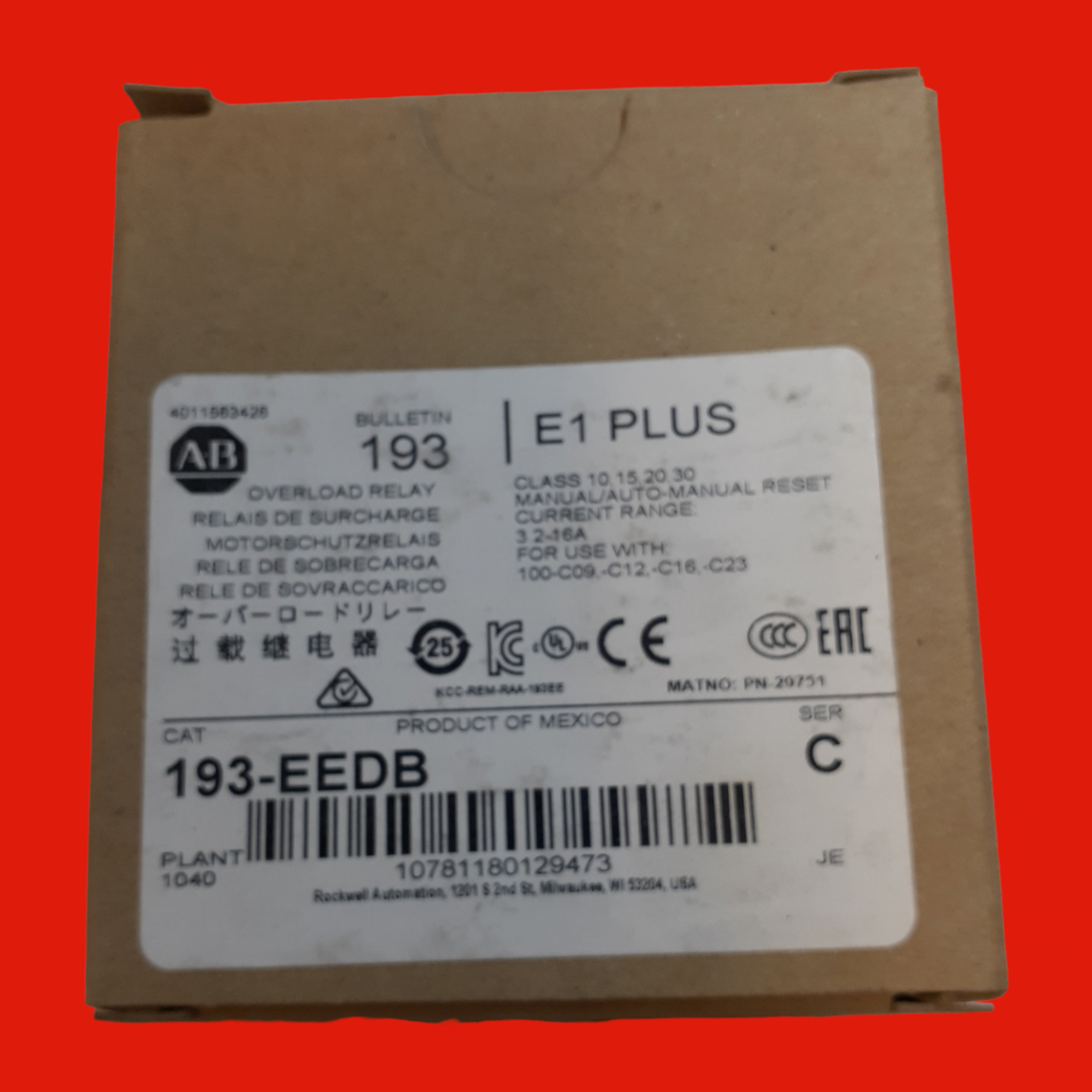

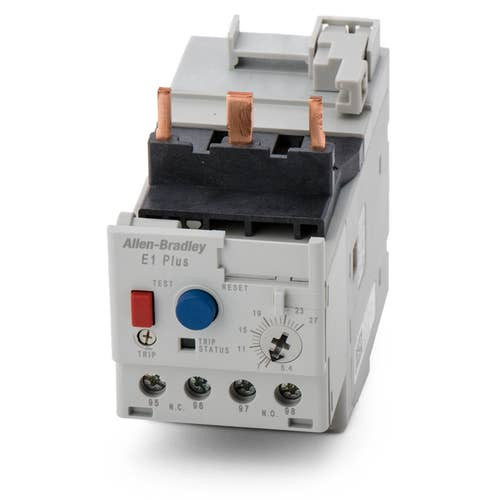

Allen Bradley 193-EEDB Relay Overload
Allen-Bradley Solid State Overload Relay E1 Plus Solid State Overload Relay 3 phase manual-auto reset screw type rated for 3.2 - 16A suitable for use with 100-C 9A-23A IEC contactors.
Specifications :
- Manufacturer : Allen-Bradley
- Cat. No. : 193EEDB
- Alternate Part No. : 193-EEDB
- Full Load Current Range : 3.2 - 16 A
- No. Of Phase : 3-Phase
- Mounting : M5 Screw
- Control Voltage : Main Circuit: 690/600 VAC Control Circuit : 690/600 VAC
- Size: 5-25/32 IN Height X 1-25/32 IN Width X 3-23/64 IN Depth
- Insulation : 690 VAC
- Reset Type : Manual/Automatic
- Enclosure: IP20
- Temperature Rating : -20 To 60 DEG C
- Applications : For 100-C09 to 100-C23 contactor
- Trip Class : 10 15 20 30
- Auto/Manual-Auto Reset Screw Type
