Product Description

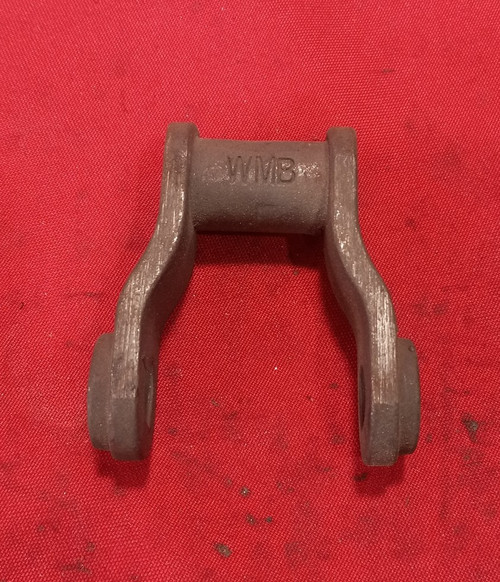

WMB 462 Single Pintle Chain Link (Pack of 5)
- Chain Size: 462 Pintle Chain
- Pitch: 1.634"
- Links Per 10ft: 73
- Weight Per Foot: 2.5 LBS
- Average Ultimate Strength: 11,700 LBS
- Maximum Recommended Working Load: 1,880 LBS
- Maximum Allowable Sprocket Face: 0.88"
- Overall Width Cottered: 2.56"
- Overall Width Riveted: 2.38"
- Pin Diameter: 0.44"
- Sidebar Height: 0.94"
- Barrel Diameter: 0.72"
- Head of Pin to Center Line: 1.25"
- End of Pin To Center Line Cottered: 1.31"
- End of Pin To Center Line Riveted: 1.12"
