Product Description

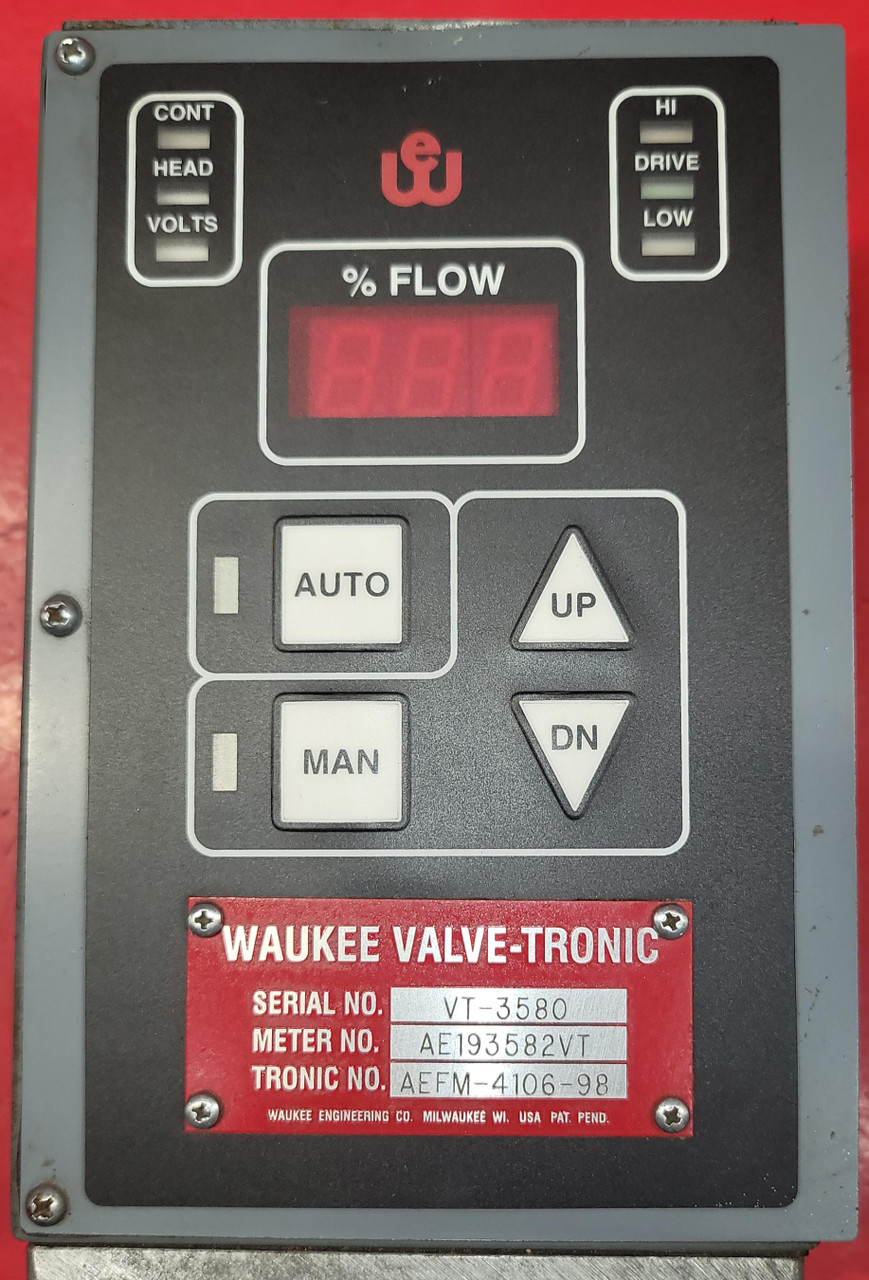

Waukee Engineering Valve-Tronic Plus Electronic Natural Gas Flo-Meter
Tech Specs
Serial #: AE193582VT
P.R.: 8 0SIG
Temp: 70°F
S.P.G.R.: .65 (Natural Gas)
Type: M-6
Scale: 0-150 CFH
Operating Voltage: 24 VDC +/- 10%
Power Consumption: 50 mA
Signal Input: 4 -20 mA Standard Current Loop
Signal Output (from Waukee-Tronic): 4-20mA Isolated Current Loop
Relay contact ratings: All 1.0 A@30VDC
Maximum Operating Temperature: 150ÌŠF (65ËšC)
Minimum Operating Temperature: 32ËšF (0ÌŠC)
The Valve-Tronic Control Valve offers the following features:
- Control and Waukee-Tronic Feedback diagnostic Indicators
- PID Style Control
- Error codes to aid in troubleshooting
- Shut off contacts to close the valve by opening a remote switch or contact
- Three Alarm contacts that cam be programmed for various alarm types
- Built in set-point generator which allows the unit to function from and internal setpoint
