Product Description
Waukee Engineering L-9 Flowmeter - Nitrogen - 0-18000 CFH

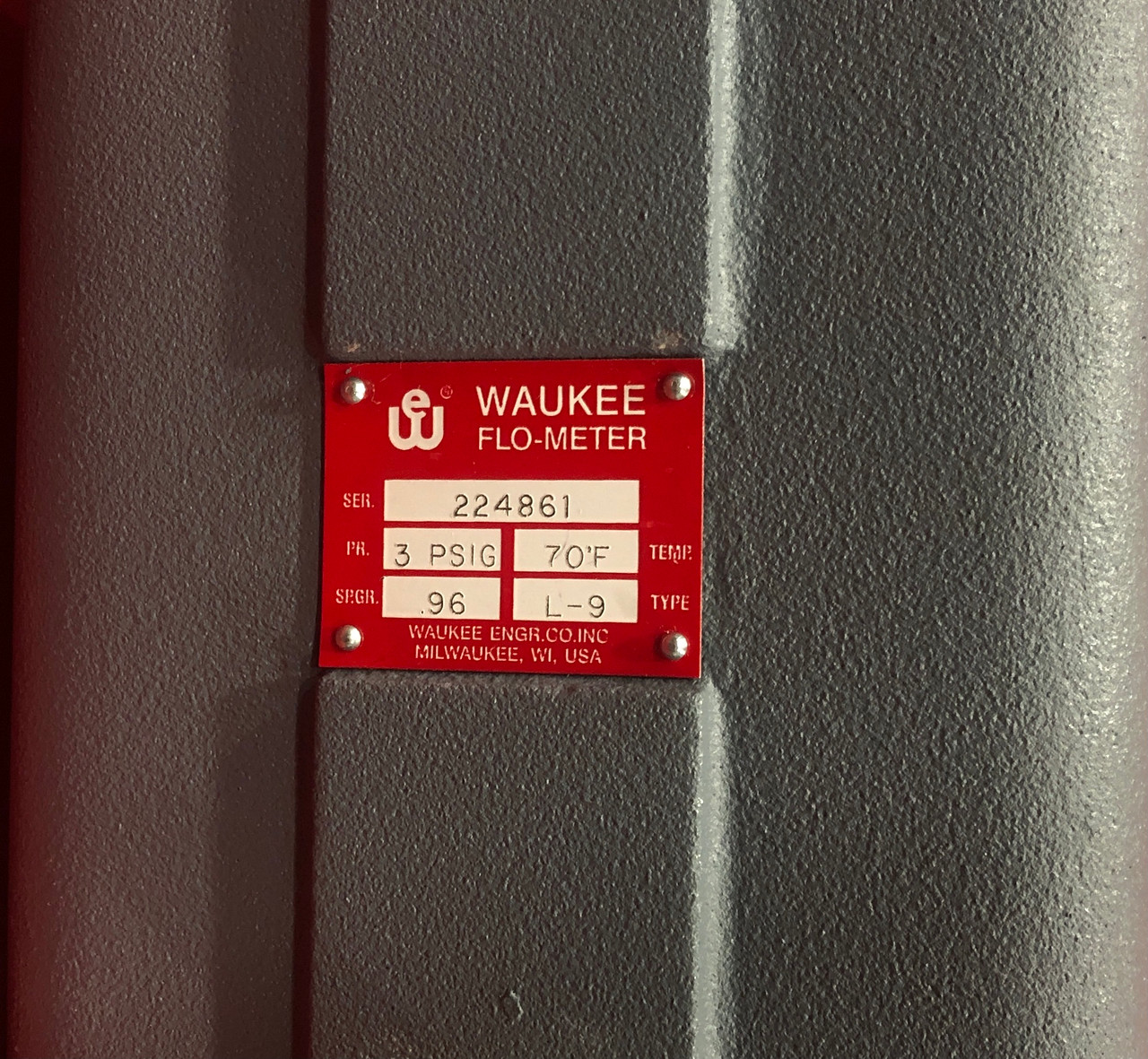

P.R.: 3 PSIG
Temp: 70°F
S.P.G.R.: .96 (Nitrogen)
Type: L-9

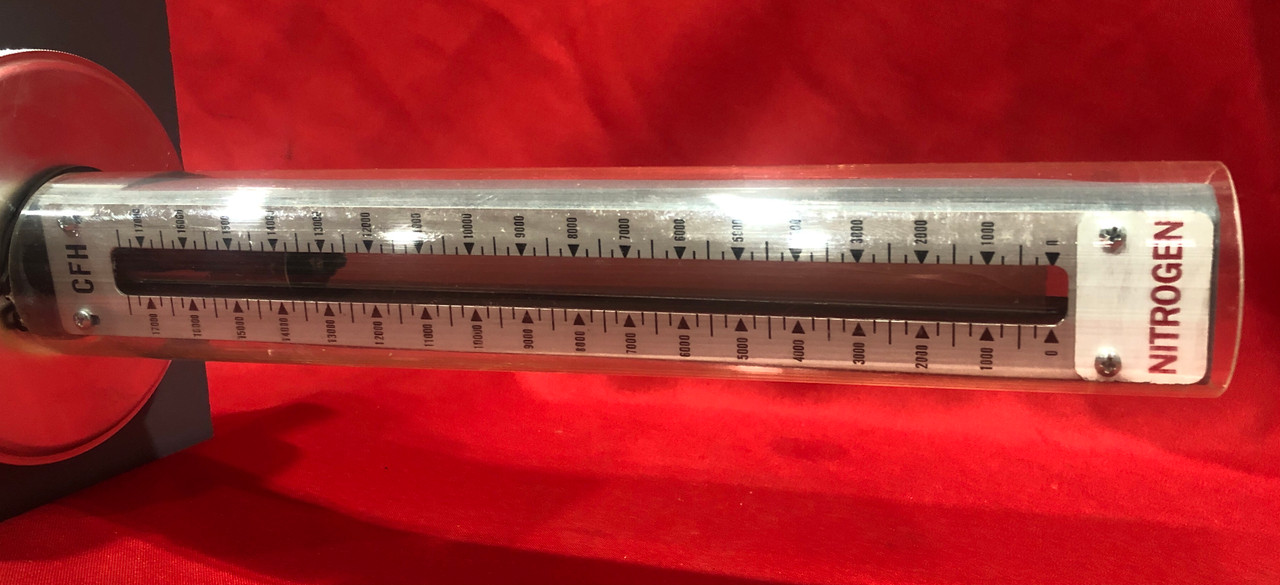

Scale: 0-18000 CFH
Adjustable: No
Inlet/Outlet: 4" NPT
Height Center to Center for Piping: 16.25"
Height without Manual Valve: 36.38"
Width: 6.25"
The Waukee Flo-Meter™ is a precision instrument. Its machined aluminum structure assures reliable performance and long service life. The patented float rod assembly is the meter’s only moving part. Each Flo-Meter is calibrated to VDE/VDI 3513 of reading in Waukee’s ISO/IEC17025:2005 accredited laboratory.
Accurate Flow Measurement
Visual Indication of Flow
Low Maintenance
ACCURACY
The accuracy of the Waukee Flo-Meter™ is built-in by the individual calibration of each meter for the specific gas, pressure, temperature and rate of flow required. Every Waukee Flo-Meter is calibrated to within +/- 3.50% of actual flow reading.
