Product Description

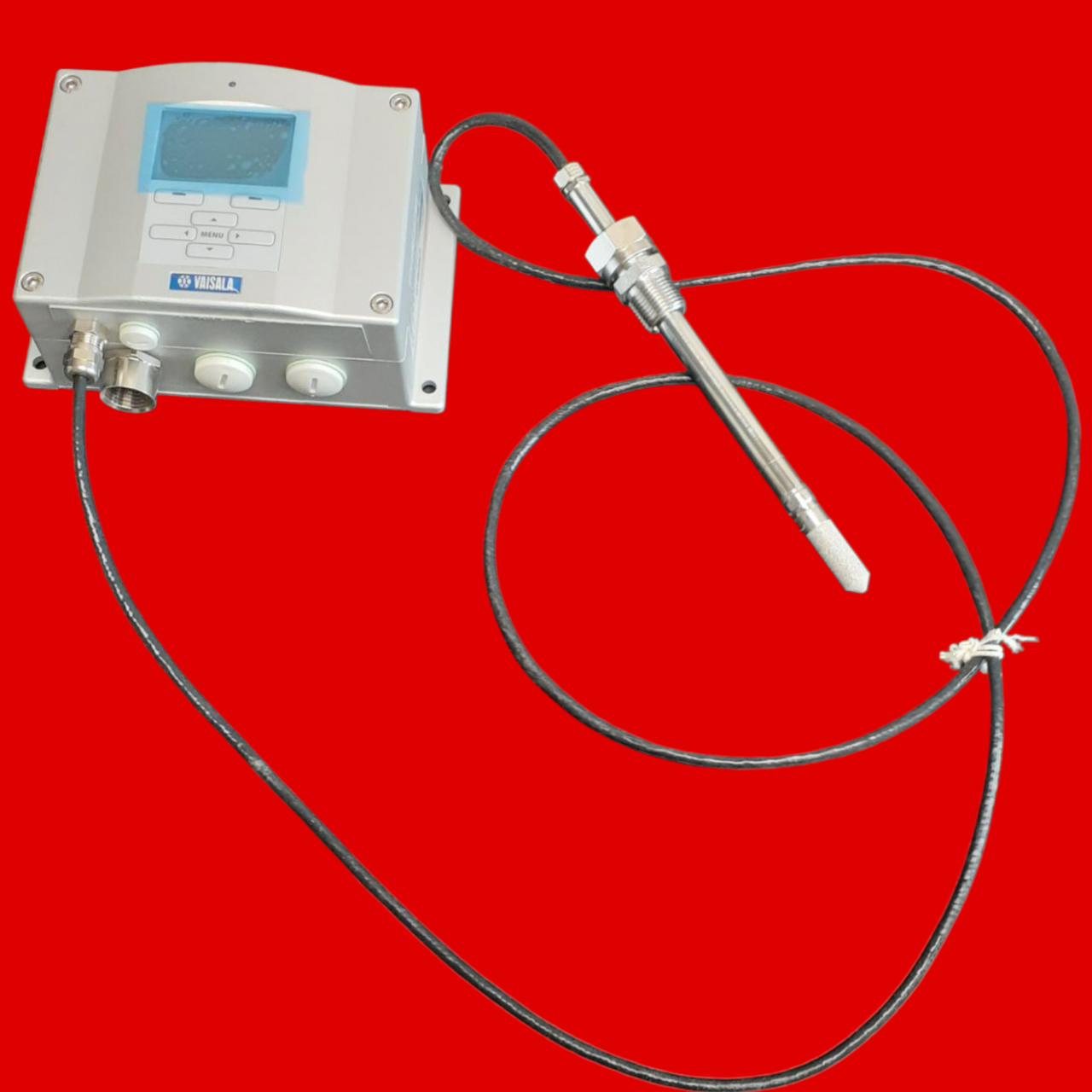

Vaisala DMT348 Dew Point and Temperature Transmitter
The Vaisala DMT348 Dewpoint and Temperature Transmitter is a stable and reliable transmitter especially suitable for desiccant dryer monitoring. The stability is due to a unique auto-calibration function. During auto-calibration the transmitter performs a calibration and adjustment automatically while the measured process is still running.
- Vaisala DRYCAP® Dewpoint and Temperature Transmitter: DMT340
- Transmitter type: DMT348
- Probe cable length: 2 m cable (6.6 ft) for standard probe
- Measurement parameters: Dewpoint + ppm + mixing ratio + relative humidity + temperature (For T= 0...80 °C)

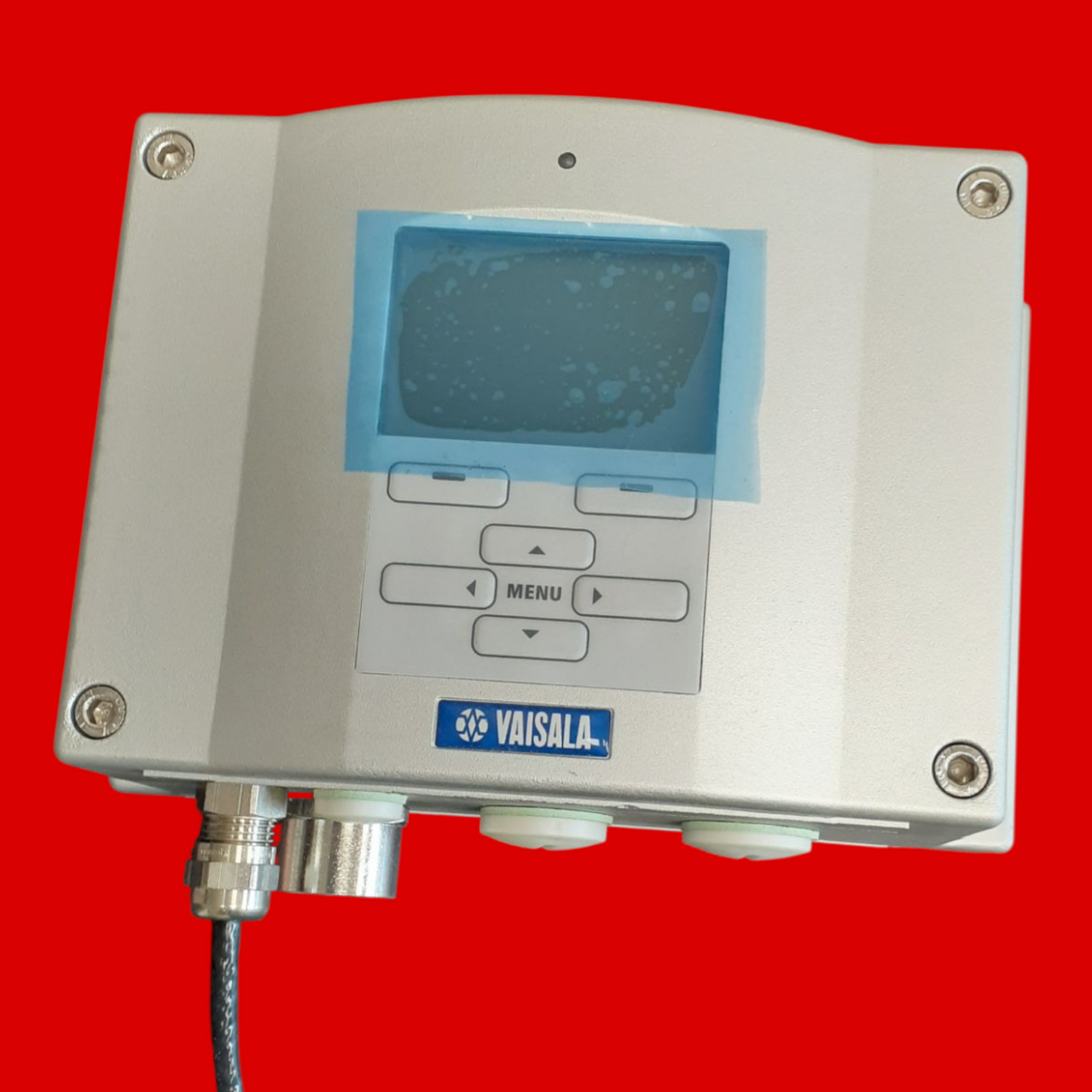

- Display: Graphical display with keypad
- Power supply: 10...35 VDC, 24 VAC
- Analog output: 4... 20 mA
- Channel 1: Td/f ( -58...+122 °F)
- Channel 2: (+32...+176 °F)
- Operating pressure: 1 bar (abs) (14.5 psi abs)
- Output units: Non-metric units
- Additional feature: None
- Additional feature 2: None
- Interface cable connection: Conduit fitting for wire conduit (NPT1/2")
- Transmitter housing installation: Wall mounting

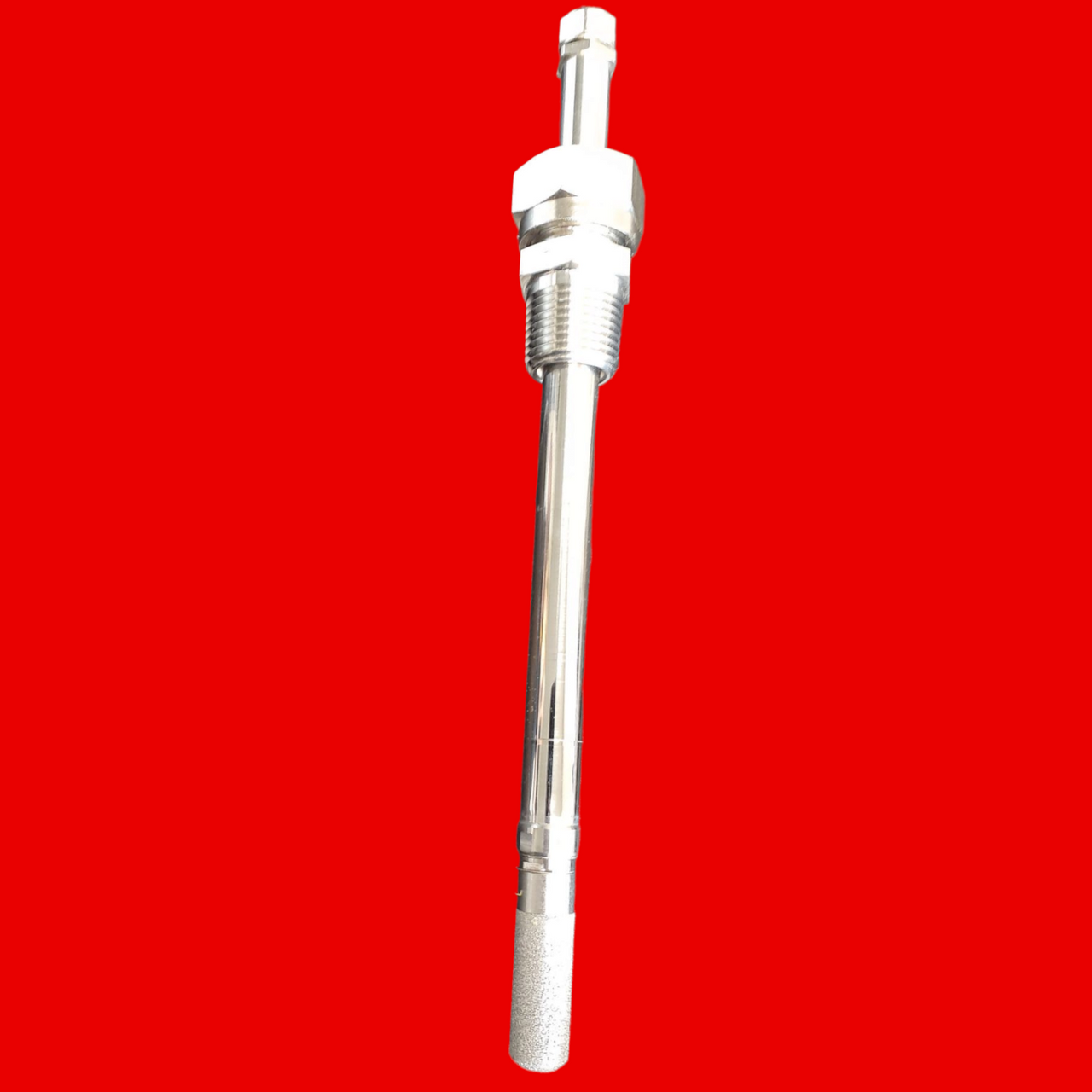

- Sensor: DRYCAP® 180M
- Sensor protection: Sintered stainless steel filter
- Probe installation accessories: Fitting body NPT1/2" (no leak screw)
- User's guide: English
- PC accessory: None
