Product Description

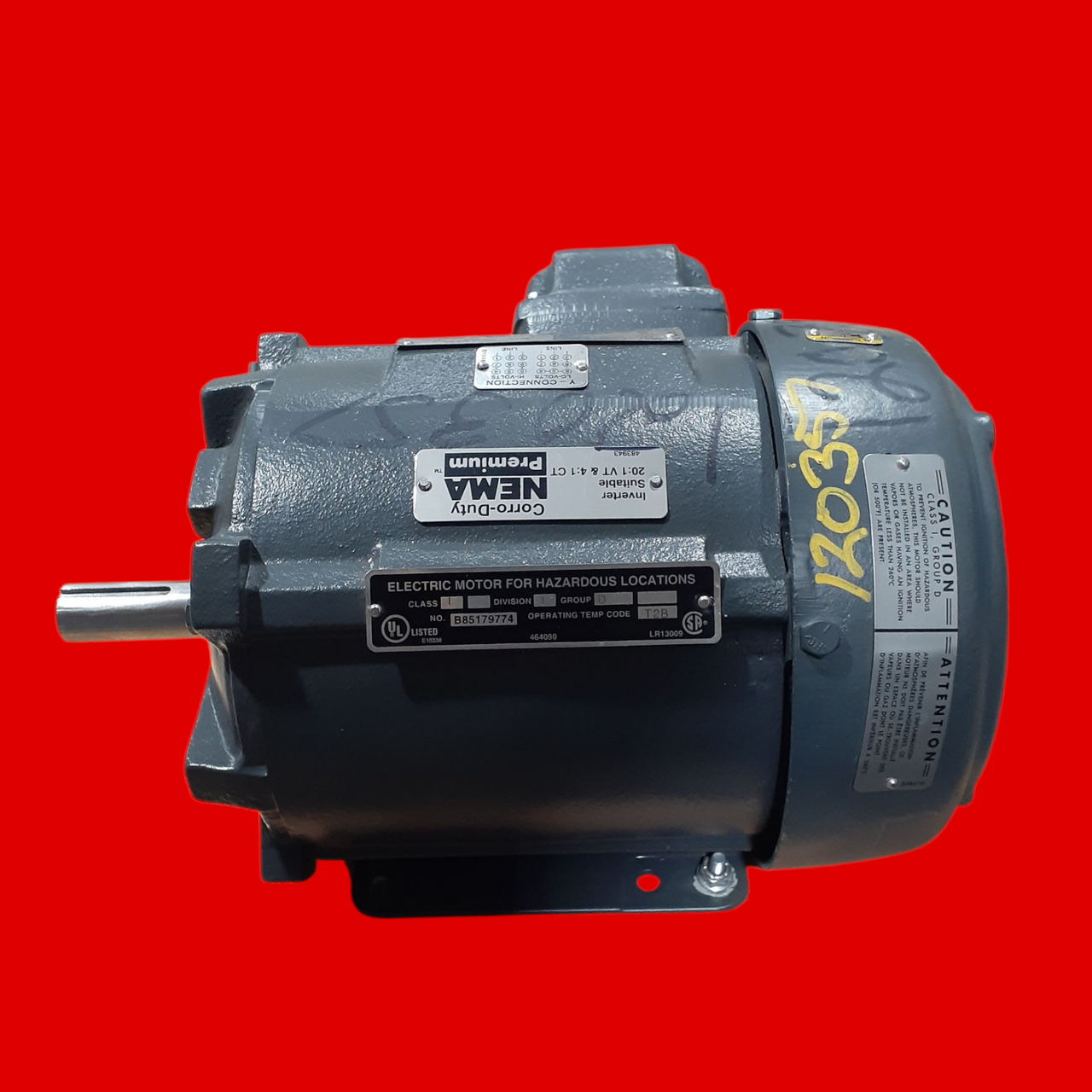

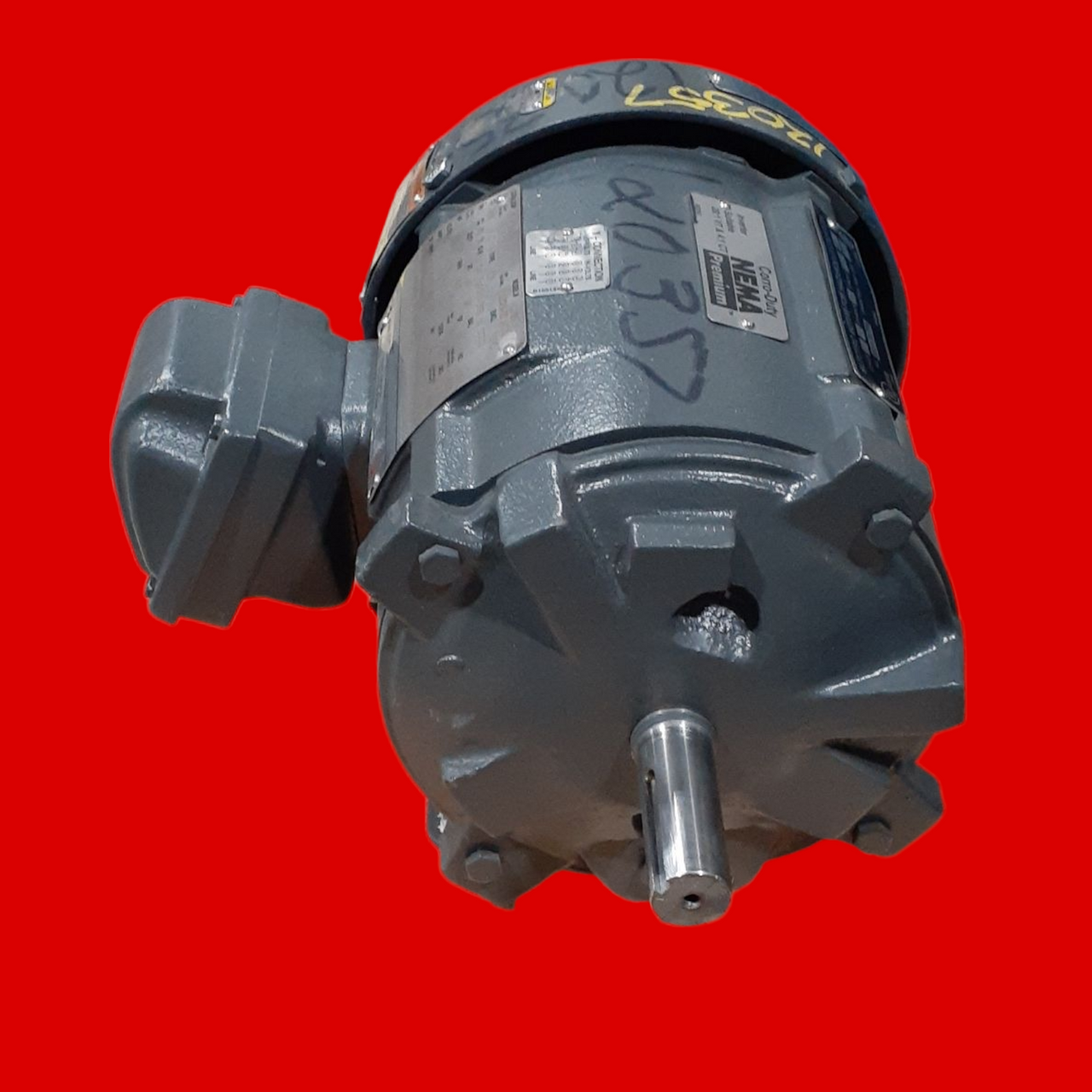

US Motors (Nidec) YC1P3B Explosion Proof / Hazardous Location Motor - 1 HP, 1200 RPM, 3 PH, 230/460 V, 145T Frame, TEFC
PN: YC1P3B
- Motor Phase: 3 ph
- Motor Horsepower: 1 hp
- Synchronous Rpm: 1200 rpm
- Motor Supply Voltage: 230/460 V
- Frame Size: 145T
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating: 60 Hz
- Base RPM: 1160 rpm
- Duty Condition Type: Continuous Duty
- Mounting Type: Horizontal / Foot
- Full Load Current: 3.80 / 1.90 A
- Full Load Efficiency: 82.5 %
- Motor Poles: 6
- Shaft Diameter: 0.8750 in
- Overall Length C Dimension: 13 in
- NEMA Design Class: B
- Service Factor: 1.15
- Frame Material: Cast Iron
- Insulation Class: F
- Standards Met: EE, NEMA Premium
- Weight: 80 lbs
- Model: CP21
