Product Description

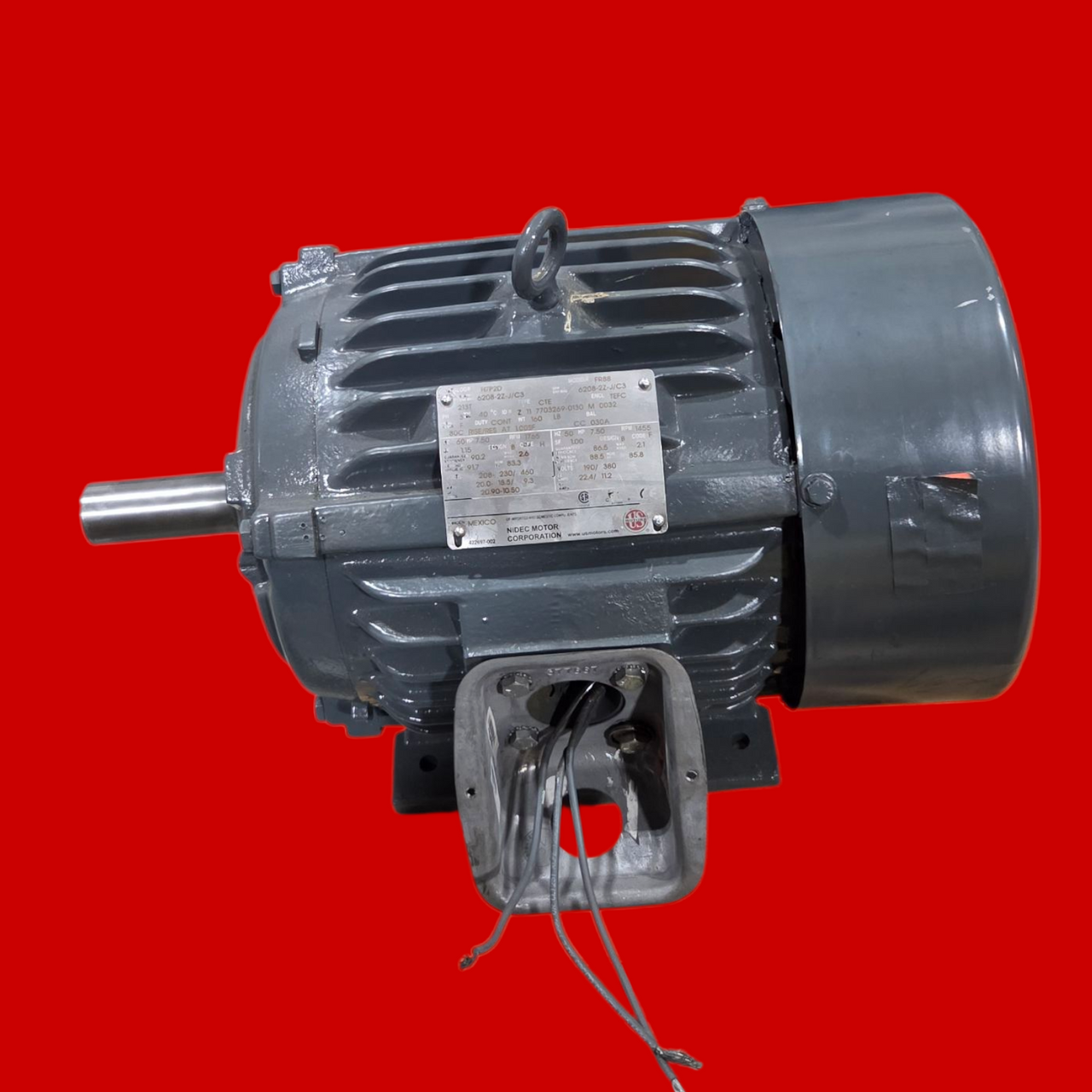

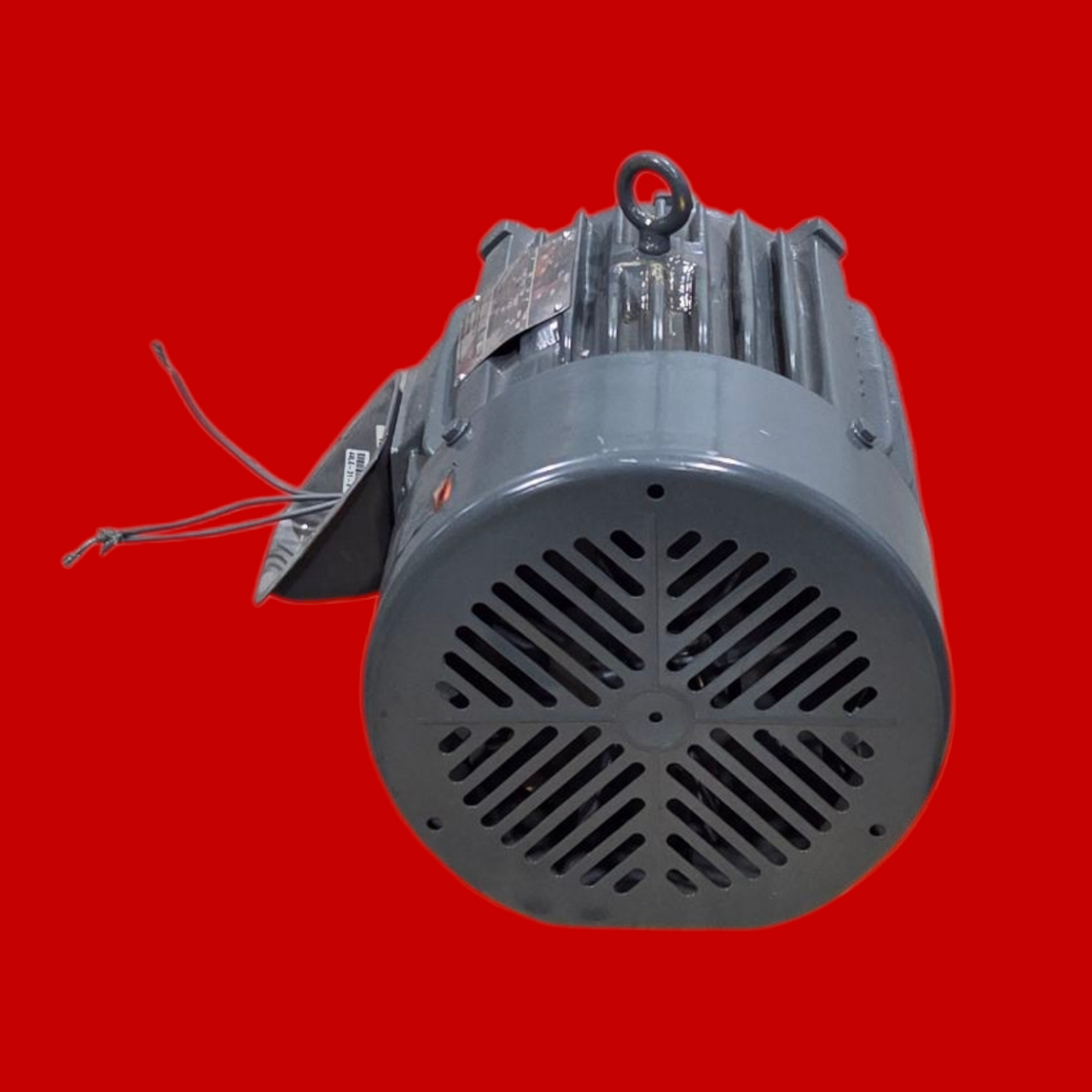

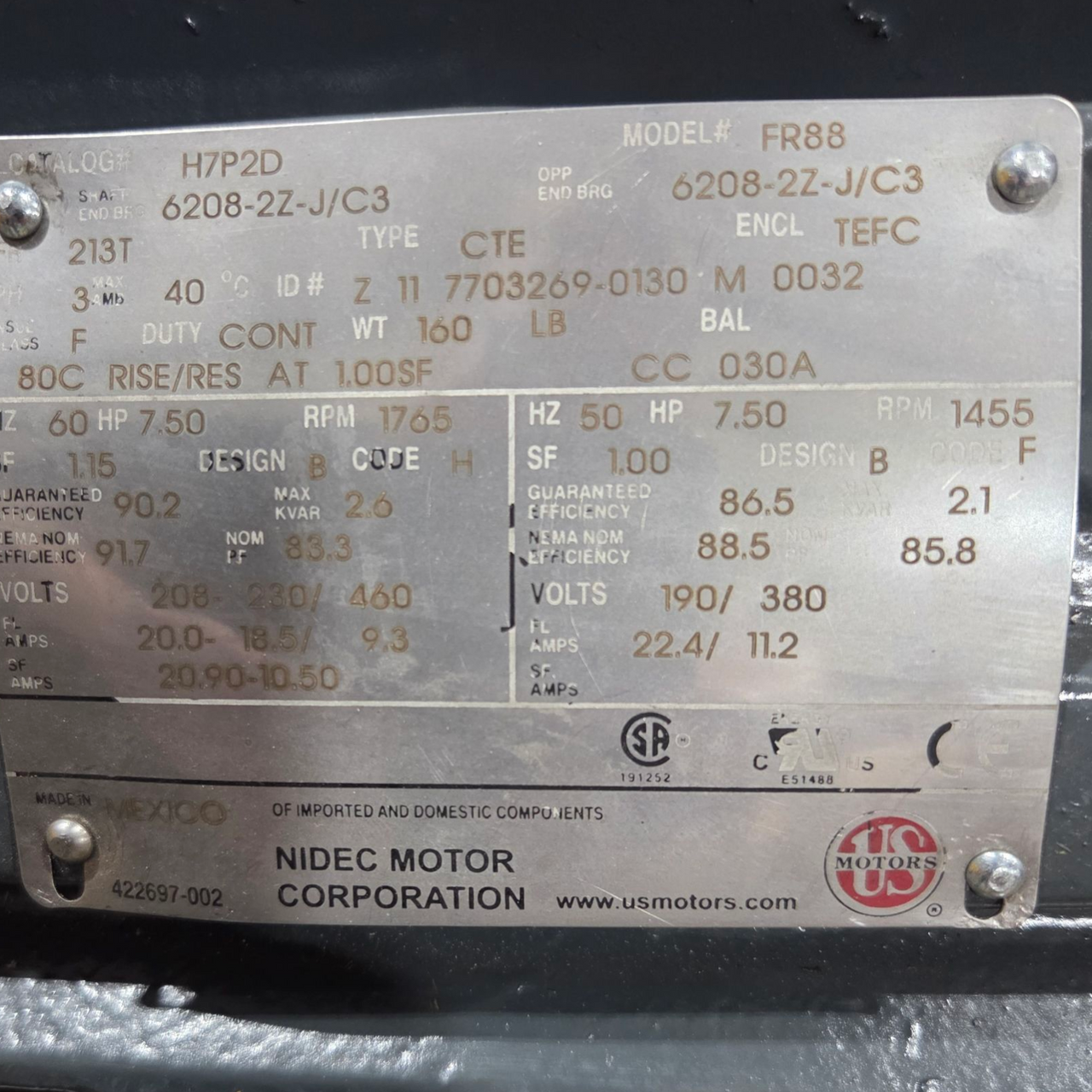

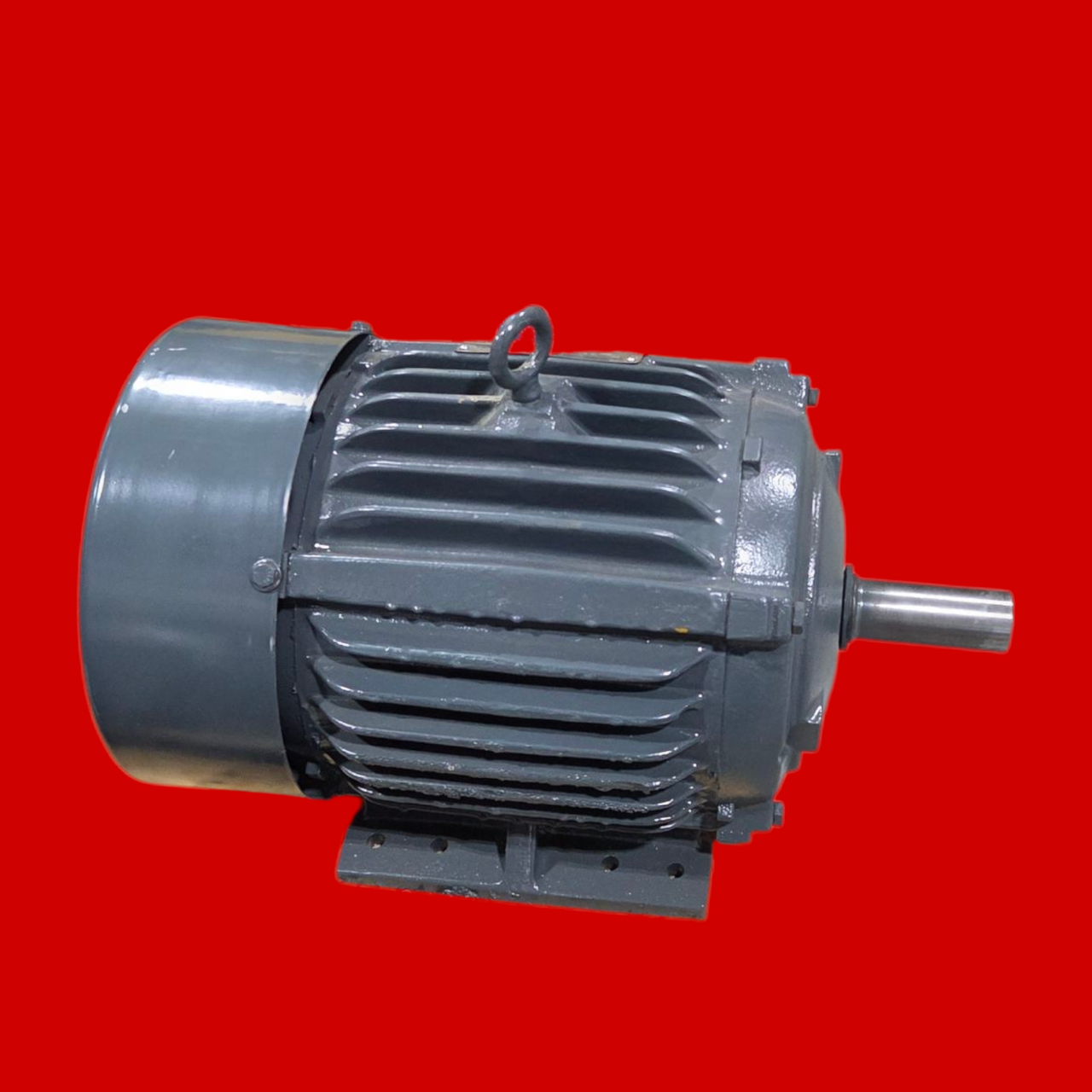

US Motors NIDEC Model FR88 Severe Duty Motor - 7-1/2 hp, 1800 rpm, 3 ph, 190/380//208-230/460 V, 213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, 1455 rpm - 1765 rpm Base, Horizontal / Foot Mount, Continuous Duty, H7P2D
PN: H7P2D
- Motor Phase: 3 ph
- Motor Horsepower: 7-1/2 hp
- Synchronous Rpm: 1800 rpm
- Motor Supply Voltage: 190/380//208-230/460 V
- Frame Size: 213T
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating: 50/60 Hz
- Base RPM: 1455 rpm - 1765 rpm
- Duty Condition Type: Continuous Duty
- Mounting Type: Horizontal / Foot
- Full Load Current: 20.00–18.50 / 9.30 A
- Full Load Efficiency: 91.7 %
- Motor Poles: 4
- Shaft Diameter: 1.3750 in
- NEMA Design Class: B
- Service Factor: 1.15
- Frame Material: Cast Iron
- Insulation Class: F
- IP Rating: 54
- Standards Met: EE, NEMA Premium
- Weight: 163 lbs
- Applications: Chemical Plants, Foundries, Mines, Pulp & Paper Plants, Saw Mills, Waste Management Facilities
- Model: FR88
- Motor Category: General Severe Duty Motor
- Max Allowable Current: 9.3 A, 11.1 A, 18.6 to 20.1 A, 22.2 A
- Product Types: AC Motors
- Torque: 22.3 ft-lbs
- Opposite Drive End Bearing: 6208-2Z-J/C3
