Product Description

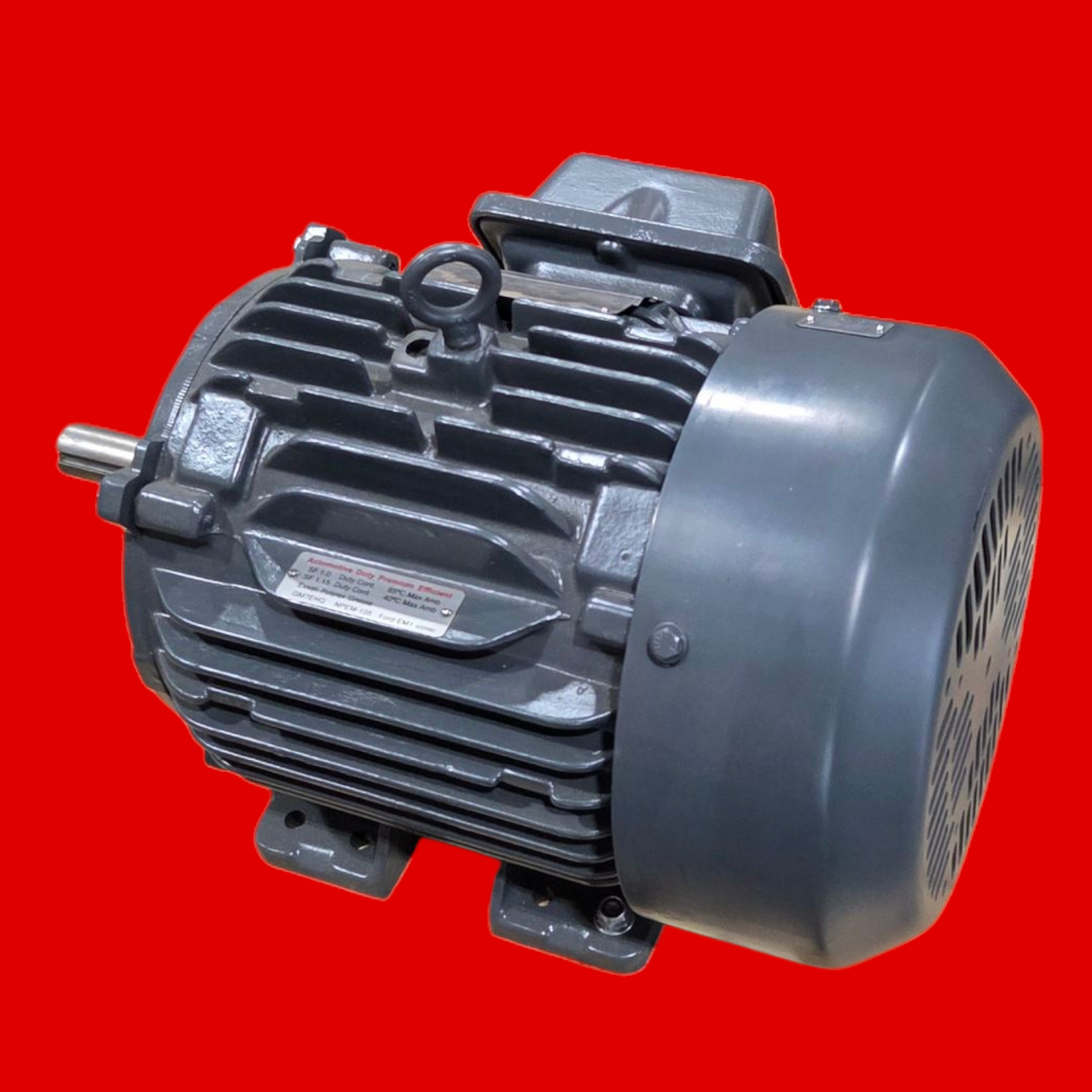

US Motors NIDEC A5P1C Automotive Duty Motor - 5 hp, 3600 rpm, 3 ph, 460 V, 213 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3535 rpm Base, Horizontal / Foot Mount, Continuous Duty

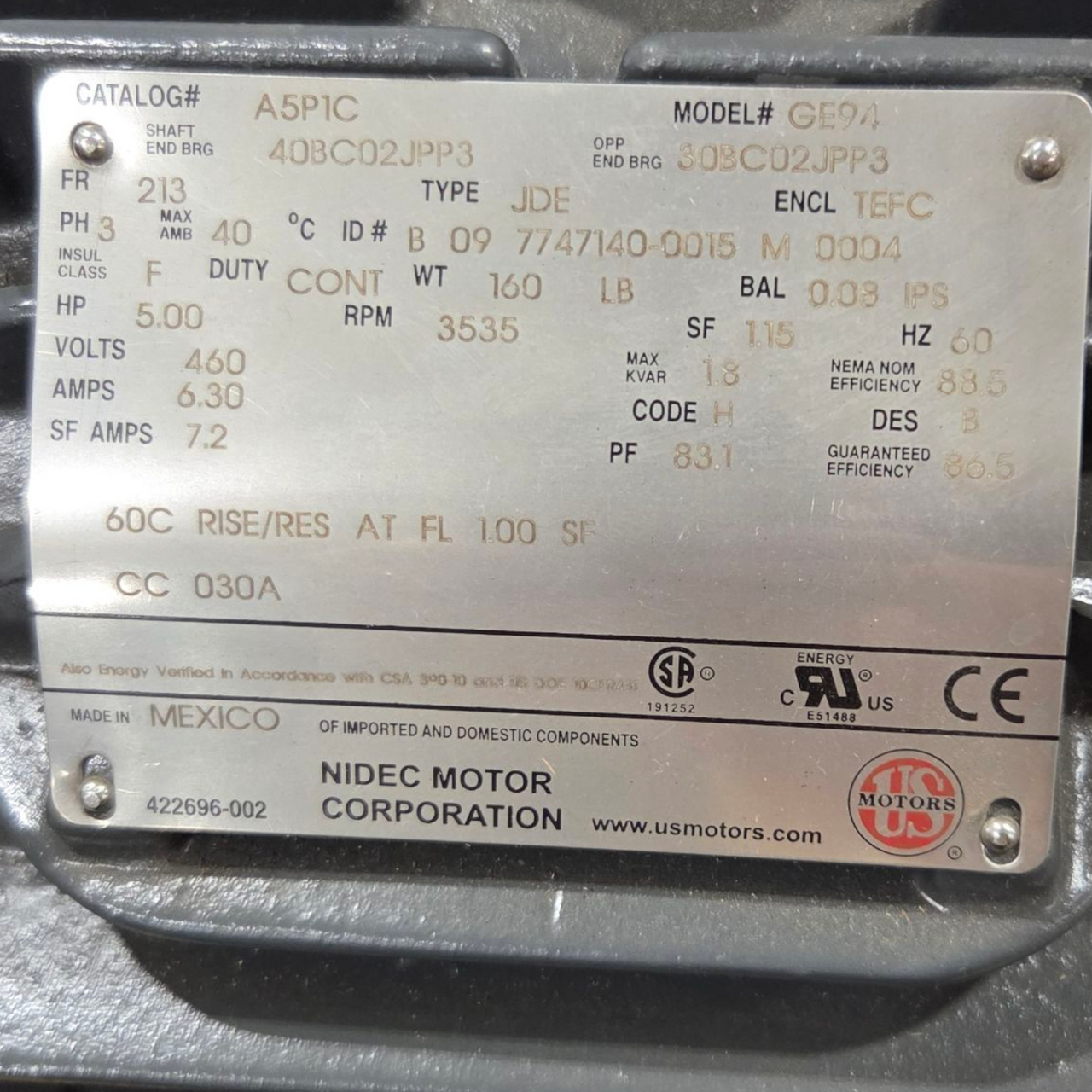

PN: A5P1C
- Motor Phase: 3 ph
- Motor Horsepower: 5 hp
- Synchronous Rpm: 3600 rpm
- Motor Supply Voltage: 460 V
- Frame Size: 213
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating: 60 Hz
- Base RPM: 3535 rpm
- Duty Condition Type: Continuous Duty
- Mounting Type: Horizontal / Foot
- Full Load Current: 6.60 A
- Full Load Efficiency: 88.5 %
- Motor Poles: 2
- Shaft Diameter: 1.1250 in
- Type Of Bearing: 40Bc02Jpp3
- NEMA Design Class: B
- Service Factor: 1.15
- Frame Material: Cast Iron
- Insulation Class: F
- IP Rating: 54
- Standards Met: EE, NEMA Premium
- Weight: 160 lbs.
- Applications: Automotive, Process Industries
- Model: GE94

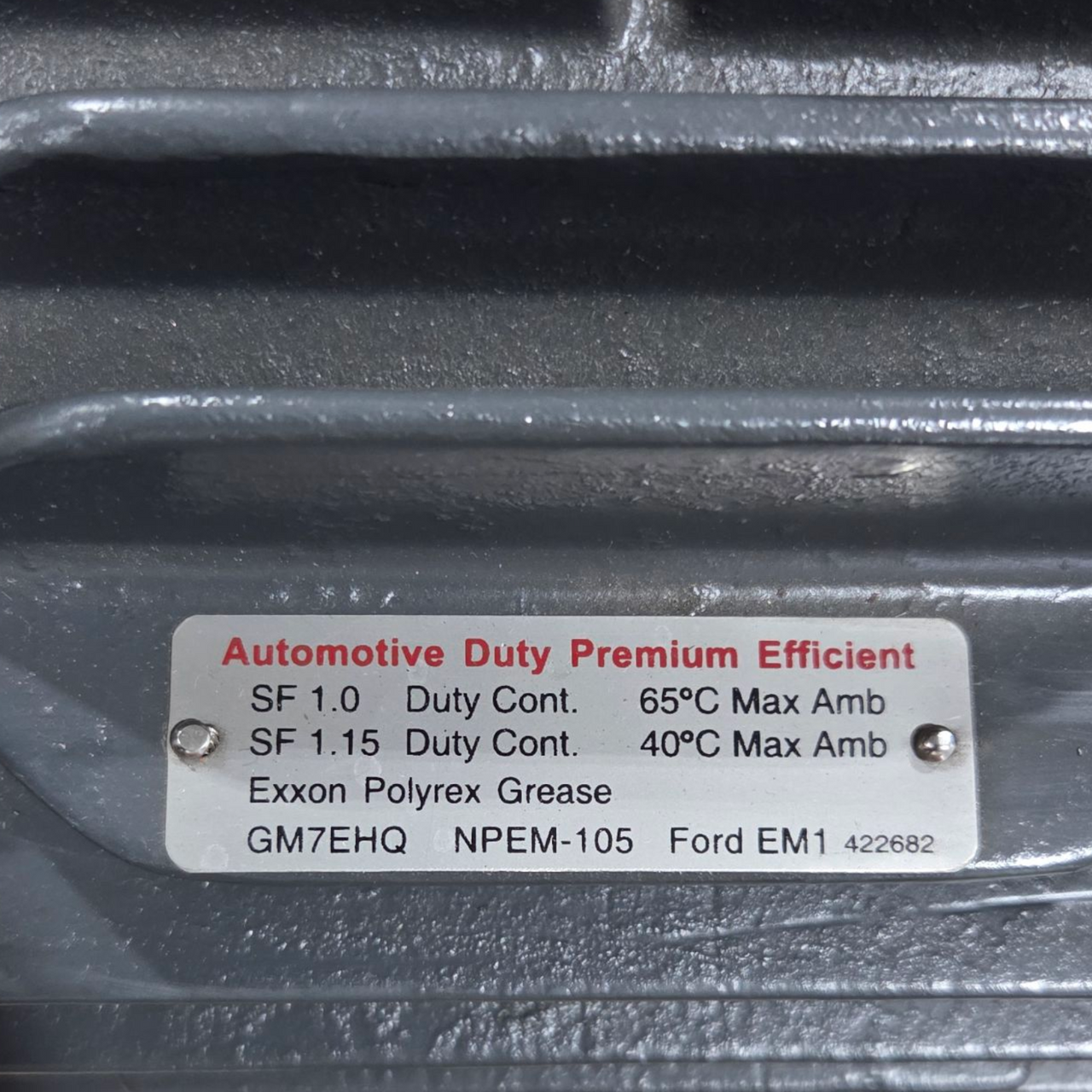

- Motor Category: Automotive Duty Motor
- Max Allowable Current: 6.3 A
- Product Types: AC Motors
- Torque: 7.4 ft-lbs
- Opposite Drive End Bearing: 30BC02JPP3
