Product Description

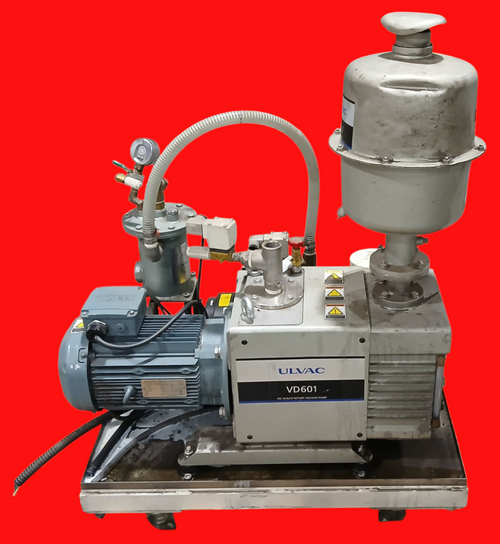

Ulvac Oil Sealed Rotary Vacuum Pump VD601 W/ Ulvac Oil Mist Trap TM-2
Ulvac Oil Sealed Rotary Vacuum Pump VD601:
- Designed Pumping Speed @50Hz. m³/h: 60
- Designed Pumping Speed @50Hz. L/min:1000
- Designed Pumping Speed @50Hz. CFM: 35.31
- Designed Pumping Speed @60Hz. m³/h: 72
- Designed Pumping Speed @60Hz. L/min:1200
- Designed Pumping Speed @60Hz. CFM: 42.38
- Ultimate Pressure *1 GP Close Pa: 0.67
- Ultimate Pressure *1 GP Close Torr: 5x10-3
- Ultimate Pressure *1 GP Close mbar: 6.7×10-3
- Ultimate Pressure *1 GP Open Pa: 2
- Ultimate Pressure *1 GP Open Torr: 1.5x10-2
- Ultimate Pressure *1 GP Open mbar: 2.0×10-2
- Motor *2 Type: Drip-Proof Protected Flange Motor
- Motor *2 Type kw(Number of Poles): 2.2(4)
- Motor *2 Type HP(Number of Poles): 2.95(4)
- Motor *2 Voltage/Frequency *3: 220V-240V/380V-415V (50Hz); 208V-240V/380V-46+0V (60Hz)
- Oil Capacity: 2.5 to 4.0 L
- Cooling Method: Air Cooled
Ulvac TM-2 Oil Mist Trap
- Maximum procession flow m3 /h *1: 96
- Maximum procession flow (L/min): (1600)
Ulvac GLD-201A Vacuum Pump
- Pumping Speed @ 50Hz.: 200 L/min
- Pumping Speed @ 60Hz.: 240 L/min
- Ultimate Pressure: 6.7x10-2 Pa
- Oil Capacity: 1100mL
- Phase: 3
- Voltage: -200-240/380-460V
Osaka Air Machine Trap T-100
- Volume: 1.5L
